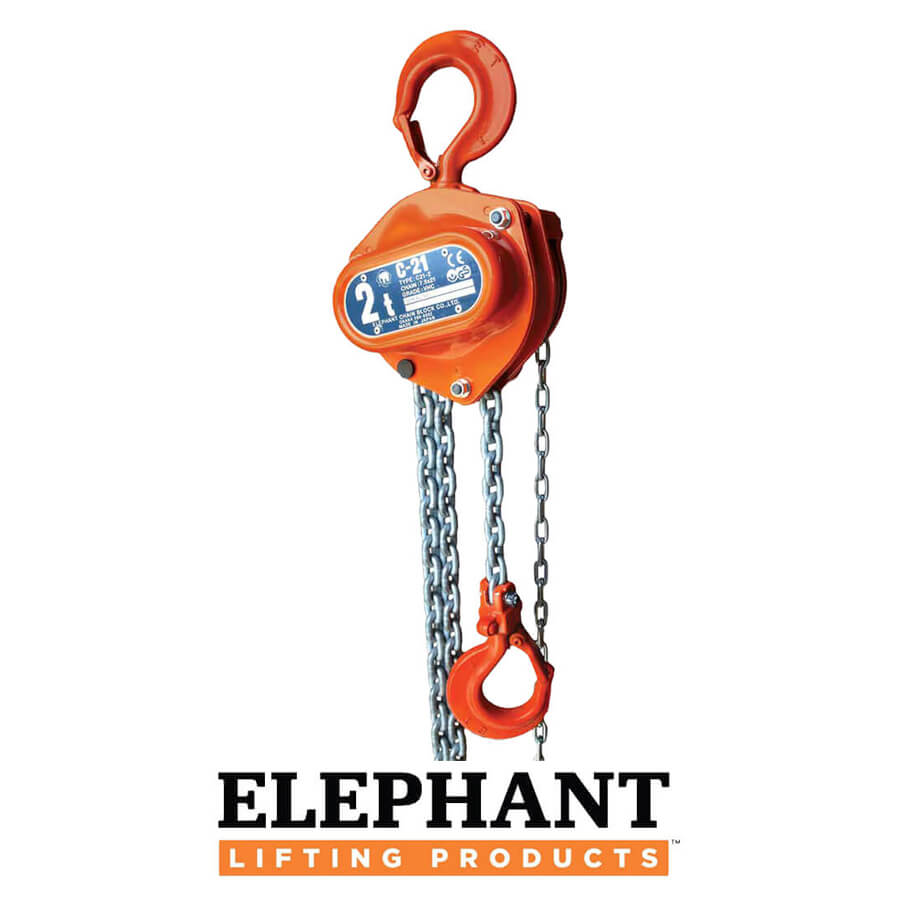

Elephant C-21 Manual Chain Hoist

• Grade 105 galvanized load chain, which adheres to the strict German DIN 5684 standard
• Zinc plated hand chain
• Heavy duty frame
• Lightweight lifting capacity ratio, a 1 ton unit with 10’ lift weighs 20% less than other Japanese hoists
• Long lasting friction discs
• Extremely wear resistant
• Load chain, hooks, and braking parts have a safety factor of 4+ times. 0.5t ~ 1t units have a safety factor of 5+ times.
• Durable powder coat finish

WARNING: Elephant’s original long-life chain must be used for this hoist!


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Model Max working load (lbs) Max working load (mt) Standard Lift (ft) Manufacturer’s Test Load Headroom (in) Dim. A Hand Effort to Lift Full Working Load (lbf) Load Chain Hand Chain Net Weight (lbs)
Dia. X Pitch (mm) No. of Falls Dia. X Pitch (mm)
C21-0.5 1100 0.5 10 150% Max. working load 10.9 57.3 4.3 x 12 1 4.5 x 23.0 15
C21-1 2200 1 10 150% Max. working load 12.2 70.6 5.6 x 17 1 4.5 x 23.0 22
C21-1.5 3500 1.5 10 150% Max. working load 13.4 72.8 6.5 x 19 1 4.5 x 23.0 28
C21-2 4400 2 10 150% Max. working load 15 72.8 7.5 x 21 1 4.5 x 23.0 37
C21-3 6600 3 10 150% Max. working load 18.9 83.8 6.5 x 19 2 4.5 x 23.0 43
C21-5 11000 5 10 150% Max. working load 21.9 74.9 7.5 x 21 3 4.5 x 23.0 75

Capacity (lbs) A B C D E F G H I N
C21-0.5 10.9 5.2 2.2 3 4.8 1.2 1.4 0.63 0.51 0.95
C21-1 12.2 5.7 2.4 3.3 5.8 1.4 1.7 0.87 0.63 1.2
C21-1.5 13.4 6 2.7 3.3 6.6 1.4 1.7 1 0.83 1.2
C21-2 15 6.5 3 3.5 7.6 1.7 2.1 1.2 0.87 1.4
C21-3 18.9 9 2.7 3.3 8.2 1.7 2.1 1.4 1.1 1.4
C21-5 21.9 6.5 3 3.5 11.7 2.3 2.8 1.8 1.3 1.8

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
