Brands |
DBI-SALA® |
|
Case Quantity |
1 |
|
Connected Safety ID Equipped |
No |
|
Install Type |
Temporary/Portable |
|
Lifeline Material |
Order separately |
|
Maximum Number of Workers |
2 |
|
Recommended Industry |
Construction, General Industrial, Oil & Gas, Transportation |
|
Span Type |
Single-Span |
|
Specifications Met |
OSHA 1910.66, OSHA 1926.502 |
|
Weight (Imperial) |
8.7 lb. |
|
Weight Capacity |
310 lbs. (141 kg) |
|
Weight Capacity (Imperial) |
310 lb. |
|
Weight Capacity (Metric) |
141 kg |
The 3M™ DBI-SALA® Metal Energy Absorber Kit with Shackles, Tensioner, and Lifeline Fasteners helps keep your crew safe, productive, and more comfortable on the job by reducing fall-arrest forces to a safe level, helping your team determine a safe and secure lifeline tension, and properly installing their horizontal lifeline.
A convenient, fall protection kit, designed to be used with 3M™ DBI-SALA® horizontal lifeline systems, the 3M™ DBI-SALA® Metal Energy Absorber Kit with Shackles, Tensioner, and Lifeline Fasteners helps reduce forces to a safe level in the event of a fall, takes the guesswork out of installation with the convenient tensioner, and provides the correct hardware to mount your lifeline.

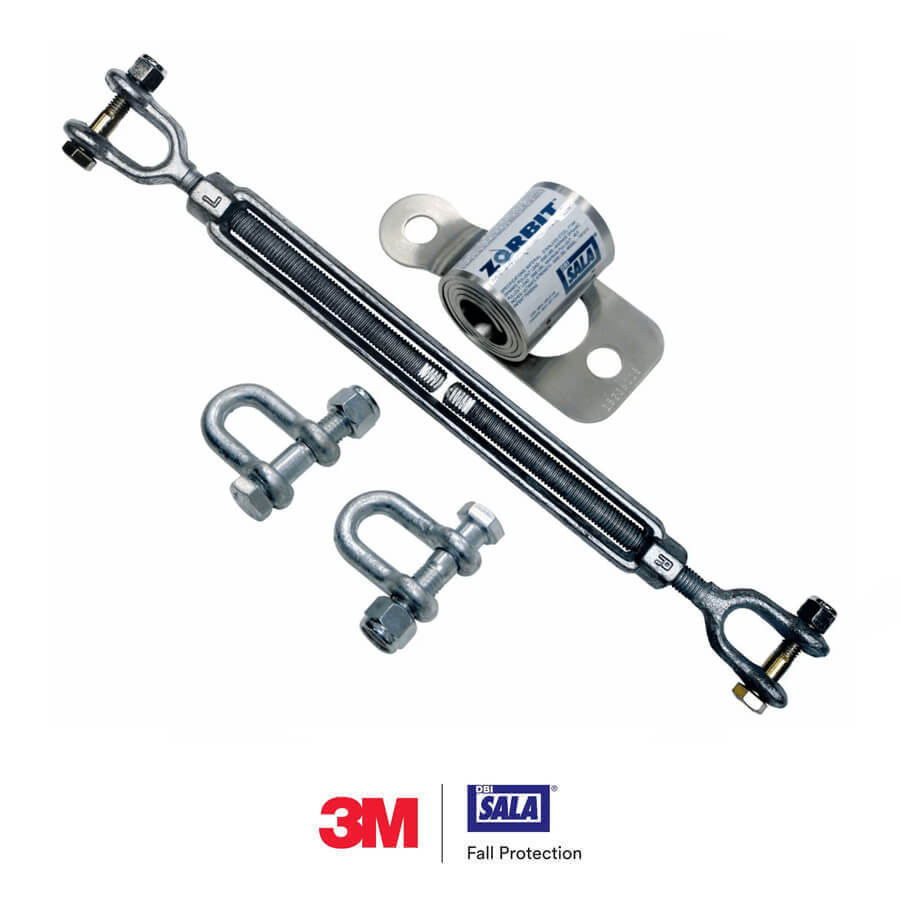

Simple setup, designed to be easy to use, this fall-arrest mounting kit includes a Metal Energy Absorber, three shackles and fasteners, two thimbles, and four cable clips for quick installation. The turnbuckle tensioner helps you find a safe and secure lifeline tension, giving your crew peace of mind on the job.
Reliable fall protection, 3M™ DBI-SALA HLL systems are precision-engineered and tested to meet OSHA regulations and help ensure that you and your team are protected on the job, day in and day out.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
WLL range 1 – 2 persons Non-removable special bolt
WLL range 1 – 2 persons Non-removable special bolt
WLL range 1 – 2 persons Ring body and bolt made from stainless steel Non-removable special bolt
Large WLL range 1.5 t – 16 t Functionally optimized shape of the suspension ring for better support at side loading and protection of the clamping spring WLL possible up to 90° in load ring plane
