Anchorages are sold by what they connect to (general/all purpose, steel, concrete, roof or specialty), whether they are fixed or mobile, and whether they are permanent or portable.
They all must provide a secure point of attachment for a complete personal fall arrest system, and must be capable of supporting a load of 5,000 lbs. (22kN) or of meeting OSHA’s criteria of a 2 to 1 safety factor.
|
Anchor Install Type |
Reusable |
|
Anchor Type |
Roofing |
|
Attachment Type |
Nail/Screw |
|
Brands |
DBI-SALA® |
|
Case Quantity |
1 |
|
Connected Safety ID Equipped |
No |
|
Dimensions |
17.00×0.60×4.00in |
|
Install Type |
Reusable |
|
Material |
Steel |
|
Product Color |
Yellow Zinc |
|
Product Type |

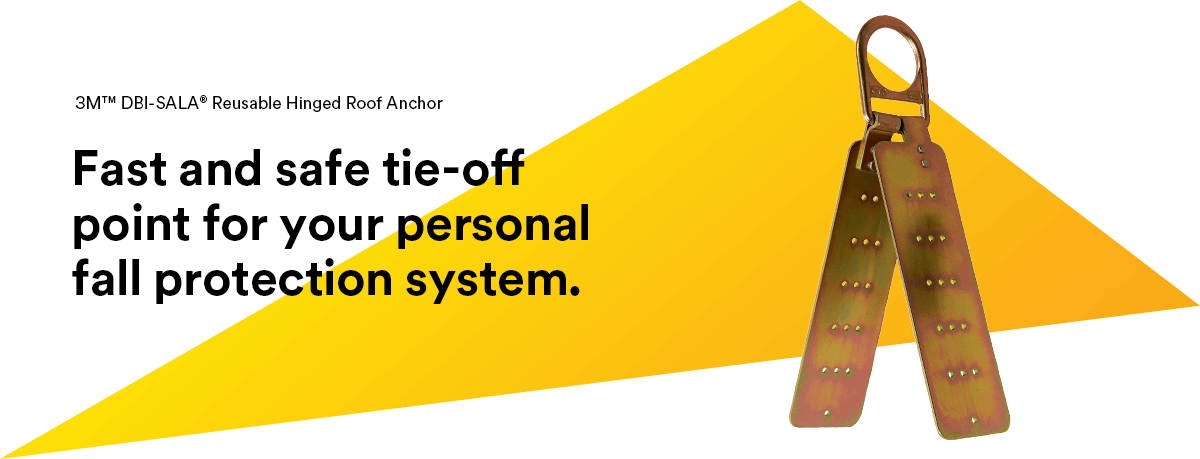

Reusable Hinged Roof Anchor |
|
Recommended Industry |
Construction, General Industrial, Mining, Oil & Gas |
|
Specifications Met |
OSHA 1910.140, OSHA 1926.502 |
|
Weight (Imperial) |
3 lb. |
|
Weight Capacity |
310 lbs. (141 kg) |
|
Weight Capacity (Imperial) |
310 lb. |
|
Weight Capacity (Metric) |
141 kg |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
WLL range 1 – 2 persons Non-removable special bolt
WLL range 1 – 2 persons Non-removable special bolt
WLL range 1 – 2 persons Ring body and bolt made from stainless steel Non-removable special bolt
Large WLL range 1.5 t – 16 t Functionally optimized shape of the suspension ring for better support at side loading and protection of the clamping spring WLL possible up to 90° in load ring plane
