Each leg adjusts to accommodate any size load or lift point arrangement. Lifts can be made safely on any 2 legs, 3 legs, or all 4.
RUD PSA-VRS UNC Fall Protection Anchorage Point
WLL range 1 – 2 persons Non-removable special bolt
Categories

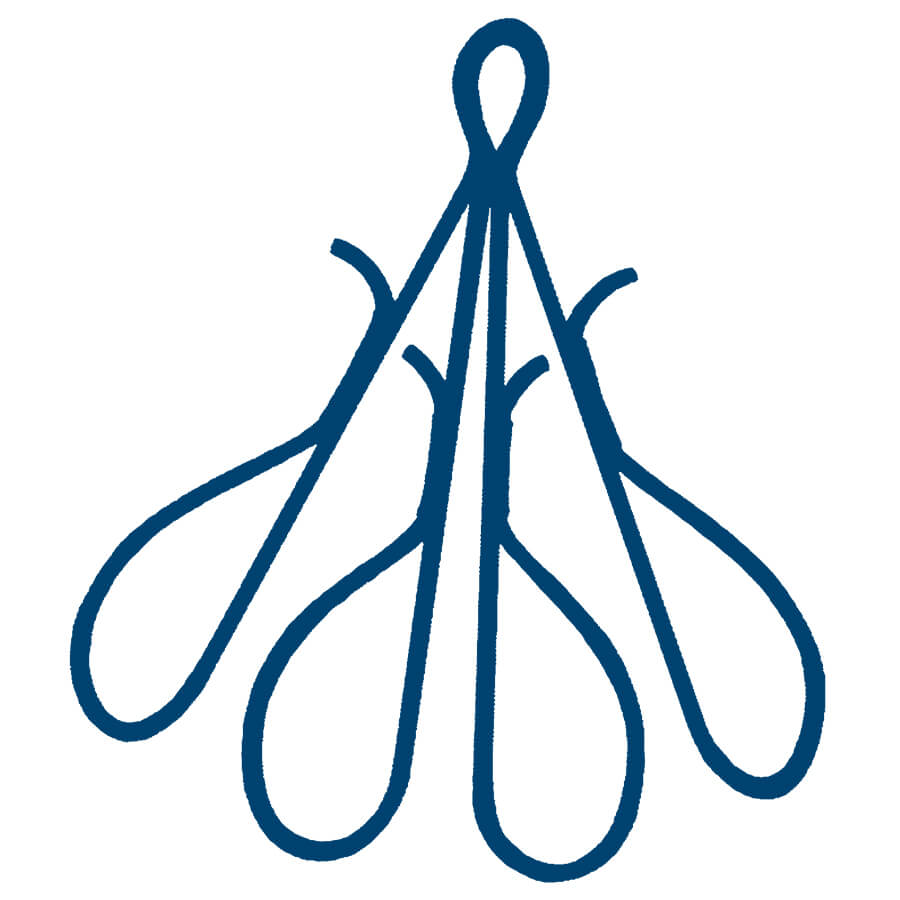

4-Leg Adjustable Fiber Rope Slings
| 12 Strand Polyester | 12 Strand Polyester / Polyolefin | |||||
| CERTEX Cat. Ref. No | Diam. | Rating | Min. Length | CERTEX Cat. Ref. No | Rating | Min. Length |
| CX09-0078 | 3/8 | 3,150 | 24″ | CX09-0085 | 2,350 | 24″ |
| CX09-0079 | 7/16 | 4,750 | 28″ | CX09-0086 | 3,150 | 28″ |
| CX09-0080 | 1/2 | 6,600 | 32″ | CX09-0087 | 4,450 | 32″ |
| CX09-0081 | 5/8 | 9,600 | 38″ | CX09-0088 | 7,650 | 38″ |
| CX09-0082 | 3/4 | 12,650 | 46″ | CX09-0089 | 8,950 | 46″ |
| CX09-0083 | 7/8 | 18,700 | 52″ | CX09-0090 | 11,100 | 52″ |
| CX09-0084 | 1 | 22,700 | 60″ | CX09-0091 | 13,200 | 60″ |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
