6×37 Rope Characteristics: Excellent abrasion resistance; less bending fatigue resistance
Typical Applications: Dragging and haulage in mines, inclined planes and tramways, sand lines. IWRC shown; fiber core available
Technical Resources:
| 6 x 37 Classification Rope | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Diameter, in. | Nominal Strength,* Tons (Bright or Drawn Galvanized)† | Approximate Wt./Ft., lb. | ||||||||
| EEIP | EIP | IWRC | Fiber Core | |||||||
| CERTEX Cat. Ref. No. | IWRC | CERTEX Cat. Ref. No. | Fiber Core | CERTEX Cat. Ref. No. | IWRC | CERTEX Cat. Ref. No. | Fiber Core | |||
| 1/4 | — | — | CX01-0113 | 3.40 | CX01-0155 | 3.02 | 0.116 | 0.105 | ||
| 5/16 | — | — | CX01-0114 | 5.27 | CX01-0156 | 4.69 | 0.180 | 0.164 | ||
| 3/8 | — | — | CX01-0115 | 7.55 | CX01-0157 | 6.71 | 0.260 | 0.236 | ||
| 7/16 | — | — | CX01-0116 | 10.2 | CX01-0158 | 9.09 | 0.35 | 0.32 | ||
| 1/2 | CX01-0077 | 14.6 | CX01-0095 | 12.9 | CX01-0117 | 13.3 | CX01-0159 | 11.8 | 0.46 | 0.42 |
| 9/16 | CX01-0078 | 18.5 | CX01-0096 | 16.2 | CX01-0118 | 16.8 | CX01-0160 | 14.9 | 0.59 | 0.53 |
| 5/8 | CX01-0079 | 22.7 | CX01-0097 | 20.0 | CX01-0119 | 20.6 | CX01-0656 | 18.3 | 0.72 | 0.66 |
| 3/4 | CX01-0080 | 32.4 | CX01-0098 | 28.6 | CX01-0120 | 29.4 | CX01-0657 | 26.2 | 1.04 | 0.95 |
| 7/8 | CX01-0081 | 43.8 | CX01-0099 | 39.0 | CX01-0121 | 39.8 | CX01-0658 | 35.4 | 1.42 | 1.29 |
| 1 | CX01-0082 | 56.9 | CX01-0100 | 50.6 | CX01-0122 | 51.7 | CX01-0659 | 46.0 | 1.85 | 1.68 |
| 1 1/8 | CX01-0083 | 71.5 | CX01-0101 | 63.6 | CX01-0123 | 65.0 | CX01-0660 | 57.9 | 2.34 | 2.13 |
| 1 1/4 | CX01-0084 | 87.9 | CX01-0102 | 78.2 | CX01-0124 | 79.9 | CX01-0661 | 71.0 | 2.89 | 2.63 |
| 1 3/8 | CX01-0085 | 106.0 | CX01-0103 | 94.0 | CX01-0125 | 96.0 | CX01-0662 | 85.4 | 3.50 | 3.18 |
| 1 1/2 | CX01-0086 | 125.0 | CX01-0104 | 111.0 | CX01-0126 | 114.0 | CX01-0663 | 101.0 | 4.16 | 3.78 |
| 1 5/8 | CX01-0087 | 146.0 | CX01-0105 | 129.0 | CX01-0127 | 132.0 | CX01-0664 | 118.0 | 4.88 | 4.44 |
| 1 3/4 | CX01-0088 | 169.0 | CX01-0106 | 150.0 | CX01-0128 | 153.0 | CX01-0665 | 136.0 | 5.67 | 5.15 |
| 1 7/8 | CX01-0089 | 192.0 | CX01-0107 | 171.0 | CX01-0129 | 174.0 | CX01-0666 | 155.0 | 6.50 | 5.91 |
| 2 | CX01-0090 | 217.0 | CX01-0108 | 194.0 | CX01-0130 | 198.0 | CX01-0667 | 176.0 | 7.39 | 6.72 |
| 2 1/4 | CX01-0092 | 272.0 | CX01-0110 | 240.0 | CX01-0132 | 247.0 | CX01-0669 | 220.0 | 9.36 | 8.51 |
| 2 3/8 | CX01-0093 | 301.0 | CX01-0111 | 266.0 | CX01-0133 | 274.0 | CX01-0670 | 244.0 | 10.4 | 9.48 |
| 2 1/2 | CX01-0094 | 332.0 | CX01-0112 | 293.0 | CX01-0134 | 302.0 | CX01-0671 | 269.0 | 11.6 | 10.5 |
| 2 5/8 | — | — | CX01-0135 | 331.0 | — | 12.8 | 11.6 | |||
| 2 3/4 | — | — | CX01-0136 | 361.0 | — | 14.0 | 12.7 | |||
| 2 7/8 | — | — | CX01-0137 | 392.0 | — | 15.3 | 13.9 | |||
| 3 | — | — | CX01-0138 | 425.0 | — | 16.6 | 15.1 | |||
| 3 1/8 | — | — | CX01-0139 | 458.0 | — | 18.0 | 16.4 | |||
| 3 1/4 | — | — | CX01-0140 | 492.0 | — | 19.5 | 17.7 | |||
| 3 3/8 | — | — | CX01-0141 | 529.0 | — | 21.0 | 19.1 | |||
| 3 1/2 | — | — | CX01-0142 | 564.0 | — | 22.7 | 20.6 | |||
| 3 5/8 | — | — | CX01-0143 | 602.0 | — | 24.3 | — | |||
| 3 3/4 | — | — | CX01-0144 | 641.0 | — | 26.0 | — | |||
| 3 7/8 | — | — | CX01-0145 | 680.0 | — | 27.7 | — | |||
| 4 | — | — | CX01-0146 | 720.0 | — | 29.6 | — | |||
| 4 1/8 | — | — | CX01-0147 | 761.0 | — | 31.4 | — | |||
| 4 1/4 | — | — | CX01-0148 | 803.0 | — | 33.4 | — | |||
| 4 3/8 | — | — | CX01-0149 | 846.0 | — | 35.4 | — | |||
| 4 1/2 | — | — | CX01-0150 | 889.0 | — | 37.4 | — | |||
| 4 5/8 | — | — | CX01-0151 | 934.0 | — | 39.5 | — | |||
| 4 3/4 | — | — | CX01-0152 | 979.0 | — | 41.7 | — | |||
| 4 7/8 | — | — | CX01-0153 | 1024.0 | — | 43.9 | — | |||
| 5 | — | — | CX01-0154 | 1070.0 | — | 46.2 | — | |||
*Acceptance strength is not less than 2 1/2% below the nominal strengths listed.
†Galvanizing: For class A galvanized wire rope (EIP and IPS grades only), deduct 10% from the nominal strength shown.

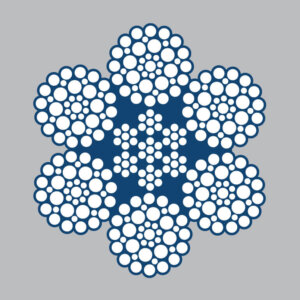

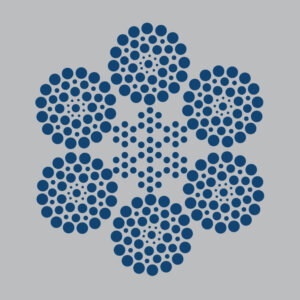

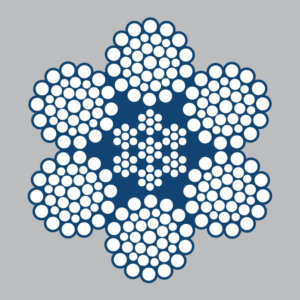

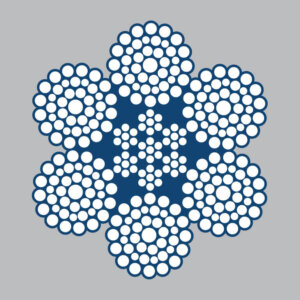

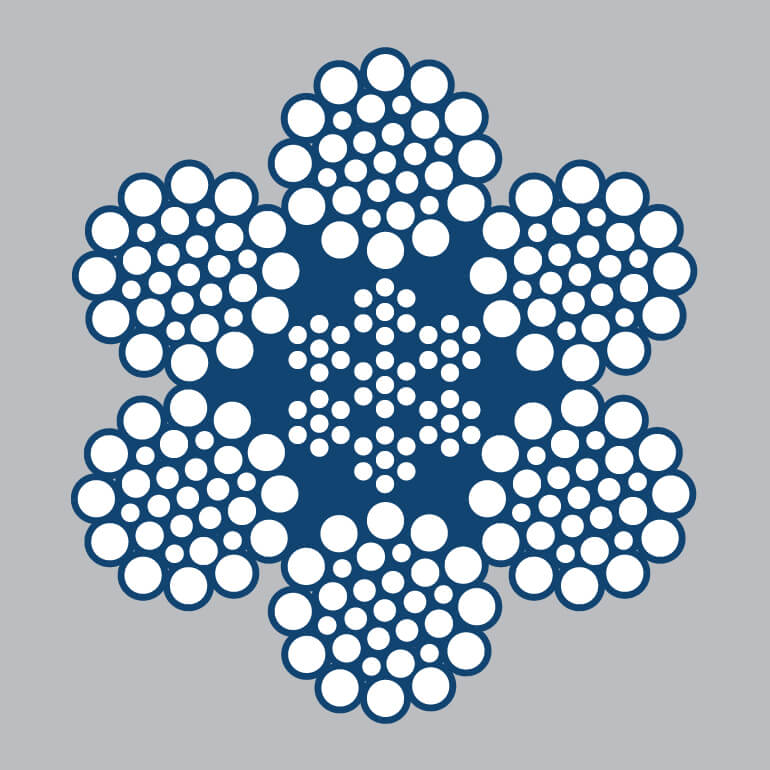

More flexible but less abrasion resistant than the 6 x 19 classification. Each strand contains numerous small diameter wires. As the number of wires increases, flexibility increases. 6 x 37 classification ropes contain 6 strands with 27 through 49 wires, no more than 18 of which are outside wires.
NOT FOR AIRCRAFT USE. (“Aircraft Cable” has become an accepted industry term for small diameter 7×7 and 7×19 construction wire rope intended for industrial and marine application.) Read important warnings and information.
WARNING: Any warranties, expressed or implied, concerning the use of this product apply only to the nominal strength of new, unused wire rope. All equipment using this product must be properly used and maintained. Wire rope must be properly stored, handled, used and maintained. Most importantly, wire rope must be regularly inspected during use. Damage, abuse or improper maintenance can cause rope failure. Consult the AISI Wire Rope Users Manual, ASME or ANSI Standards, before usage. Wire rope removal criteria are based on the use of steel sheaves. If synthetic sheaves are used, consult the sheave equipment manufacturer. WARNING!
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
