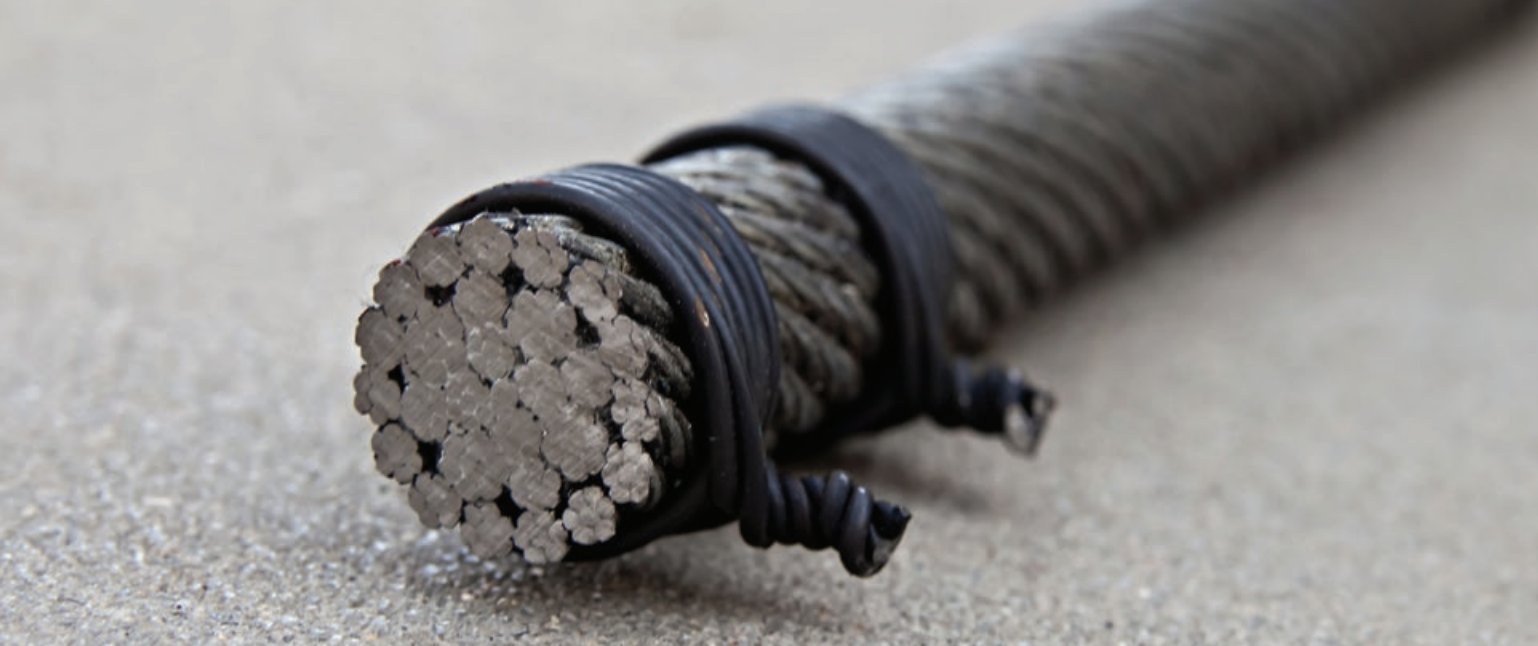

8 x 19 Rotation Resistant Wire Rope

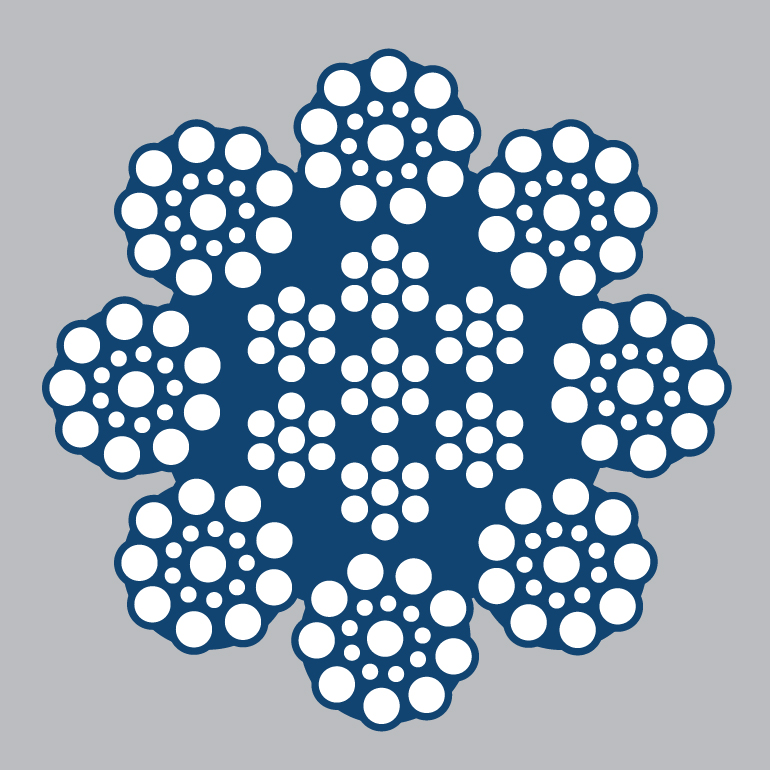

Characteristics: Inner and outer strands are laid in opposing directions to counter rotation. More easily damaged in service than other ropes. Can be used for multiple part lifting.

Technical Resources:


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

8 x 19 Rotation Resistant Rope
CERTEX Cat. Ref. No. Diam., in. Nominal Strength,* Tons Approx. Wt./Ft., lb.
ΕΙΡ IPS
CX01-0308 7/16 8.97 7.80 0.36
CX01-0309 1/2 11.7 10.2 0.47
CX01-0310 9/16 14.7 12.8 0.60
CX01-0311 5/8 18.1 15.7 0.73
CX01-0312 3/4 25.9 22.6 1.06
CX01-0313 7/8 35.0 30.5 1.44
CX01-0314 1 45.5 39.6 1.88
CX01-0315 1 1/8 57.3 49.8 2.39
CX01-0316 1 1/4 70.5 61.3 2.94
CX01-0317 1 3/8 84.9 73.8 3.56
CX01-0318 1 1/2 100.0 87.3 4.24

*Acceptance strength is not less than 2 1/2% below the nominal breaking strengths listed.
Note: These strengths apply only when a test is conducted with both ends fixed.
When in use, the strength of these ropes may be reduced if one end is free to rotate.

NOT FOR AIRCRAFT USE. (“Aircraft Cable” has become an accepted industry term for small diameter 7×7 and 7×19 construction wire rope intended for industrial and marine application.) Read important warnings and information.

WARNING: Any warranties, expressed or implied, concerning the use of this product apply only to the nominal strength of new, unused wire rope. All equipment using this product must be properly used and maintained. Wire rope must be properly stored, handled, used and maintained. Most importantly, wire rope must be regularly inspected during use. Damage, abuse or improper maintenance can cause rope failure. Consult the AISI Wire Rope Users Manual, ASME or ANSI Standards, before usage. Wire rope removal criteria are based on the use of steel sheaves. If synthetic sheaves are used, consult the sheave equipment manufacturer. WARNING!
