9-Part Braided Slings

Multi-part braided slings are fabricated by taking a single long length of rope and braiding it back & forth along the entire design length, including the eyes, to form a single high-capacity sling.

These braids achieve capacities & flexibility far greater than single-part slings of the same diameter wire rope, and in the case of 9-part slings, the capacity increase is significant.

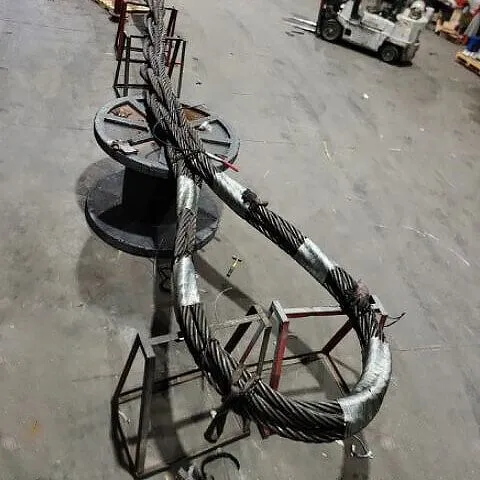

Pictured is a 2-3/4″ x 50′, 500T Vertical 9-part braids in fabrication at Certex USA – Yarbrough Cable – Memphis, TN.


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

COMPONENT ROPE OR CABLE DIAMETER (INCHES) VERTICAL CHOKER VERTICAL BASKET
Component: 7×19 Galvanized Aircraft Cable
3/32 0.63 0.55 1.3
1/8 1.3 1.1 2.5
3/16 2.6 2.3 5.3
1/4 4.4 3.9 8.8
5/16 6.2 5.4 12.3
3/8 9.1 7.9 18.1
Component: 6×19, 6×36 IWRC Wire Rope
EIPS EEIPS EIPS EEIPS EIPS EEIPS
1/4 4.3 4.7 3.7 4.1 8.6 9.4
5/16 6.6 7.3 5.8 6.4 13 15
3/8 10 10 8.3 9.2 19 21
7/16 13 14 11 12 26 28
1/2 17 18 15 16 34 37
9/16 21 23 19 20 42 47
5/8 26 29 23 25 52 57
3/4 37 41 32 36 74 82
7/8 50 55 44 48 100 110
1 65 72 57 63 130 143
1-1/8 82 90 72 79 164 180
1-1/4 100 111 88 97 201 222
1-3/8 121 134 106 117 242 267
1-1/2 144 158 126 138 287 315
1-5/8 166 184 146 161 333 368
1-3/4 193 213 169 186 386 426
1-7/8 219 242 192 212 438 484
2 249 273 218 239 499 547
2-1/4 311 343 272 300 622 685
2-1/2 381 418 333 366 761 837
2-3/4 455 500 398 438 910 1000
3 536 590 469 516 1071 1179
3-1/4 620 684 542 599 1240 1368
3-1/2 711 782 622 686 1421 1565
3-3/4 808 898 707 786 1615 1797
4 907 1017 794 890 1814 2034
4-1/4 1012 1142 885 999 2024 2283
4-1/2 1119 1274 979 1115 2238 2548

Approximate Capacity of 9-Part Braided Slings – tons of 2000 lbs.; 5:1 design factor
Flemish Eye Mechanical Splice 7×19 GAC; 6×19, 6×36 IWRC Wire Rope

EIPS – Extra Improved Plow Steel | EEIPS – Extra Extra Improved Plow Steel | Rated capacities of basket hitch based on D/d ratio of 25 times
the component rope diameter | Rated capacities based on pin or hook diameter no larger than natural eye width or less than the nominal sling
diameter | Horizontal sling angles less than 30° shall not be used | For new slings or slings in new, unused condition
