Easily replaces a variety of different length slings accommodating a variety of different sized loads.
Infinitely adjustable.
RUD PSA-VRS UNC Fall Protection Anchorage Point
WLL range 1 – 2 persons Non-removable special bolt
Categories

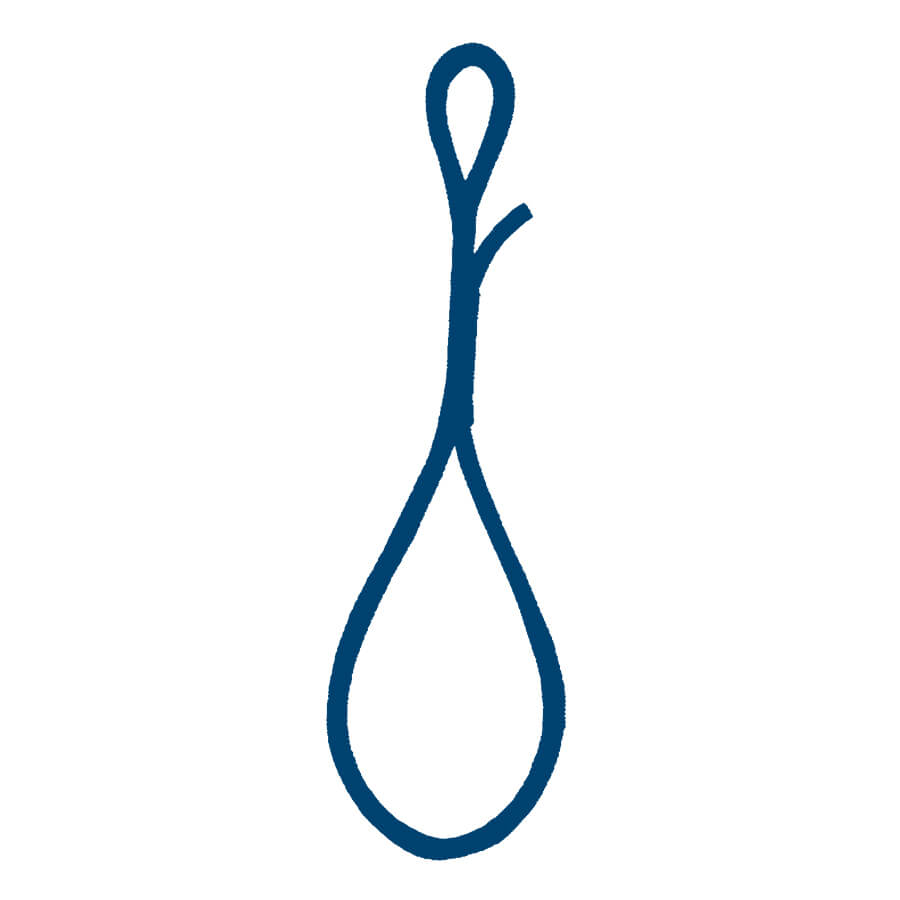

Adjustable Fiber Rope Slings
| 12 Strand Polyester / Polyolefin | 12 Strand Polyester | |||||||||
| CERTEX Cat. Ref. No | Diam. | RATINGS | Min. Length | CERTEX Cat. Ref. No | RATINGS | Min. Length | ||||
| Vertical | Choker | Basket | Vertical | Choker | Basket | |||||
| CX09-0064 | 3/8 | 792 | 634 | 1,584 | 20″ | CX09-0071 | 1,056 | 845 | 2,112 | 20″ |
| CX09-0065 | 7/16 | 1,056 | 845 | 2,112 | 24″ | CX09-0072 | 1,584 | 1,267 | 3,168 | 24″ |
| CX09-0066 | 1/2 | 1,496 | 1,197 | 2,992 | 28″ | CX09-0073 | 2,220 | 1,760 | 4,400 | 28″ |
| CX09-0067 | 5/8 | 2,112 | 1,690 | 4,224 | 32″ | CX09-0074 | 3,203 | 2,562 | 6,406 | 32″ |
| CX09-0068 | 3/4 | 2,992 | 2,394 | 5,984 | 38″ | CX09-0075 | 4,224 | 3,379 | 8,448 | 38″ |
| CX09-0069 | 7/8 | 3,714 | 2,971 | 7,428 | 46″ | CX09-0076 | 6,248 | 4,998 | 12,496 | 46″ |
| CX09-0070 | 1 | 4,400 | 3,520 | 8,800 | 54″ | CX09-0077 | 7,568 | 6,054 | 15,136 | 54″ |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
