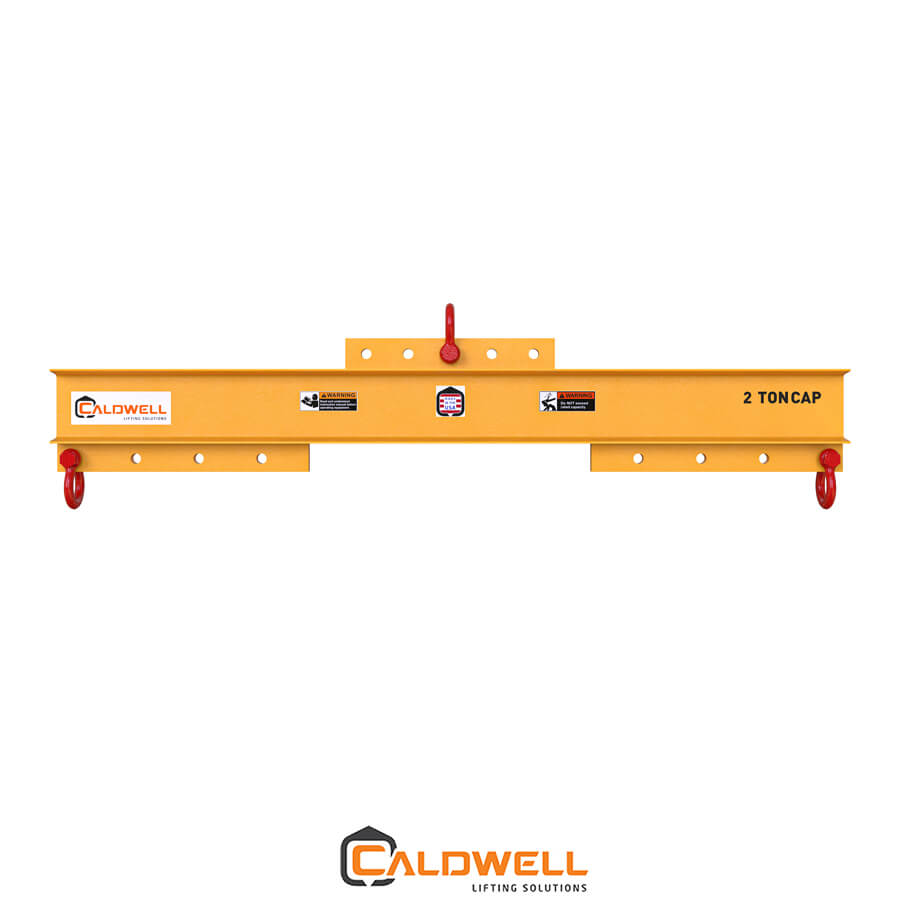

Caldwell Adjustable Spreader Lifting Beam – Model 16

Caldwell Adjustable Spreader Lifting Beam - Model 16

Features:

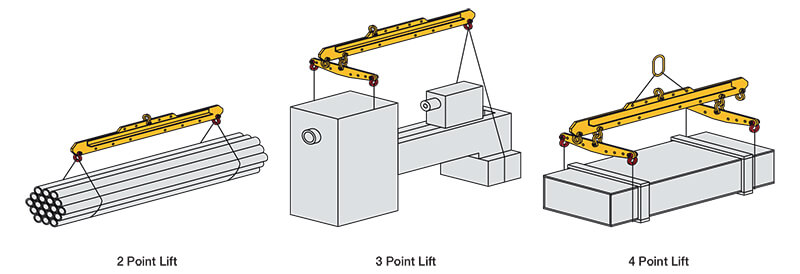

  • Use as 2, 3, or 4 point lifting or spreader beam.
  • Converts to spreader beam with addition of top rigging.
  • Has adjustable lifting points
  • Can handle both wide and unbalanced loads
  • Low headroom capability.
  • Shackles included.
  • Designed and manufactured to ASME B30.20.
CERTEX
Cat. Ref. No.
Caldwell
Model No.

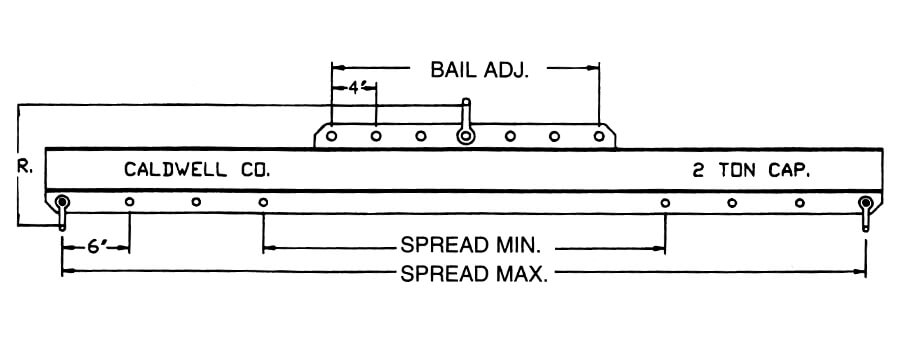

Rated Cap. (tons) Spread (in) Bail Adj. (in) Hdrm. (in.) Bolt Type
Anchor Shackle (tons)
Wgt.
(lbs.)
Max Min Top Bottom
CX10-0445 16-1/2-6 1/2 72 36 24 8 1 1/2 1 1/2 70
CX10-0446 16-1-6 1 72 36 24 9 1/2 2 2 120
CX10-0447 16-2-6 2 72 36 24 11 3 1/4 2 140
CX10-0448 16-4-8 4 96 48 32 14 1/2 4 3/4 3 1/4 265
CX10-0449 16-5-10 5 120 60 40 17 1/4 6 1/2 4 3/4 445
CX10-0450 16-7-12 7 144 72 48 20 1/2 8 1/2 4 3/4 580

  • Pair of swivel hooks — Code S
  • Chain top rigging — Code C
  • Cross beams (one or two) specify spread(s) Consult Factory

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
