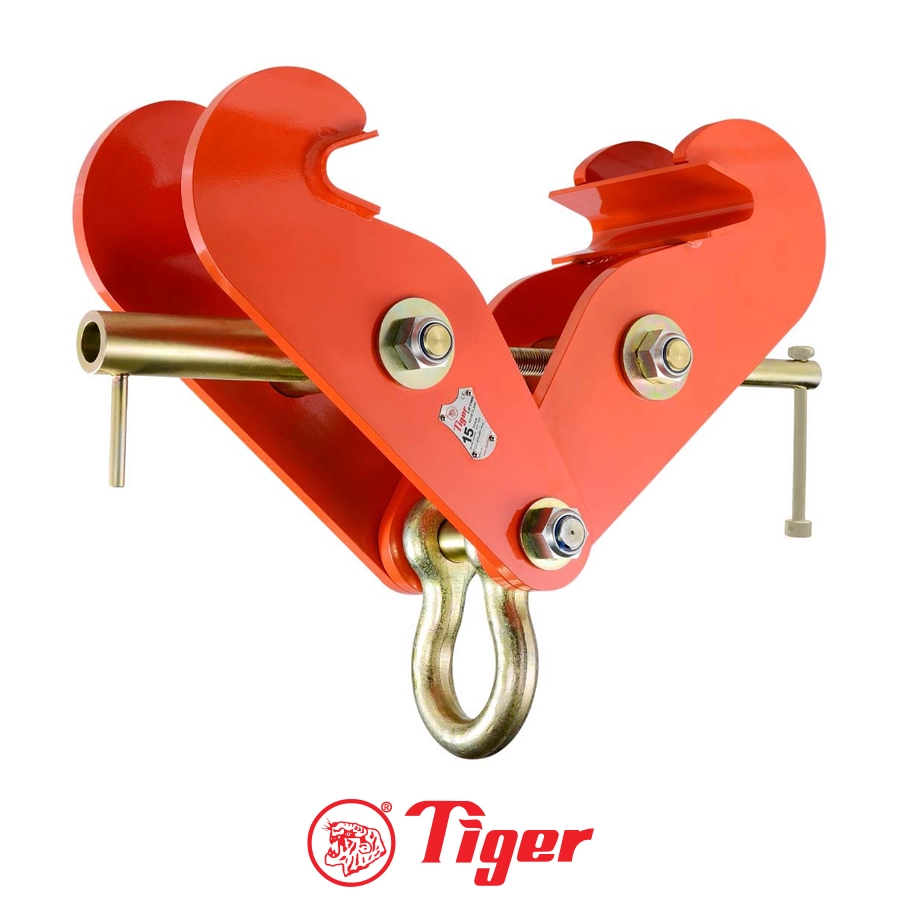

BCF Fixed Jaw Beam Clamp with Shackle

BCF Fixed Jaw Beam Clamp with Shackle
  • Range from 1.0t to 30.0t
  • *NEW 6.0t and 10.0t models available to suit extra wide flange beams
  • Quick and versatile rigging point for hoisting equipment
  • Shackle suspension point
  • Suitable for pulling and lifting at angles across the beam
  • Up to 90° side loading with no deration
  • 15° cross loading with no deration
  • Highly flexible – for lifting, pulling or as a semi-permanent anchor point
  • Evenly distributed loads achieved through maximum jaw surface area
  • Multidirectional adjusting screw spindle ensures a high clamping force to the various flange sizes within its capacity
  • Beam width range 75mm to 457mm
  • Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
  • Factor of safety: 5:1 for straight pulling and lifting, 4:1 at other angles stated above
  • Optional locking device for 1t-10t (as standard on 15t-30t)

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

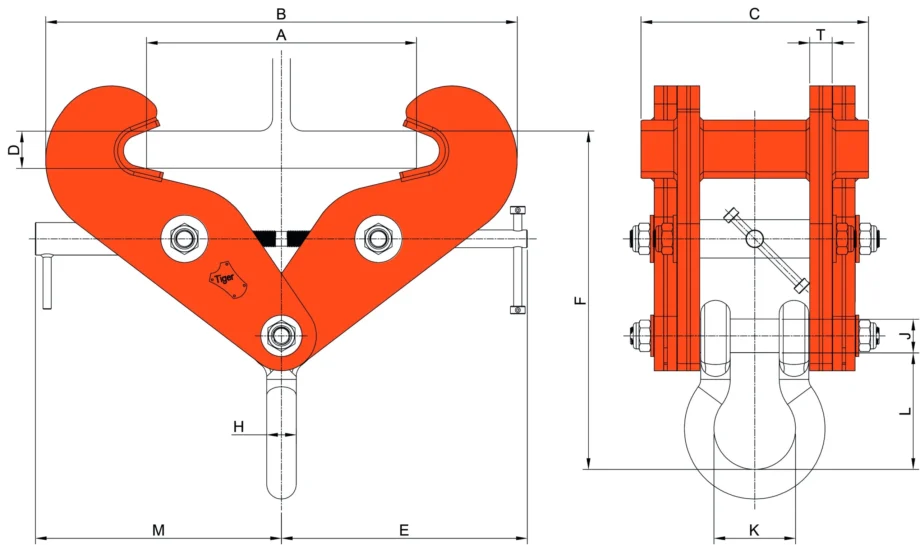

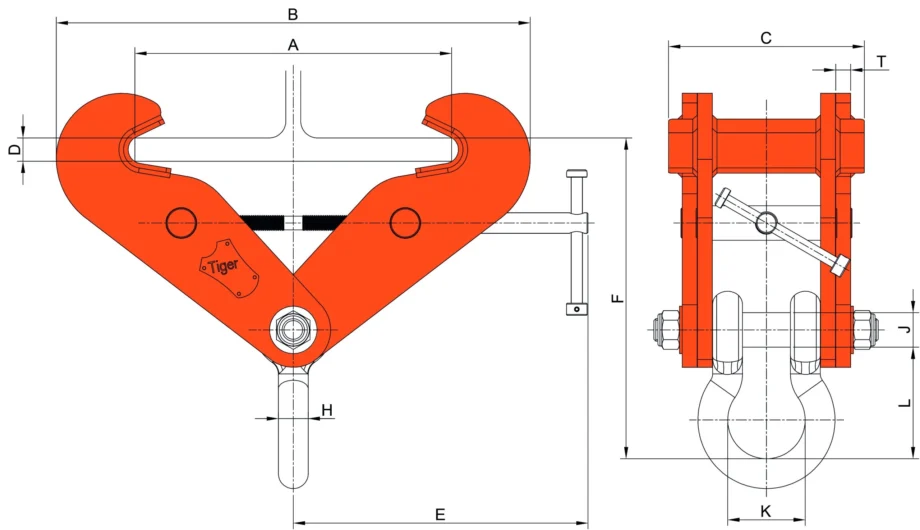

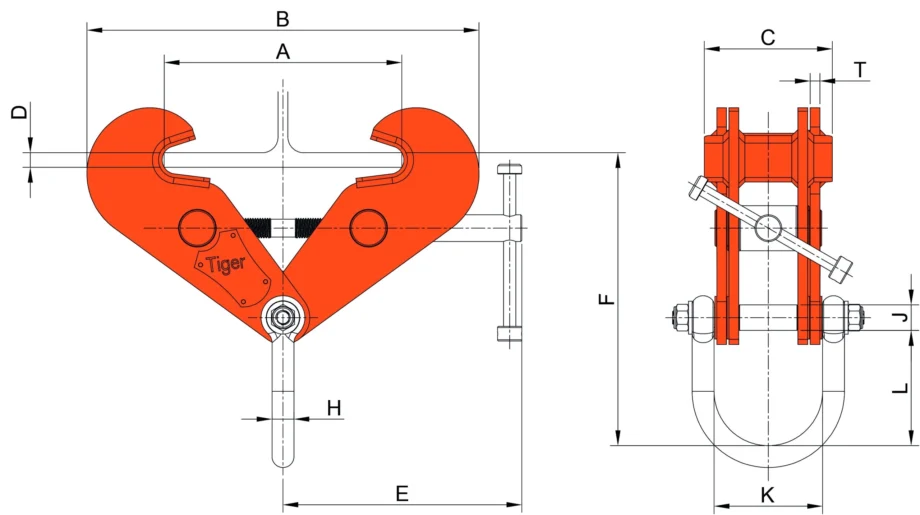

Stock Number Capacity Dimensions Net Weight (kg)
A B C D E F H J K L M T
BCF-0100 1.0 75-195 206-330 105 20 195 275-230 16 21 80 84 6 5.5
BCF-0200 2.0 75-195 206-330 105 20 195 268-242 18 21 88 95 8 6.5
BCF-0300 3.0 100-350 223-488 140 25 270 364-297 22 27 110 105 10 12.0
BCF-030S 3.0 75-190 216-333 140 20 195 267-237 22 27 110 105 10 9.5
BCF-0500 5.0 100-310 223-450 140 25 288 370-320 27 27 124 111 12 14.5
BCF-050S 5.0 75-190 216-333 140 20 195 272-243 27 27 124 111 12 11.0
BCF-0600 6.0 203-457 411-691 140 42 370 486-418 27 27 124 111 12 29.9
BCF-1000 10.0 120-350 282-527 210 30 316 400-338 32 37 83 120 16 26.5
BCF-100W 10.0 203-457 415-694 210 42 370 500-430 32 37 83 120 16 44.2
BCF-1500 15.0 203-457 463-731 250 36 416 556-496 38 43.5 99 146 400 20 76.0
BCF-2000 20.0 203-457 471-768 300 50 416 603-540 45 49 126 179 408 24 100.0
BCF-3000 30.0 203-457 500-800 385 63 416 635-572 50 57 138 197 416 38 152.0

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
