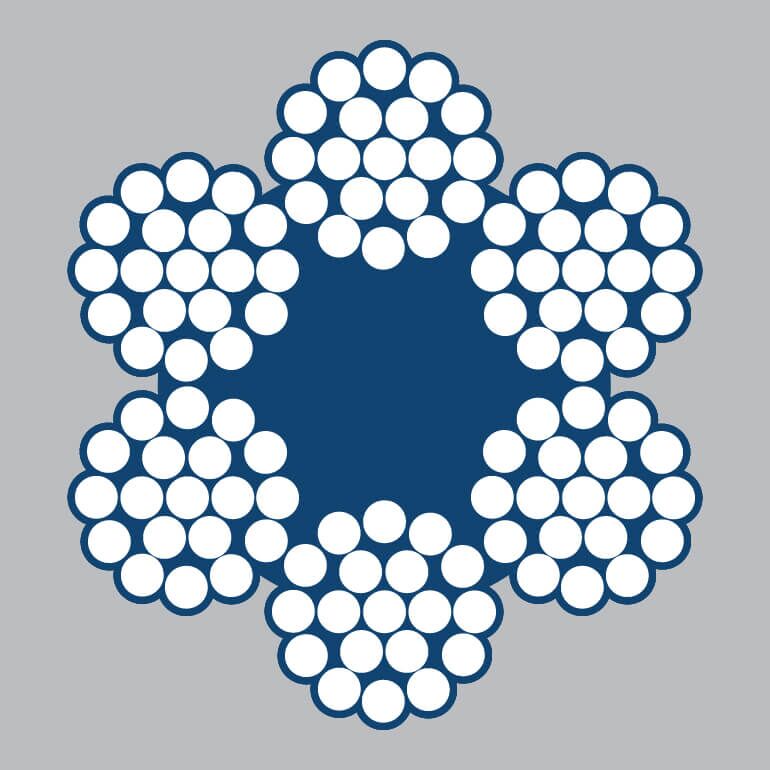

Bright Fiber Core 6X19 and 6X37 Class EIPS

Bright Fiber Core 6X19 and 6X37 Class EIPS

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

SIZE STOCK NUMBER WEIGHT/1,000′ BREAKING STRENGTH
1/4″ BFC2506X19 110 lbs. 6,020 lbs.
5/16″ BFC3126X19 160 lbs. 9,380 lbs.
3/8″ BFC3756X19 230 lbs. 13,420 lbs.
7/16″ BFC4376X19 320 lbs. 18,200 lbs.
1/2″ BFC5006X19 420 lbs. 23,600 lbs.
9/16″ BFC5626X19 530 lbs. 29,800 lbs.
5/8″ BFC6256X19 660 lbs. 36,800 lbs.
3/4″ BFC7506X19 950 lbs. 52,400 lbs.
7/8″ BFC8756X19 1,290 lbs. 70,800 lbs.
1″ BFC1006X19 1,680 lbs. 92,000 lbs.



6X19 Fiber Core & 6X19 IWRC

SIZE STOCK NUMBER WEIGHT/1,000′ BREAKING STRENGTH
1/4″ BFC2506X37 110 lbs. 6,020 lbs.
5/16″ BFC3126X37 160 lbs. 9,380 lbs.
3/8″ BFC3756X37 230 lbs. 13,420 lbs.
7/16″ BFC4376X37 320 lbs. 18,200 lbs.
1/2″ BFC5006X37 420 lbs. 23,600 lbs.
9/16 BFC5626X37 530 lbs. 29,800 lbs.
5/8″ BFC6256X37 660 lbs. 36,800 lbs.
3/4″ BFC7506X37 950 lbs. 52,400 lbs.

Available upon request: Galvanized Wire Rope 6 X 37 Class.



SIZE STOCK NUMBER WEIGHT/1,000′ BREAKING STRENGTH
3/8″ GFC3756X19 230 lbs. 10,980 lbs.
7/16″ GFC4376X19 320 lbs. 14,880 lbs.
1/2″ GFC5006X19 420 lbs. 19,260 lbs.
9/16″ GFC5626X19 530 lbs. 24,200 lbs.
5/8″ GFC6256X19 660 lbs. 30,000 lbs.
3/4″ GFC7506X19 950 lbs. 42,800 lbs.

Note: According to Federal Specifications RR-W-410D, preformed right regular lay.

6X19 Fiber Core & 6X19 IWRC

NOT FOR AIRCRAFT USE. (“Aircraft Cable” has become an accepted industry term for small diameter 7×7 and 7×19 construction wire rope intended for industrial and marine application.) Read important warnings and information.

WARNING: Any warranties, expressed or implied, concerning the use of this product apply only to the nominal strength of new, unused wire rope. All equipment using this product must be properly used and maintained. Wire rope must be properly stored, handled, used and maintained. Most importantly, wire rope must be regularly inspected during use. Damage, abuse or improper maintenance can cause rope failure. Consult the AISI Wire Rope Users Manual, ASME or ANSI Standards, before usage. Wire rope removal criteria are based on the use of steel sheaves. If synthetic sheaves are used, consult the sheave equipment manufacturer. WARNING!

Bulk Wire Rope Information

Product Information

Class Comparison

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
