Dimensions and weights are approximate and subject to variations.

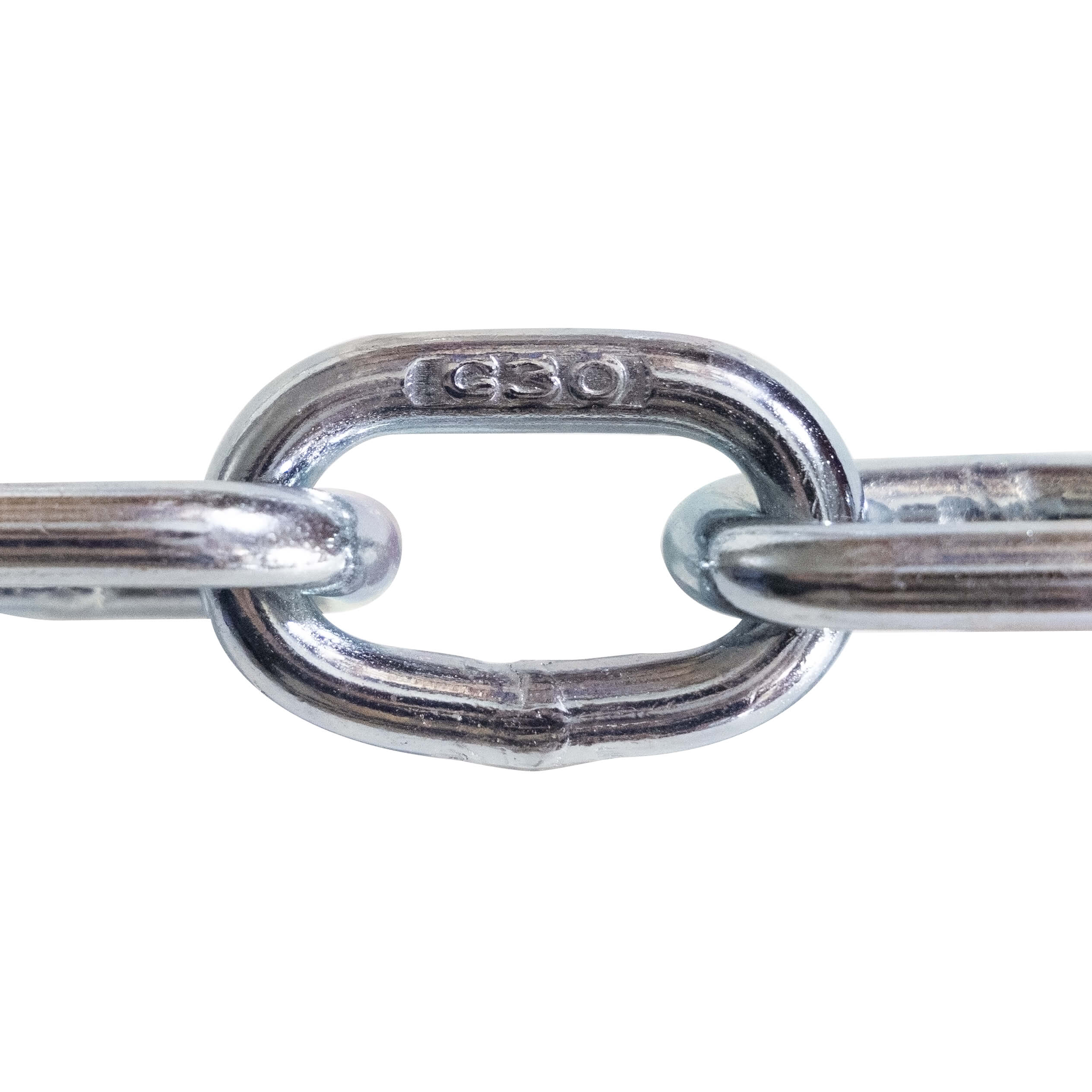

Note: Grade 30 proof coil chain, grade 43 high test chain, and grade 70 transport chain are NOT suitable for overhead lifting.
| CERTEX Cat. Ref. No. |
Trade Size In Inches |
Material Size | Nominal Inside Link Dimensions, Inches |
Maximum Length, 100 Links Inches | Weight per 100 ft. In Pounds | Working* Load Limit In Pounds | ||
| Inches | Decimal | Length | Width | |||||
| CX06-1256-Z | 3/16 | 13/64 | .202 | 0.96 | 0.41 | 99 | 33 | 750 |
| CX06-1257-Z | 1/4 | 17/64 | .265 | 1.01 | .48 | 104 | 63 | 1,250 |
| CX06-1258-Z | 5/16 | 21/64 | .327 | 1.11 | .50 | 114 | 98 | 1,900 |
| CX06-1259-Z | 3/8 | 25/64 | .390 | 1.24 | .62 | 128 | 144 | 2,650 |
| CX06-1261-Z | 1/2 | 17/32 | .531 | 1.51 | .82 | 158 | 278 | 4,500 |
| CX06-1263-Z | 5/8 | 21/32 | .656 | 1.88 | 1.01 | 194 | 422 | 6,900 |
| CX06-1264-Z | 3/4 | 25/32 | .781 | 2.13 | 1.13 | 220 | 606 | 9,750 |
Dimensions and weights are approximate and subject to variations.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
