Caldwell 2-Point 24-Metric Ton Spreader Beam System Model DM24

Caldwell 2-Point 24-Metric Ton Spreader Beam System Model DM24

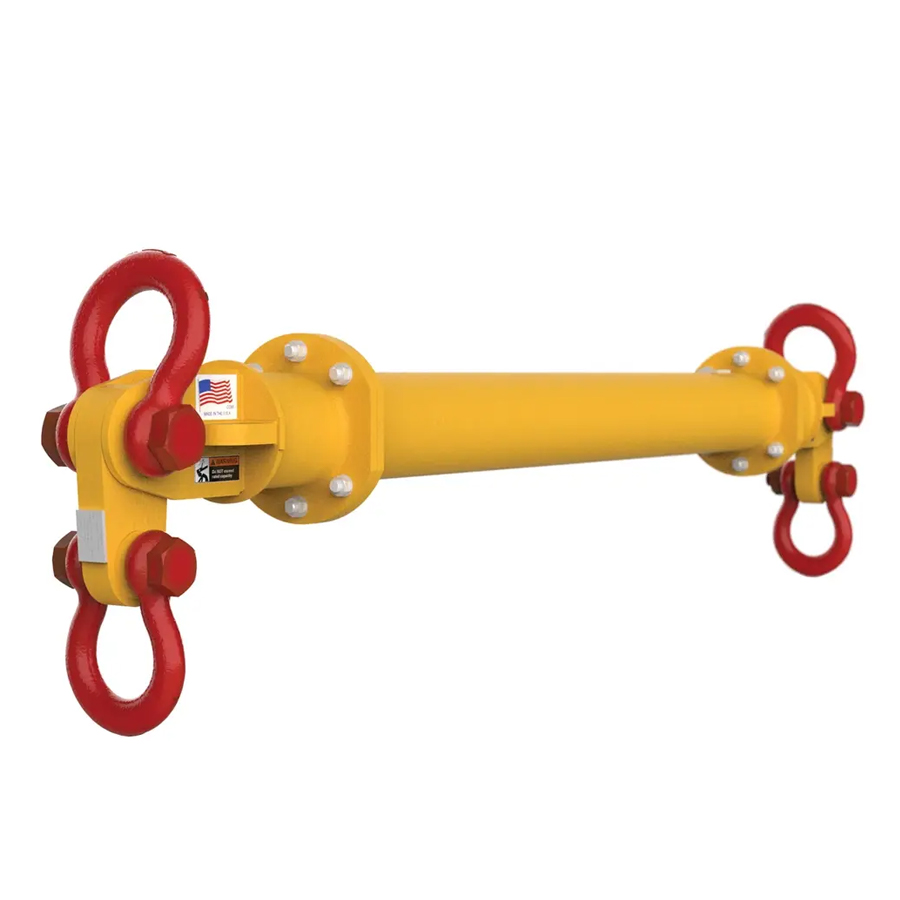

The Dura-Mod® 2-Polnt/24-Metric Ton Spreader Beam can be configured in spreads of 3′ to 24′. Order Spreader Sections, End Fittings, Drop Links, and Bolts separately to build the beam you want.

Features:

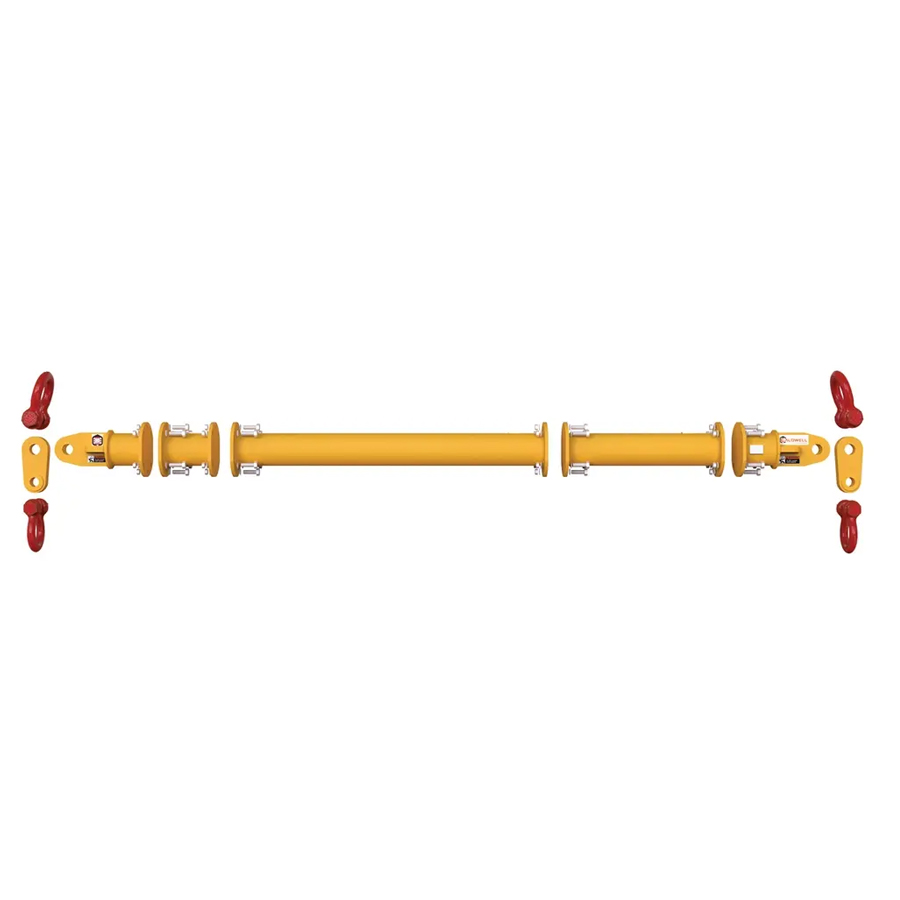

  • 24-ton modular beam system includes two 1.5’L end fittings, two drop links, three 6’L spreader sections, one 4’L spreader section, one 2’L spreader section, one 1’L spreader section, plus corresponding bolt kits to handle complete assembly
  • Lightweight in comparison to fixed/multiple point beams
  • Easy to transport and store; single longest component is only 6′
  • Components can be reconfigured, added to or eliminated, to create different lengths and lifting capacities; see Capacity vs. Span chart
  • Conforms to ASME B30.20, BTH-1, Design Category B, Class 0
  • Handles loads up to 24 tons

DURA-MOD® DM24 NOTES:

  • Bolts, Nuts and Washers can be reused as long as Anti-Seize Thread coating is used
  • Slings and shackles are not provided as part of this assembly. Synthetic textile, chain and wire rope slings may be used. Consult your sling supplier as part of your lifting plan
  • Reference the DM24 Capacity Vs. Span Chart for additional information.
Model Number Model Desc Weight (lbs.) Number of Components Per Set In Stock Price

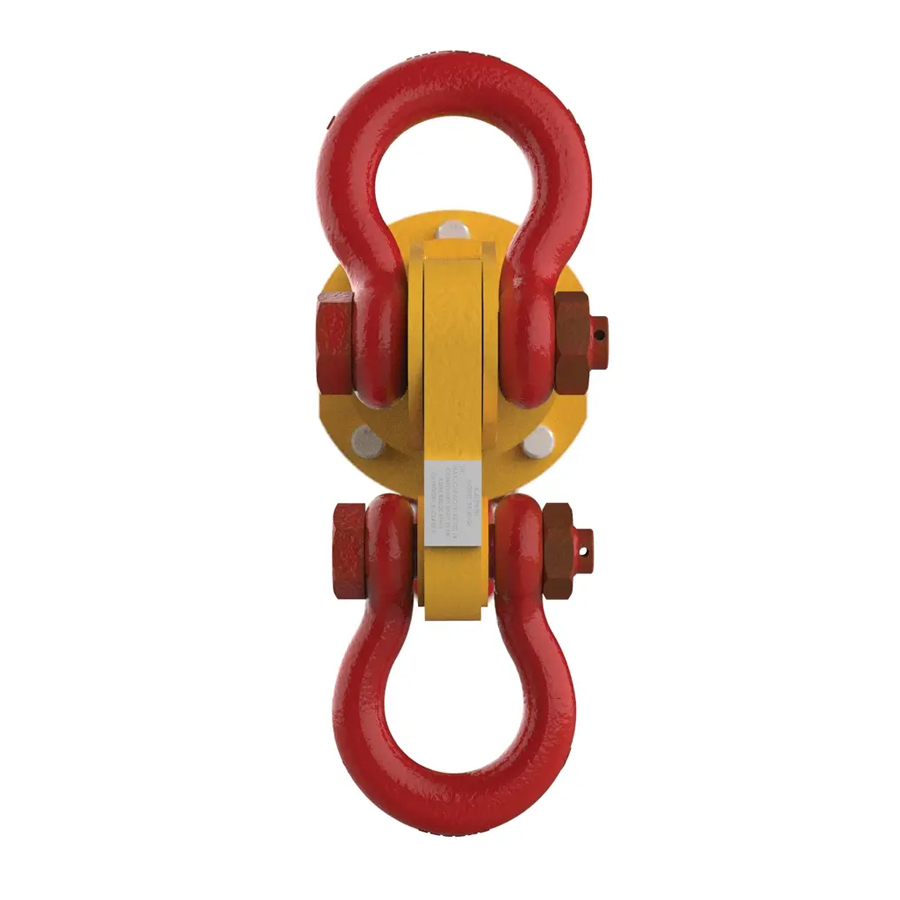

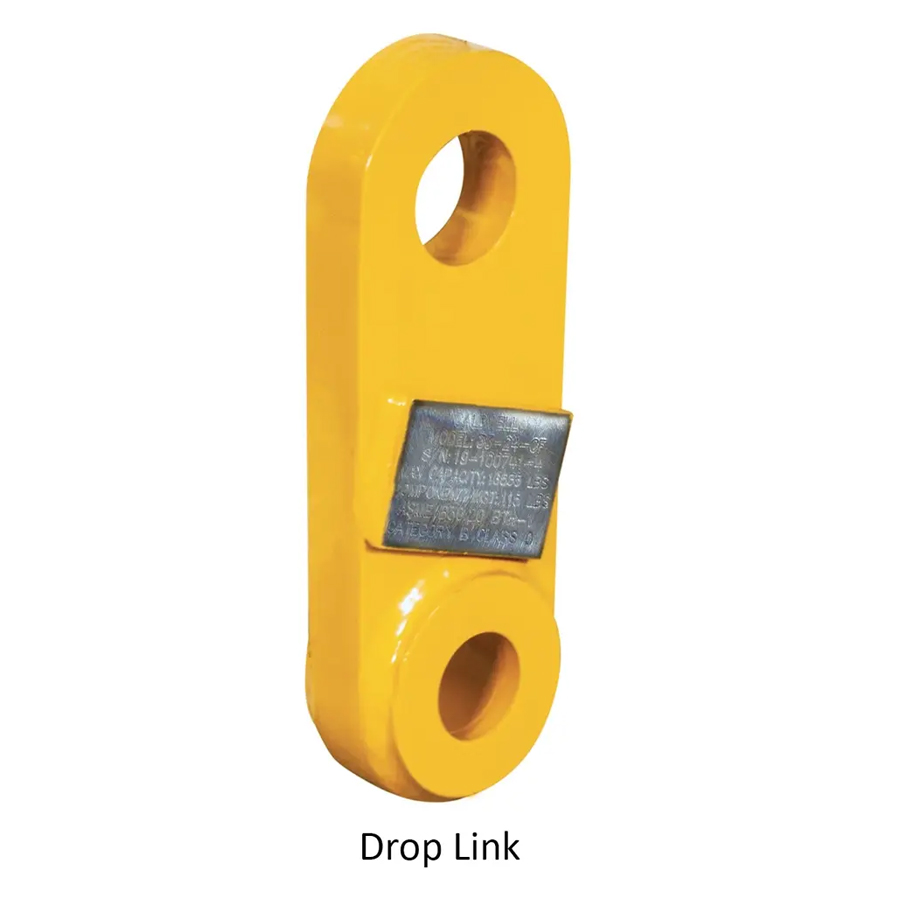

DM24-DL Drop Link 10 2 $

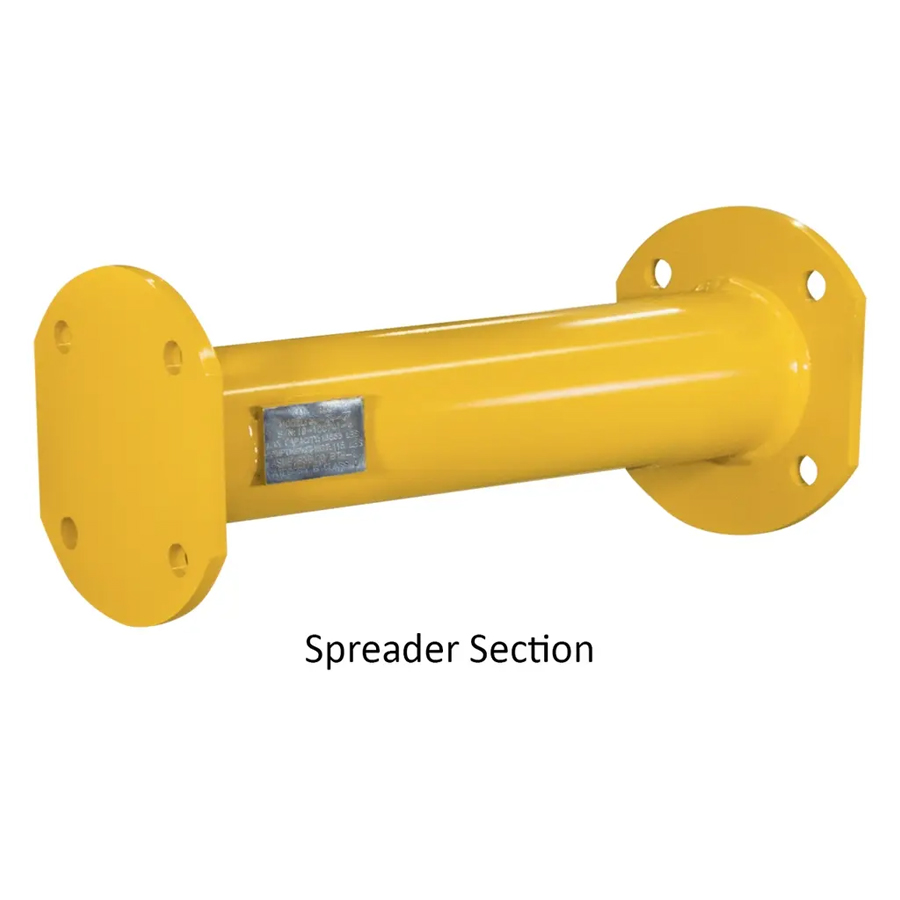

DM24-SS-1 1 ft. Spreader Section 35 1 $

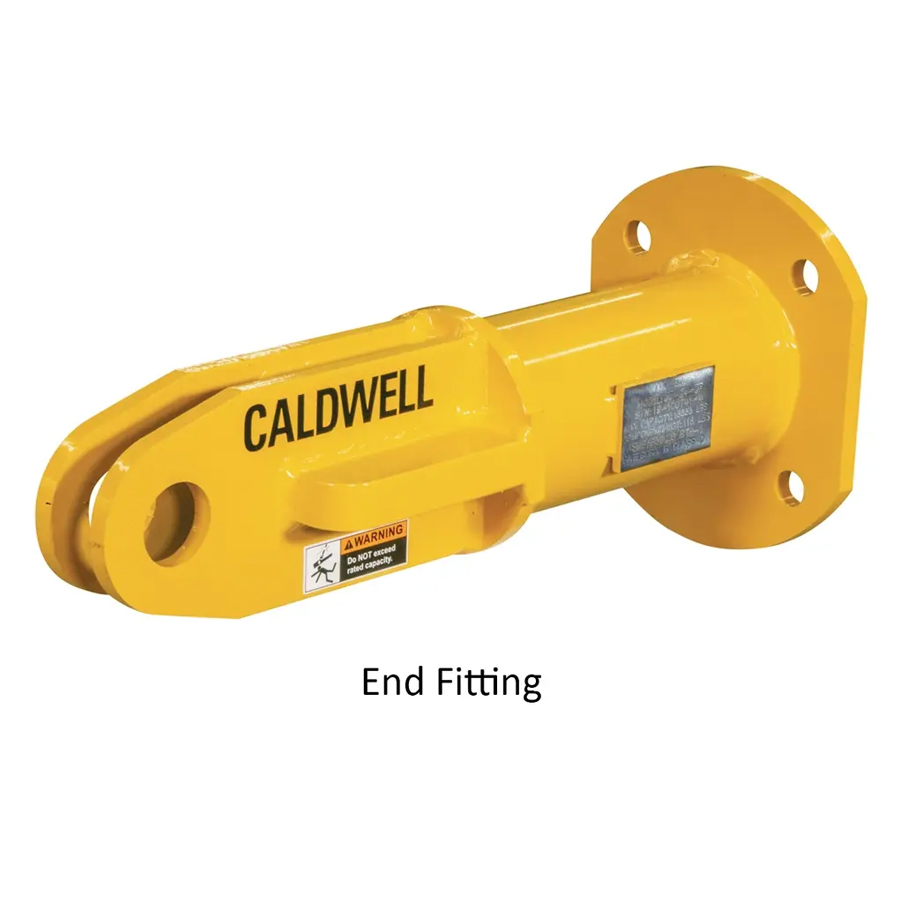

DM24-EF End Fitting 45 2 $
DM24-SS-2 2 ft. Spreader Section 50 1 $
DM24-SS-4 4 ft. Spreader Section 80 1 $
DM24-SS-6 6 ft Spreader Section 110 3 $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
