Caldwell 30-Metric Ton Box Spreader Beam Systems Model DM30

Caldwell 30-Metric Ton Box Spreader Beam Systems  Model DM30

The Dura-Mod® 2-Point/110/170-Metric Ton Spreader Beam can be configured in spreads of 6′ to 59′. Order Spreader Sections, End Fittings, Drop Links, and Bolts separately to build the beam you want.

Features:

  • 30-Metric Ton System
  • Quickly configure a 4-point spreader beam to match your lift requirements
  • 4-point spreader beam provides added stability
  • Knock-down design is easily transported
  • Capacity ratings can be provided that meet ASME B30.20, BTH-1, DESIGN CATEGORY B, CLASS O or ASME B30.20, BTH-1, DESIGN CATEGORY A, CLASS 0
  • Combinations of 1 to 5 spreader sections can be used to create custom square and rectangular configurations
  • Custom-designed systems available

DURA-MOD® DM30 NOTES:

  • Bolts, Nuts and Washers can be reused as long as Anti-Seize Thread coating is used
  • Slings and shackles are not provided as part of this assembly. Synthetic textile, chain and wire rope slings may be used. Consult your sling supplier as part of your lifting plan

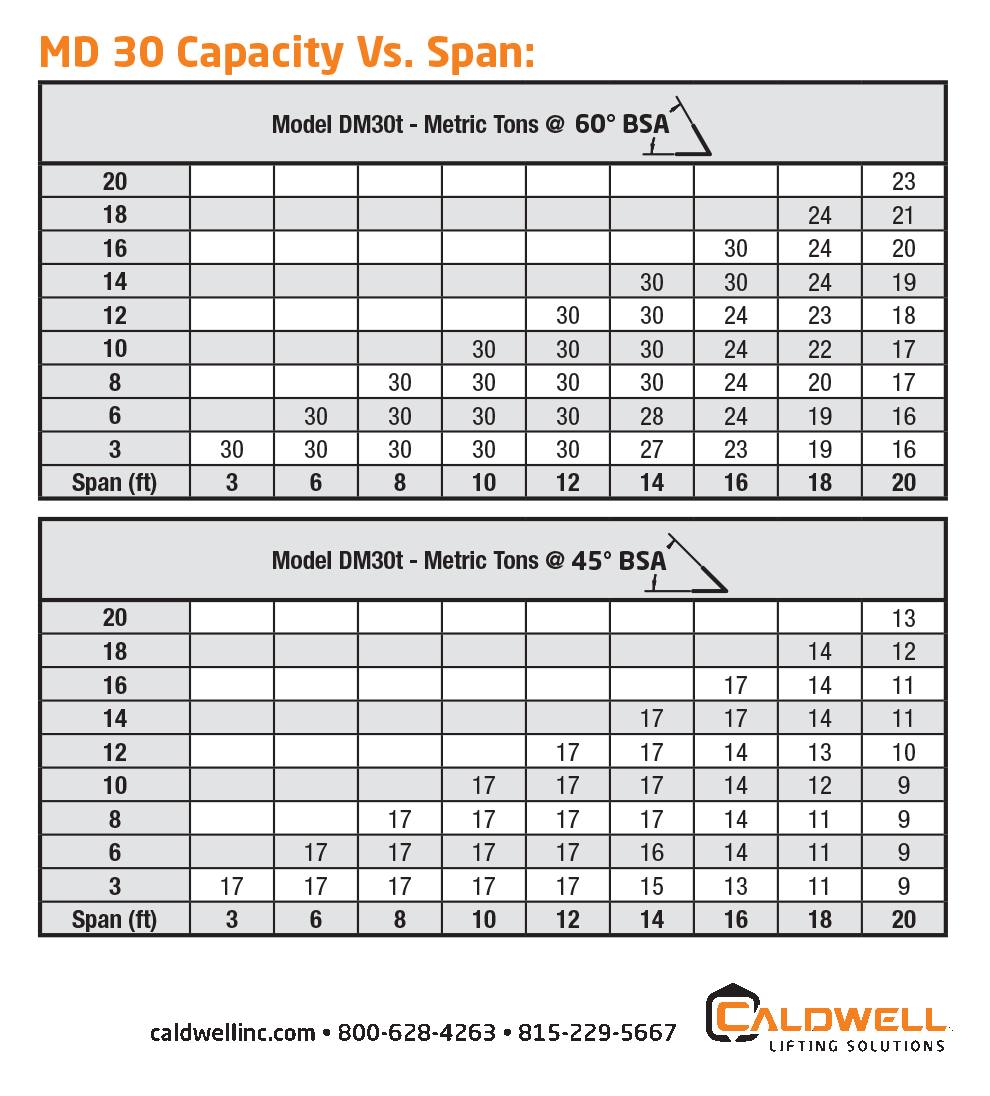

  • Reference the DM30 Capacity Vs. Span Chart for additional information.
Model Number Model Desc Weight (lbs.) In Stock Price
DM24-SS-1 1 ft. Spreader Section 35 $
DM24-SS-2 2 ft. Spreader Section 50 $
DM24-SS-4 4 ft. Spreader Section 80 $
DM24-SS-6 6 ft Spreader Section 110 $



WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
