Caldwell 60-Metric Ton Box Spreader Beam Systems Model DM60

Caldwell 60-Metric Ton Box Spreader Beam Systems Model DM60

Modular DM60 Box Spreader Beam can be configured in spreads of 4′ to 36′ in square or rectagular configurations.

Features:

  • 60-Metric Ton System
  • Quickly configure a 4-point spreader beam to match your lift requirements
  • 4-point spreader beam provides added stability
  • Knock-down design is easily transported
  • Capacity ratings can be provided that meet ASME B30.20, BTH-1, DESIGN CATEGORY B, CLASS O or ASME B30.20, BTH-1, DESIGN CATEGORY A, CLASS 0
  • Combinations of 1 to 5 spreader sections can be used to create custom square and rectangular configurations
  • Custom-designed systems available

DURA-MOD® DM60 NOTES:

  • Bolts, Nuts and Washers can be reused as long as Anti-Seize Thread coating is used
  • Slings and shackles are not provided as part of this assembly. Synthetic textile, chain and wire rope slings may be used. Consult your sling supplier as part of your lifting plan

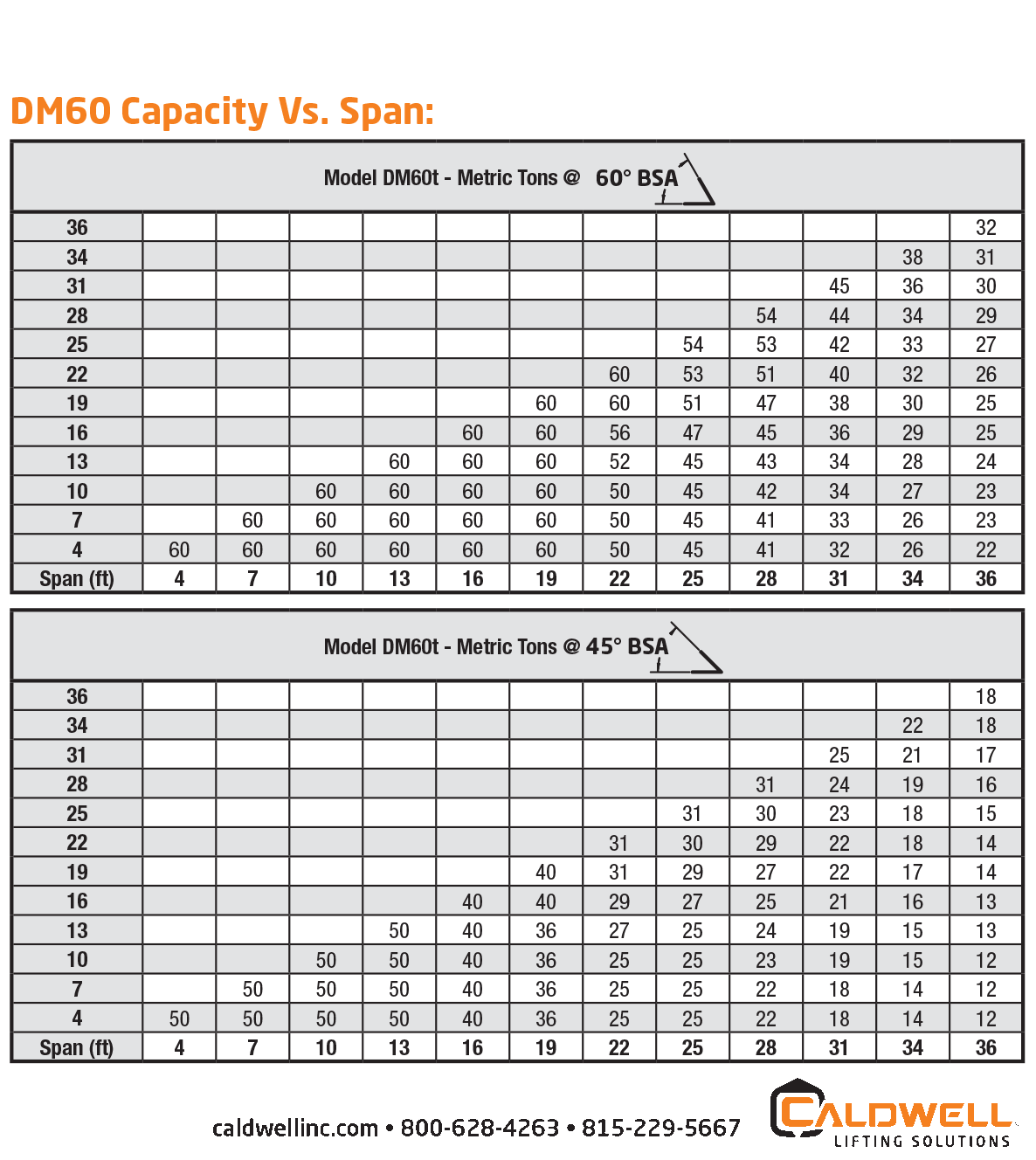

  • Reference the DM60 Capacity Vs. Span Chart for additional information.

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Model Number Model Desc Weight (lbs.) In Stock Price
DM50-SS-1 1 ft. Spreader Section 85 ❌ $
DM50-SS-2 2 ft. Spreader Section 125 ❌ $
DM50-SS-3 3 ft. Spreader Section 165 ❌ $
DM50-SS-6 6 ft. Spreader Section 275 ❌ $
DM60-CF Corner Fitting 340 ❌ $
DM50-SS-12 12 ft. Spreader Section 500 ❌ $



WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
