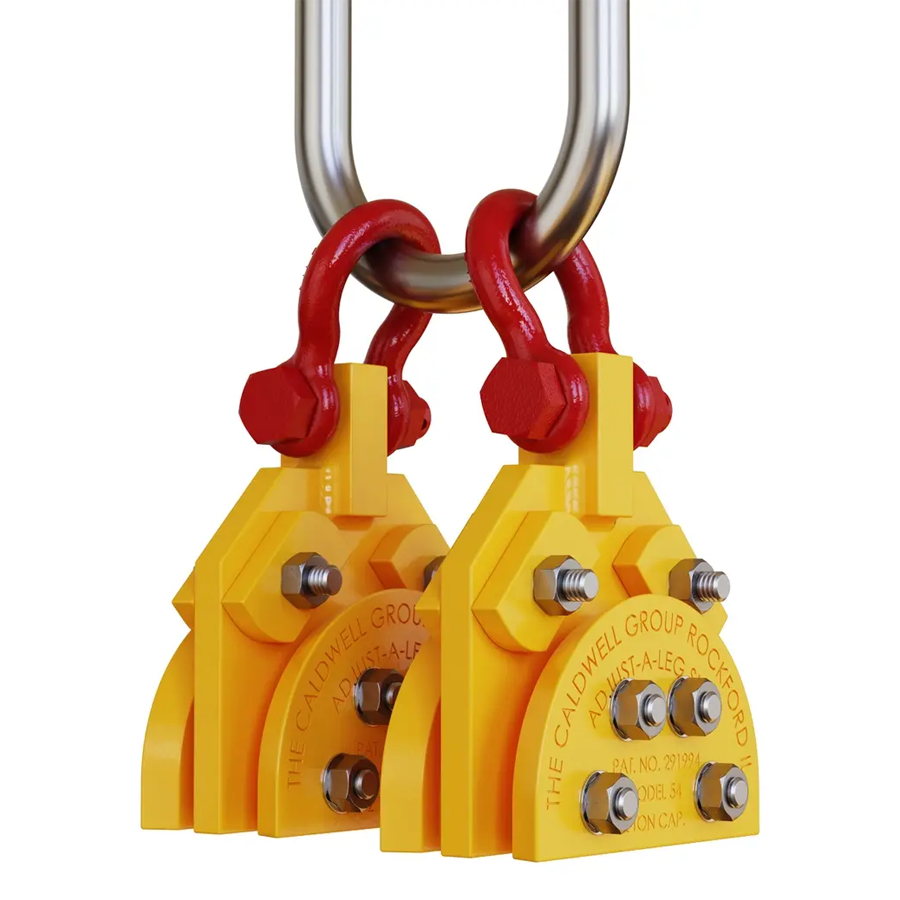

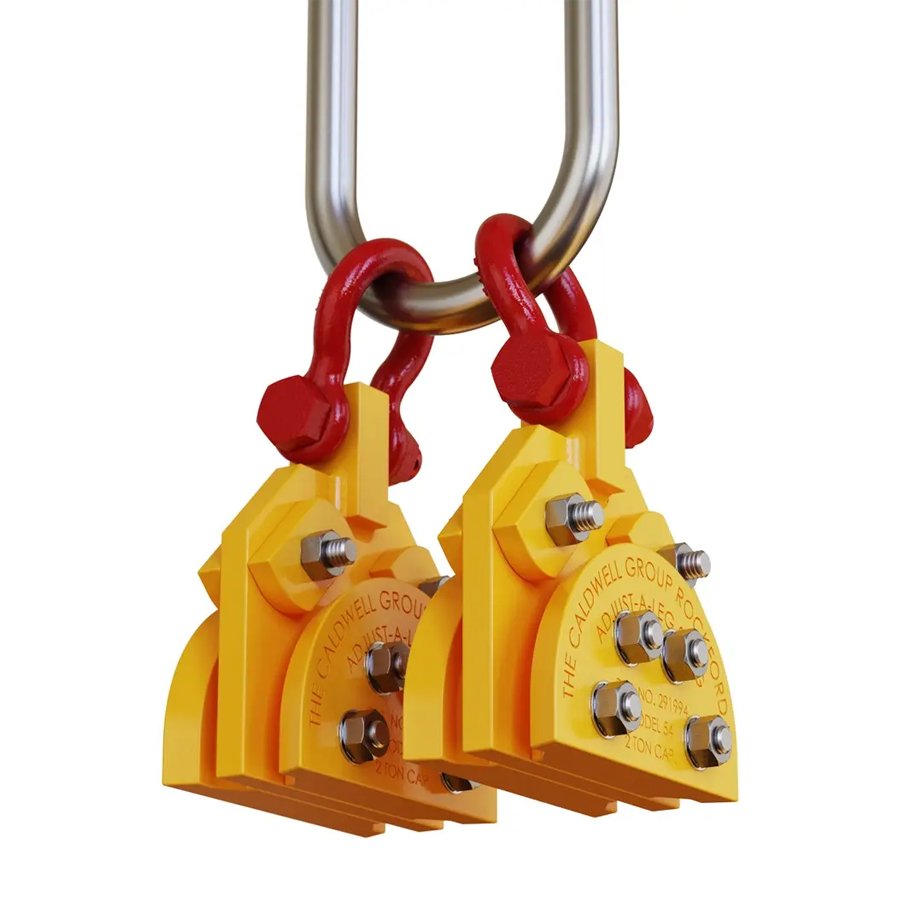

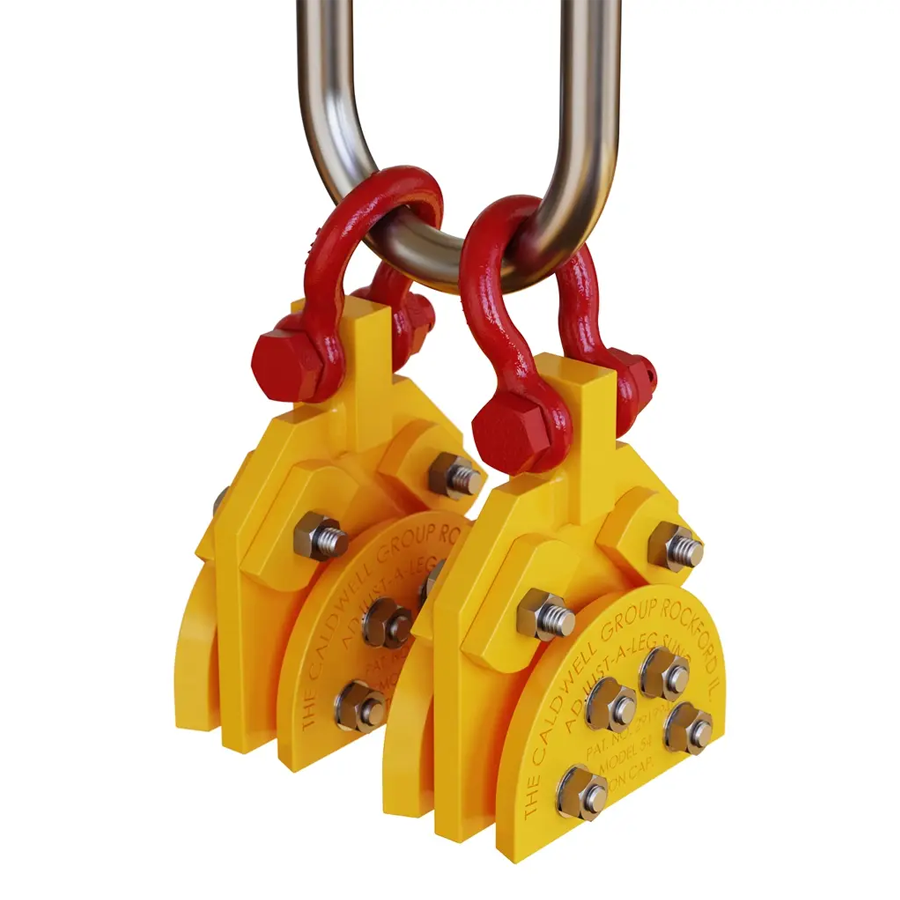

Caldwell Adjust-A-Leg Four Point Lift – Model AL4

Caldwell Adjust-A-Leg Four Point Lift - Model AL4

Get greater adjustment and flexibility with the 4-point lift. Unbalanced or non-symmetrical loads can now be handled safely and efficiently.

Features:

  • Allows crane hook to be over the load’s center of gravity in unbalanced or non-symmetrical 4-point lifts
  • Quickly adjusts to center of gravity
  • Can be locked into place for constant lifts
  • Can be used in conjunction with box type spreader beams
  • Ideal for use in rigging applications and machinery moving
  • Complies with ASME standards

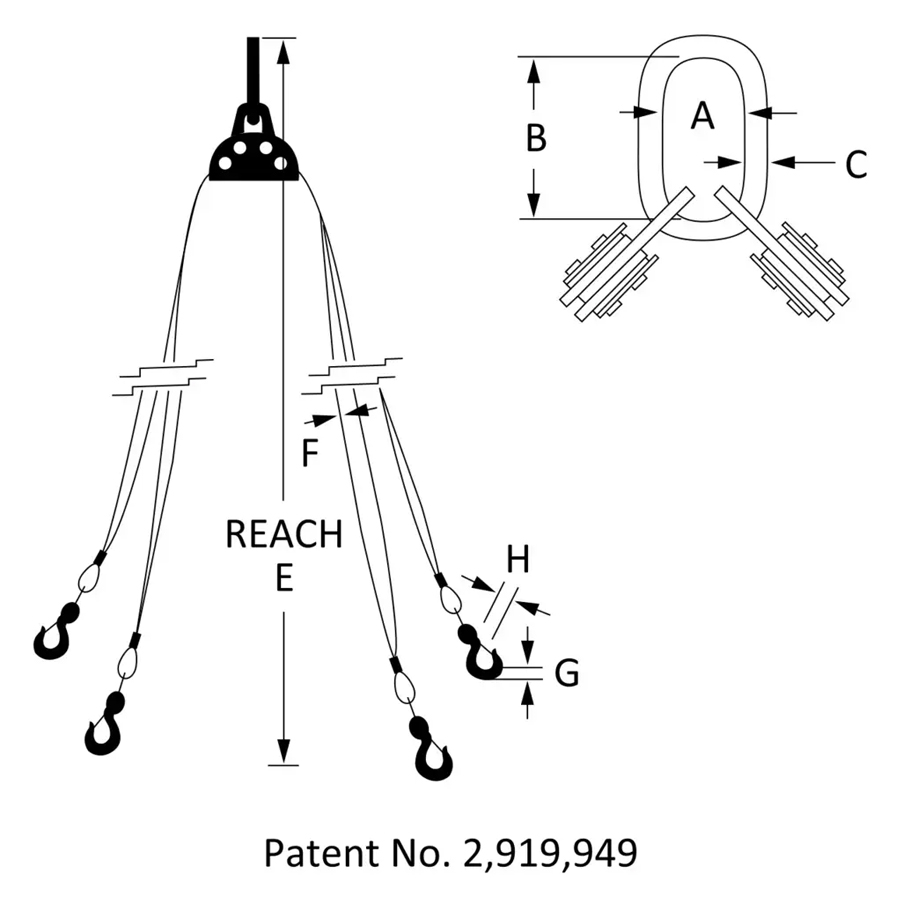

Model Number Capacity  (tons) Steel Hooks Sz (tons) Steel Hooks G (in.) Steel Hooks H (in.) Anchor Shackle Sz (in.) Wire Rope Dia (in.) Std Reach (ft.) Bail Open W (in.) Bail Open Ht (in.) Bail Thick (in.) Weight (lbs.) In Stock Price
54-2 2 1.5 1.0625 0.84 0.5 0.3125 4 3 6 0.625 18 $
54-4 4 1.5 1.0625 0.84375 0.625 0.3125 6 3.5 7 1 45 $
54-8 8 1.5 1.0625 0.84375 0.625 0.3125 6 3.5 7 1 45 $
54-8 8 5 1.5 1.38 0.625 0.4375 9 3.5 7 1 70 $
54-12 12 7 1.88 1.69 1.125 0.5625 9 4.375 8.75 1.25 170 $
54-16 16 7 1.88 1.69 1.125 0.63 9 5.5 10.5 1.5 210 $
54-24 24 11 2.25 2.13 1.125 0.75 9 6 12 1.75 345 $
54-30 30 No Hooks Furnished No Hooks Furnished No Hooks Furnished 1.125 0.88 9 7 14 2 410 $
54-44 44 No Hooks Furnished No Hooks Furnished No Hooks Furnished 1.75 1.13 9 7 14 2 770 $
54-56 56 No Hooks Furnished No Hooks Furnished No Hooks Furnished 1.75 1.25 9 8 16 2.5 850 $
54-72 72 No Hooks Furnished No Hooks Furnished No Hooks Furnished 2 1.5 12 9.5 16 2.75 980 $
54-100 100 No Hooks Furnished No Hooks Furnished No Hooks Furnished 2 1.75 15 10 20 3.25 1180 $
54-150 150 No Hooks Furnished No Hooks Furnished No Hooks Furnished 3 2.25 20 14 20 4.5 3600 $
