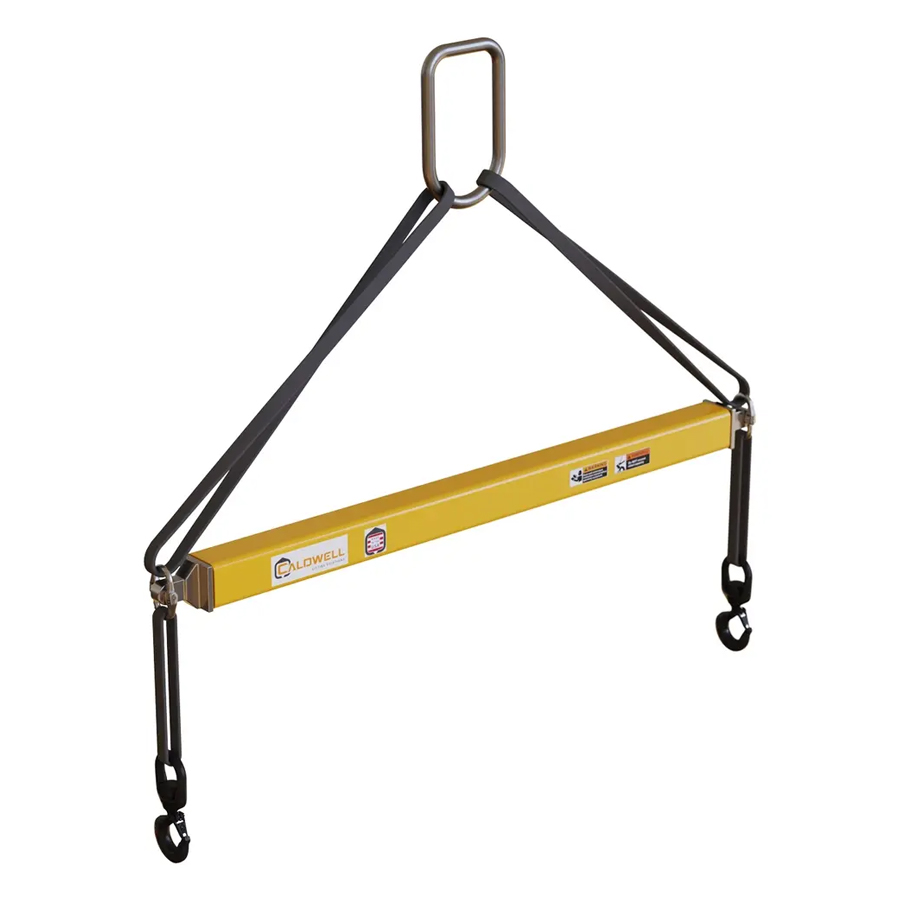

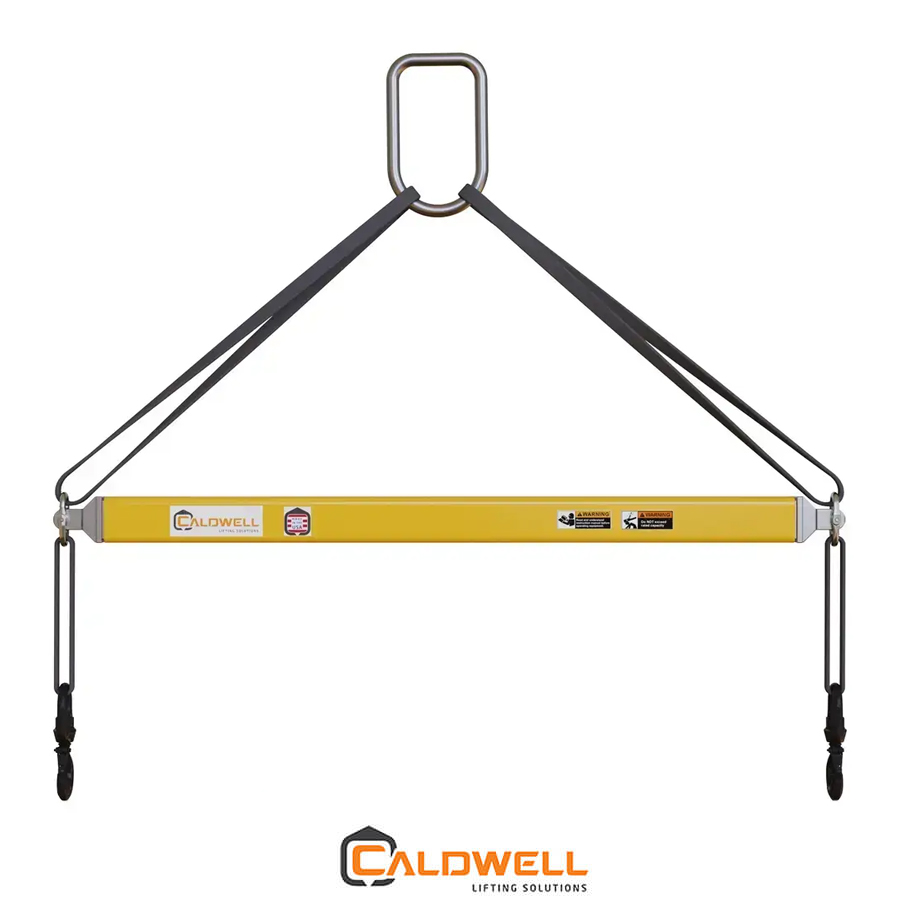

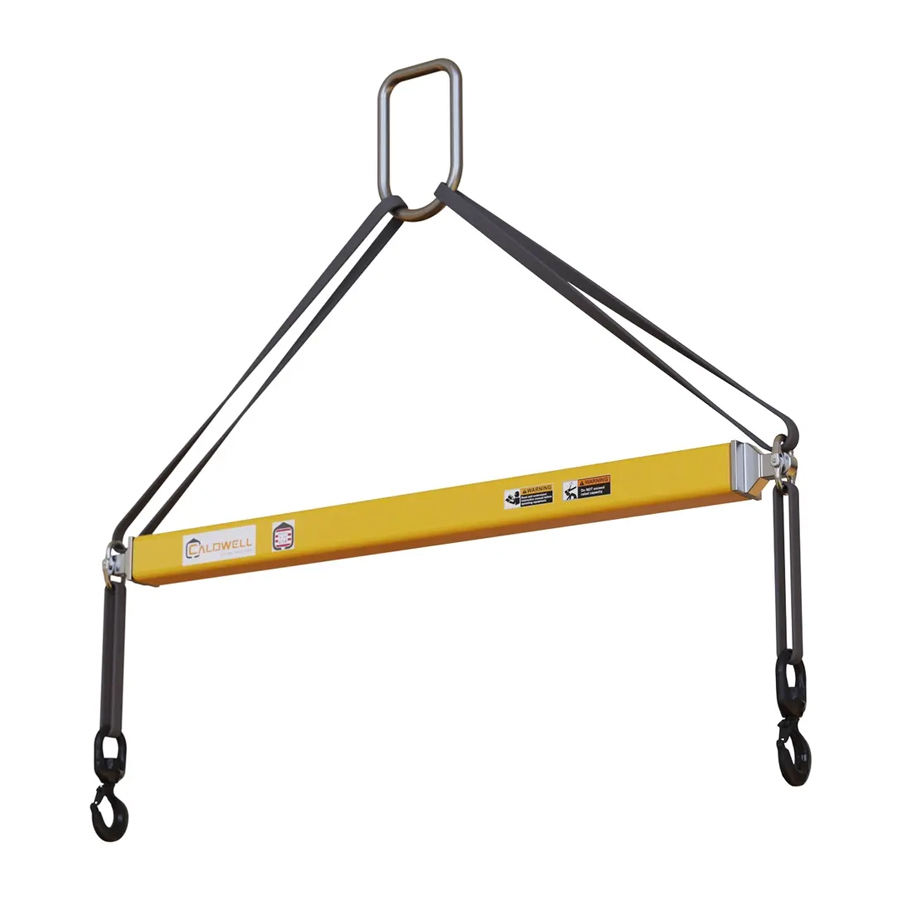

Caldwell Adjustable Fiberglass Battery Lifting Beams Model 36E

Caldwell Adjustable Fiberglass Battery Lifting Beams Model 36E

Used for applications that require a non-conductive beam such as lifting industrial forklift truck batteries.

Features:

  • Lightweight units – 70% lighter than other beams
  • Models are available for handling batteries of equal length or different lengths
  • Heavy duty 4800-lb and 7000-lb capacities
  • Non-conductive fiberglass beam construction
  • Acid-resistance, coated polyester straps and hooks
  • Standard drop sling length is 10″, other lengths available upon request

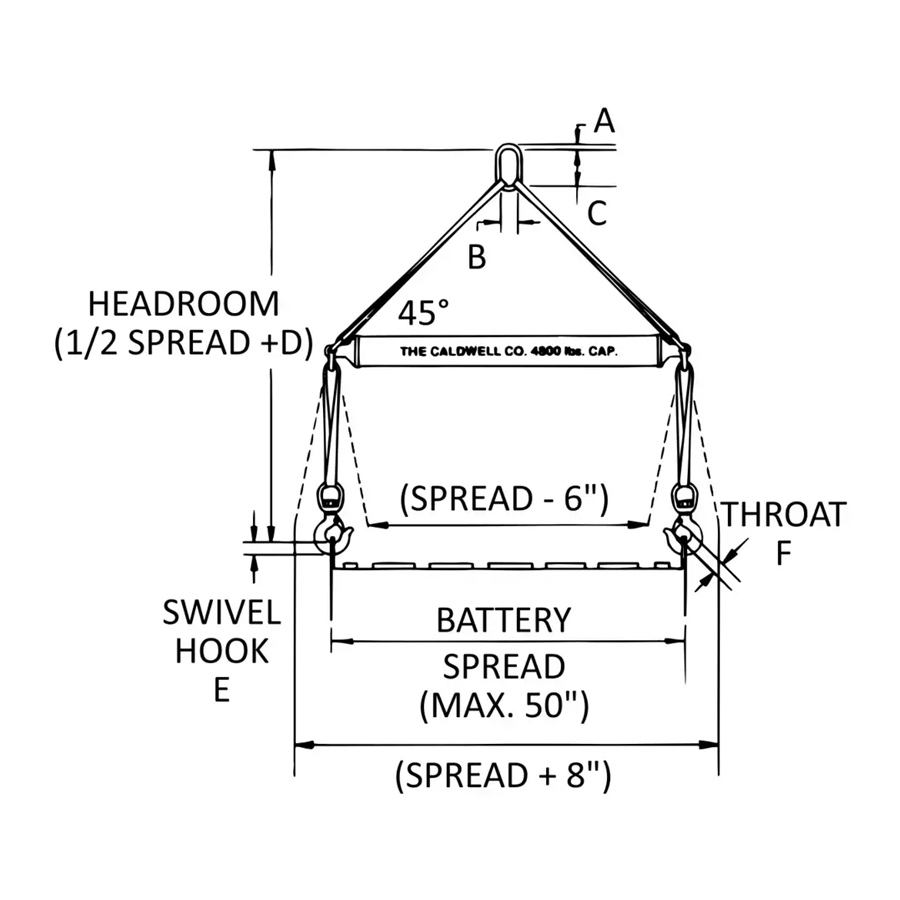

Model Number Capacity  (tons) Hook Throat (in.) Bail Depth (in.) Bail Open W (in.) Bail Open Ht (in.) Headroom (in.) Hook Thick (in.) Spread (ft.) Weight (lbs.) In Stock Price
36E-2.4 2.4 1 0.62 3 6 21 1 36 17 $
36E-3.5 3.5 1.125 0.75 2.75 5.5 22.5 1.12 36 20 $
