Caldwell Adjustable Lifting Beam, Economy Model 17

Caldwell Adjustable Lifting Beam, Economy Model 17

Model 17 Adjustable Lifting beam features an adjustable bail and lifting points in 6″ incerments to handle standard and unbalanced loads. Get the set-up you need with a few quick motions.

Features:

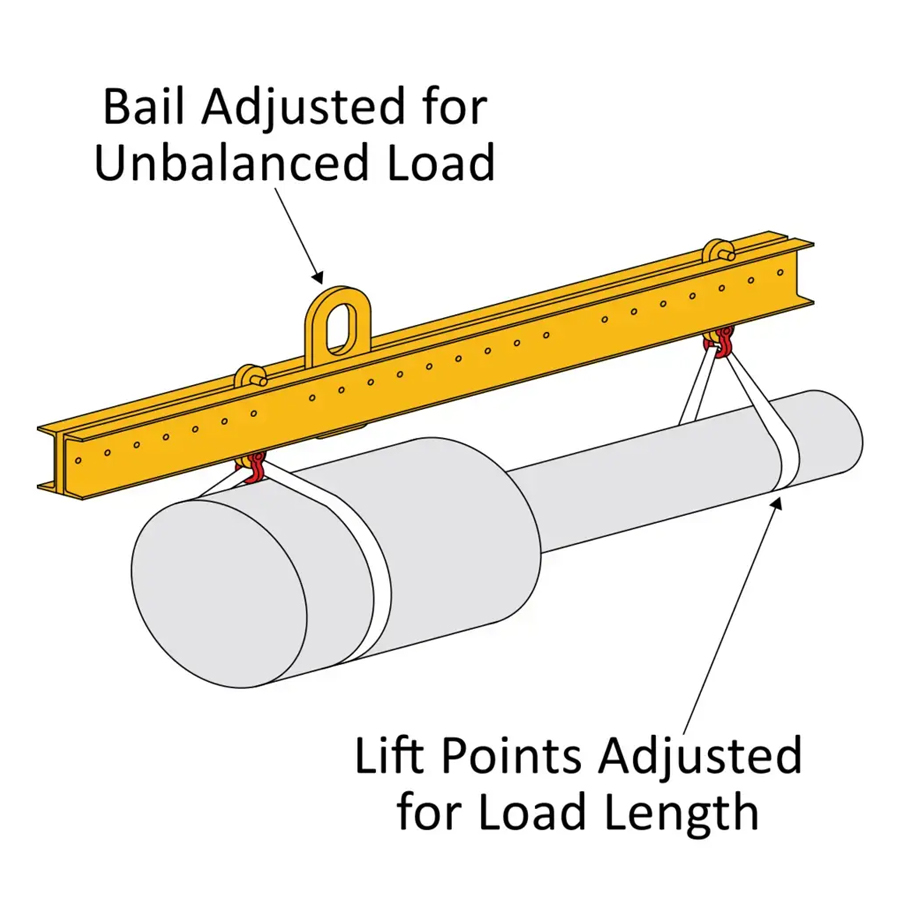

  • Bail adjusts horizontally for lifting unbalanced loads
  • Provides clearance in low headroom applications
  • Spread adjusts in 6″ increments along lifting beam
  • Shackles included
  • Optional swivel hooks available
  • Complies with ASME standards

Product Options:

  • Option S – Pair of swivel hooks

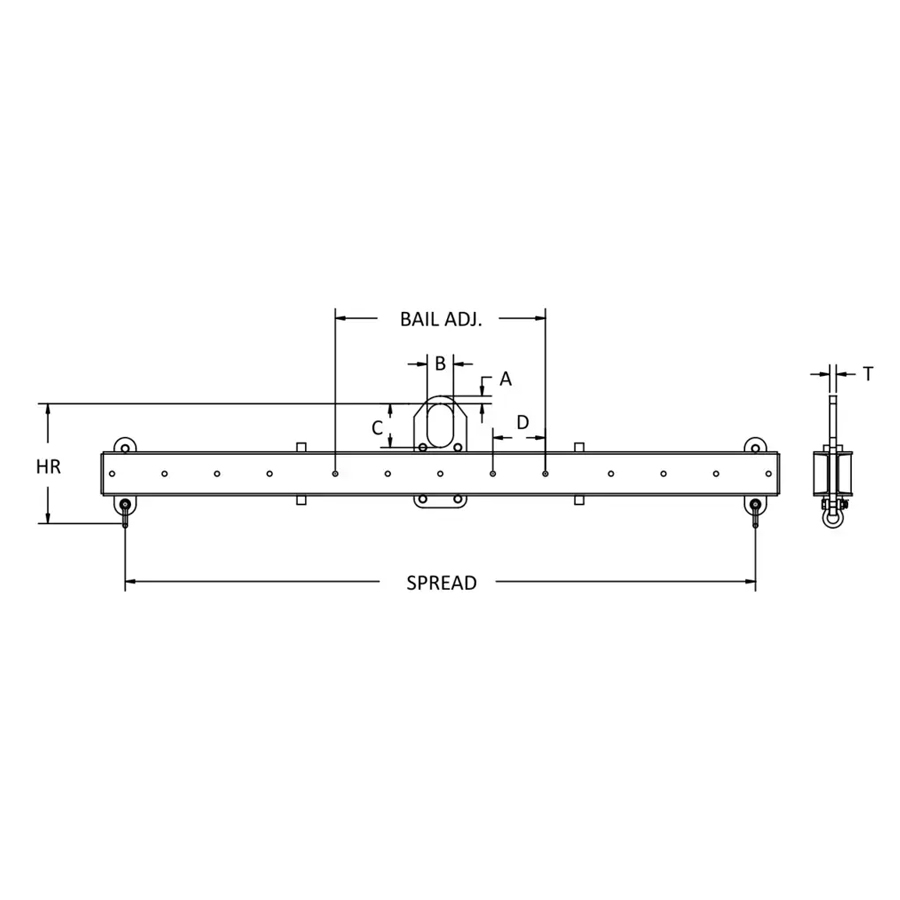

Model Number Capacity (tons) Max Bottom Spread (in.) Min Bottom Spread (in.) Bail Adj Rng (in.) Bail Adj D (in.) Headroom (in.) Shackle Sz (in.) Bail Oblong Dia (in.) Bail Open W (in.) Bail Open Ht (in.) Bail Thick (in.) Weight (lbs.) In Stock Price
17-1 1/4-6 1.25 72 36 24 6 14.7 2 1.5 3 5 0.62 150 $
17-2-6 2 72 36 24 6 14.7 2 1.5 3 5 0.62 155 $
17-4-8 4 96 54 36 6 19.8 3.25 2 4 7 0.75 285 $
17-5-10 5 120 60 36 6 22.4 4.75 2 4 7 1 475 $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
