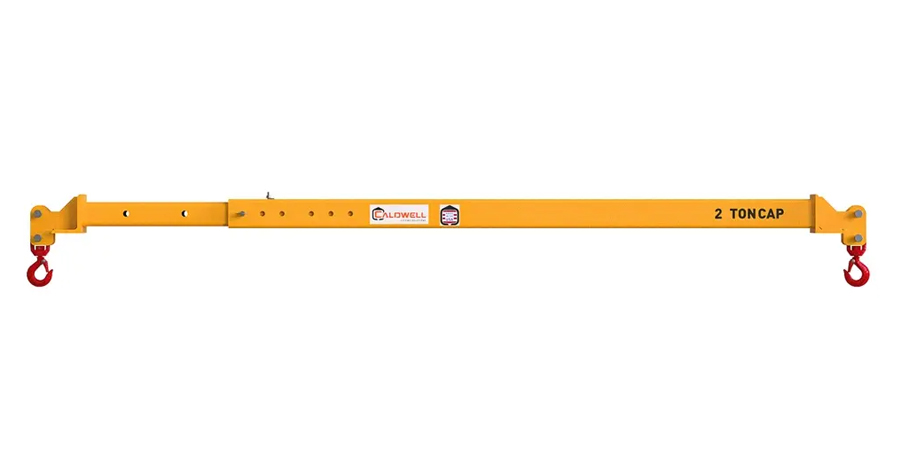

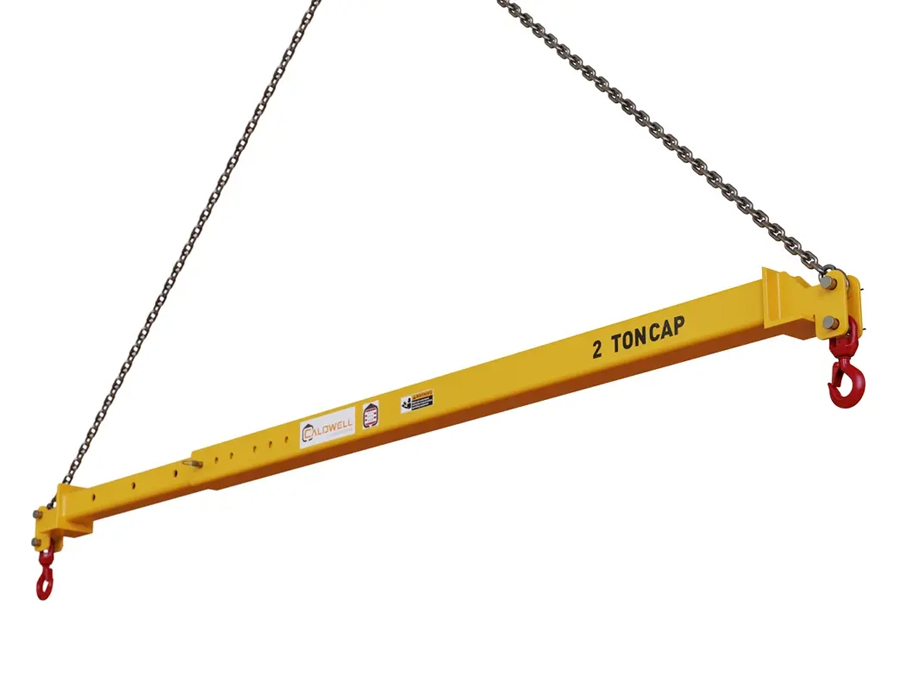

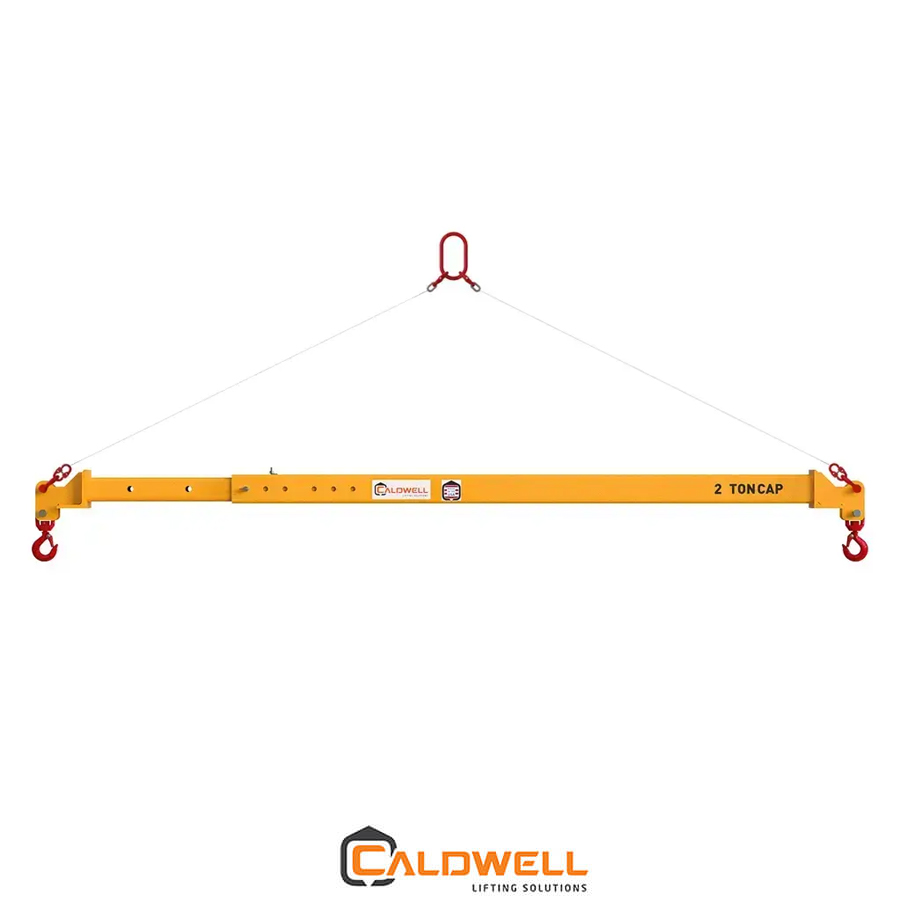

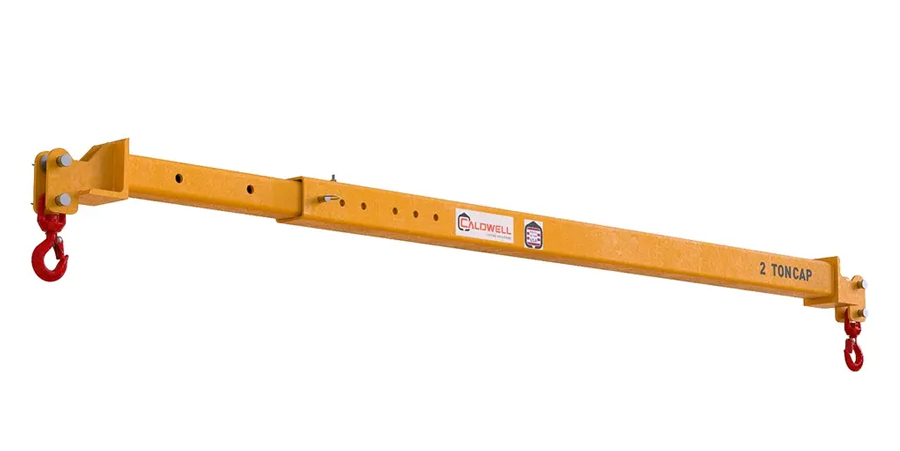

Caldwell Adjustable Spreader Beam Model 32

Caldwell Adjustable Spreader Beam Model 32

Caldwell’s patented design to safely lift unbalanced loads has evolved a bit since 1954, but not much. When it’s right, it’s right.

Features:

  • Ideal where headroom is not limited
  • Adds stability to lift
  • Telescopic spread standard
  • Spread adjusts in 1″ increments
  • Available with standard chain or wire rope rigging
  • Available with Adjust-A-Leg® rigging for off center load adjustment (minimum lifting capacity with be approximately 10-15% of beam rating).
  • Choose from a wide range of sizes and capacities
  • Telescoping adjustment at 12-inch increments
  • Custom designs available
  • Complies with ASME standards

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

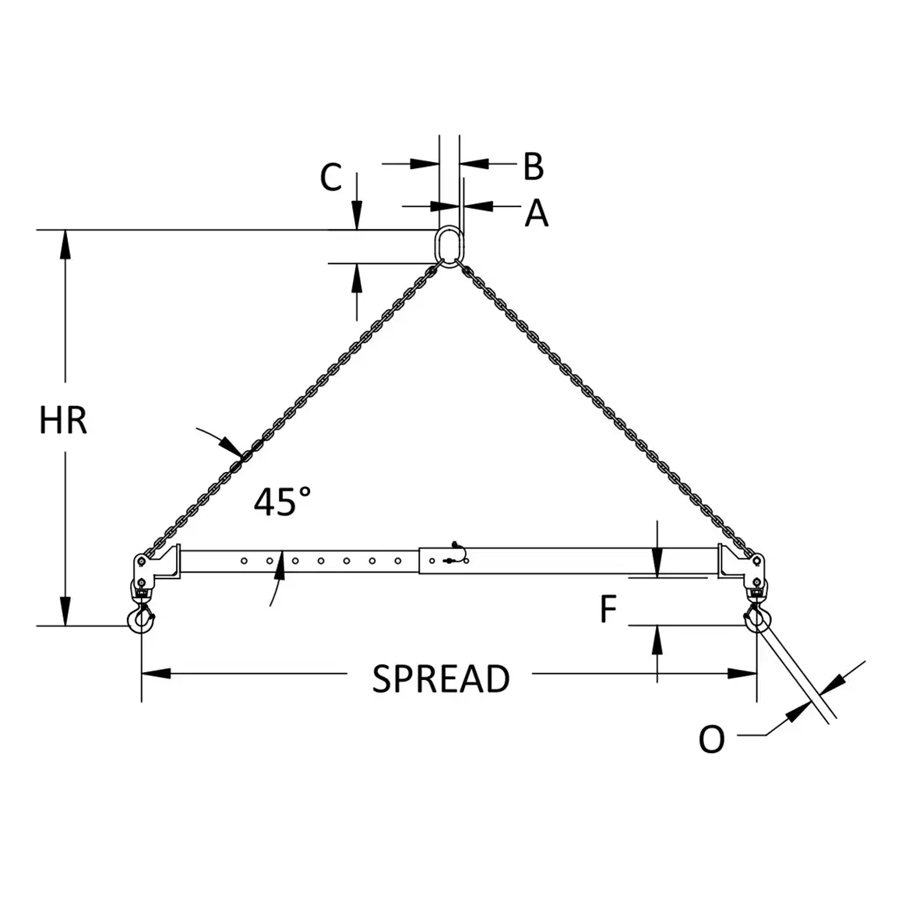

Model Number Capacity  (tons) Bail Oblong Dia (in.) Bail Open W (in.) Bail Open Ht (in.) HR Max (in.) HR Min (in.) Hook Clear (in.) Hook Open w/ Latch (in.) Max Spread (in.) Min Spread (in.) Wt Beam Only (lbs.) Wt Chain Rigging Only (lbs.) In Stock Price
32-2-4/6 2 0.5 2.36 3.94 57 48 5.5 0.97 72 48 70 9 ✔ $
32-2-6/10 2 0.5 2.36 3.94 88 72 5.5 0.97 120 72 85 13 ✔ $
32-2-12/20 2 0.5 2.36 3.94 166 132 5.5 0.97 240 144 245 23 ✔ $
32-2-8/14 2 0.5 2.36 3.94 113 96 5.5 0.97 168 96 175 17 ✔ $
32-5-4/6 5 1 5.38 7.09 64 55 8.4 1.41 72 48 105 34 ✔ $
32-5-6/10 5 1 5.38 7.09 95 79 8.4 1.41 120 72 160 47 ❌ $
32-5-12/20 5 1 5.38 7.09 172 138 8.4 1.41 240 144 670 82 ✔ $
32-5-8/14 5 1 5.38 7.09 126 102 8.4 1.41 168 96 205 61 ✔ $
32-10-4/6 10 1.25 5.71 10.83 69 60 10.6 1.78 72 48 130 49 ❌ $
32-10-6/10 10 1.25 5.71 10.83 74 74 10.6 1.78 120 72 175 69 ✔ $
32-10-8/14 10 1.25 5.71 10.83 132 108 10.6 1.78 168 96 460 88 ✔ $
32-10-12/20 10 1.25 5.71 10.83 163 144 10.6 1.78 240 144 680 118 ✔ $
32-15-4/6 15 1.25 5.9 10.5 72 64 13.6 2.22 72 48 165 78 ✔ $
32-15-6/10 15 1.25 5.9 10.5 104 87 13.6 2.22 120 72 365 111 ✔ $
32-15-8/14 15 1.25 5.9 10.5 135 111 13.6 2.22 168 96 478 145 ❌ $
32-15-12/20 15 1.25 5.9 10.5 180 147 13.6 2.22 240 144 700 194 ✔ $
32-20-7/11 20 1.75 6 12 107 93 14.2 2.27 132 84 430 175 ❌ $
32-20-9/15 20 1.75 6 12 144 123 14.2 2.27 180 108 540 225 ❌ $
32-20-12/20 20 1.75 6 12 180 151 14.2 2.27 240 144 822 275 ❌ $
32-25-7/11 25 2 7 14 107 98 14.2 2.27 132 84 430 240 ❌ $
32-25-9/15 25 2 7 14 141 119 14.2 2.27 180 108 540 295 ❌ $
32-25-12/20 25 2 7 14 179 149 14.2 2.27 240 144 825 365 ❌ $
32-30-7/11 30 2 7 14 115 102 18.3 3.02 132 84 615 240 ❌ $
32-30-9/15 30 2 7 14 145 124 18.3 3.02 180 108 750 295 ❌ $
32-30-12/20 30 2 7 14 183 154 18.3 3.02 240 144 1065 365 ❌ $
32-40-7/11 40 2.25 8 16 118 105 18.3 3.02 132 84 620 375 ❌ $
32-40-9/15 40 2.25 8 16 148 127 18.3 3.02 180 108 840 470 ❌ $
32-40-12/20 40 2.25 8 16 184 154 18.3 3.02 240 144 1500 565 ❌ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
