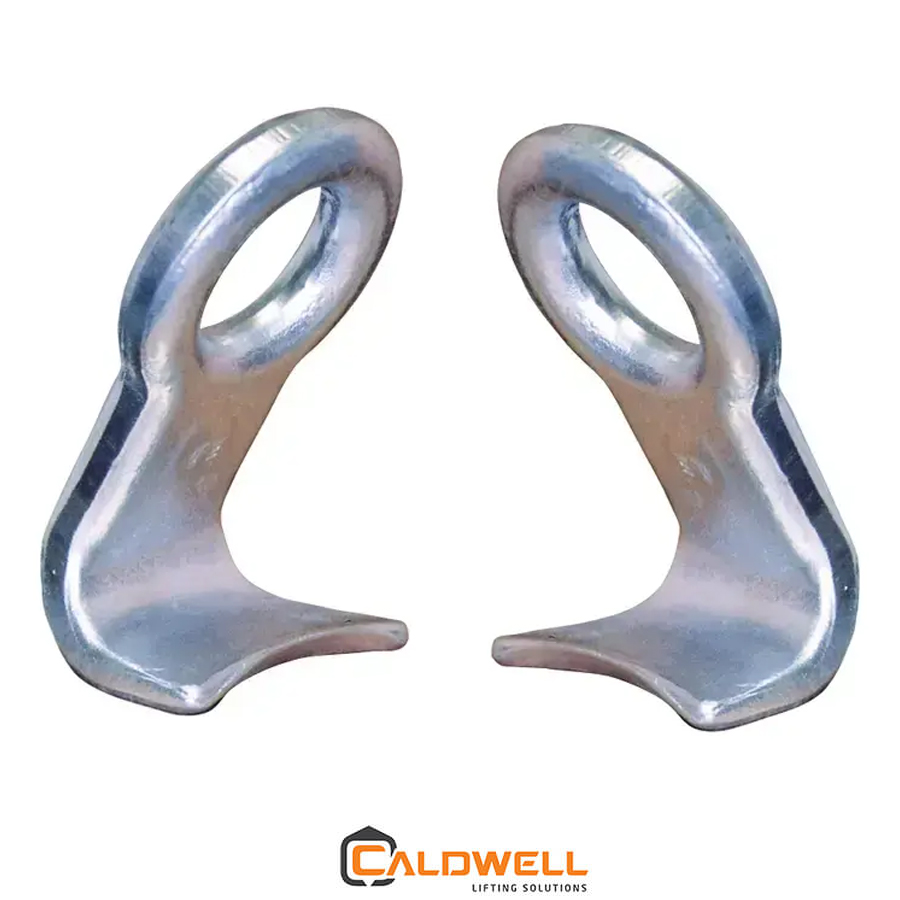

Caldwell Barrel/Drum Hooks Model BH

Caldwell Barrel/Drum Hooks Model BH

Features:

  • Forged steel

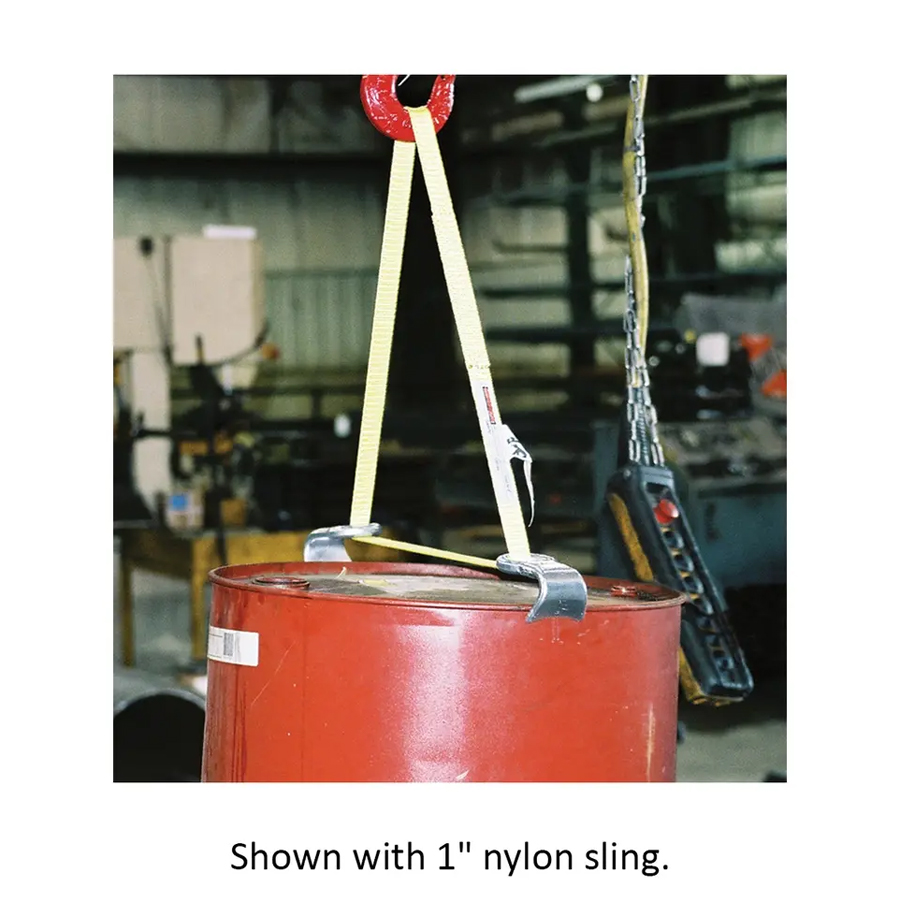

  • Use with chain, wire rope or 1″ nylon slings to lift drums or barrels
  • Ideally configured for use with an endless sling
  • Plated for corrosion resistance
  • Full 2-7/8″ lip for positive grip
  • Lifts drums either vertically or horizontally
  • Complies with ASME B30.9 sling capacities
Model Number Capacity  (tons) Eye Inner Dia (in.) Eye Outer Dia (in.) Length (in.) Lip W (in.) Wt/Pair (lbs.) In Stock Price
BH 0.5 1.56 2.81 5 2.88 3.6 $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
