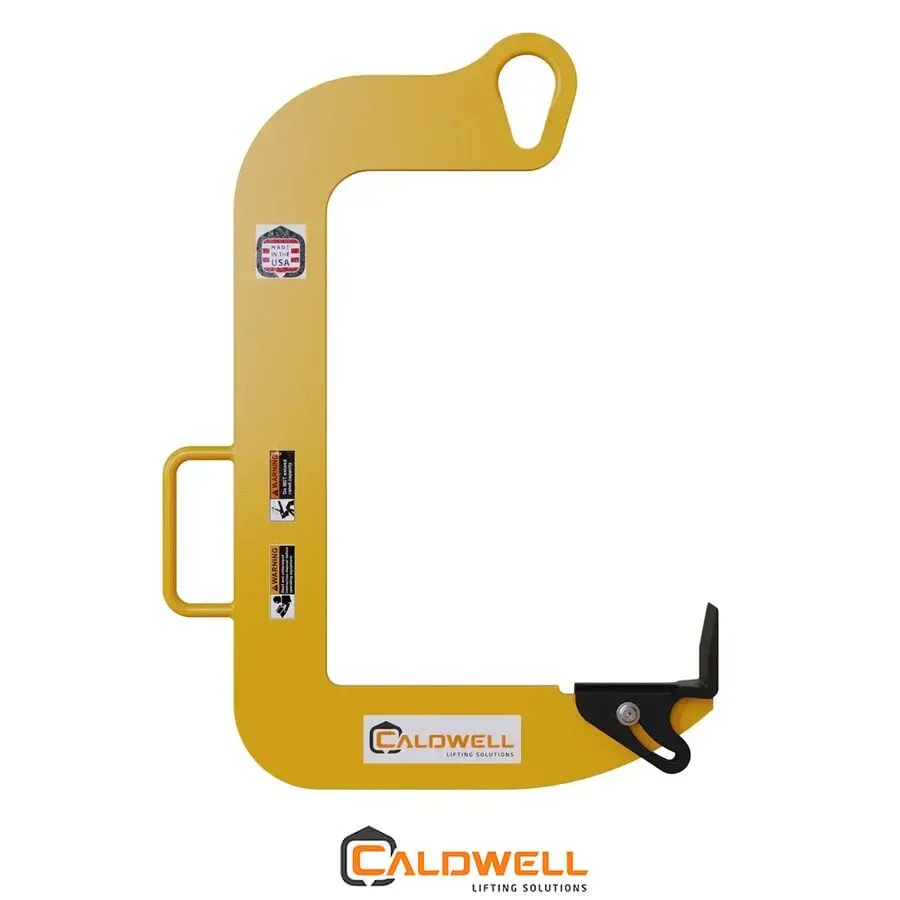

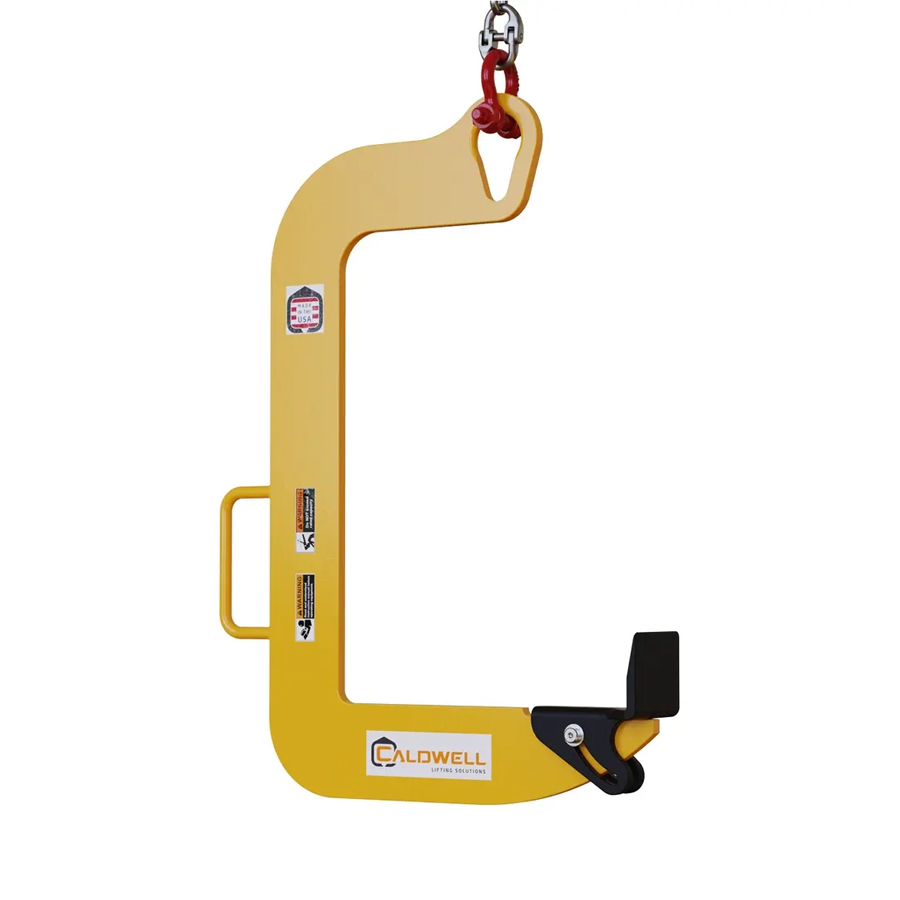

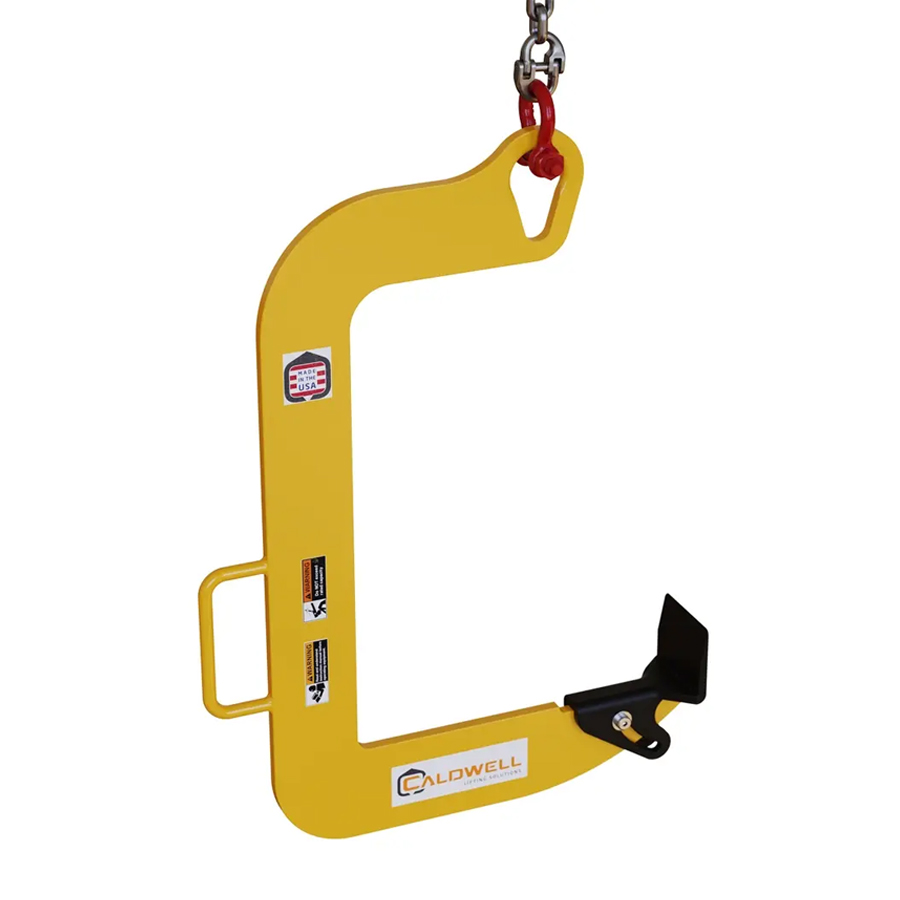

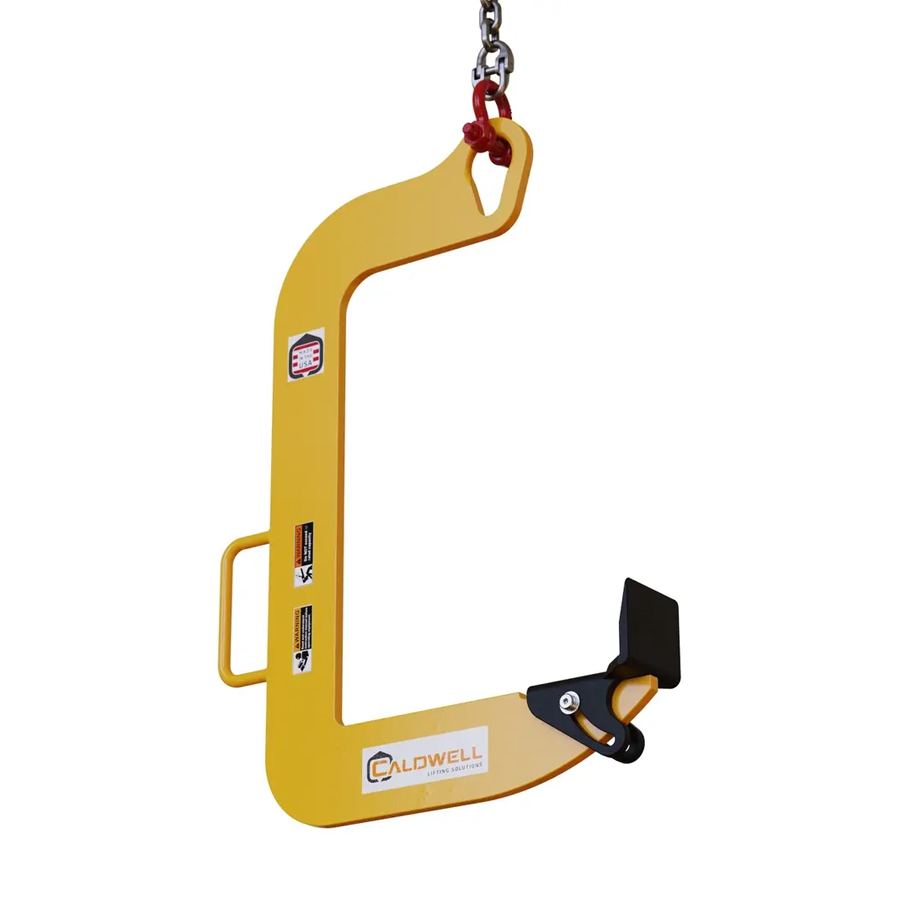

Caldwell Dixon Coil Hook with Pivoting Wedge Model 80H

Caldwell Dixon Coil Hook with Pivoting Wedge Model 80H

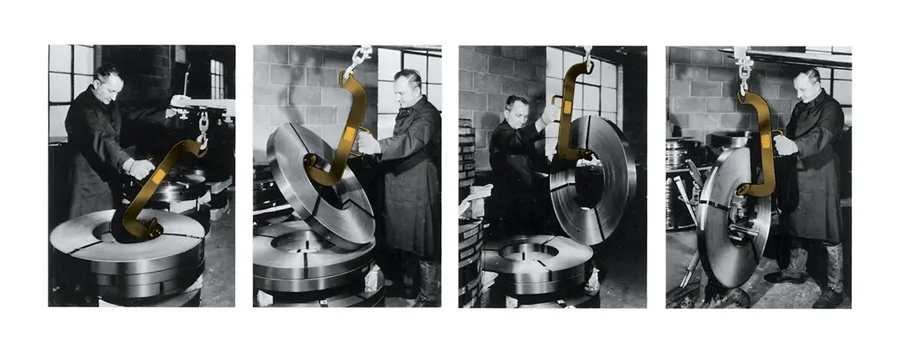

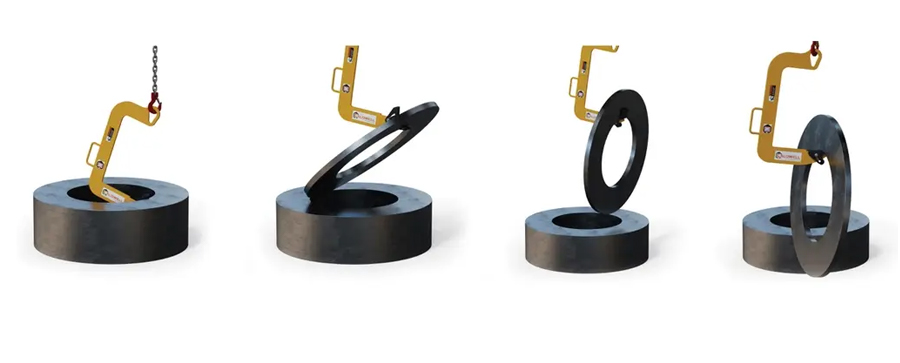

It’s all about the pivoting wedge on this unit. By maneuvering that wedge in between two stacked coils, an operator can separate them and begin a tilt, allowing the rest of the hook to slide in and do its job.

Features:

  • Easy horizontal to vertical upending of coils
  • Pivoting wedge for easy tilting of stacked coils
  • Wedge acts as retainer
  • Efficient and easy to use
  • Popular for use with small, lightweight coils
  • For use where overhead clearance is limited
  • Specially designed heat treated pivoting wedge
  • Complies with ASME standards

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

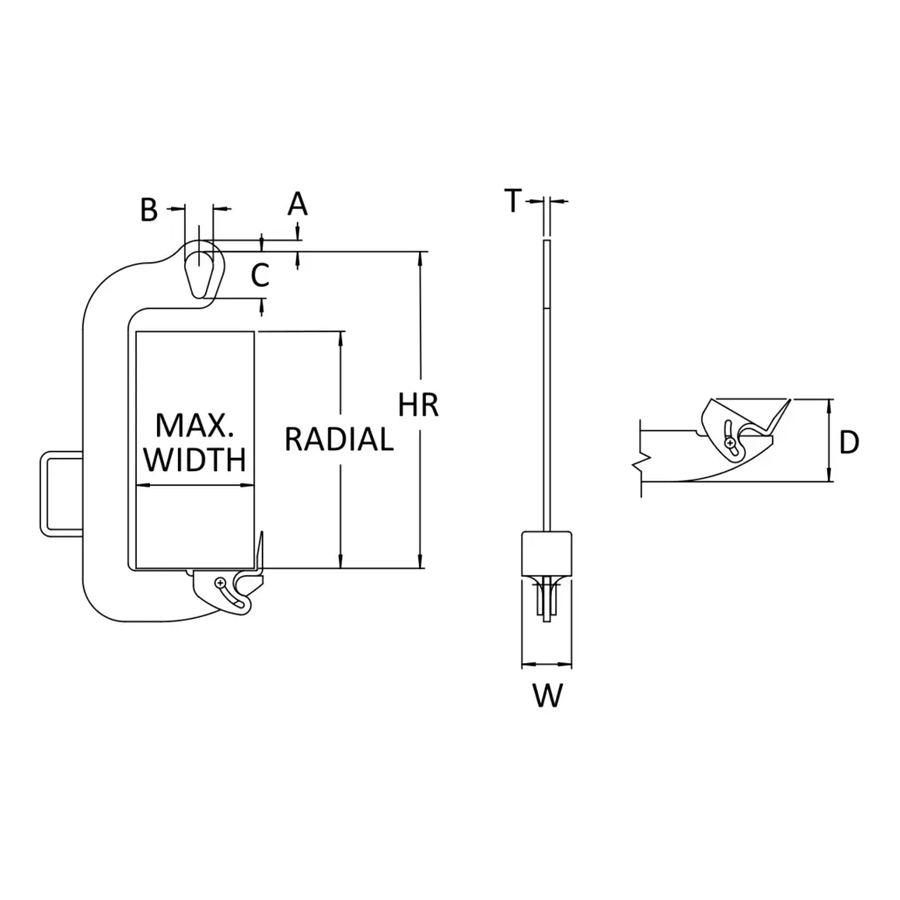

Model Number Capacity (tons) Max. Width (in.) Max. Radial (in.) Min. ID (in.) Headroom (in.) A (in.) B (in.) C (in.) D (in.) T (in.) W (in.) Weight (lbs.) In Stock Price
80H-1/2-6/13 0.5 6 13 9 19.1 0.81 2 3.31 6 0.5 3.5 20 ✔ $
80H-1/2-12/13 0.5 12 13 13 22 0.81 2 3.31 6 0.5 3.5 28 ✔ $
80H-1-8/16 1 8 16 10 22.8 0.81 2 3.31 6 0.5 3.5 23 ✔ $
80H-2-10/18 1 10 18 12.5 26 1 2.62 4 6.75 0.75 2 42 ✔ $
80H-3.5-12/20 3.5 12 20 14.5 30.6 1.19 3.62 5.31 7.75 1 2.5 80 ✔ $
80H-5-12/24 5 12 24 20.5 34.8 1.5 4 5.75 9.12 1.25 3 116 ❌ $
