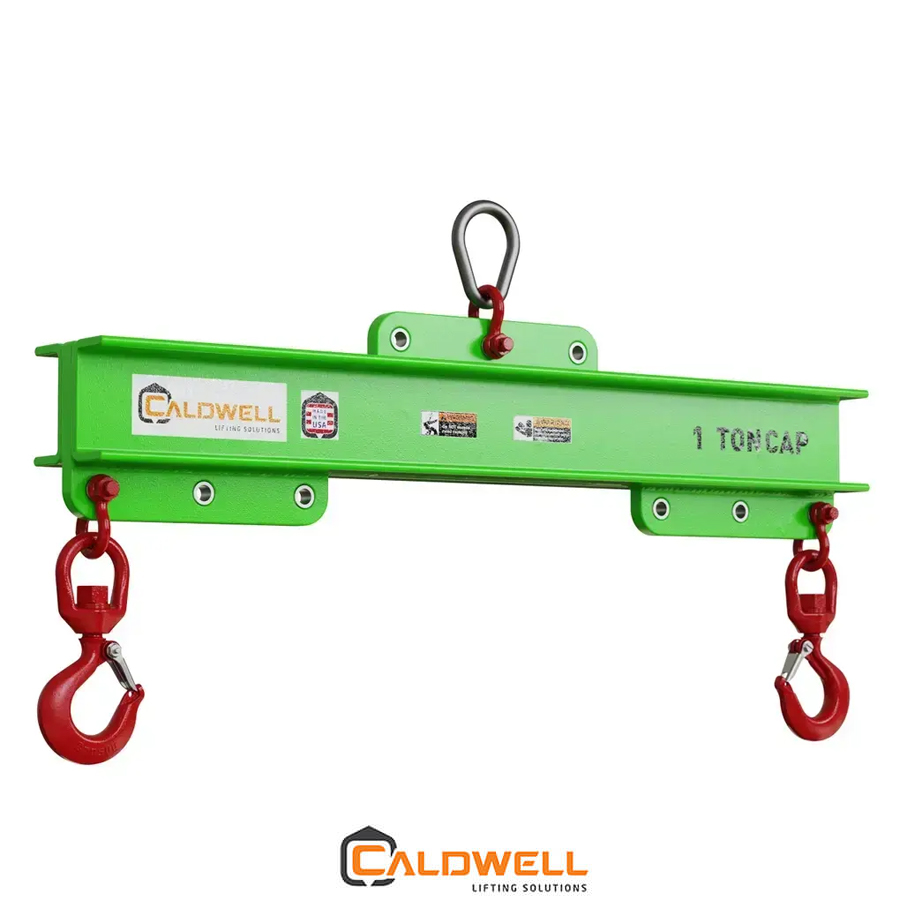

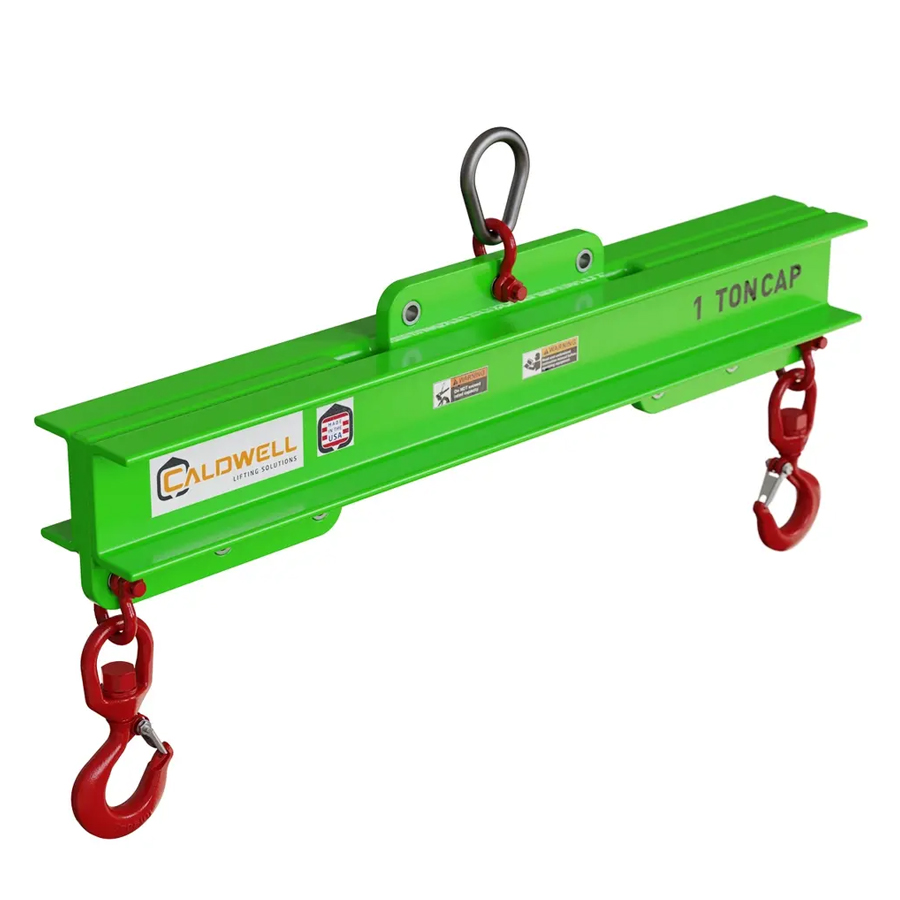

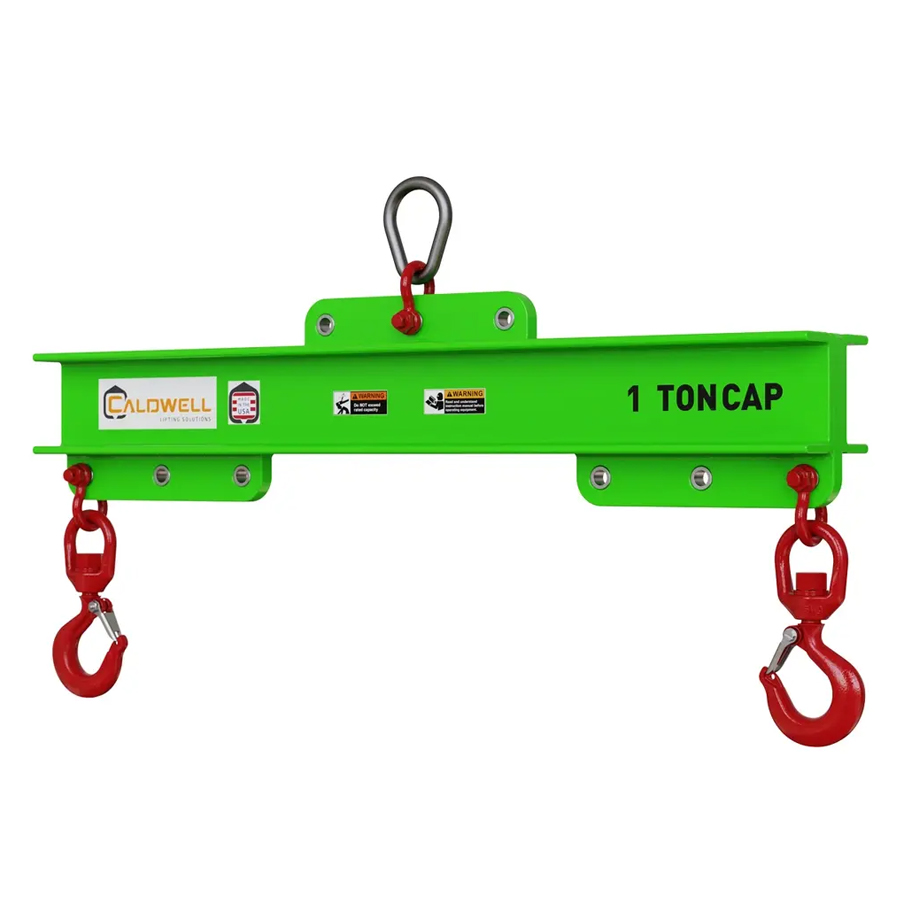

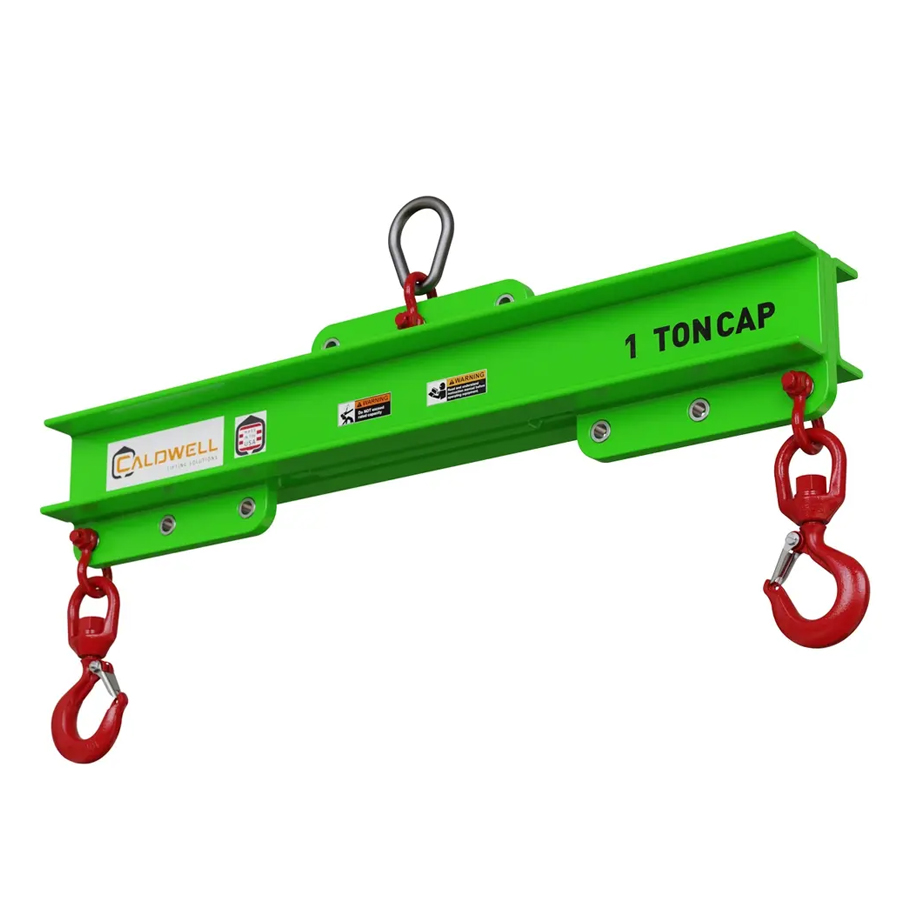

Caldwell Dura-Lite Composite Adjustable Lifting Beams Model 416

Caldwell Dura-Lite Composite Adjustable Lifting Beams Model 416

Dura-Lite Model 416 is the composit version of Caldwell’s Model 16 Adjustable Lifting Beam. Choose for corrosive enviroments, areas where sparks are a concern, or when a lighter beam allows you to pick a heavier load.

Features:

  • Lightweight beam gives you additional load capacity while protecting riggers’ backs
  • Non-corrosive: corrosion-resistant material won’t rust
  • 1/4- to 3-ton capacities
  • Complies with ASME B30.20, design category B, service class 4
  • Can be used for a wide range of applications
  • Proof tested with certificate issued
  • DURA-LITE product is compliant with European Community standards CE

EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

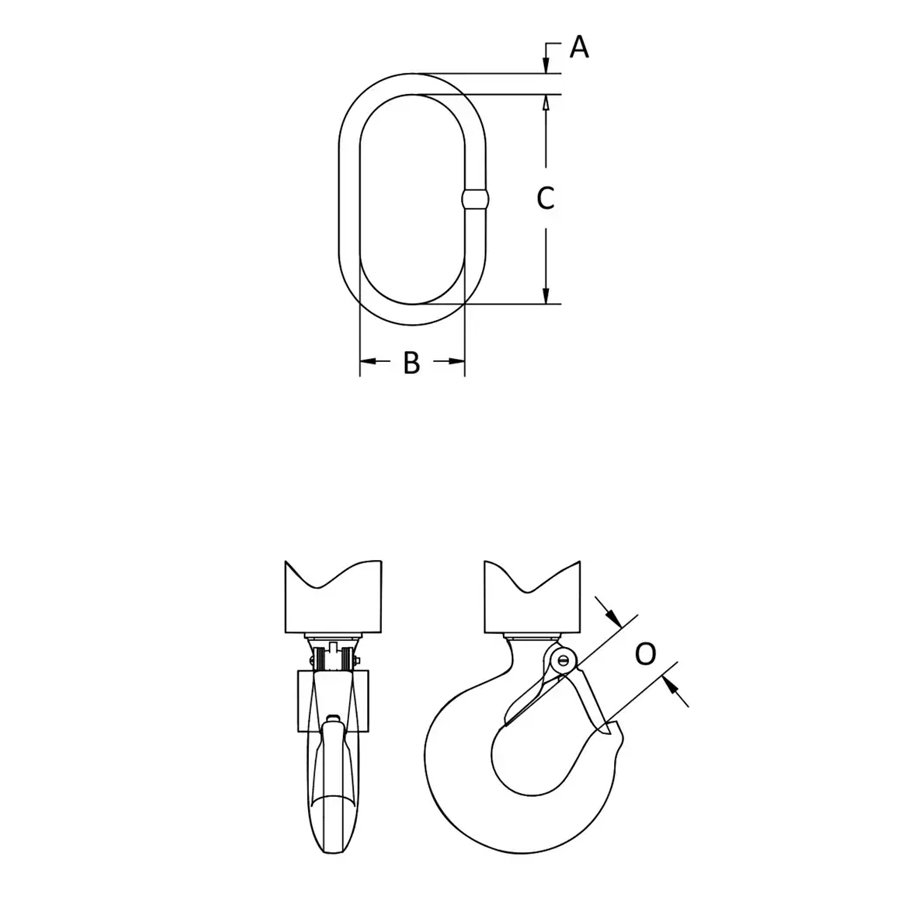

Model Number Capacity (tons) Maximum Spread (in.) Minimum Spread (in.) Bail Adj. Increment (in.) HR (in.) Beam Weight Only (lbs.) Weight With Hardware (lbs.) A (in.) B (in.) C (in.) O (in.) In Stock Price
416-1/4-2 0.25 24 12 3 13.5 7 9 0.38 1.5 2 0.89 ❌ $
416-1/4-3 0.25 36 24 3 13.5 9 11 0.38 1.5 2 0.89 ❌ $
416-1/4-4 0.25 48 36 3 13.5 11 13 0.38 1.5 2 0.89 ❌ $
416-1/4-6 0.25 72 48 6 16.5 27 28 0.38 1.5 2 0.89 ❌ $
416-1/4-8 0.25 96 72 6 16.5 32 35 0.38 1.5 2 0.89 ❌ $
416-1/4-10 0.25 120 96 6 18.5 74 76 0.38 1.5 2 0.89 ❌ $
416-1/4-12 0.25 144 120 6 18.5 87 89 0.38 1.5 2 0.89 ❌ $
416-1/4-14 0.25 168 144 6 18.5 101 103 0.38 1.5 2 0.89 ❌ $
416-1/2-2 0.5 24 12 3 13.9 9 11 0.38 1.5 1.9 0.89 ❌ $
416-1/2-3 0.5 36 24 3 13.9 10 13 0.38 1.5 1.9 0.89 ❌ $
416-1/2-4 0.5 48 36 3 14.9 14 16 0.38 1.5 1.9 0.89 ❌ $
416-1/2-6 0.5 72 48 6 16.9 30 32 0.38 1.5 1.9 0.89 ❌ $
416-1/2-8 0.5 96 72 6 18.9 64 66 0.38 1.5 1.9 0.89 ❌ $
416-1/2-10 0.5 120 96 6 18.9 80 82 0.38 2.8 1.9 0.89 ❌ $
416-1-2 1 24 12 3 20.4 14 20 0.62 2.8 4.5 0.91 ❌ $
416-1-3 1 36 24 3 20.4 16 22 0.62 2.8 4.5 0.91 ❌ $
416-1-4 1 48 36 3 22.4 23 29 0.62 2.8 4.5 0.91 ❌ $
416-1-6 1 72 48 6 24.4 60 66 0.62 2.8 4.5 0.91 ❌ $
416-1-8 1 96 72 6 25.4 72 79 0.62 2.8 4.5 0.91 ❌ $
416-2-2 2 24 12 3 23.5 19 30 0.62 2.8 4.3 1.09 ❌ $
416-2-3 2 36 24 3 25.5 25 36 0.62 2.8 4.3 1.09 ❌ $
416-2-4 2 48 36 3 27.5 45 57 0.62 2.8 4.3 1.09 ✔ $
416-2-6 2 72 48 6 27.5 68 79 0.62 2.8 4.3 1.09 ❌ $
416-3-2 3 24 12 3 26.5 22 38 0.62 2.8 4.3 1.36 ❌ $
416-3-3 3 36 24 3 26.5 25 41 0.62 2.8 4.3 1.36 ❌ $
416-3-4 3 48 36 3 28.5 45 62 0.62 2.8 4.3 1.36 ❌ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
