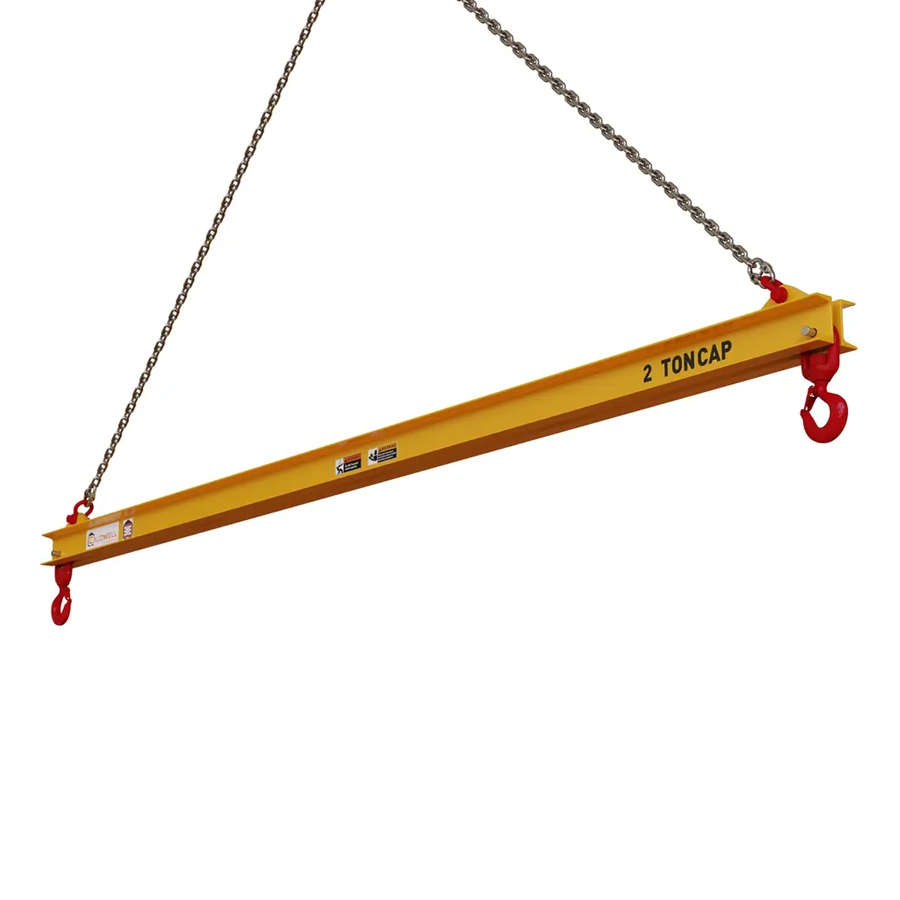

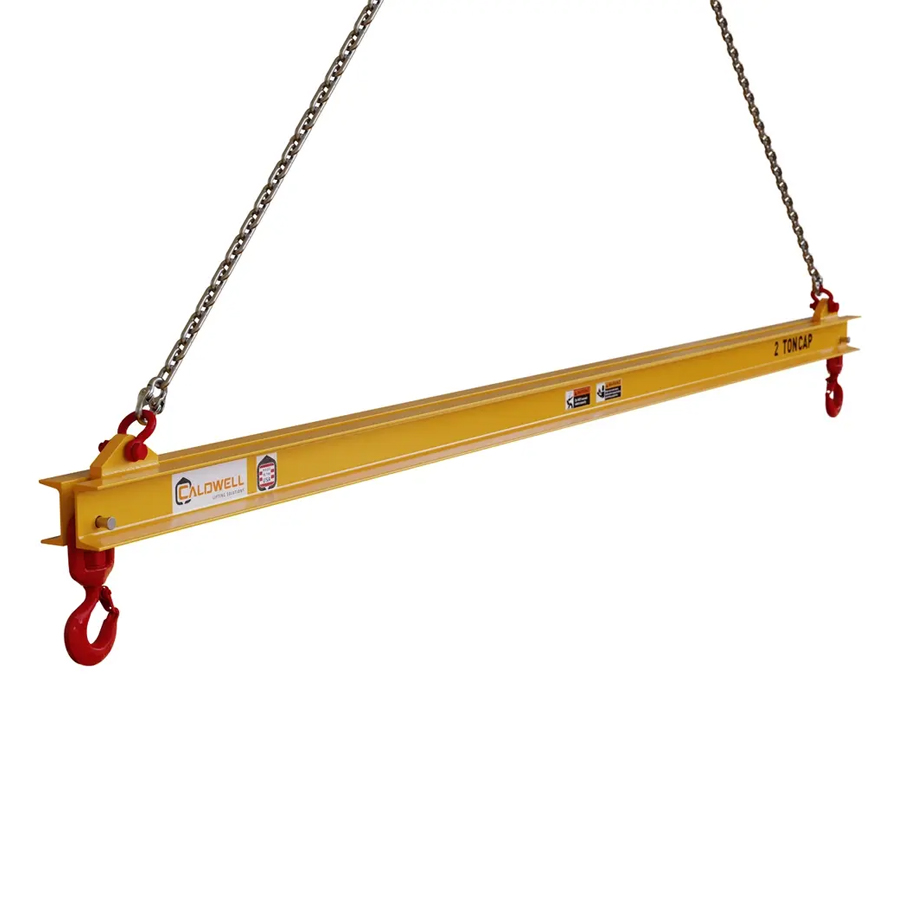

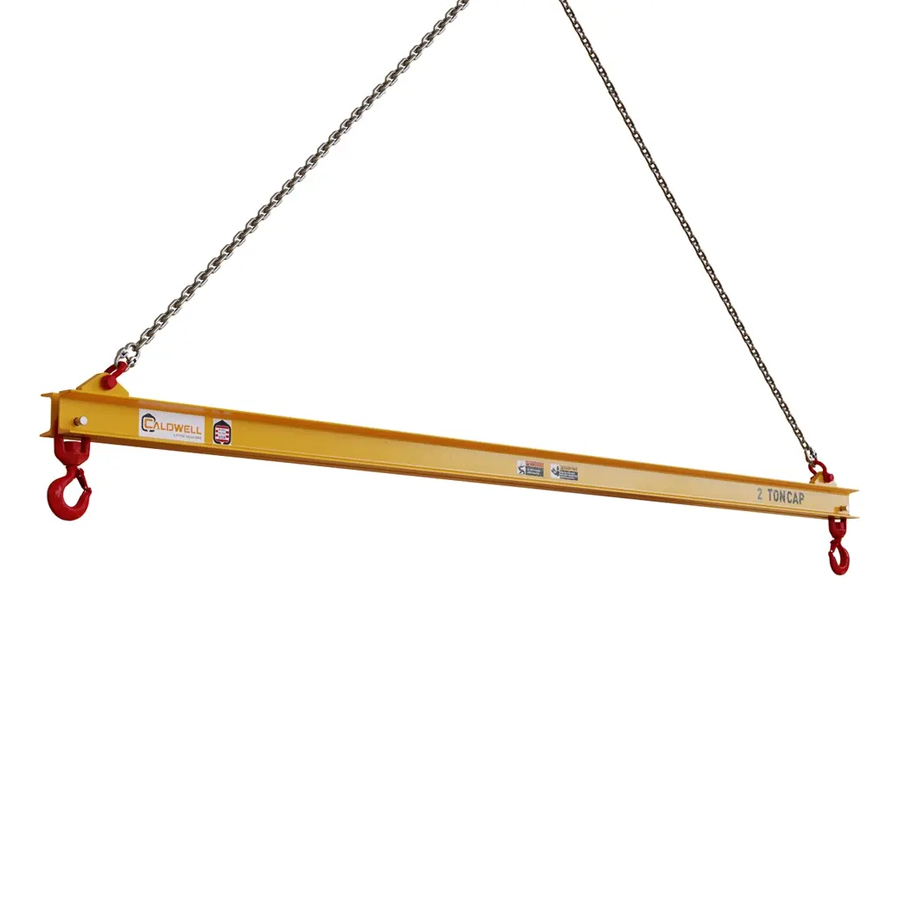

Caldwell Fixed Spreader Beam Model 30

Caldwell Fixed Spreader Beam Model 30

Not all picks require low-headroom beams. And sometimes you need the extra stability of a chain or wire rope rigging. In those situations, the Model 30 Fixed Spreader Beam is the right choice.

Product Features:

  • Ideal where headroom is not limited
  • Adds stability to lift
  • Available with standard chain or wire rope rigging
  • Available with Adjust-A-Leg rigging for off-center load adjustment (minimum lifting capacity will be approximately 10-15% of beam rating)
  • Wide range of additional sizes and capacities available
  • Complies with ASME standards

Rigging Options:

  • Option A — Adjustable-A-Leg® sling top rigging for off-on load adjustment
  • Option C — Chain top rigging from beam to crane hook
  • Option W — Wire rope top rigging from beam to crane hook

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

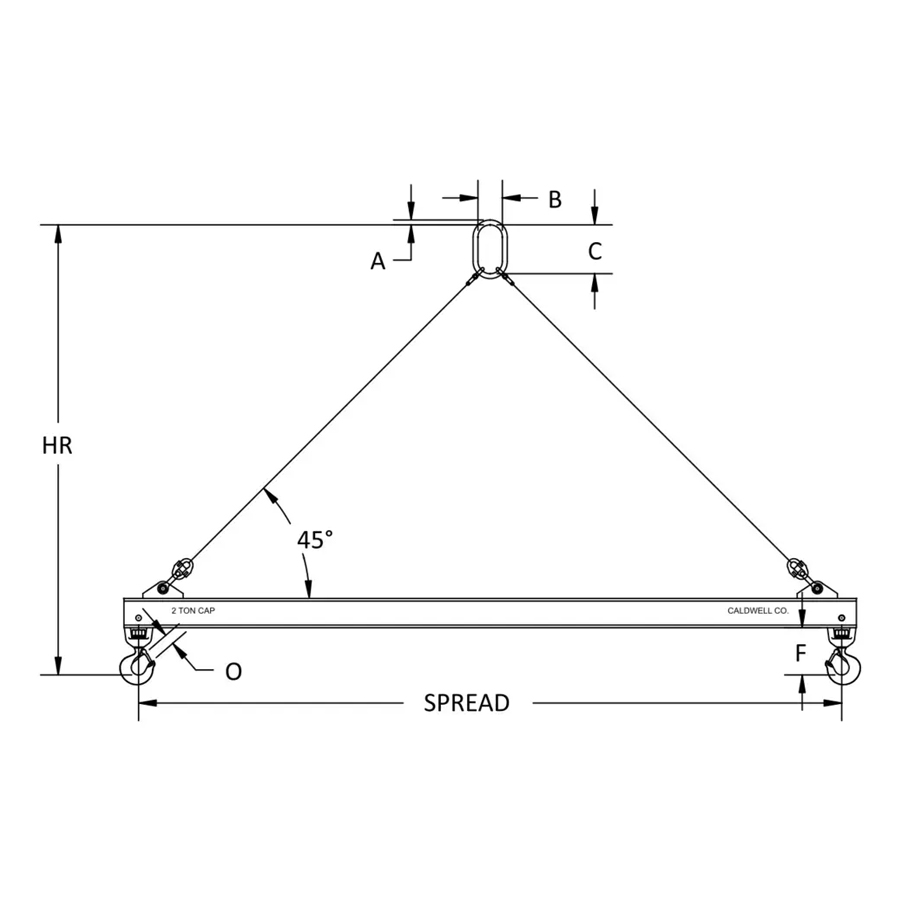

Model Number Capacity (tons) Spread (in.) HR With Rigging (in.) A (in.) B (in.) C (in.) F (in.) O (in.) Weight (lbs.) In Stock Price
30-2-4 2 48 34 0.5 2.5 5 4.25 0.96875 45 ❌ $
30-2-6 2 72 46 0.5 2.5 5 4.25 0.96875 60 ❌ $
30-2-8 2 96 58 0.5 2.5 5 4.25 0.97 82 ❌ $
30-2-10 2 120 70 0.5 2.5 5 4.25 0.96875 95 ❌ $
30-2-12 2 144 82 0.5 2.5 5 4.25 0.96875 115 ❌ $
30-2-16 2 192 106 0.5 2.5 5 4.25 0.96875 225 ❌ $
30-2-20 2 240 132 0.5 2.5 5 4.25 0.97 408 ❌ $
30-2-24 2 288 156 0.5 2.5 5 4.25 0.96875 445 ❌ $
30-5-4 5 48 37 1 3.5 7 6 1.06 62 ❌ $
30-5-6 5 72 49 1 3.5 7 6 1.06 80 ❌ $
30-5-8 5 96 61 1 3.5 7 6 1.0625 100 ❌ $
30-5-10 5 120 73 1 3.5 7 6 1.06 117 ❌ $
30-5-12 5 144 83 1 3.5 7 6 1.06 168 ❌ $
30-5-16 5 192 110 1 3.5 7 6 1.0625 305 ❌ $
30-5-20 5 240 134 1 3.5 7 6 1.0625 435 ❌ $
30-5-24 5 288 158 1 3.5 7 6 1.06 661 ❌ $
30-10-4 10 48 41 1.25 4.375 8.75 8.125 1.5 100 ❌ $
30-10-6 10 72 53 1.25 4.38 8.75 8.12 1.5 122 ❌ $
30-10-8 10 96 64 1.25 4.38 8.75 8.12 1.5 156 ❌ $
30-10-10 10 120 77 1.25 4.375 8.75 8.125 1.5 180 ❌ $
30-10-12 10 144 86 1.25 4.375 8.75 8.125 1.5 240 ❌ $
30-10-16 10 192 113 1.25 4.375 8.75 8.125 1.5 380 ❌ $
30-10-20 10 240 138 1.25 4.38 8.75 8.12 1.5 532 ❌ $
30-10-24 10 288 163 1.25 4.375 8.75 8.125 1.5 915 ❌ $
30-15-4 15 48 43 1.5 5.25 10.5 9.25 1.75 126 ❌ $
30-15-6 15 72 55 1.5 5.25 10.5 9.25 1.75 155 ❌ $
30-15-8 15 96 65 1.5 5.25 10.5 9.25 1.75 185 ❌ $
30-15-10 15 120 80 1.5 5.25 10.5 9.25 1.75 245 ❌ $
30-15-12 15 144 92 1.5 5.25 10.5 9.25 1.75 270 ❌ $
30-15-16 15 192 116 1.5 5.25 10.5 9.25 1.75 420 ❌ $
30-15-20 15 240 140 1.5 5.25 10.5 9.25 1.75 665 ❌ $
30-15-24 15 288 167 1.5 5.25 10.5 9.25 1.75 953 ❌ $
30-20-4 20 48 46 1.75 6 12 9.75 2 170 ❌ $
30-20-6 20 72 58 1.75 6 12 9.75 2 200 ❌ $
30-20-8 20 96 69 1.75 6 12 9.75 2 233 ❌ $
30-20-10 20 120 82 1.75 6 12 9.75 2 315 ❌ $
30-20-12 20 144 94 1.75 6 12 9.75 2 350 ❌ $
30-20-16 20 192 118 1.75 6 12 9.75 2 540 ❌ $
30-20-20 20 240 140 1.75 6 12 9.75 2 775 ❌ $
30-20-24 20 288 170 1.75 6 12 9.75 2 1341 ❌ $
30-30-6 30 72 60 1.75 6 12 9.75 2 285 ❌ $
30-30-8 30 96 70 1.75 6 12 9.75 2 402 ❌ $
30-30-10 30 120 83 1.75 6 12 9.75 2 440 ❌ $
30-30-12 30 144 95 1.75 6 12 9.75 2 530 ❌ $
30-30-16 30 192 120 1.75 6 12 9.75 2 888 ❌ $
30-30-20 30 240 145 1.75 6 12 9.75 2 1390 ❌ $
30-40-6 40 72 65 2 7 14 13 2.75 563 ❌ $
30-40-8 40 96 77 2 7 14 13 2.75 695 ❌ $
30-40-10 40 120 89 2 7 14 13 2.75 781 ❌ $
30-40-12 40 144 102 2 7 14 13 2.75 1058 ❌ $
30-40-16 40 192 127 2 7 14 13 2.75 1364 ❌ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
