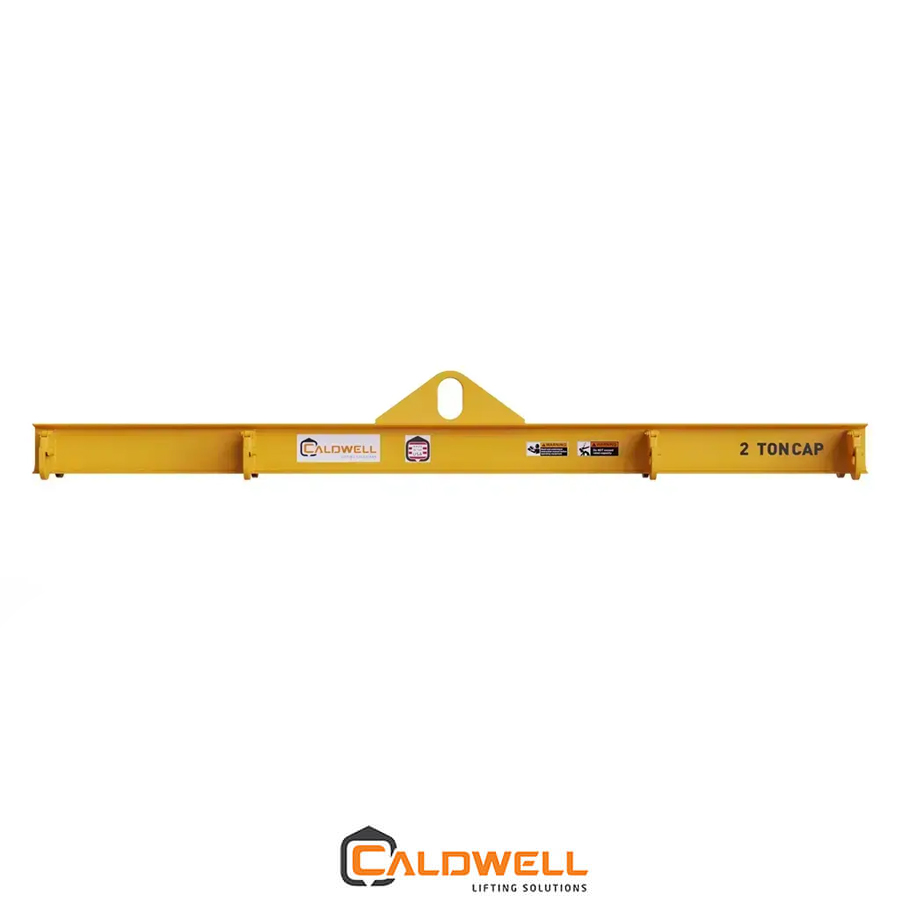

Caldwell Heavy-Duty Twin Basket Sling Lifting Beams Model 22

Features:

Designed to be used with slings in a basket hitch
Specially designed hooks with hook latches minimize potential sling damage
Two sets of fixed hooks are standard in all lengths over 4′

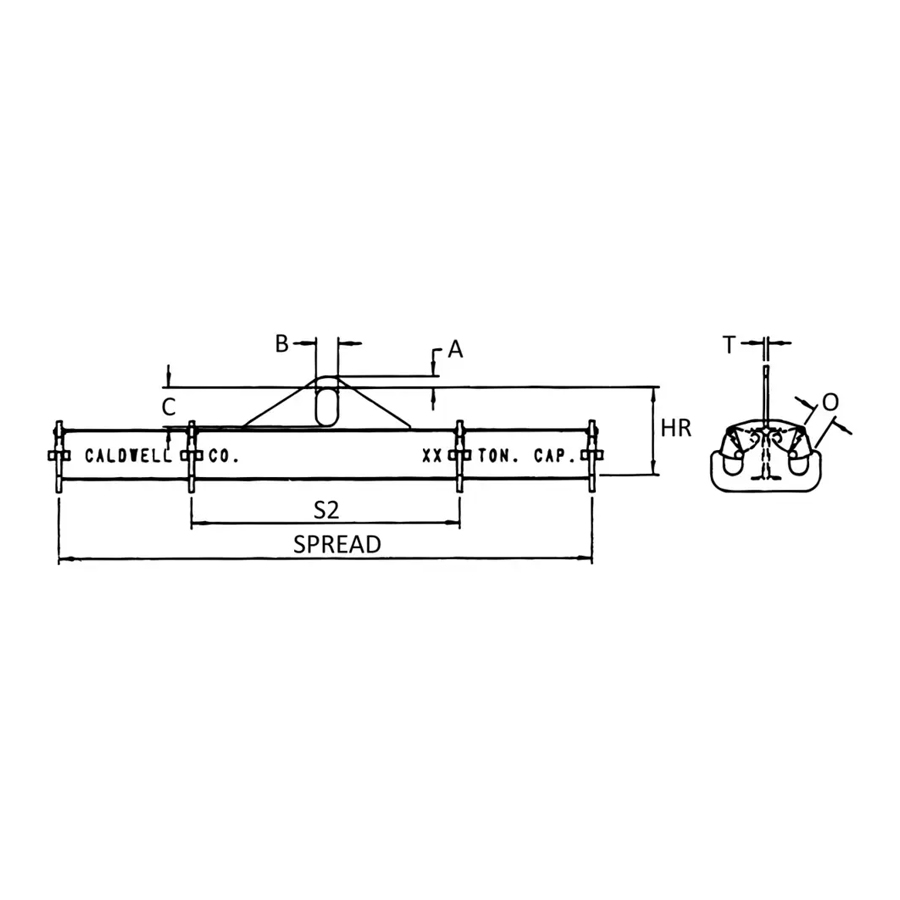

The inner sets of hooks (S2) are 1/2 the overall spread
Extra spreads available upon request
Complies with ASME standards

EMAIL PAGE

VIEW IN CATALOG

WARNINGS & CAUTIONS

Model Number	Capacity (tons)	Bail Depth (in.)	Bail Open W (in.)	Bail Open Ht (in.)	Bail Thick (in.)	Headroom (in.)	Hook Open w/ Latch (in.)	Outside Spread (in.)	Weight (lbs.)	In Stock	Price
22-1/2-3	0.5	0.875	3	5	0.75	8.5	1.0625	3	50	❌	$
22-1/2-4	0.5	0.875	3	5	0.75	8.5	1.0625	4	65	❌	$
22-1/2-6	0.5	0.875	3	5	0.75	8.5	1.0625	6	110	❌	$
22-1/2-8	0.5	0.875	3	5	0.75	8.5	1.0625	8	150	❌	$
22-1/2-10	0.5	0.875	3	5	0.75	9.5	1.0625	10	200	❌	$
22-1/2-12	0.5	0.875	3	5	0.75	9.5	1.0625	12	220	❌	$
22-1/2-14	0.5	0.875	3	5	0.75	10.5	1.0625	14	298	❌	$
22-1/2-16	0.5	0.875	3	5	0.75	10.5	1.0625	16	331	❌	$
22-1/2-18	0.5	0.875	3	5	0.75	11.5	1.0625	18	424	❌	$
22-1/2-20	0.5	0.875	3	5	0.75	11.5	1.0625	20	463	❌	$
22-1/2-24	0.5	0.875	3	5	0.75	12.5	1.0625	24	627	❌	$
22-1/2-30	0.5	0.875	3	5	0.75	13.5	1.0625	30	855	❌	$
22-1-3	1	0.875	3	5	0.75	8.5	1.125	3	50	❌	$
22-1-4	1	0.875	3	5	0.75	8.5	1.125	4	65	❌	$
22-1-6	1	0.875	3	5	0.75	9.5	1.125	6	145	❌	$
22-1-8	1	0.875	3	5	0.75	10.5	1.125	8	210	❌	$
22-1-10	1	0.875	3	5	0.75	10.5	1.125	10	230	❌	$
22-1-12	1	0.875	3	5	0.75	11.5	1.125	12	290	❌	$
22-1-14	1	0.875	3	5	0.75	11.5	1.125	14	338	❌	$
22-1-16	1	0.875	3	5	0.75	12.5	1.125	16	390	❌	$
22-1-18	1	0.875	3	5	0.75	13.5	1.125	18	539	❌	$
22-1-20	1	0.875	3	5	0.75	13.5	1.125	20	588	❌	$
22-1-24	1	0.875	3	5	0.75	15.5	1.125	24	907	❌	$
22-1-30	1	0.875	3	5	0.75	15.5	1.125	30	1150	❌	$
22-2-3	2	0.875	3	5	0.75	9.5	1.125	3	90	❌	$
22-2-4	2	0.875	3	5	0.75	10.5	1.125	4	160	❌	$
22-2-6	2	0.875	3	5	0.75	10.5	1.125	6	275	❌	$
22-2-8	2	0.875	3	5	0.75	11.5	1.125	8	350	❌	$
22-2-10	2	0.875	3	5	0.75	12.5	1.125	10	450	❌	$
22-2-12	2	0.875	3	5	0.75	13.5	1.125	12	500	❌	$
22-2-14	2	0.875	3	5	0.75	13.5	1.125	14	854	❌	$
22-2-16	2	0.875	3	5	0.75	14.5	1.125	16	940	❌	$
22-2-18	2	0.875	3	5	0.75	15.5	1.125	18	1398	❌	$
22-2-20	2	0.875	3	5	0.75	15.5	1.125	20	1650	❌	$
22-2-24	2	0.875	3	5	0.75	17.5	1.125	24	2144	❌	$
22-2-30	2	0.875	3	5	0.75	20.5	1.125	30	2330	❌	$
22-5-3	5	2	4	7	1	13.5	1.125	3	90	❌	$
22-5-4	5	2	4	7	1	14.5	1.125	4	160	❌	$
22-5-6	5	2	4	7	1	15.5	1.125	6	275	❌	$
22-5-8	5	2	4	7	1	16.5	1.125	8	350	❌	$
22-5-10	5	2	4	7	1	16.5	1.125	10	450	❌	$
22-5-12	5	2	4	7	1	16.5	1.125	12	500	❌	$
22-5-14	5	2	4	7	1	19	1.125	14	854	❌	$
22-5-16	5	2	4	7	1	19.5	1.125	16	940	❌	$
22-5-18	5	2	4	7	1	22.5	1.125	18	1398	❌	$
22-5-20	5	2	4	7	1	22.5	1.125	20	1650	❌	$
22-5-24	5	2	4	7	1	22.5	1.125	24	2144	❌	$
22-5-30	5	2	4	7	1	25.5	1.125	30	2330	❌	$
22-7 1/2-3	7.5	2	4	7	1.25	14.5	1.75	3	155	❌	$
22-7 1/2-4	7.5	2	4	7	1.25	15.5	1.75	4	180	❌	$
22-7 1/2-6	7.5	2	4	7	1.25	16.5	1.75	6	330	❌	$
22-7 1/2-8	7.5	2	4	7	1.25	17.5	1.75	8	410	❌	$
22-7 1/2-10	7.5	2	4	7	1.25	17.5	1.75	10	500	❌	$
22-7 1/2-12	7.5	2	4	7	1.25	19.5	1.75	12	700	❌	$
22-7 1/2-14	7.5	2	4	7	1.25	22.5	1.75	14	1162	❌	$
22-7 1/2-16	7.5	2	4	7	1.25	22.5	1.75	16	1300	❌	$
22-7 1/2-18	7.5	2	4	7	1.25	22.5	1.75	18	1468	❌	$
22-7 1/2-20	7.5	2	4	7	1.25	22.5	1.75	20	1606	❌	$
22-7 1/2-24	7.5	2	4	7	1.25	25.5	1.75	24	2354	❌	$
22-7 1/2-30	7.5	2	4	7	1.25	25.5	1.75	30	2877	❌	$
22-10-3	10	2	4	7	1.25	15.5	1.75	3	397	❌	$
22-10-4	10	2	4	7	1.25	16.5	1.75	4	471	❌	$
22-10-6	10	2	4	7	1.25	17.5	1.75	6	970	❌	$
22-10-8	10	2	4	7	1.25	19.5	1.75	8	1240	❌	$
22-10-10	10	2	4	7	1.25	22.5	1.75	10	1256	❌	$
22-10-12	10	2	4	7	1.25	19.5	1.75	12	1980	❌	$
22-10-14	10	2	4	7	1.25	22.5	1.75	14	2065	❌	$
22-10-16	10	2	4	7	1.25	22.5	1.75	16	2100	❌	$
22-10-18	10	2	4	7	1.25	25.5	1.75	18	2391	❌	$
22-10-20	10	2	4	7	1.25	25.5	1.75	20	2584	❌	$
22-10-24	10	2	4	7	1.25	25.5	1.75	24	4045	❌	$
22-10-30	10	2	4	7	1.25	25.5	1.75	30	4100	❌	$
22-15-3	15	2.5	5	9	1.5	18.5	4	3	150	❌	$
22-15-4	15	2.5	5	9	1.5	19.5	4	4	200	❌	$
22-15-6	15	2.5	5	9	1.5	21.5	4	6	360	❌	$
22-15-8	15	2.5	5	9	1.5	21.5	4	8	500	❌	$
22-15-10	15	2.5	5	9	1.5	24.5	4	10	850	❌	$
22-15-12	15	2.5	5	9	1.5	27.5	4	12	1000	❌	$
22-15-14	15	2.5	5	9	1.5	27.5	4	14	1147	❌	$
22-15-16	15	2.5	5	9	1.5	27.5	4	16	1299	❌	$
22-15-18	15	2.5	5	9	1.5	27.5	4	18	1741	❌	$
22-15-20	15	2.5	5	9	1.5	27.5	4	20	1943	❌	$
22-15-24	15	2.5	5	9	1.5	27.5	4	24	2335	❌	$
22-15-30	15	2.5	5	9	1.5	27.5	4	30	2962	❌	$
22-20-3	20	2.5	5	9	1.5	19.5	4	3	253	❌	$
22-20-4	20	2.5	5	9	1.5	21.5	4	4	328	❌	$
22-20-6	20	2.5	5	9	1.5	21.5	4	6	910	❌	$
22-20-8	20	2.5	5	9	1.5	24.5	4	8	1000	❌	$
22-20-10	20	2.5	5	9	1.5	24.5	4	10	1150	❌	$
22-20-12	20	2.5	5	9	1.5	24.5	4	12	1740	❌	$
22-20-14	20	2.5	5	9	1.5	27.5	4	14	1935	❌	$
22-20-16	20	2.5	5	9	1.5	27.5	4	16	2210	❌	$
22-20-18	20	2.5	5	9	1.5	27.5	4	18	2480	❌	$
22-20-20	20	2.5	5	9	1.5	27.5	4	20	2755	❌	$
22-20-24	20	2.5	5	9	1.5	31	4	24	3500	❌	$
22-20-30	20	2.5	5	9	1.5	31	4	30	4500	❌	$
