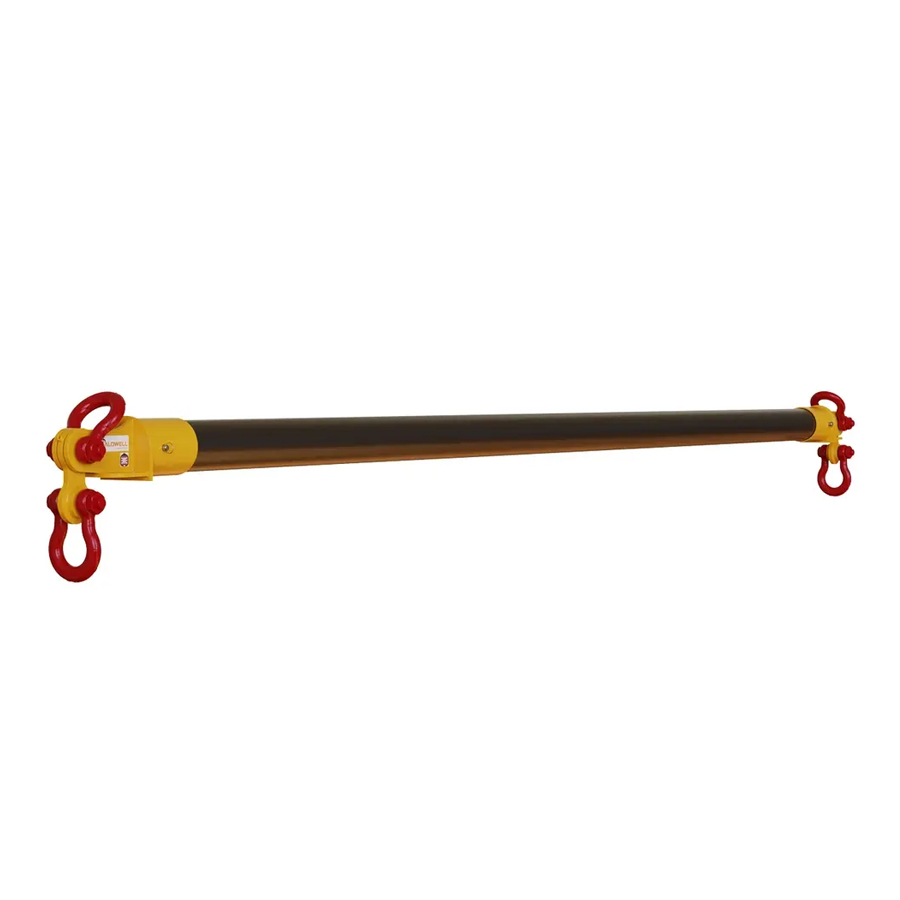

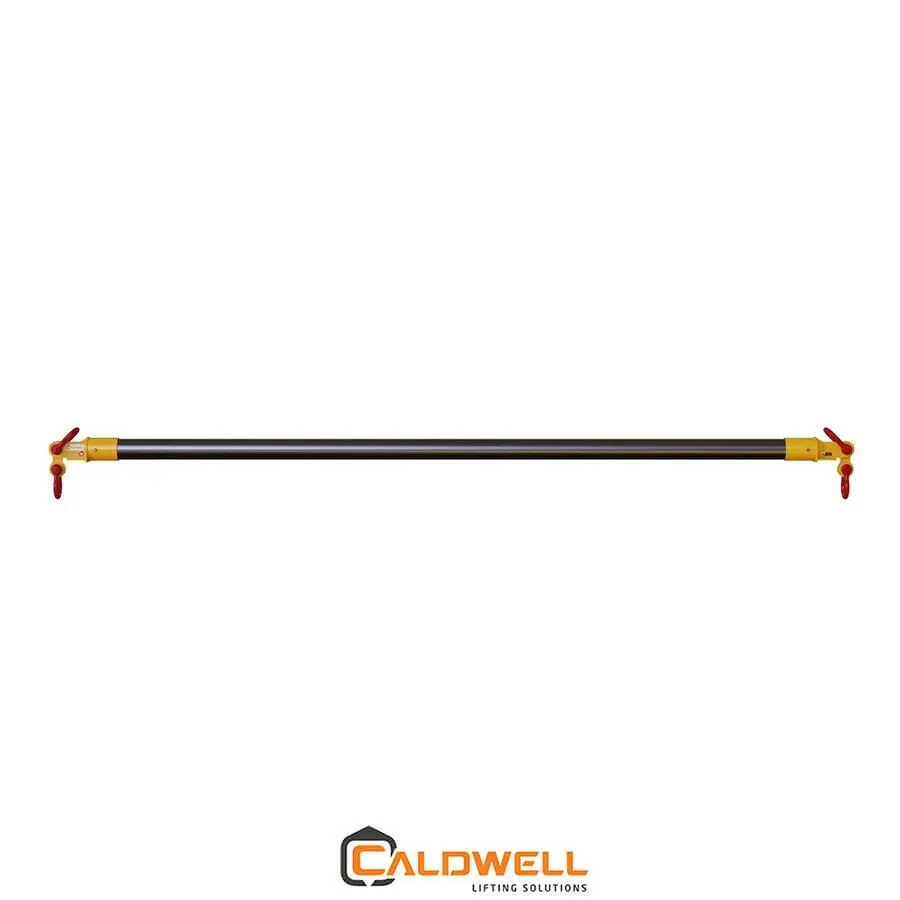

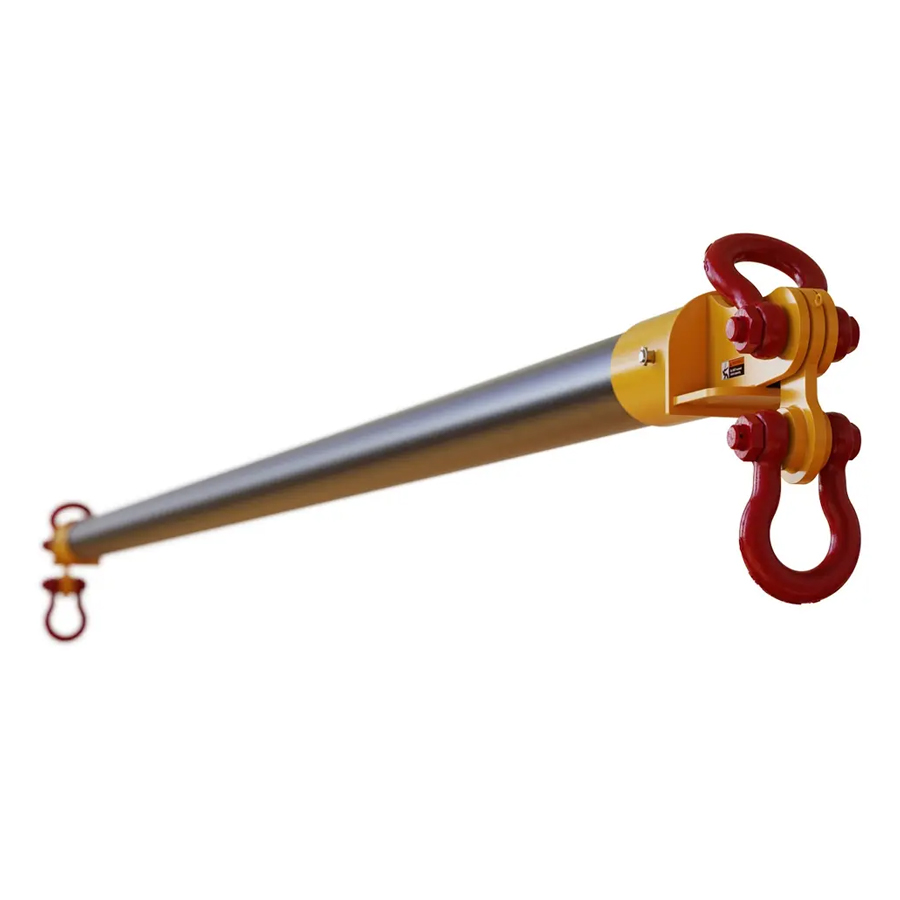

Caldwell High-Capacity Spreader Beam Model 30HC

Caldwell High-Capacity Spreader Beam Model 30HC

Capacity and spread configurations are virtually limitless. The chart highlights sizes available from 50 to 130 tons. Review our complete high-capacity spreader beam chart, starting at 5 tons.

Product Features:

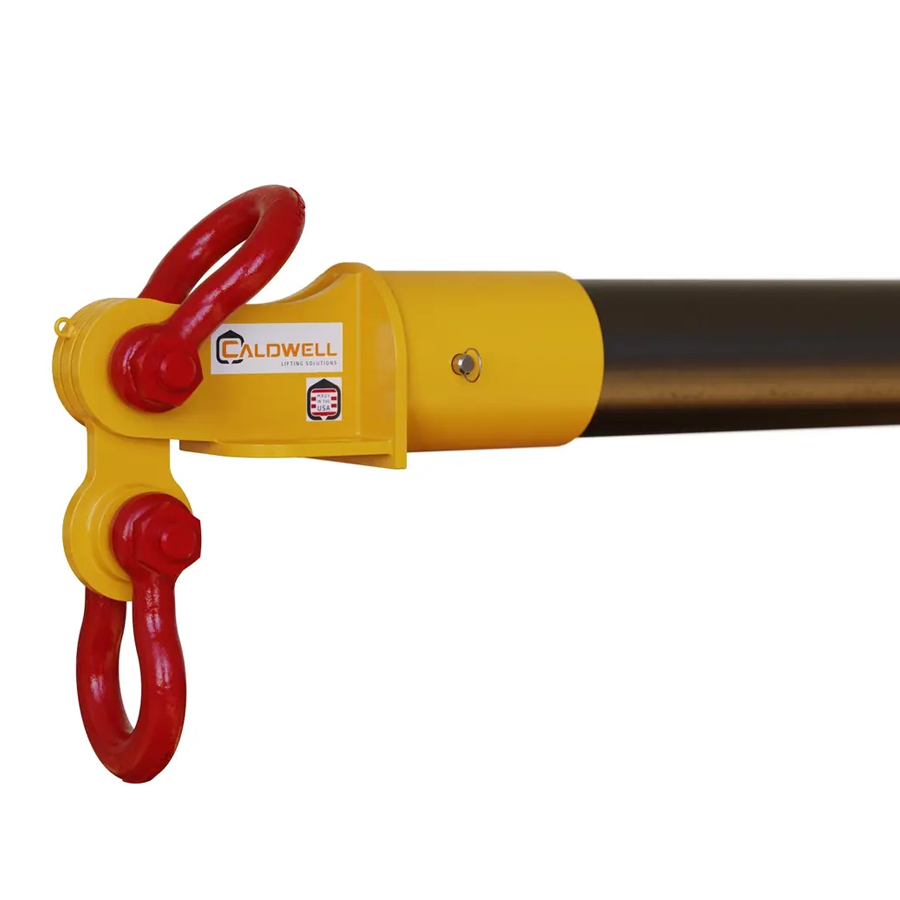

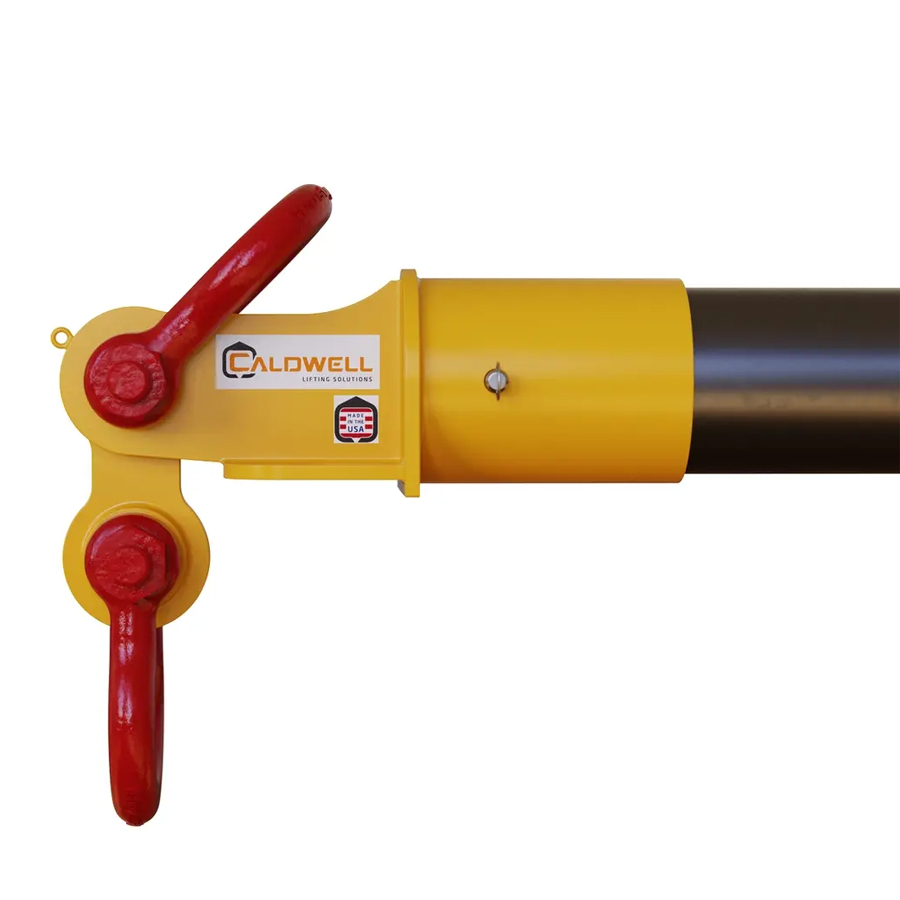

  • Unique pivoting lower lugs allow for 75-90 degree lower rigging angle
  • Capacities from 5 to 130 tons
  • Beam assembly without rigging available in 7-10 days
  • Optional wire rope top rigging available
  • Complies with ASME standards
Model Number Capacity (tons) Outside Spread (ft.) HR 45 Deg (in.) HR 60 Deg (in.) Btm Shackle Cap (tons) Top Shackle Cap (tons) Weight (lbs.) In Stock Price
30HC-50-6 50 6 0 94 25 35 362 $
30HC-50-12 50 12 104 156 25 35 780 $
30HC-50-20 50 20 104 156 25 35 1120 $
30HC-60-12 60 12 108 162 25 55 920 $
30HC-60-20 60 20 0 246 25 55 1270 $
30HC-80-12 80 12 0 162 25 55 920 $
30HC-130-8 130 8 96 130 85 85 1440 $
