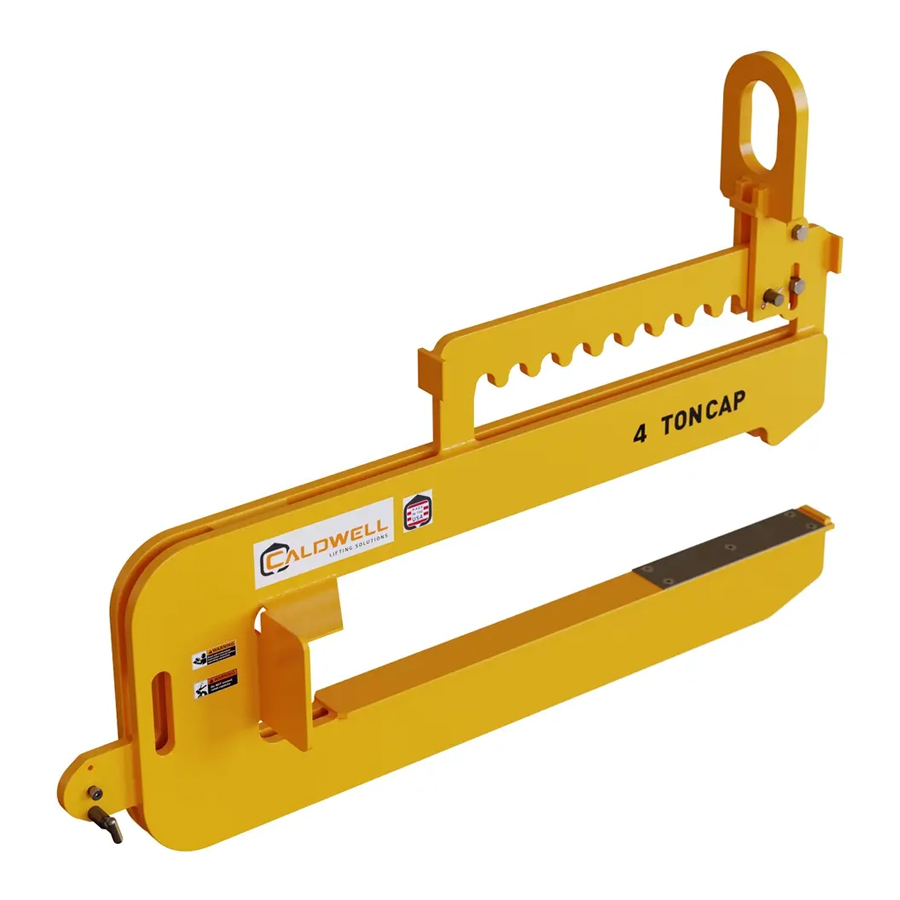

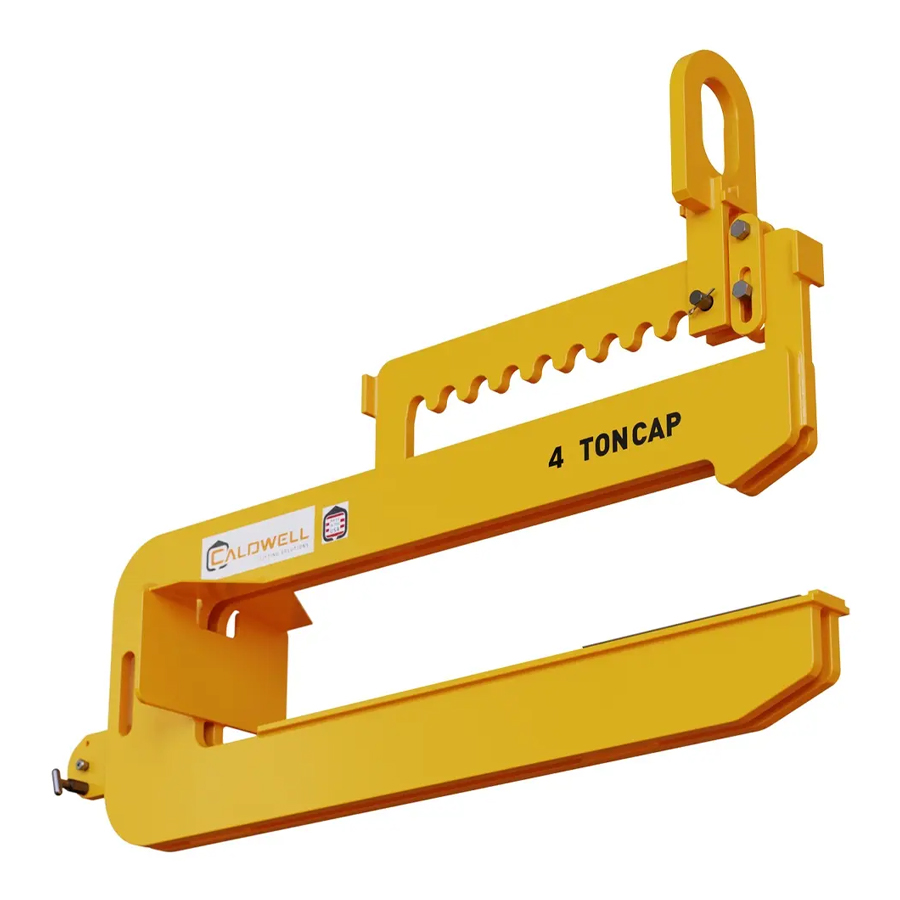

Caldwell Leveling Pipe Lifter Model CPL

Caldwell Leveling Pipe Lifter Model CPL

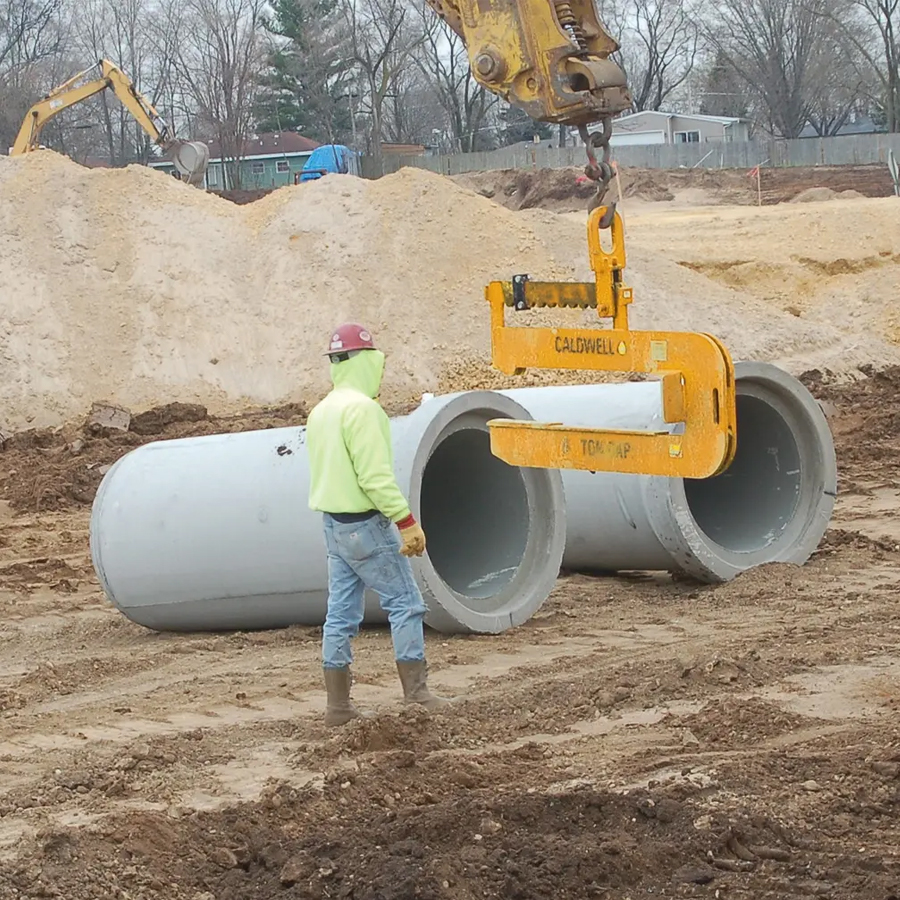

Lets you place and position concrete pipe up to 8′ in length in one operation.

Features:

  • Stand-up leveling bail adjusts for varying pipe lengths
  • Adjustable bail stop makes repetitive lifts easy to handle
  • Pipe stop helps drive the pipe into position
  • Built-in laser target holder allows operator to set & laser position at the same time
  • Positioning handle
  • Complies with ASME standards
  • Laser target holder allows operator to set & laser position at the same time*
  • *NOTE: Laser target, 2×4 and screws not included

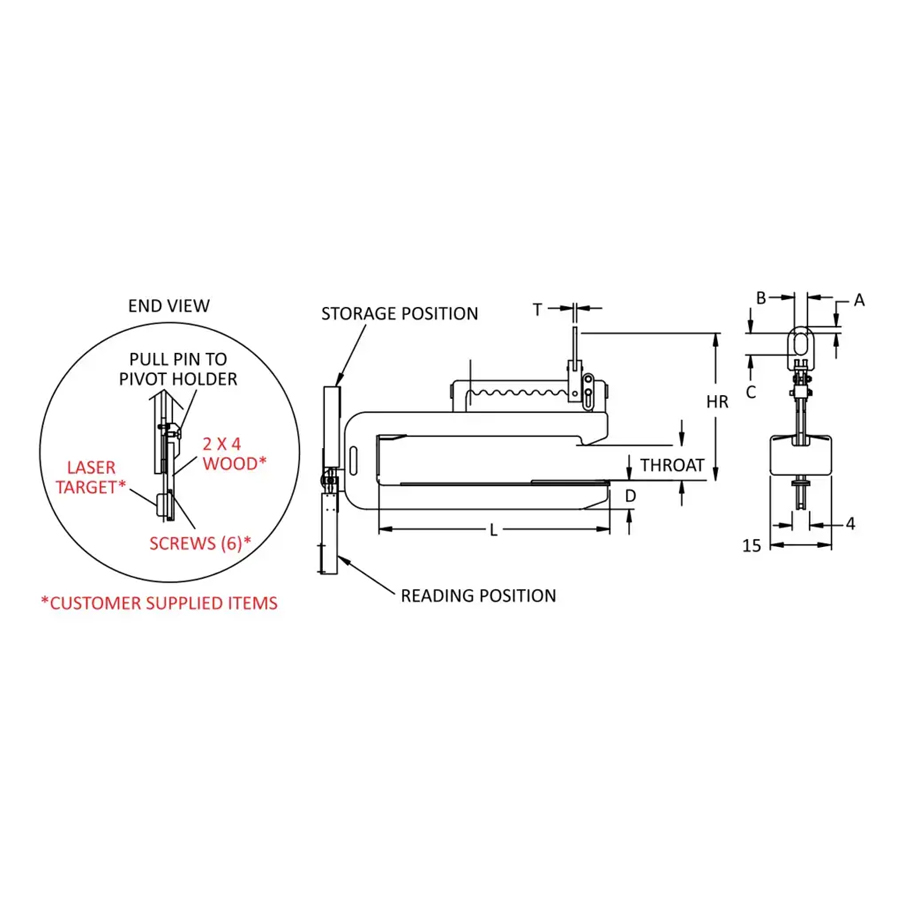

Model Number Capacity (tons) Arm Length (in.) Arm W (in.) Bail Depth (in.) Bail Open W (in.) Bail Open Ht (in.) Bail Thick (in.) Headroom (in.) Throat Open (in.) Weight (lbs.) Pipe Outer Dia (in.) In Stock Price
CPL-1.5 1.5 53 6.62 1.5 3 5 0.75 33.8 8 300 8 $
CPL-3 3 53 6.87 1.5 3 5 1 35.63 8 500 10 $
CPL-4.5 4.5 54 7.44 2 4 7 1.25 37.31 8 700 10 $
CPL-6 6 54.5 8.38 2 4 7 1.25 39.25 8.5 750 12 $
CPL-9 9 55 8.25 2 4 7 1.25 41.63 10 1100 12 $
CPL-15 15 58 10.75 2.5 4 7 1.5 48.12 12 1550 14 $



WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
