Caldwell Load Hooks Model LH

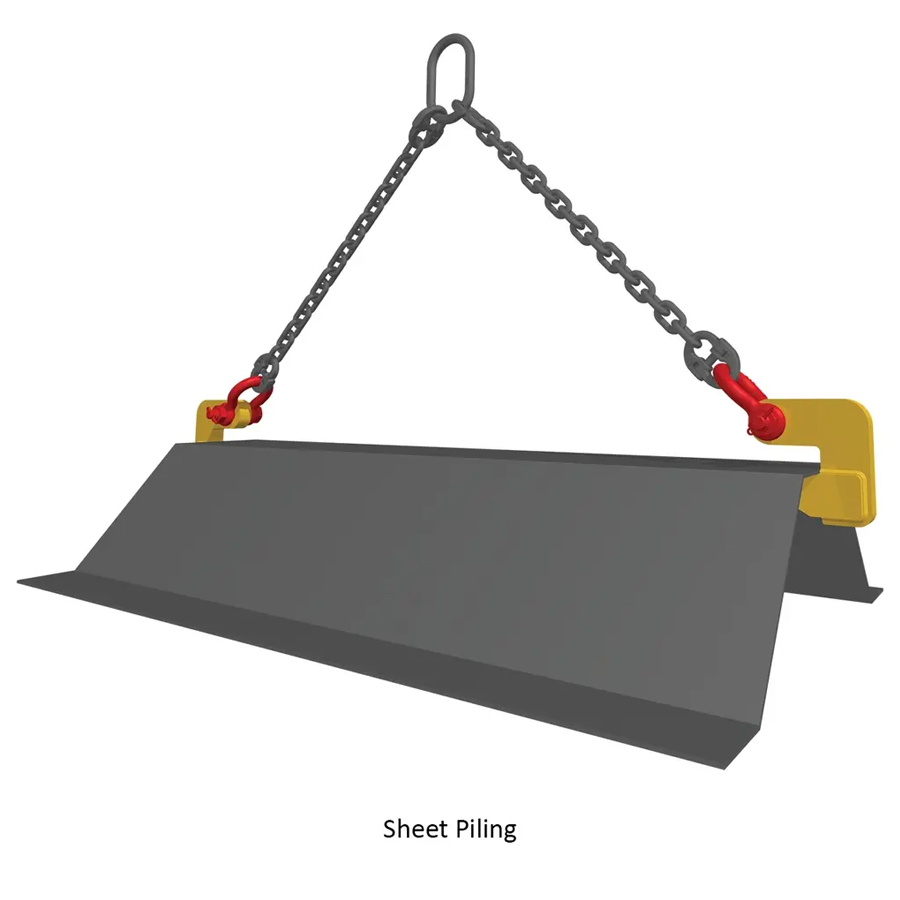

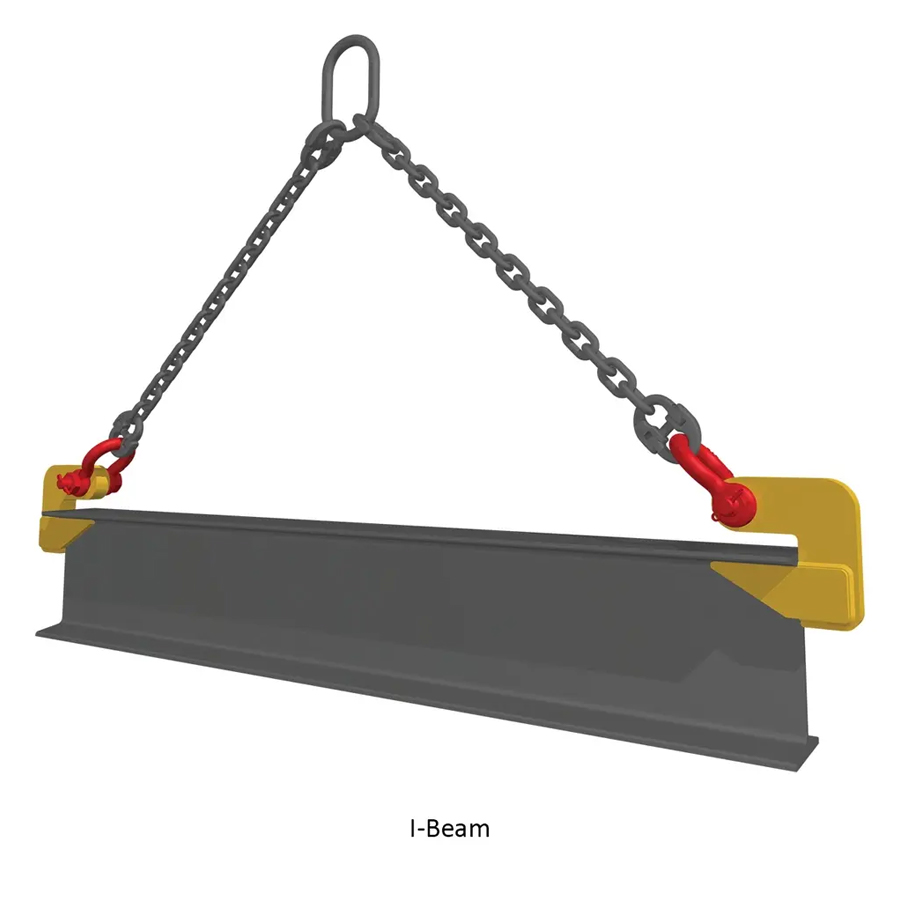

The flat tines with a unique I-beam cutout lets you lift I-beams, sheet piling, or square tube with ease.

Product Features:

Unique lifting tines are spaced to easily accommodate I-Beam web
Flat surface on hooks lifts a wide range of shapes

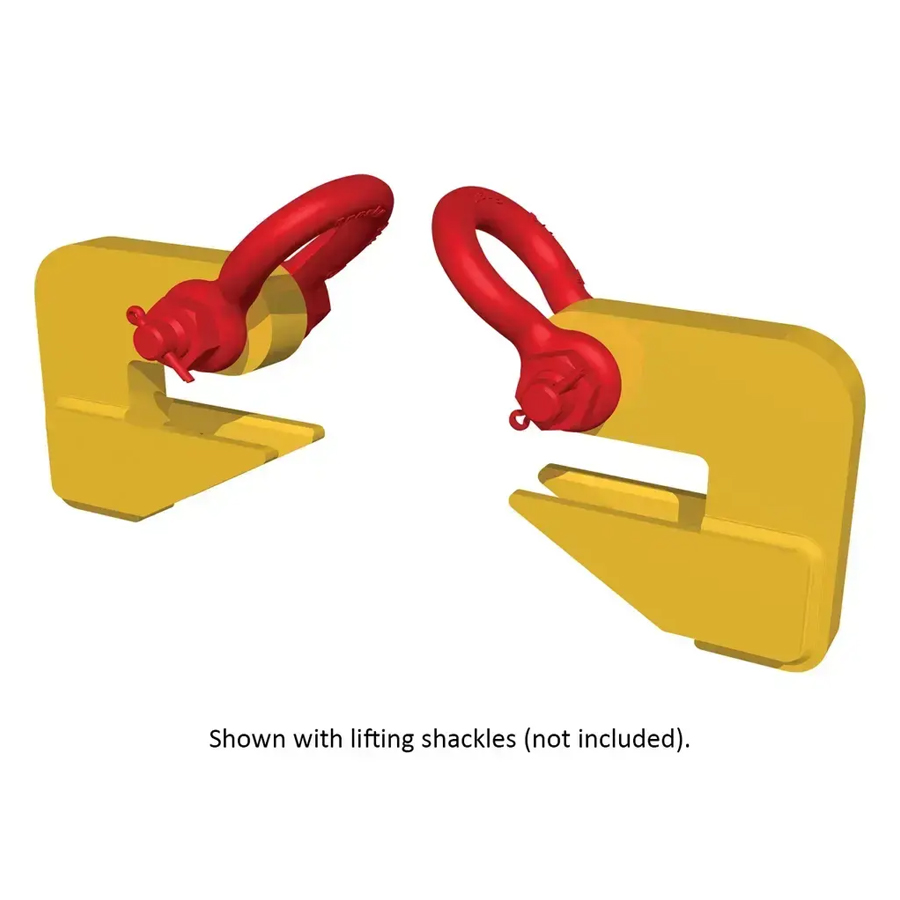

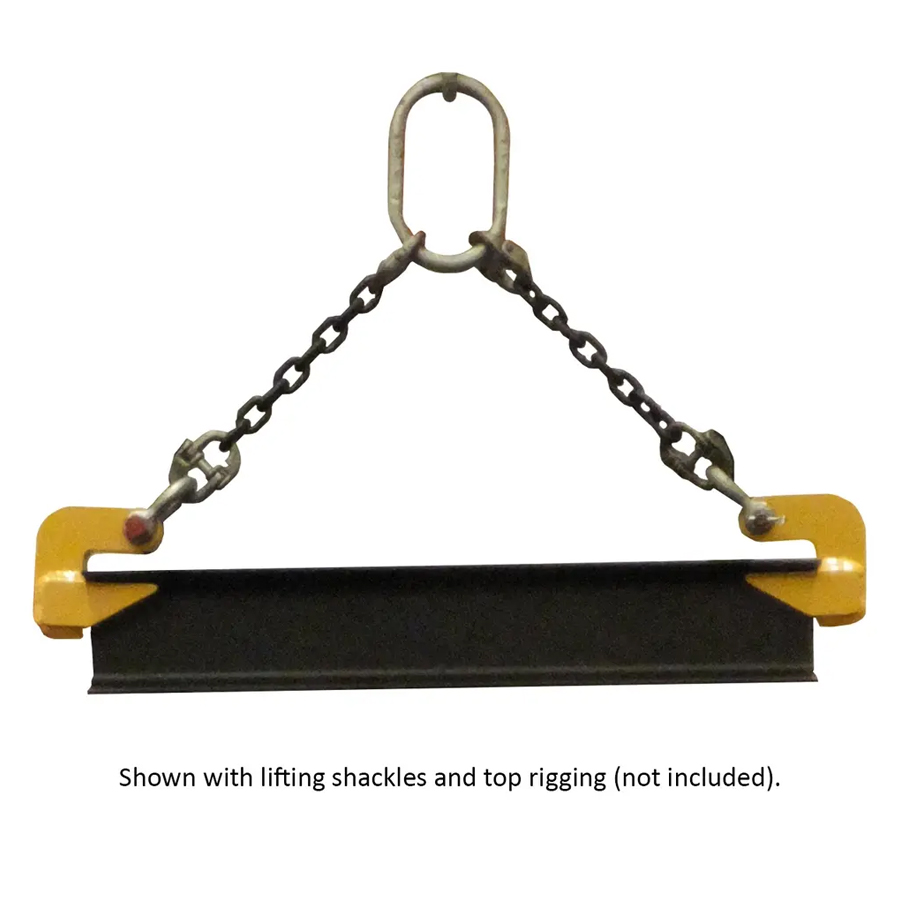

Use in pairs in conjunction with a bridle sling and shackles
Capacity shown is for a 45° angle on the lifting system
Complies with ASME standards

EMAIL PAGE

VIEW IN CATALOG

WARNINGS & CAUTIONS

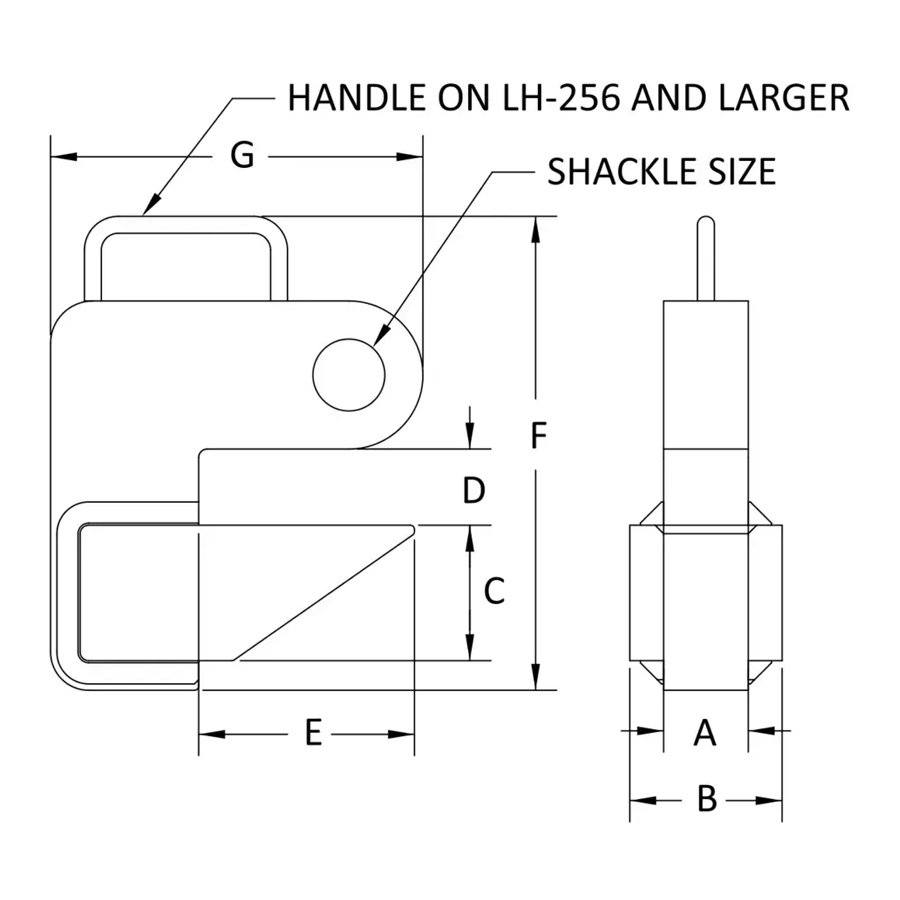

Model Number	Capacity Per Pair in Pounds (lbs.)	Shackle Sz (in.)	Shackle Capacity (tons)	A (in.)	B (in.)	Dimension C (in.)	Dimension D (in.)	E	Dimension F (in.)	Dimension G (in.)	Wt/Pair (lbs.)	In Stock	Price
65-2701	4900	0.5	2	0.56	1.38	1.5	1	2.5	4.4	4.9	6	❌	$
65-2702	10000	0.75	4.75	0.94	1.75	2	1.25	3.5	5.9	6.8	16	❌	$
65-2703	17000	0.88	6.5	1.19	2.25	2.25	1.5	3.88	6.7	7.3	24	❌	$
65-2704	25600	1.13	9.5	1.44	2.5	2.88	1.75	4.63	10.4	8.8	42	❌	$
65-2705	40000	1.5	17	1.94	3.5	3.25	2	5.63	12.2	11	86	❌	$
65-2706	67400	1.75	25	2.44	4.5	4	2.25	6.38	14	12.8	152	❌	$

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
