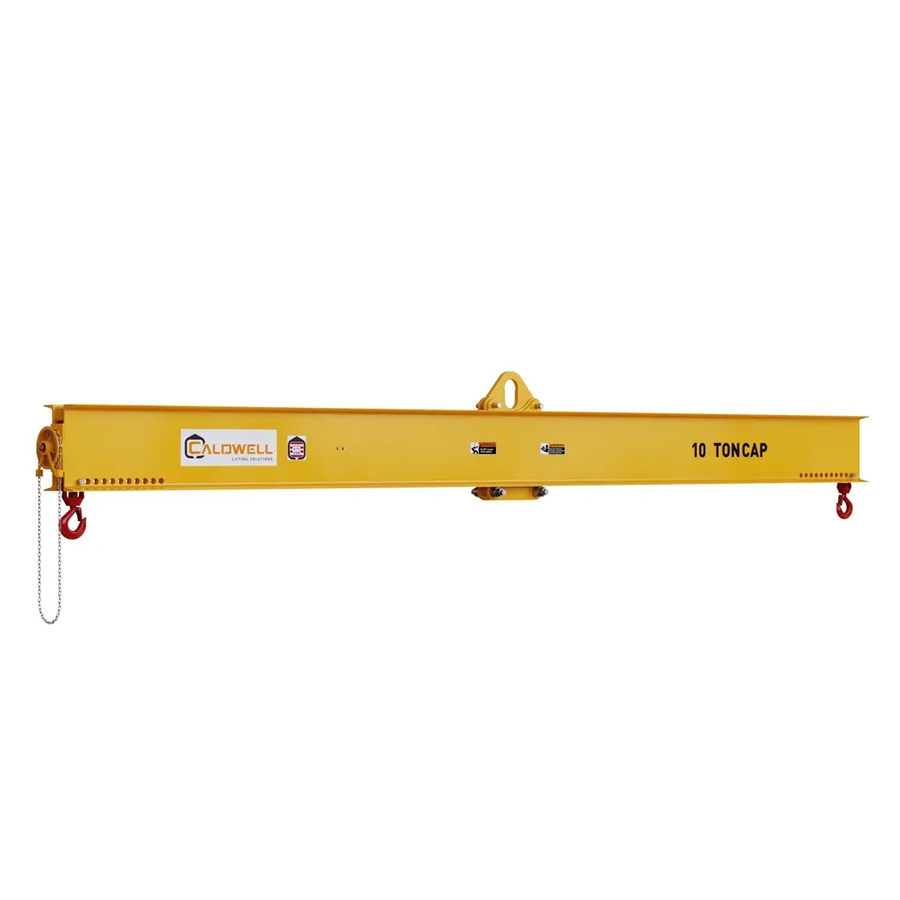

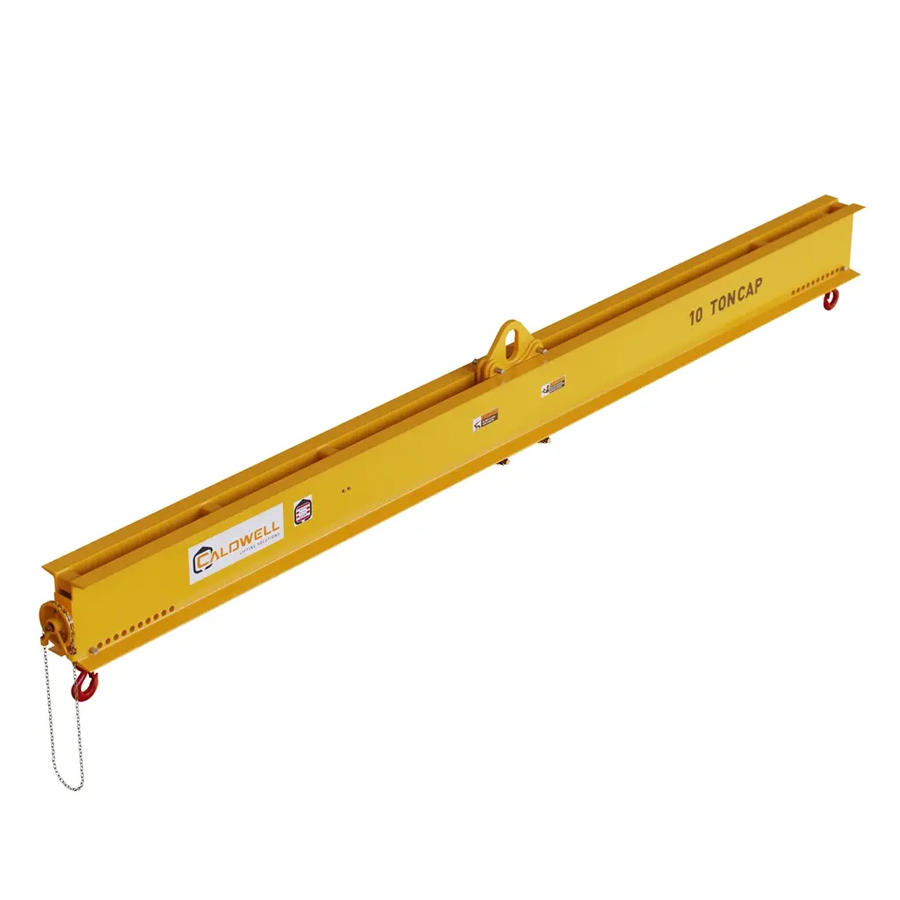

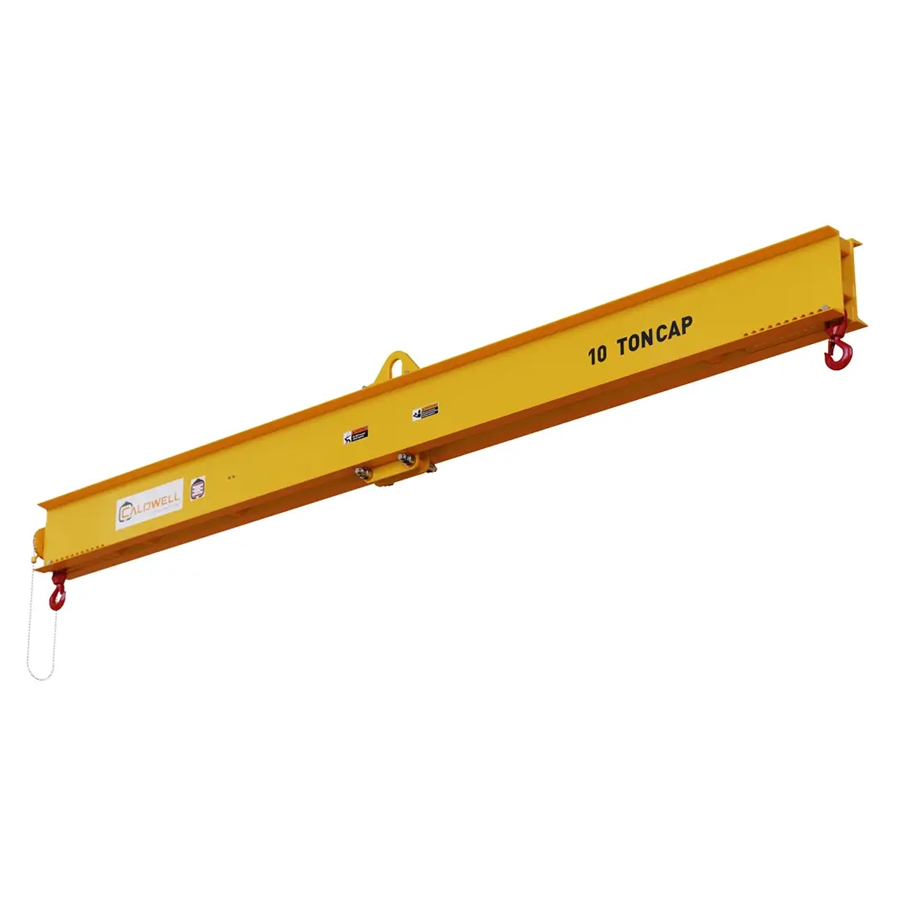

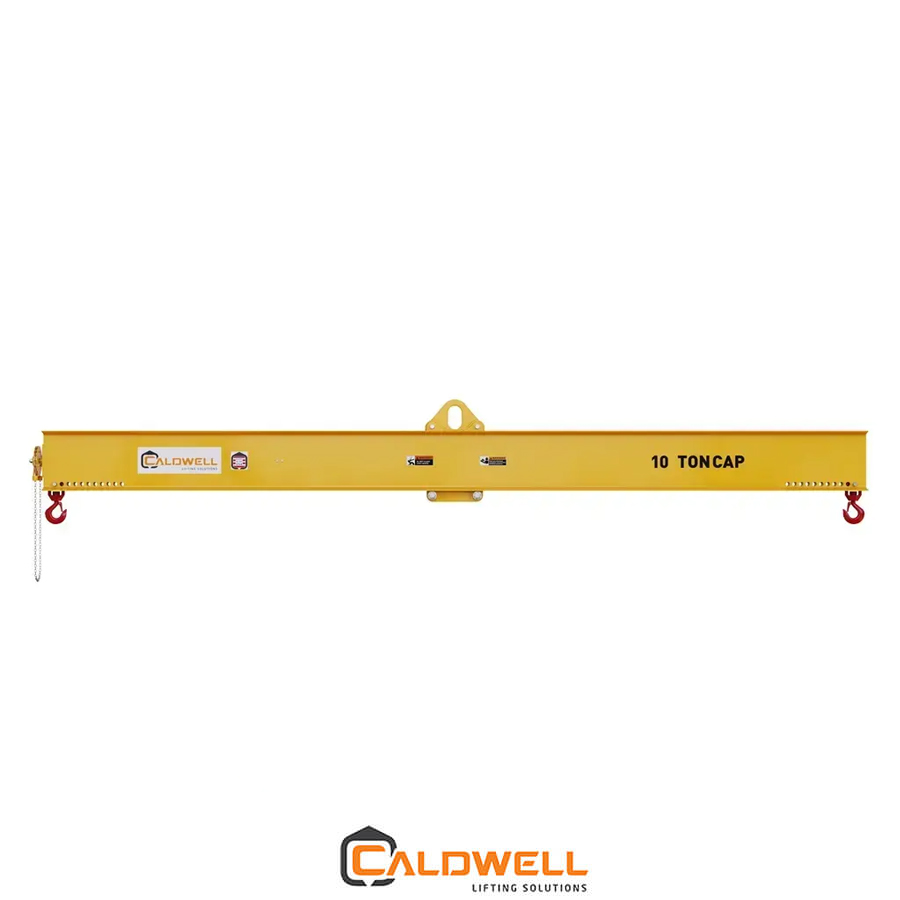

Caldwell Load Leveler Lifting Beam Model 26

Caldwell Load Leveler Lifting Beam Model 26

Like the Model 24, the Model 26 Load Leveler Lifting Beam gives you the ability to slide the bail to handle off-center loads. But with this design, you can place the bail literally anywhere … no preset slots to lock into. So you have complete. control.

Product Features:

  • Handles off-center loads by adjusting the bail before a lift
  • Infinite adjustment of bail within range
  • Swivel hooks with hook latches standard
  • Wide range of sizes and capacities available
  • Complies with ASME standards

Product Options:

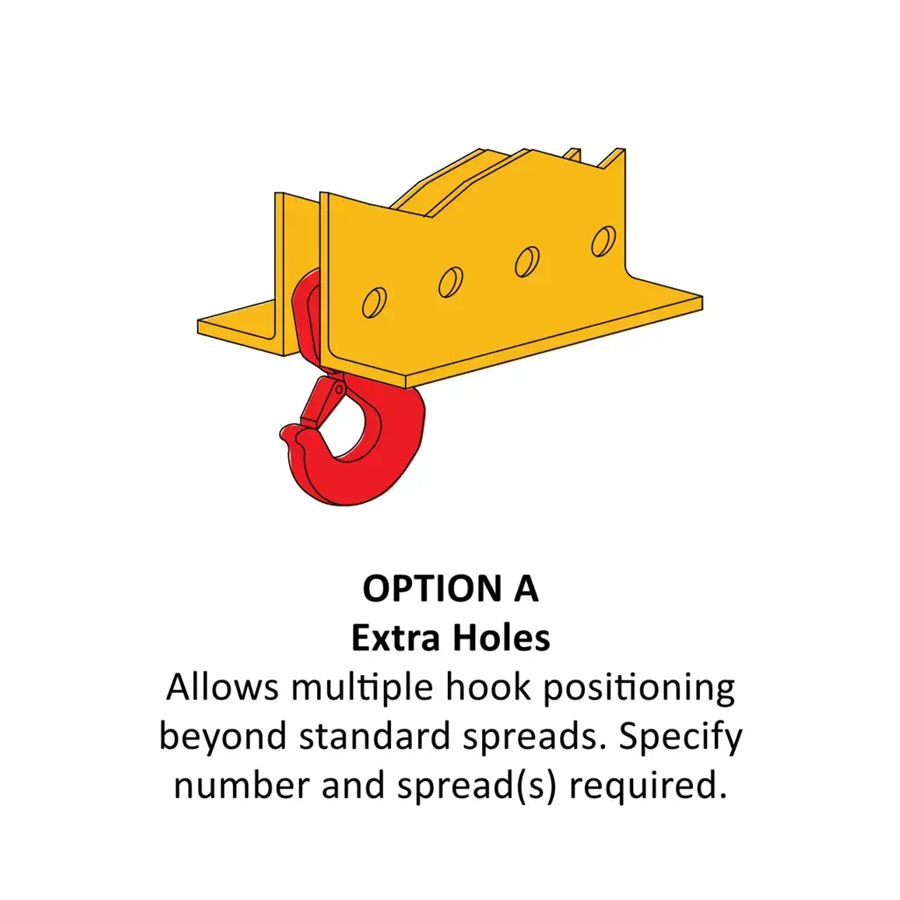

  • OPTION A — Extra Holes
    Allows for multiple hook positioning. Specify number and spread(s) required. Could increase headroom

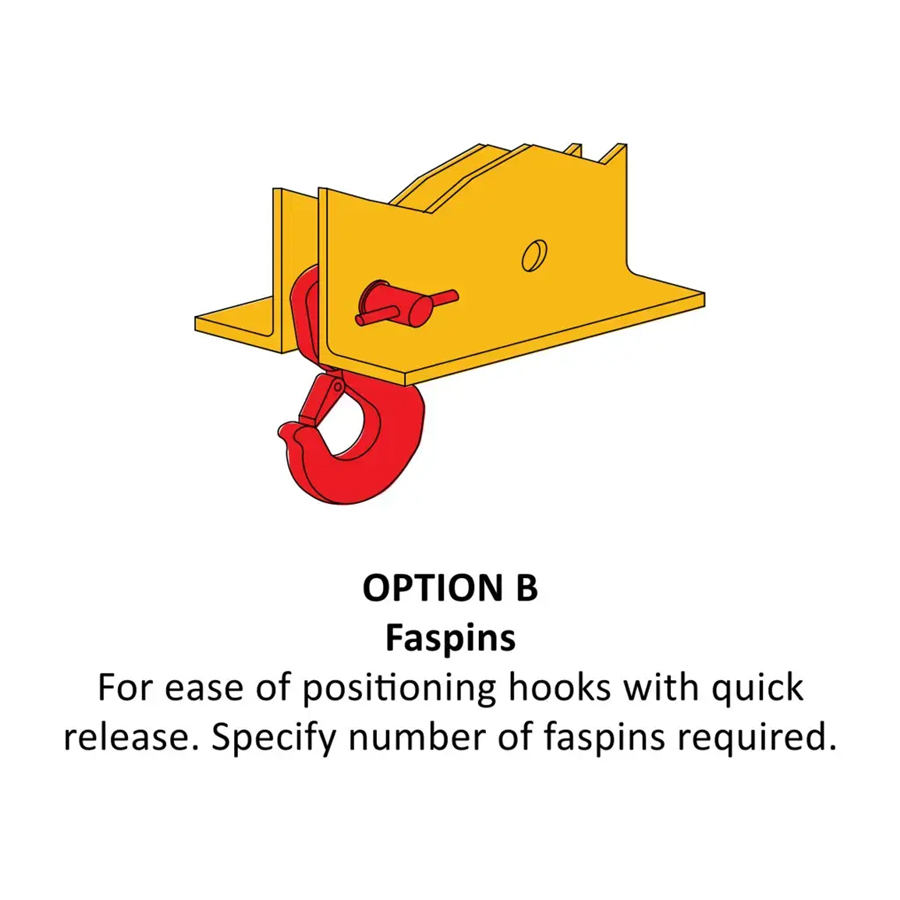

  • OPTION B — Faspins
    For ease of positioning hooks with quick release. Specify number of faspins rquired

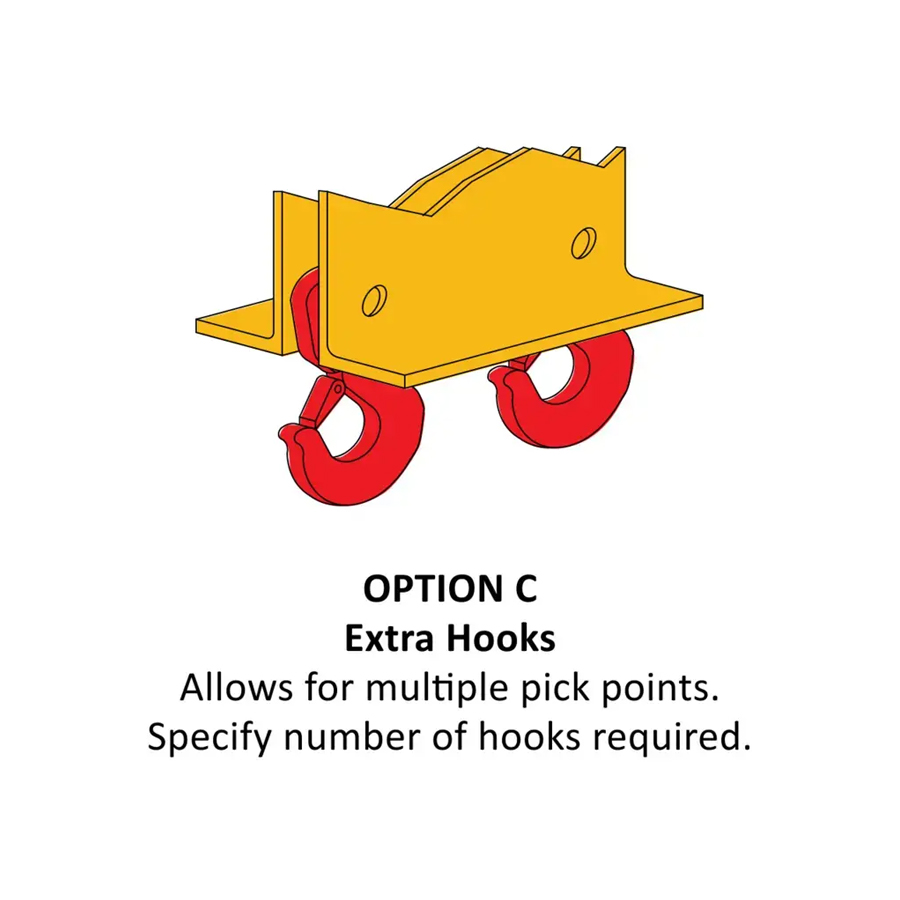

  • OPTION C — Extra Hooks
    Allows for multiple pick points. Specify number of hooks required
  • OPTION D — Motorized Adjustments
    See our Posi-Leveler®

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Model Number Capacity (tons) Bail Depth (in.) Bail Open W (in.) Bail Open Ht (in.) Bail Thick (in.) Headroom (in.) Hook Open w/ Latch (in.) Max Spread (in.) Weight (lbs.) Bail Adj (in.) In Stock Price
26-2-4 2 1.5 3 5 0.63 15.13 1 48 135 8 ❌ $
26-2-6 2 1.5 3 5 0.63 15.13 1 72 185 12 ❌ $
26-2-8 2 1.5 3 5 0.63 16.13 1 96 260 16 ❌ $
26-2-10 2 1.5 3 5 0.63 17.13 1 120 330 20 ❌ $
26-2-12 2 1.5 3 5 0.63 17.13 1 144 380 24 ❌ $
26-2-14 2 1.5 3 5 0.63 18.13 1 168 485 28 ❌ $
26-2-16 2 1.5 3 5 0.63 18.13 1 192 540 32 ❌ $
26-2-18 2 1.5 3 5 0.63 19.13 1 216 680 36 ❌ $
26-2-20 2 1.5 3 5 0.63 19.13 1 240 750 40 ❌ $
26-2-24 2 1.5 3 5 0.63 20.13 1 288 1265 48 ❌ $
26-5-4 5 2 4 7 1 21.5 1 48 170 8 ❌ $
26-5-6 5 2 4 7 1 21.5 1 72 270 12 ❌ $
26-5-8 5 2 4 7 1 23.5 1 96 382 16 ❌ $
26-5-10 5 2 4 7 1 23.5 1 120 475 20 ❌ $
26-5-12 5 2 4 7 1 25.5 1 144 681 24 ❌ $
26-5-14 5 2 4 7 1 25.5 1 168 777 28 ❌ $
26-5-16 5 2 4 7 1 25.5 1 192 950 32 ❌ $
26-5-18 5 2 4 7 1 28.5 1 216 1455 36 ❌ $
26-5-20 5 2 4 7 1 28.5 1 240 1603 40 ❌ $
26-5-24 5 2 4 7 1 28.5 1 288 2345 48 ❌ $
26-10-4 10 2 4 7 1.25 25.75 1.75 48 257 8 ❌ $
26-10-6 10 2 4 7 1.25 28.75 1.75 72 440 12 ❌ $
26-10-8 10 2 4 7 1.25 28.75 1.75 96 522 16 ❌ $
26-10-10 10 2 4 7 1.25 31.75 1.75 120 940 20 ❌ $
26-10-12 10 2 4 7 1.25 31.75 1.75 144 1094 24 ❌ $
26-10-14 10 2 4 7 1.25 31.75 1.75 168 1243 28 ❌ $
26-10-16 10 2 4 7 1.25 31.75 1.75 192 1388 32 ❌ $
26-10-18 10 2 4 7 1.25 34.75 1.75 216 1875 36 ❌ $
26-10-20 10 2 4 7 1.25 37.75 1.75 240 2056 40 ❌ $
26-10-24 10 2 4 7 1.25 34.75 1.75 288 2560 48 ❌ $
26-15-4 15 2.5 5 9 1.5 30.5 1.75 48 376 8 ❌ $
26-15-6 15 2.5 5 9 1.5 33.5 1.75 72 565 12 ❌ $
26-15-8 15 2.5 5 9 1.5 33.5 1.75 96 622 16 ❌ $
26-15-10 15 2.5 5 9 1.5 33.5 1.75 120 972 20 ❌ $
26-15-12 15 2.5 5 9 1.5 36.5 1.75 144 1319 24 ❌ $
26-15-14 15 2.5 5 9 1.5 36.5 1.75 168 1418 28 ❌ $
26-15-16 15 2.5 5 9 1.5 36.5 1.75 192 1513 32 ❌ $
26-20-4 20 2.5 5 9 1.5 34 2 48 445 8 ❌ $
26-20-6 20 2.5 5 9 1.5 37 2 72 798 12 ❌ $
26-20-8 20 2.5 5 9 1.5 37 2 96 900 16 ❌ $
26-20-10 20 2.5 5 9 1.5 37 2 120 1050 20 ❌ $
26-20-12 20 2.5 5 9 1.5 37 2 144 2250 24 ❌ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
