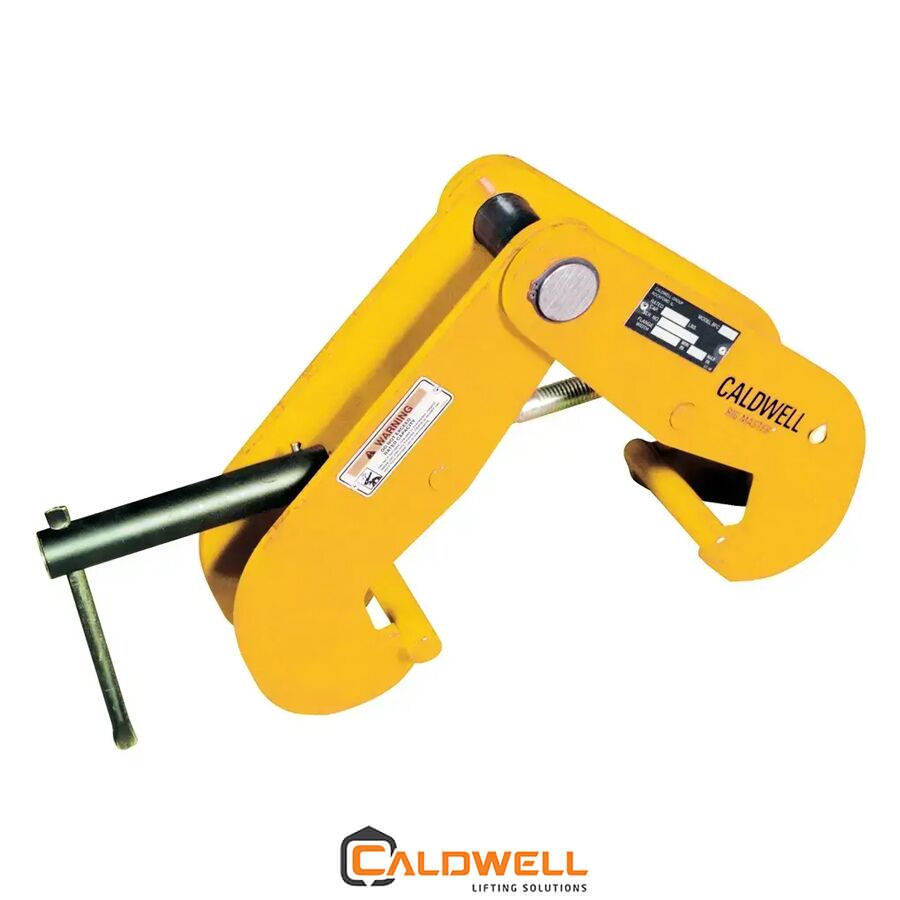

Caldwell Model BFC

Caldwell Model BFC

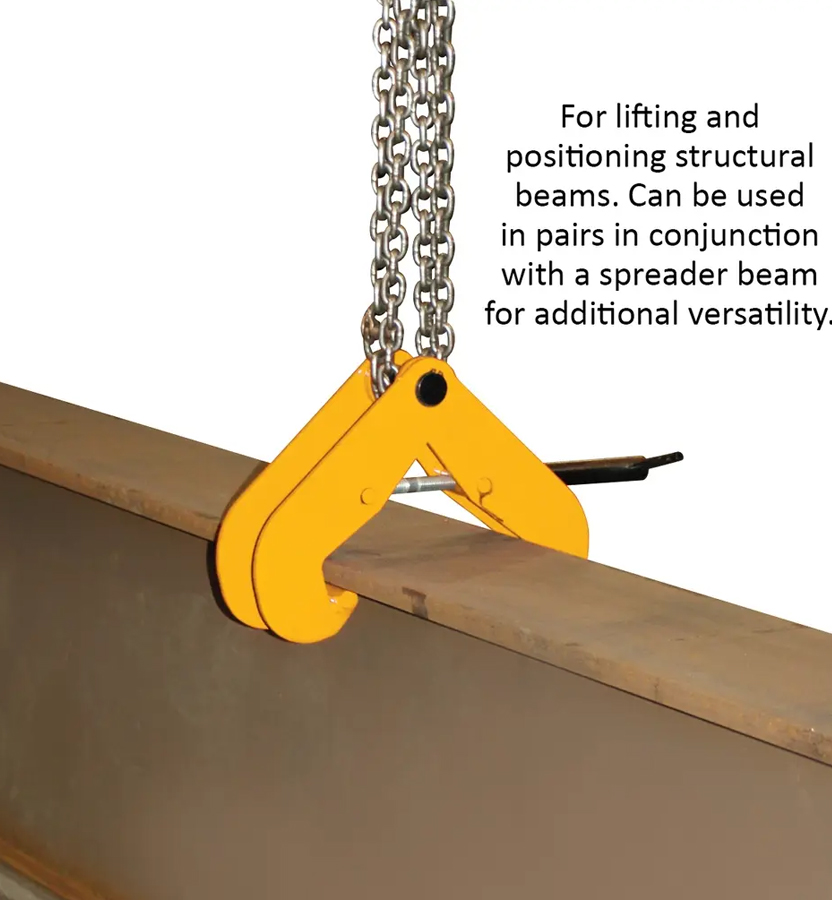

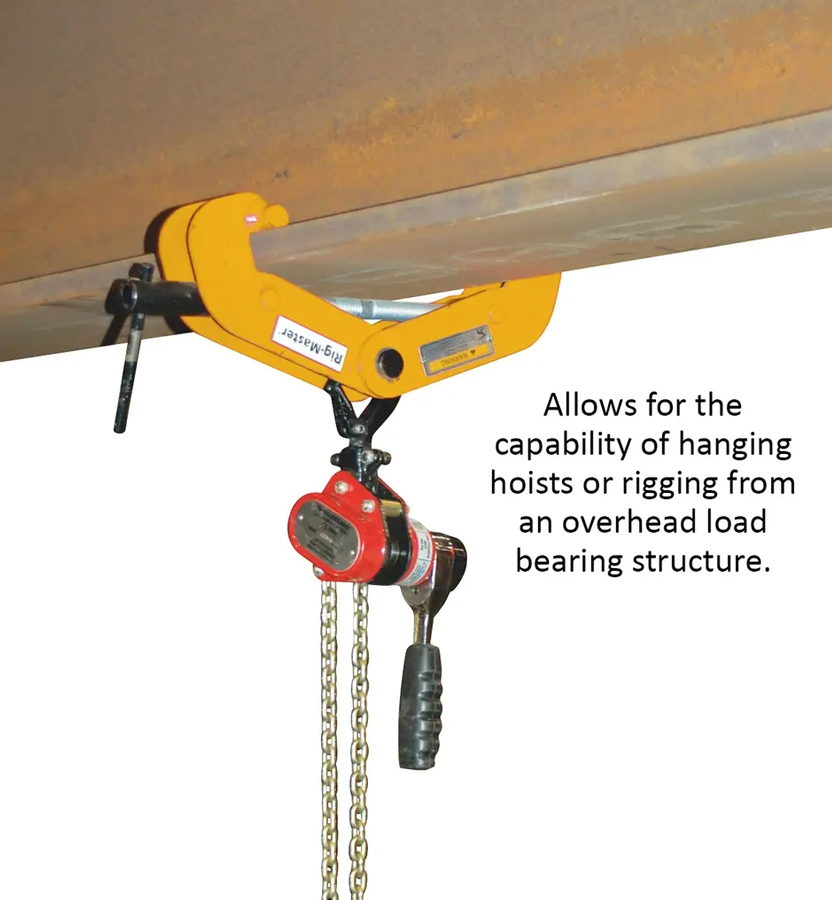

With the Model BFC Beam Flange Clamps, you get options. First, select from five capacity choices, then decide if you need a large bail. You’ll also be able to hang hoists or rig from overhead and handle even bigger loads by using the clamp in pairs with a beam.

Features:

  • Rated load capacities from 1 to 10 metric tons
  • Proof test with certificate
  • Lightweight and portable design
  • Left-hand thread and right-hand thread screw spindle allows for rapid clamping and unclamping
  • Lock nut prevents inadvertent loosening of clamp
  • Jaw opening adjusts to a wide range of beam types and flange widths
  • Use only for vertical loading
  • Built-in suspension pin provides lower headroom
  • Powder coated finish

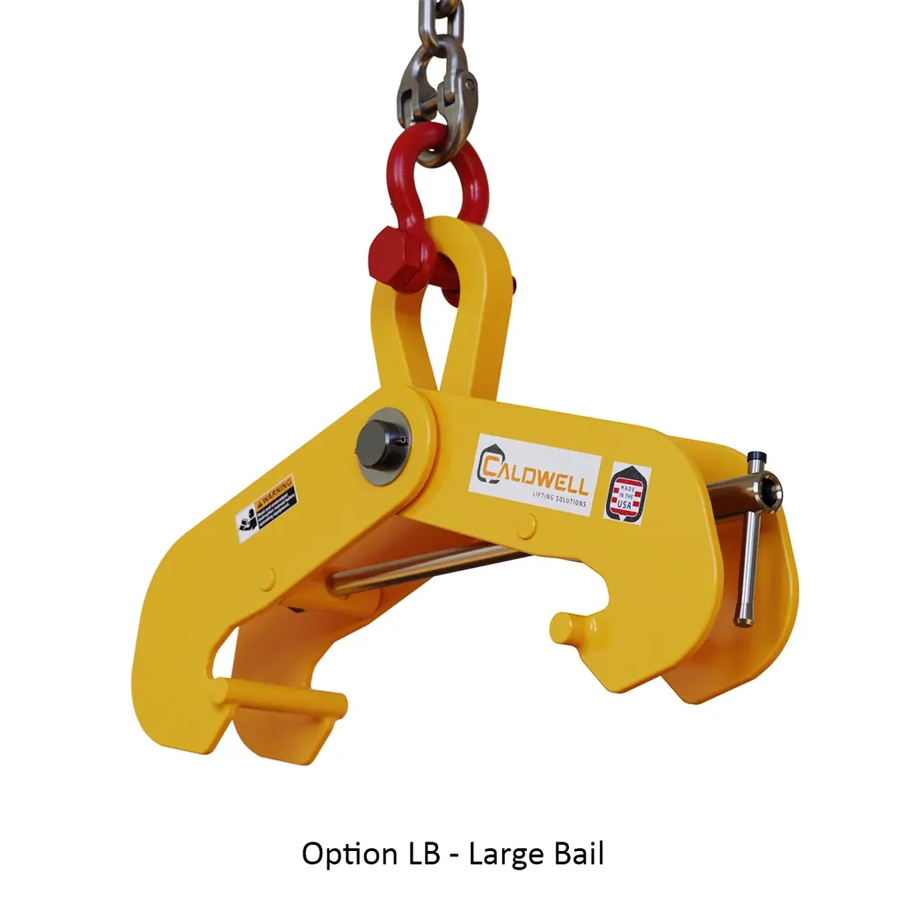

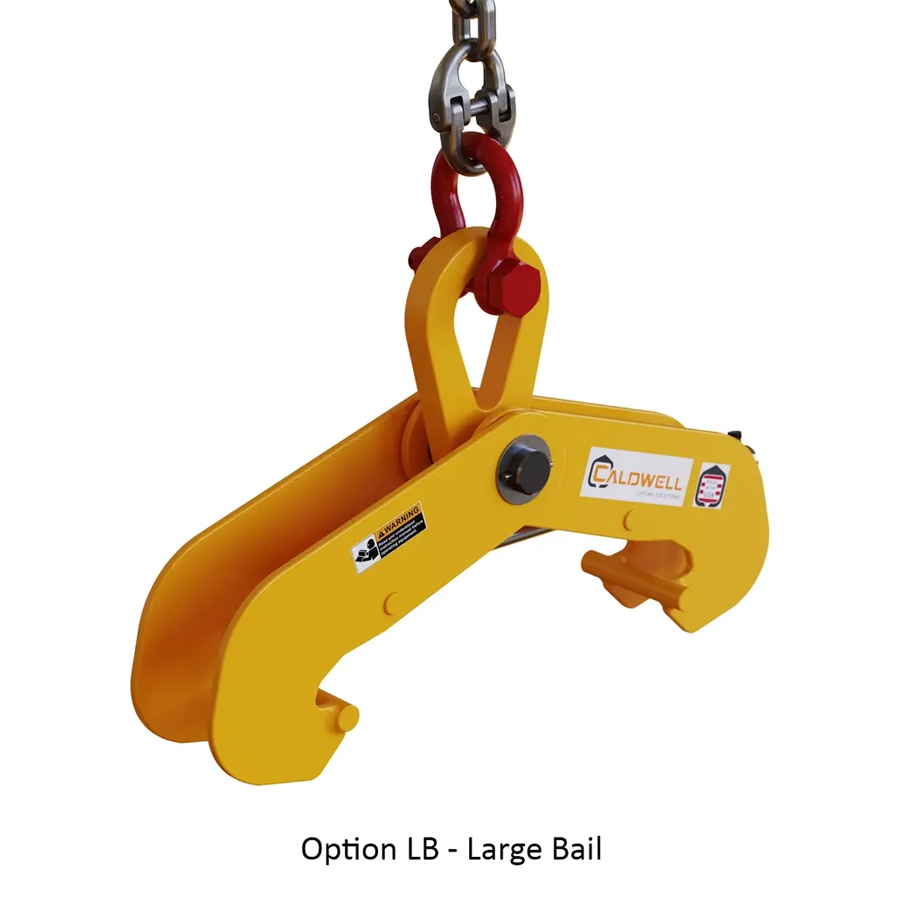

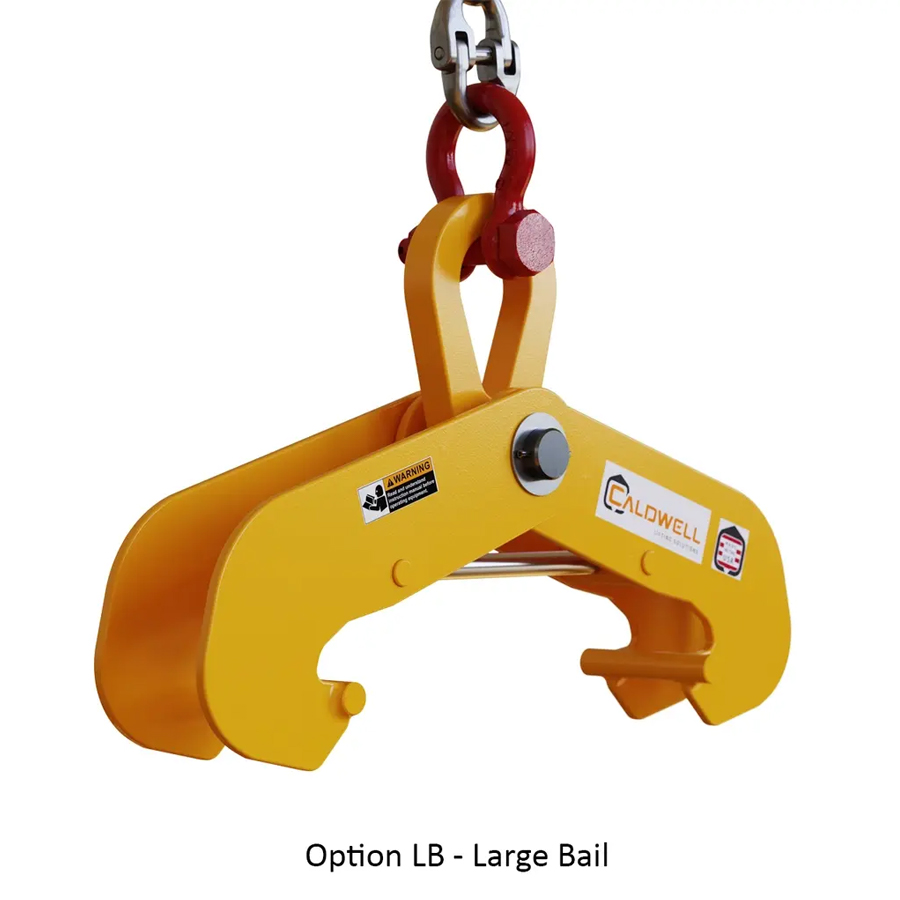

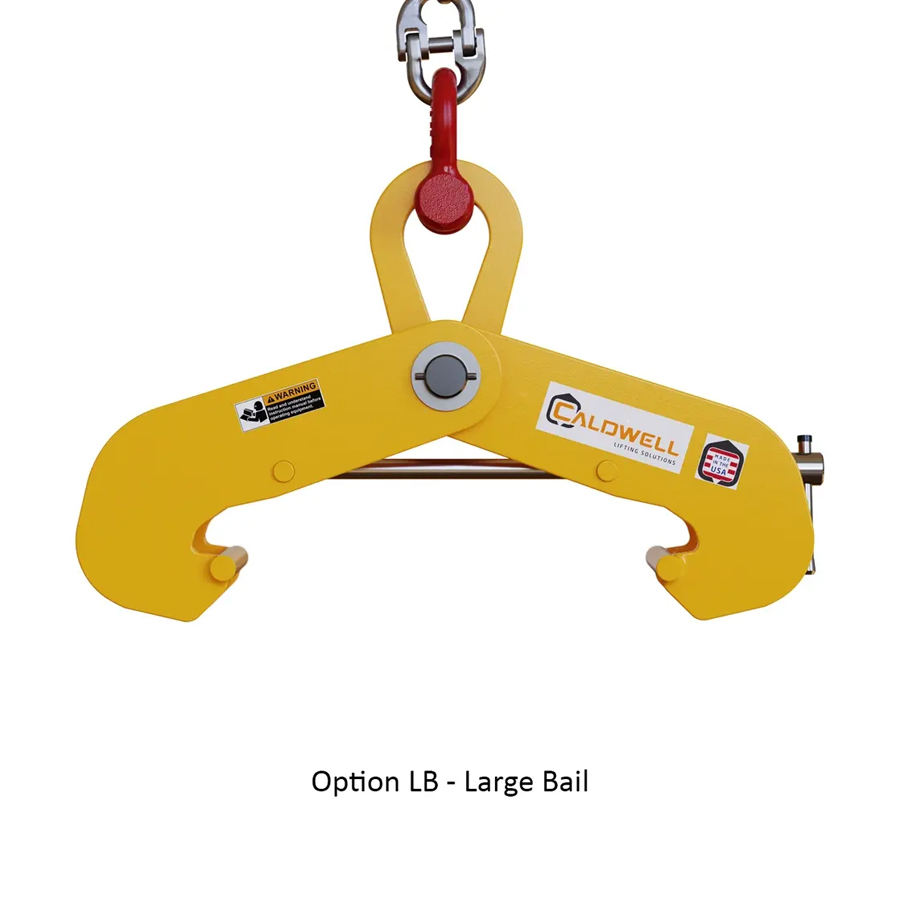

  • Available with large bail option for oversized hoist hooks
  • Complies with ASME B30.20, and BTH-1 standards

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

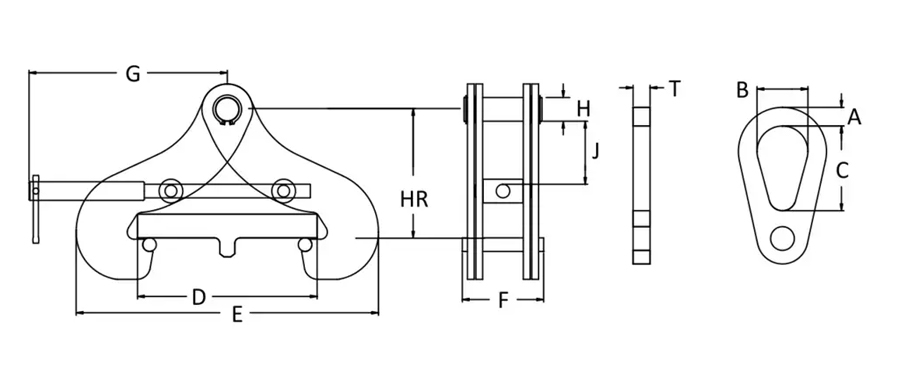

Model Number Capacity  (tons) HR Max (in.) HR Min (in.) Weight (lbs.) D Min (in.) D Max (in.) E Max (in.) Dimension F (in.) Dimension G (in.) H Diameter (in.) Dimension J (in.) Option LB A Option LB C Option LB B Option LB T Max Flange Thickness (in.) In Stock Price
BFC – 1 1.1 5 3 8 7.5 3 12.25 3 9.25 0.88 2.1 0.75 2 2 0.63 0.83 ❌ $
BFC – 2 2.2 5 3 9 7.5 3 12.25 3 9.25 0.88 2.1 0.75 2 2 0.63 0.83 ❌ $
BFC – 3 3.3 7.5 4.5 19 12 6 19.75 4.25 11 1.25 2.38 1 2.5 2.5 1 1 ❌ $
BFC – 5 5.5 7.5 4.5 22 12 6 19.75 4.25 11 1.25 2.38 1 2.5 2.5 1 1 ❌ $
BFC – 10 11 10.25 7.5 50 13.25 6 22.5 6 14.63 1.75 4.65 1.38 6.25 3.75 1.25 1.75 ❌ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
