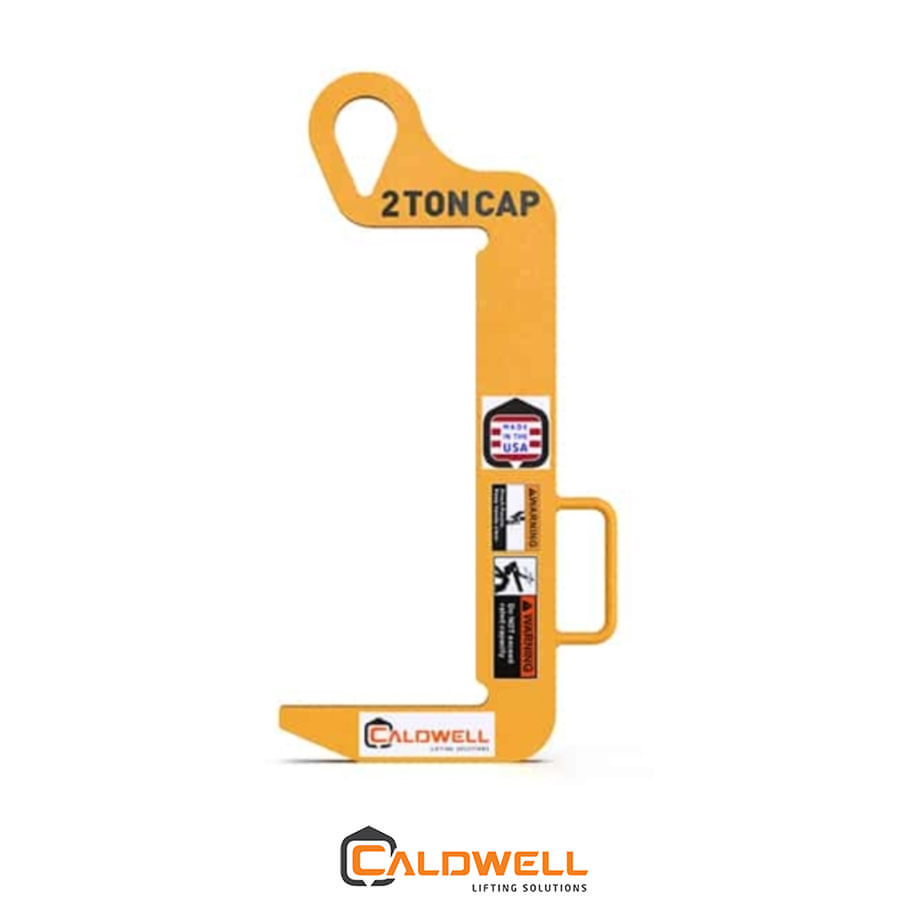

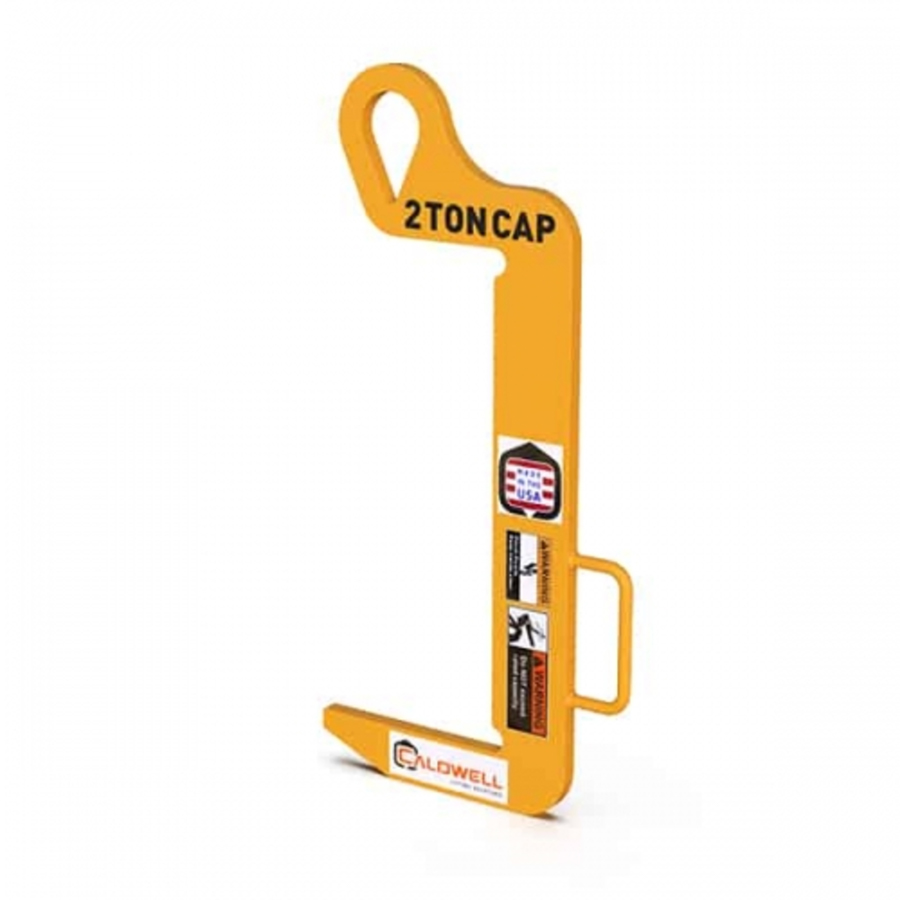

Caldwell Narrow Coil C-Hook Model 82NC

Caldwell Narrow Coil C-Hook Model 82NC

Available in capacities from 1/2 ton to 5 tons. Choose a narrow hook to handle narrow coils with less coil edge damage than web slings. Unit will not hang level when empty.

Features:

  • Handles narrow coils with less coild edge damage
  • More durable than web slings
  • Lightweight for easier handling
  • Built in guide handle for ease of coil positioning
  • Available with optional curved coil saddle
  • Iniside radius on hooks avoid coild edge contact
  • Complies with ASME standards

Warnings:
Load center of gravity must be in-line with the center of the hoist.

Model Number Capacity (tons) Bail Depth (in.) Bail Open W (in.) Bail Open Ht (in.) Max Coil W (in.) Headroom (in.) Lift Arm Depth (in.) Lift Arm Length (in.) Plate Thick (in.) Throat Open (in.) Weight (lbs.) In Stock Price
82NC-1/2-8 0.5 0.8125 2 3.25 8 18.5 2.25 8 0.5 14.5 14 $
82NC-1/2-12 0.5 0.8125 2 3.25 12 18.5 2.625 12 0.5 14.5 17 $
82NC-1-8 1 0.8125 2 3.25 8 21.5 2 8 0.5 17.5 15 $
82NC-1-16 1 0.8125 2 3.25 16 21.5 2.5 16 0.5 17.5 20 $
82NC-2-8 2 1 2.5625 4.0625 8 24.5625 2.125 8 0.75 19.5 22 $
82NC-2-12 0 0 0 0 0 0 0 0 0 0 0 $
82NC-2-16 2 1 2.5625 4.0625 16 24.5625 3 16 0.75 19.5 40 $
82NC-3.5-12 3.5 1.1875 3.625 5.3125 12 28.125 2.875 12 1.25 21.5 50 $
82NC-3.5-16 3.5 1.1875 3.625 5.3125 16 28.125 3.375 16 1 21.5 63 $
82NC-5-16 5 1.5 4 5.8125 16 32.8125 3.5 16 1.25 25.5 94 $
82NC-5-20 5 1.5 4 5.8125 20 32.8125 4 20 1.25 25.5 110 $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
