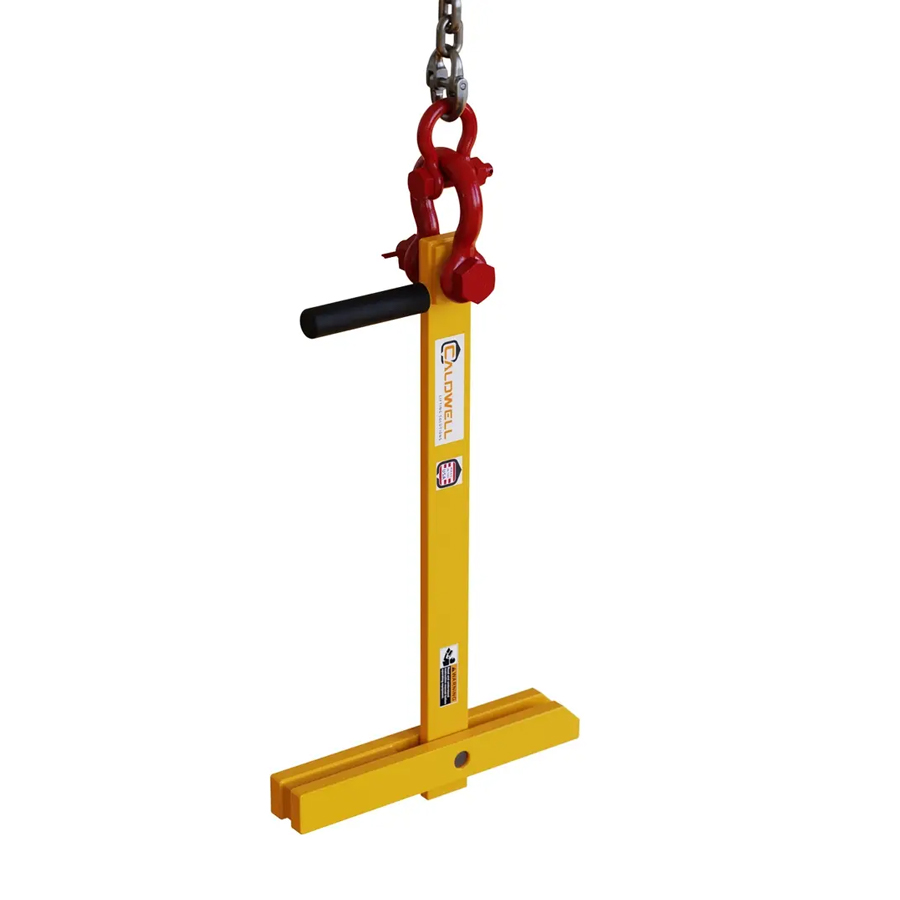

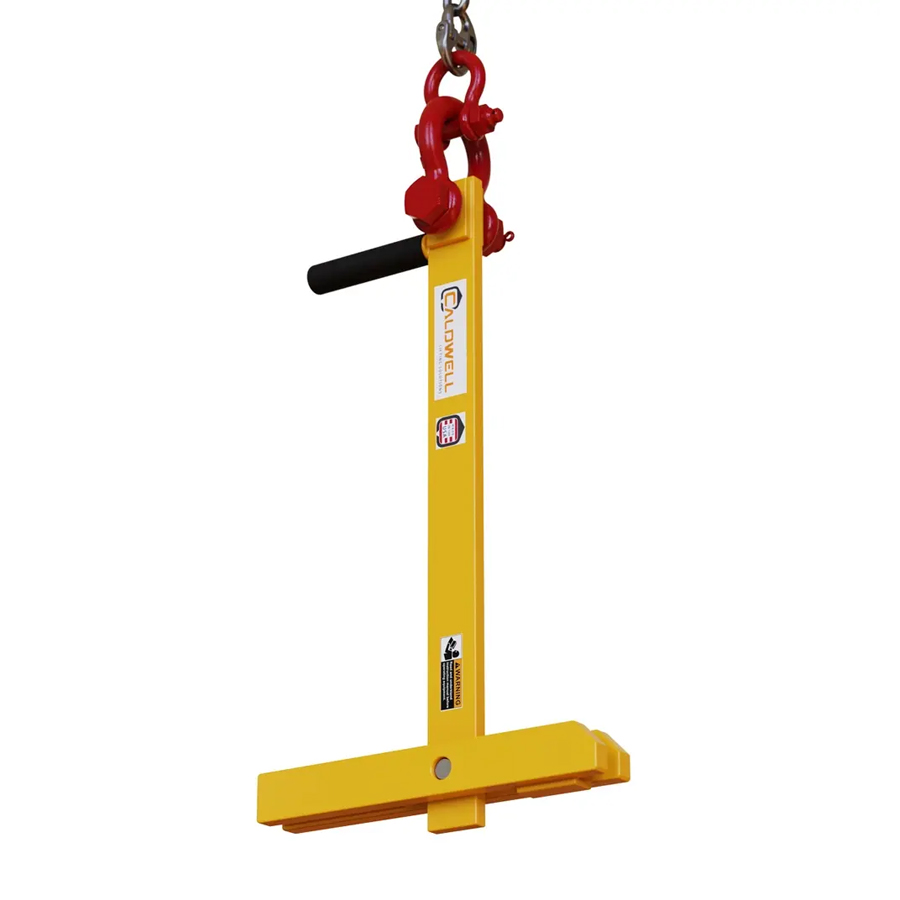

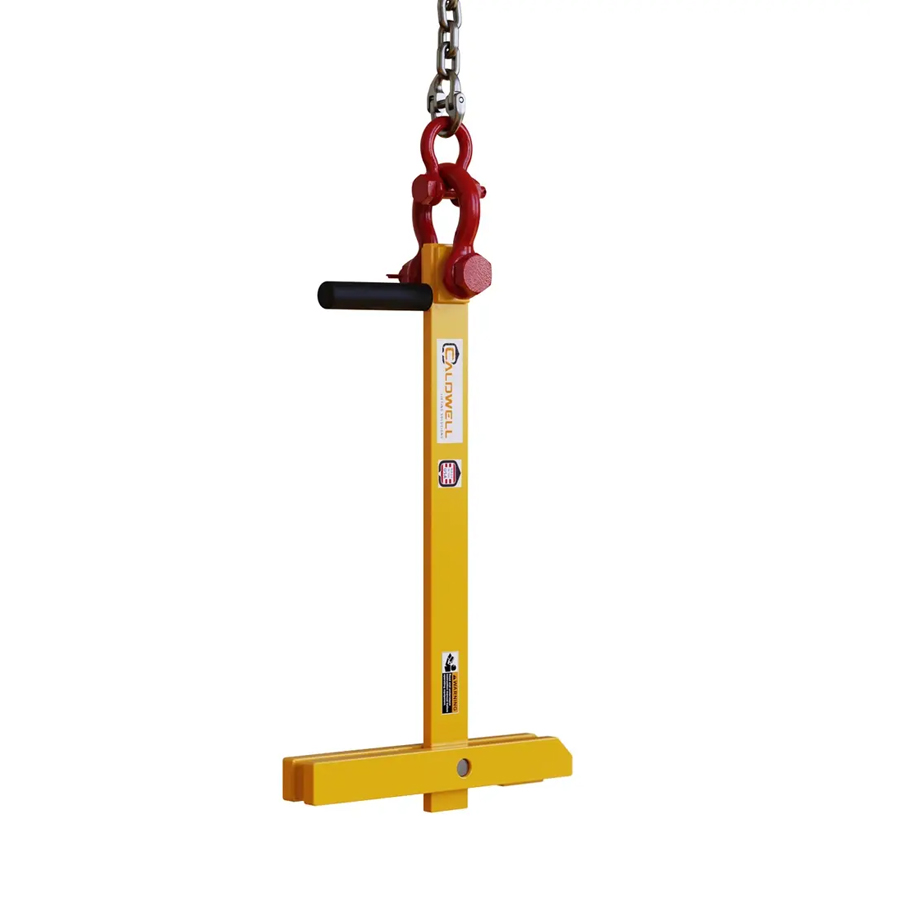

The patented concrete Pipe Pick™ is a quicker, safer, and cleaner way of handling precast concrete pipe.
Features:
Warnings:
Use only for vertical lifting.

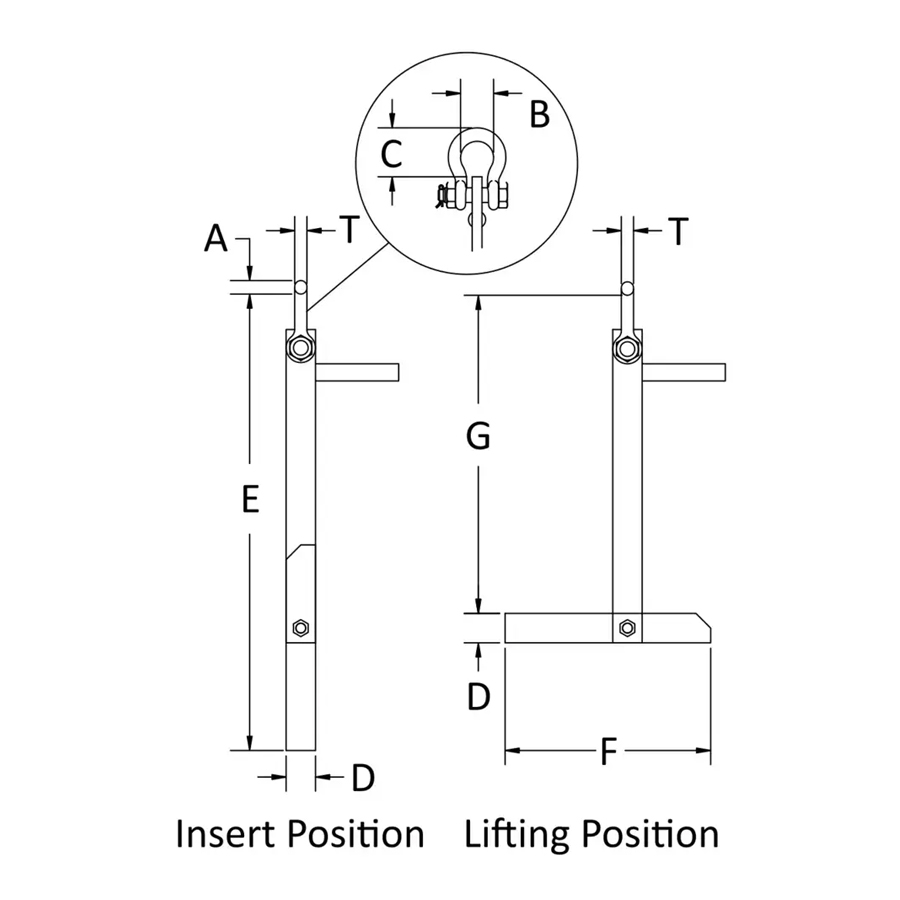

| Model Number | Capacity (tons) | Min Hole Diameter (in.) | Min Pipe Inner Dia (in.) | D – Lift Arm Height (in.) | E- Overall Height (in.) | F – Lift Arm Length (in.) | G – Headroom to Top of Load (in.) | A – Shackle Size (in.) | B – Shackle Opening Width (in.) | C – Shackle Opening Height (in.) | T – Shackle Thickness (in.) | Weight (lbs.) | In Stock | Price |
| CPP-1.5 | 1.5 | 2 | 12 | 1.5 | 23 | 10.5 | 16.25 | 0.62 | 1.62 | 2.37 | 0.62 | 10 | ✔ | $ |
| CPP-3 | 3 | 2.5 | 14 | 1.75 | 27.62 | 12 | 20 | 0.75 | 1.93 | 2.93 | 0.75 | 18 | ❌ | $ |
| CPP-5 | 3 | 3.25 | 16 | 2.25 | 43.5 | 13 | 36 | 1 | 2.75 | 3 | 1 | 38 | ✔ | $ |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
