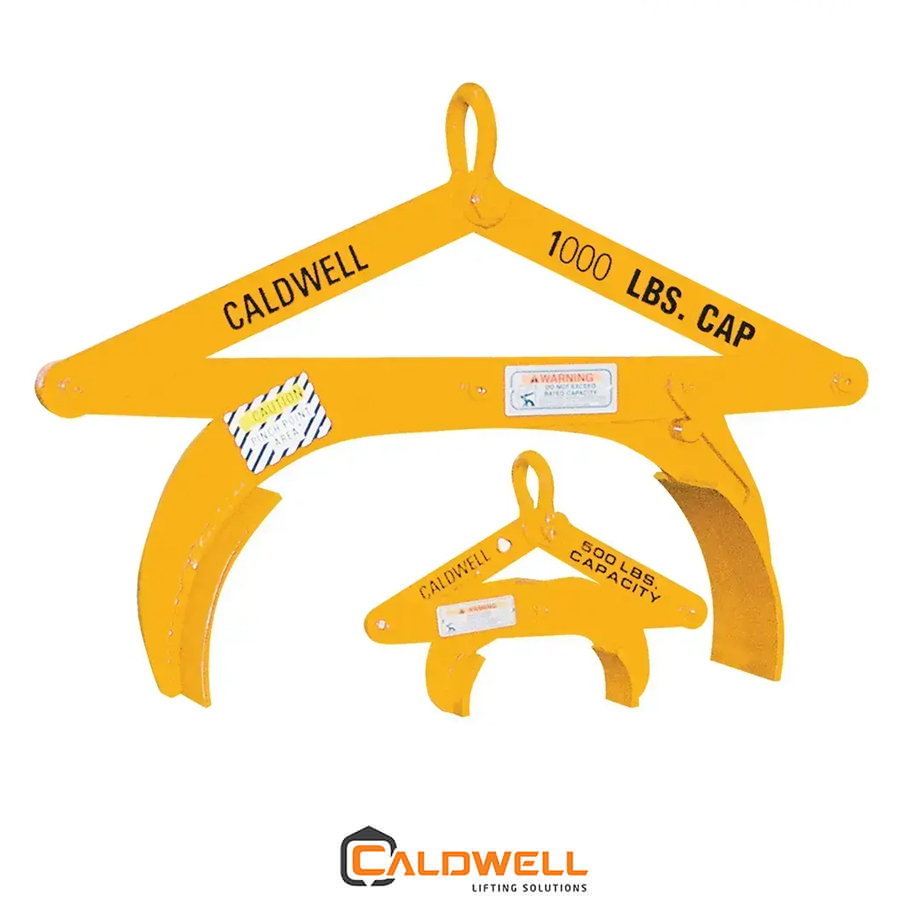

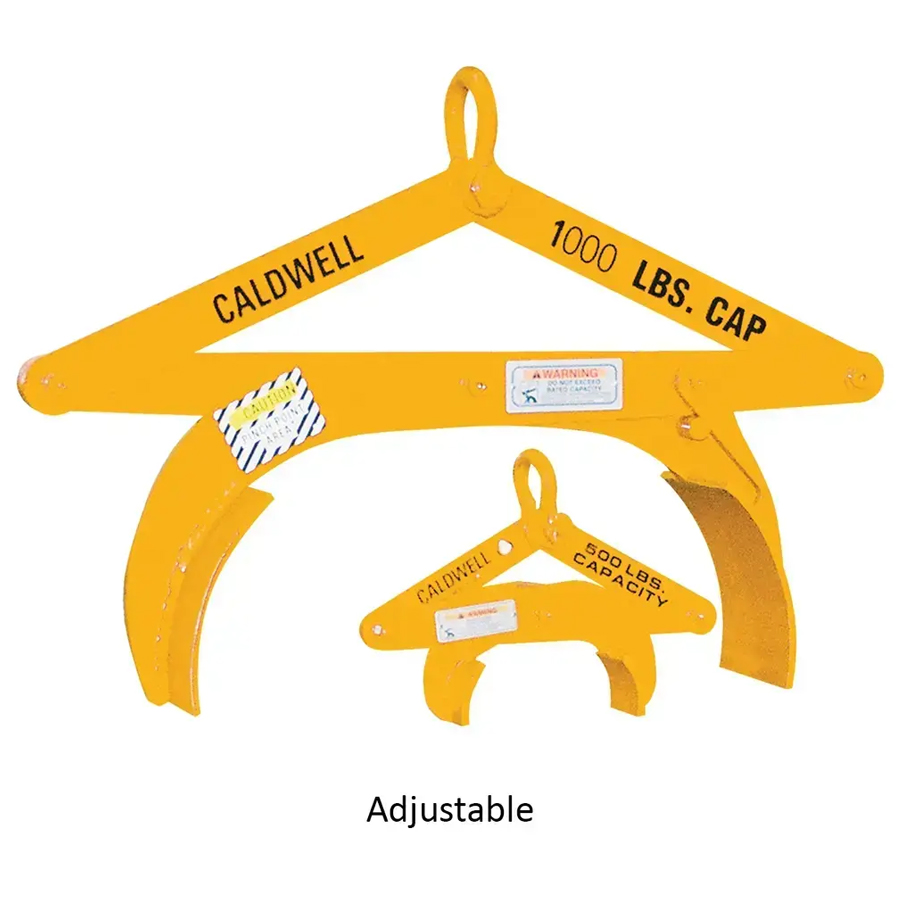

Choose Adjustable or Fixed tongs to match your application.
Product Features:
⚠ WARNING
Use only for vertical lifting.
| Model Number | Capacity pounds (lbs.) | Min Bare Steel (in.) | Max Bare Steel (in.) | Min UR Pad | Max UR Pad | HR Min (in.) | HR Max (in.) | Pad W (in.) | Shackle Thick (in.) | Shackle Open (in.) | Weight (lbs.) | In Stock | Price |
| 108-1/2-2/4 | 1000 | 2 | 4 | 1.25 | 3.25 | 11.21 | 15.15 | 2.5 | 0.5 | 1.31 | 8 | ✔ | $ |
| 108-1-4/8 | 2000 | 4 | 8 | 3.25 | 7.25 | 19.18 | 26.49 | 5 | 0.5 | 1.31 | 29 | ✔ | $ |
| 108-1-7/12 | 2000 | 7 | 12 | 6.25 | 11.25 | 25.95 | 35.81 | 6 | 0.5 | 1.31 | 49 | ✔ | $ |
| 108-1-10/15 | 2000 | 10 | 15 | 9.25 | 14.25 | 30.03 | 38.67 | 6 | 0.5 | 1.31 | 77 | ✔ | $ |
| 108-1-15/20 | 2000 | 15 | 20 | 14.25 | 19.25 | 59.53 | 64.72 | 8 | 0.97 | 2.28 | 225 | ✔ | $ |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
