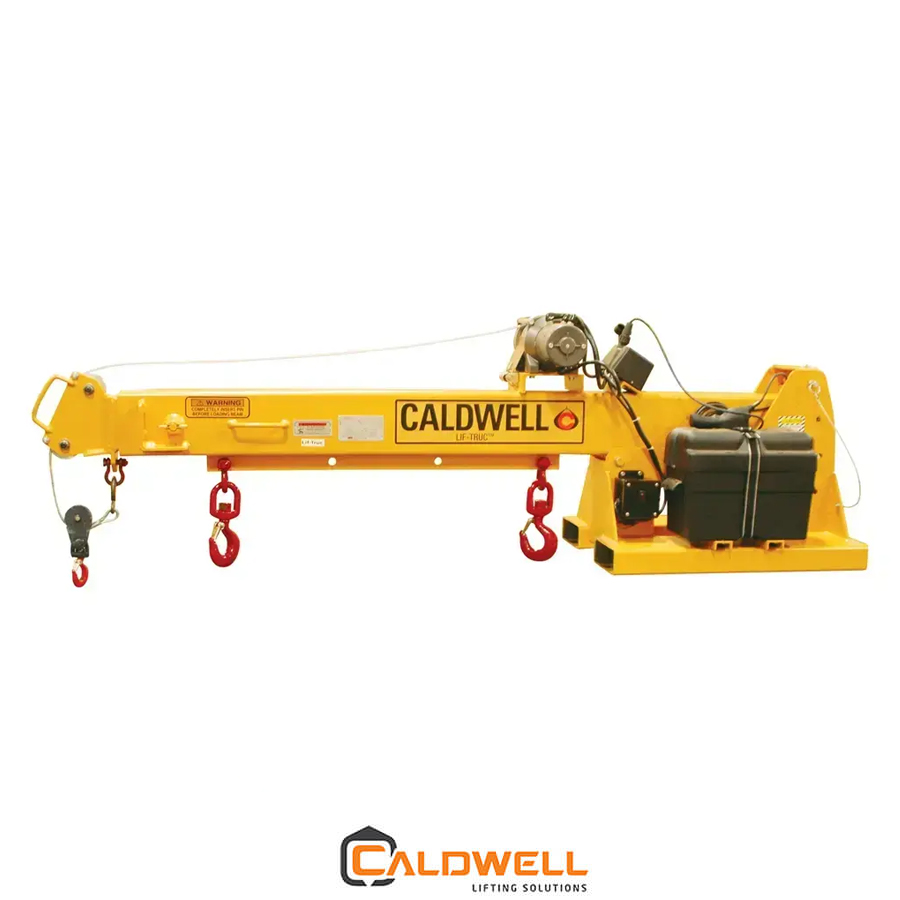

Caldwell Precision Lifting Boom Model PLB

Caldwell Precision Lifting Boom Model PLB

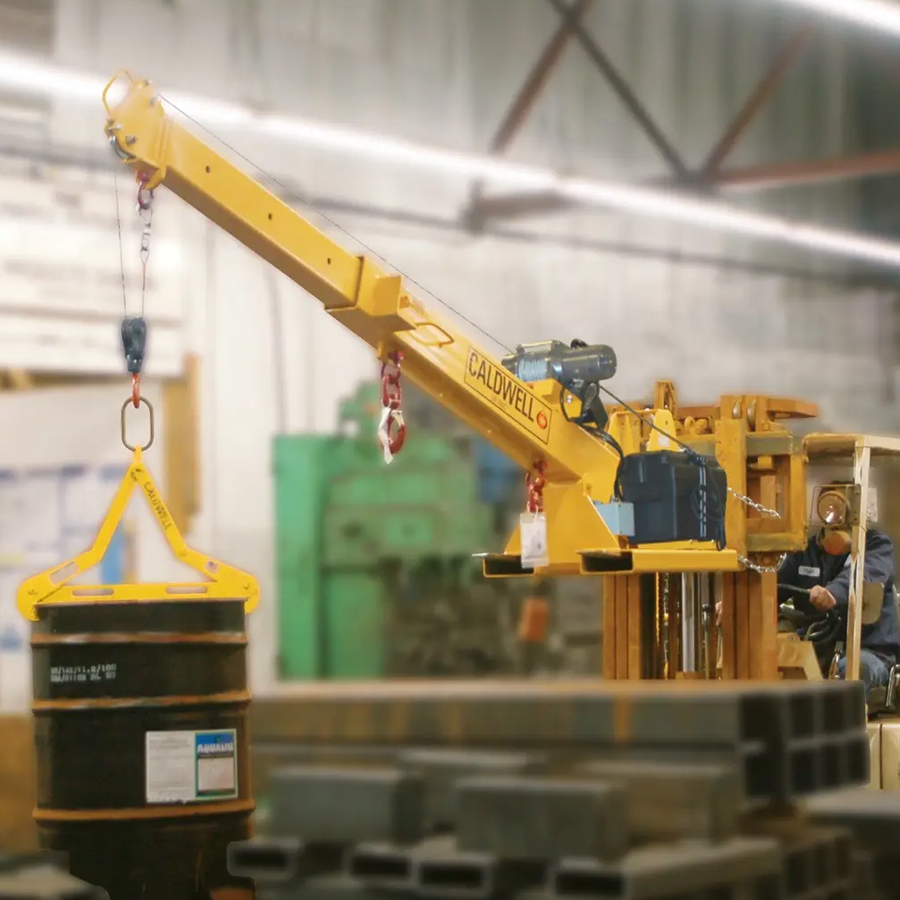

Quickly turns your fork lift into a portable crane. Real time test: Starting with a fully charged battery, the Precision lifting Boom lifts and lowers a 1,000-pound load from an eight-foot steel pit forty times. The battery charges in four to five hours with the supplied charger.

Product Features:

  • Portable, compact and versatile lifting
  • Fits standard fork lift truck
  • Hook travels approximately 20′
  • Adjusts both horizontally and vertically
  • Restraining chain with grab hooks
  • Completely self-contained 12Volt DC power supply
  • 100 AMP Hour Battery with charger
  • Easy to use toggle button control with standard 12′ cord
  • Hoist hook speed averages 7.5 FPM
  • Capacity of lift truck and attachment combination may be less than capacity shown on attachment; consult lift truck manufacturer for guidance

⚠ WARNING:
Capacity of lift truck and attachment combination may be less than capacity shown on attachment. Consult lift truck manufacturer.

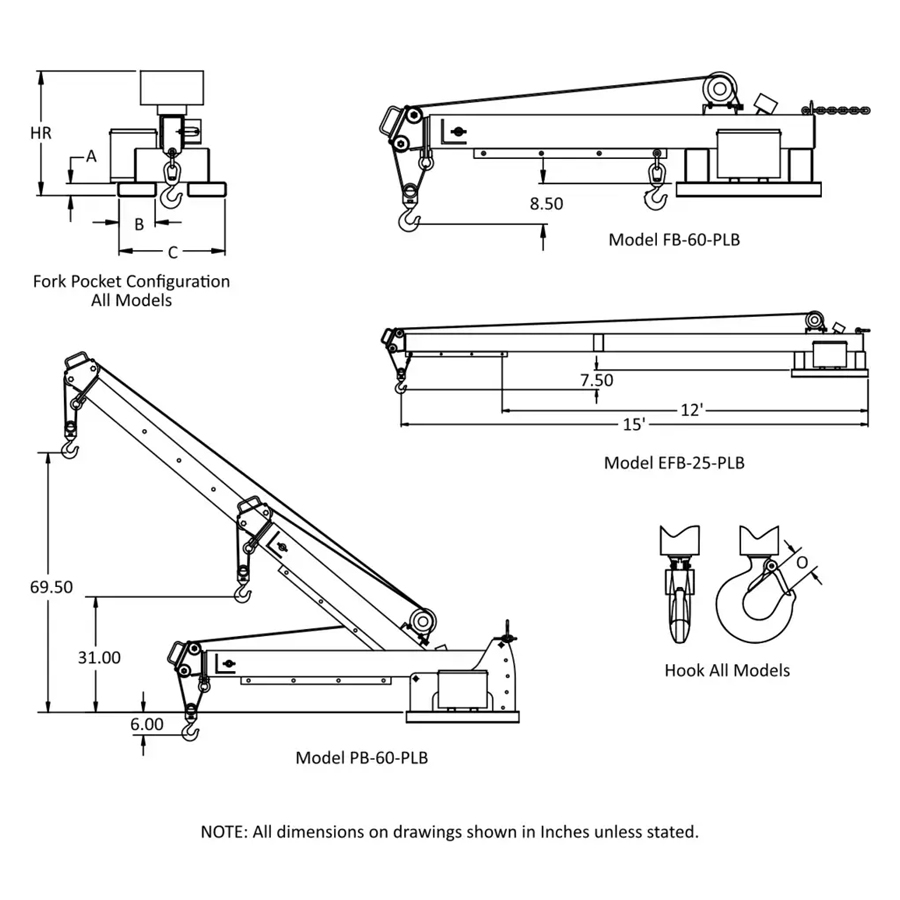

Model Number Cap @7-12′ (lbs.) Cap-Boom Hook @12′ (lbs.) Cap-Boom Hook @13′ (lbs.) Cap-Boom Hook @14′ (lbs.) Cap-Lift Hook @15′ (tons) Cap-Boom Hook @3-6′ (lbs.) Weight (lbs.) Min Ht (in.) Max Jaw Open (in.) Fork Pocket Ht Headroom (in.) Fork Pocket W Out to Out In Stock Price
FB-60-PLB 2400 2500 2300 2100 2000 6000 590 26 1.36 2.5 26 7.5 22.5 $
PB-60-PLB 2400 2500 2300 2100 2000 6000 620 28.25 1.36 2.5 28.25 7.5 22.5 $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
