Caldwell Radio Controlled Release Unit Model RR-R

Caldwell Radio Controlled Release Unit Model RR-R

Product Features:

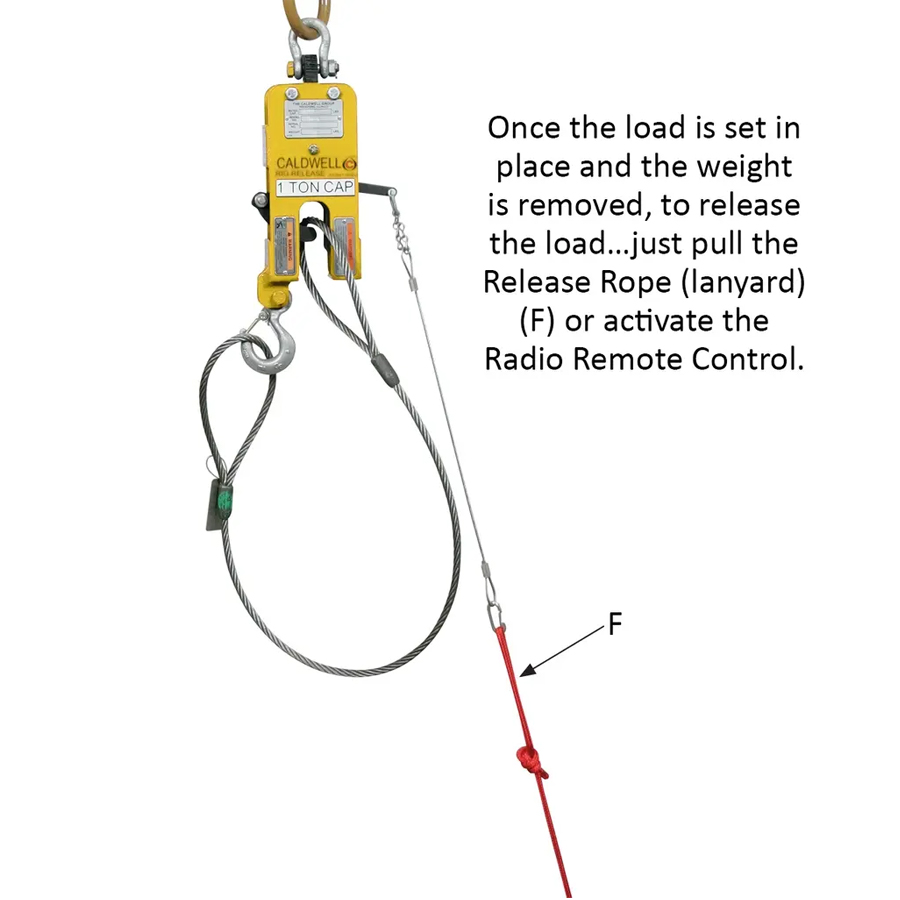

  • Allows rigging to be released from a safe distance with the push of a button
  • Designed for rugged outdoor use

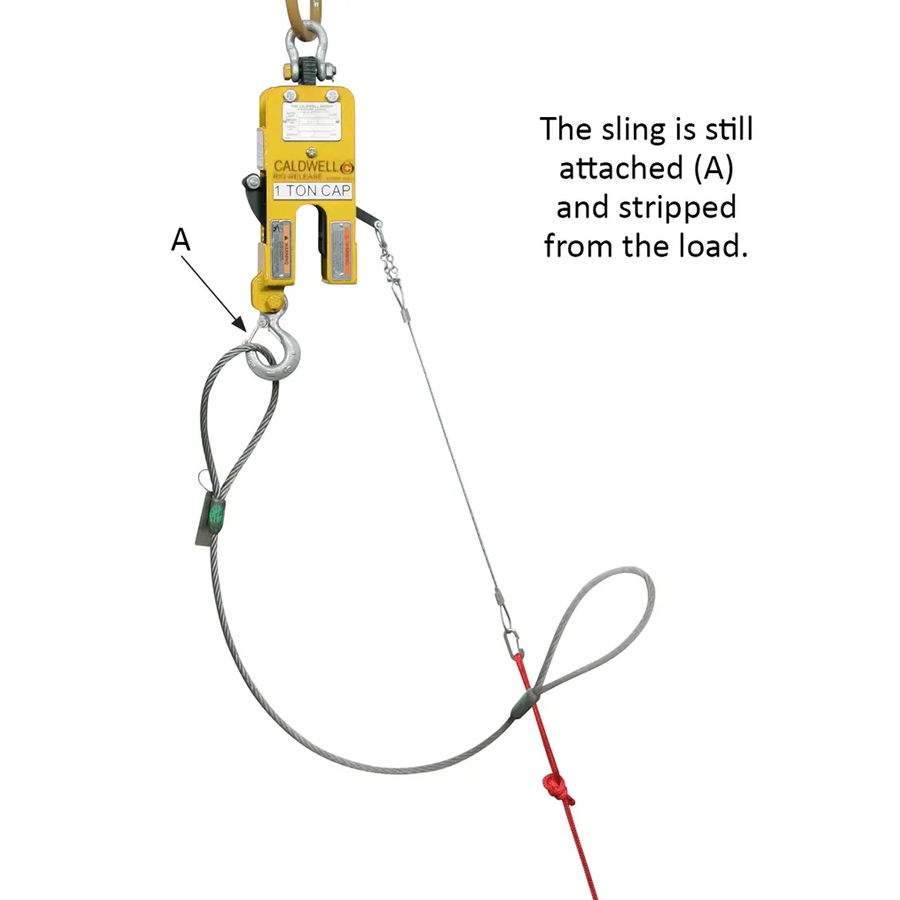

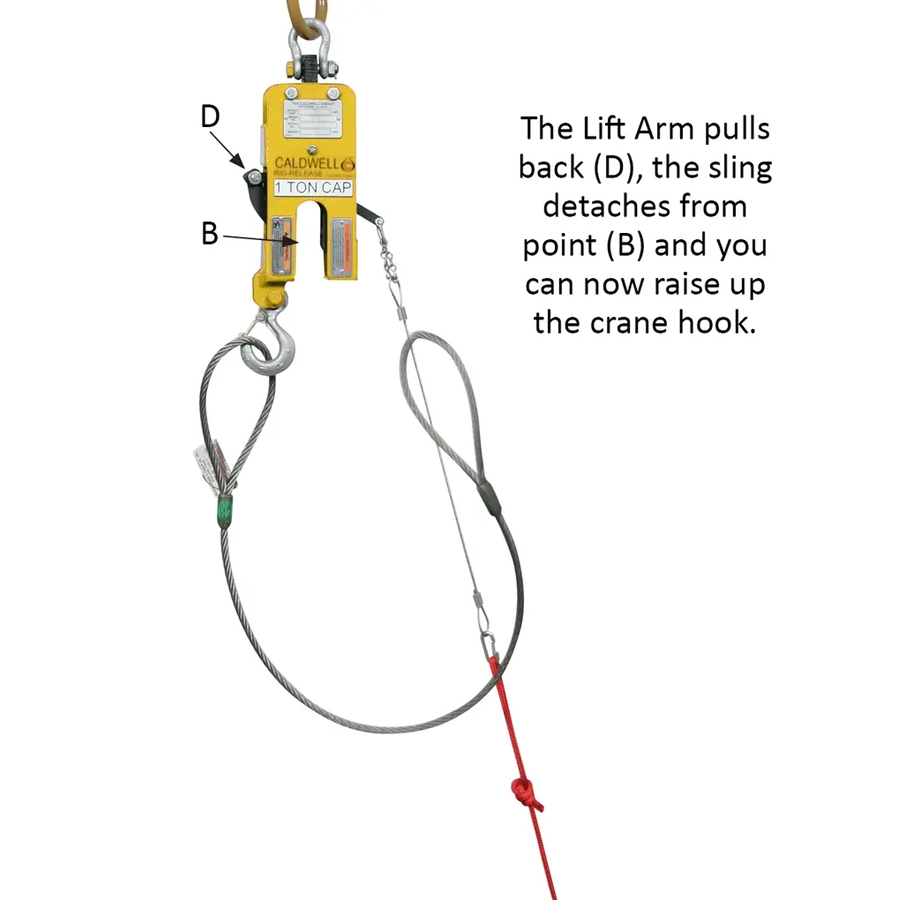

  • Easy to use – simply rig, lift, set, and release
  • LOCK & CAPTURE feature engages with very little load weight
  • Includes two 12 VDC .8 Amp Hr. sealed maintenance free lead acid batteries (rechargeable)
  • Includes one charger, and one vehicle adapter for standard 12 VDC vehicle outlets
  • Battery life lasts through an 8 hour shift, depending on frequency of operation
  • Minimum required cycle time is 1-2 minutes between releases
  • Oversized bail for easy mounting on crane hook, 5 ton unit provided with fixed bail
  • Designed and manufactured to ASME standards

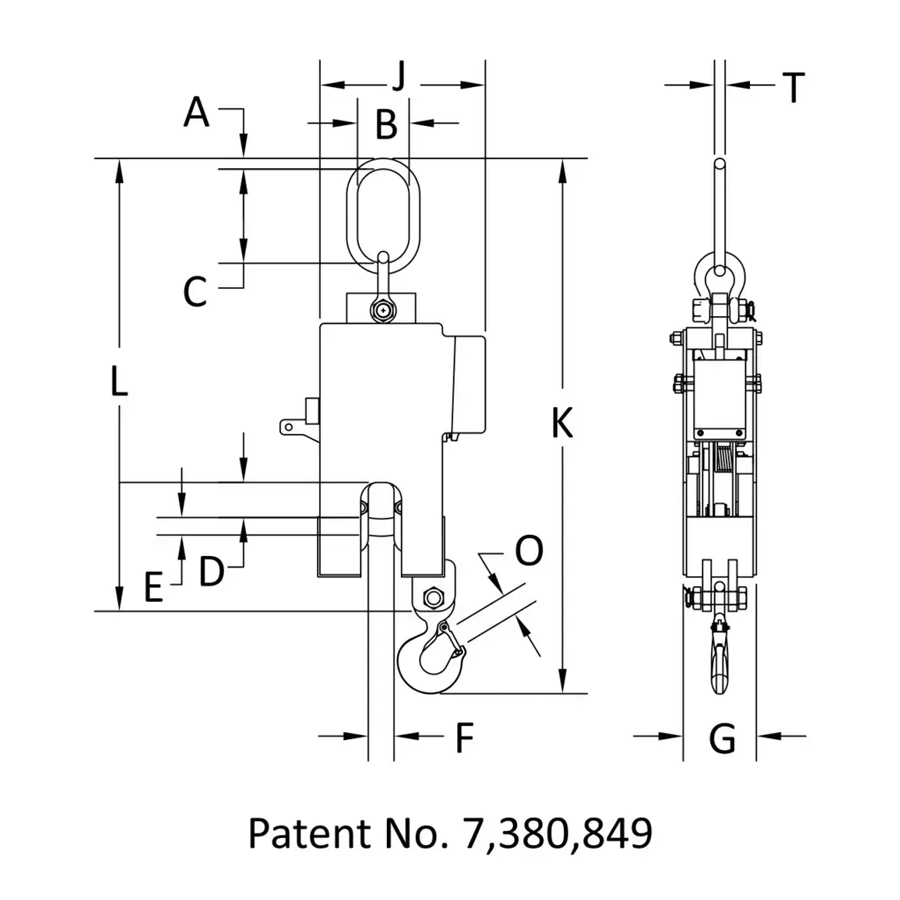

Model Number Capacity (tons) Max Allow Cable Rigging Wt-Basket (lbs.) Max Allow Rigging Wt-Choker (lbs.) Bail Depth Bail Depth (in.) Bail Open W (in.) Bail Open Ht (in.) Bail Thick (in.) Headroom (in.) Weight (lbs.) Max Jaw Open (in.) Min Load-Choker (lbs.) Mag Wt (lbs.) Support W (ft.) Latch Depth (in.) Rope Open Max W (in.) Unit Max Ht w/ Bail (in.) Unit Max Thick (in.) Unit Max W w/ Bail (in.) Wire Rope Open (in.) In Stock Price
RR-2.5R 2.5 28 14 0.63 3 6 0.63 26.88 50 1.09 80 40 0.63 1 1.5 31.15 4.25 9.56 1.75 $
RR-5R 5 60 30 2 4 7 1.25 30.75 115 1.36 250 125 0.88 1.5 1.5 36.4 5 11.13 1.83 $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
