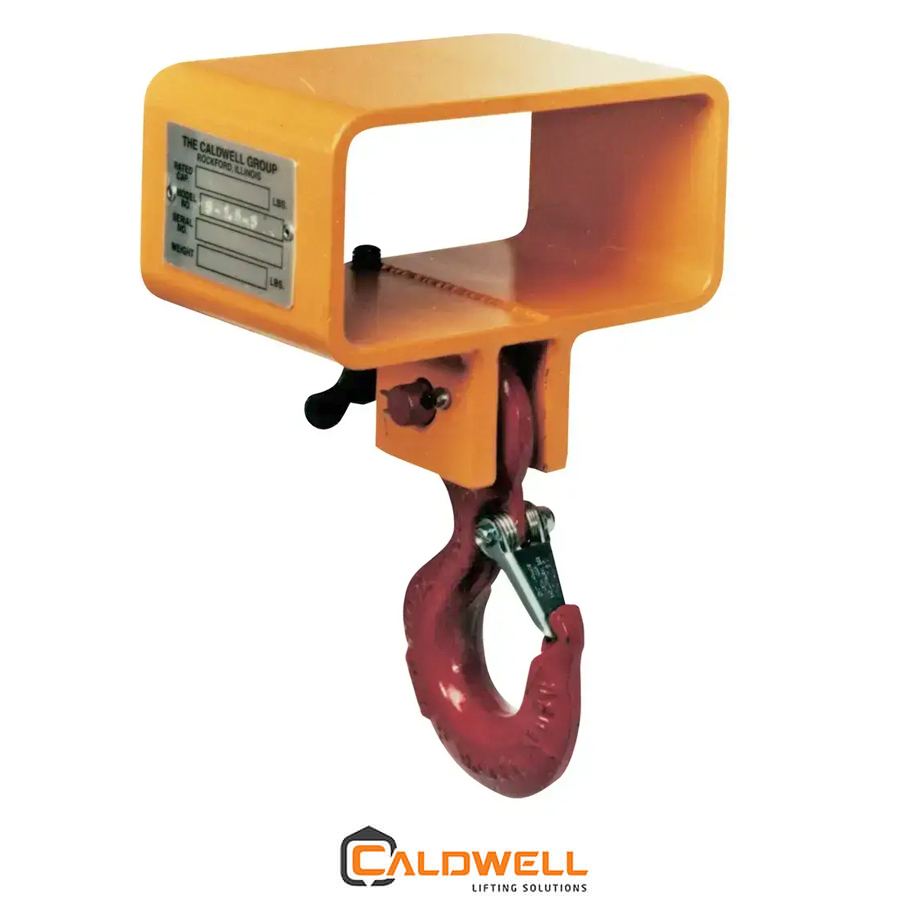

Caldwell Single Fixed Fork Hook Model 5

Caldwell Single Fixed Fork Hook Model 5

Caldwell Fork Lift Beams are specifically designed to make fork lifts more versatile by providing positive handling of loads otherwise impractical for fork lifts.

Product Features:

  • Easy attachment, no special wrenches or tools needed
  • Strong, sturdy, all-welded construction
  • Easy to use, highly visible yellow paint
  • Custom designs available
  • Capacity of lift truck and attachment combination may be less than capacity shown on attachment; consult lift truck manufacturer for guidance

⚠ Warnings
Capacity of lift truck and attachment combination may be less than capacity shown on attachment. Consult lift truck manufacturer.


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

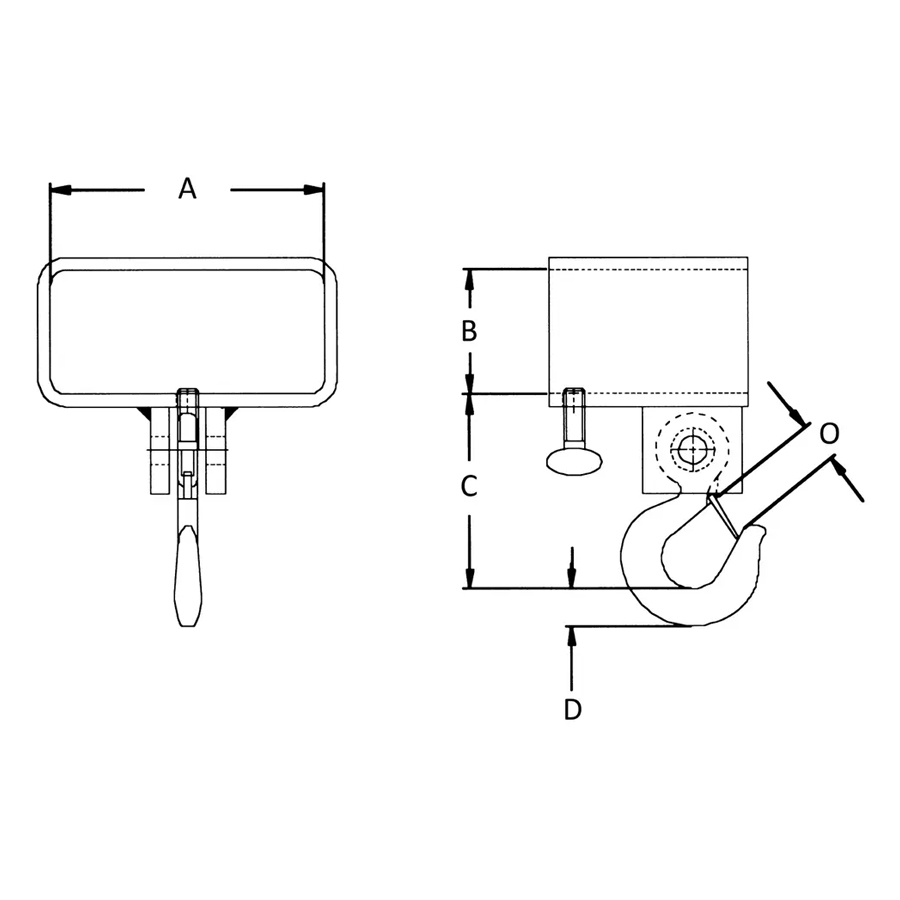

Model Number Capacity (tons) Headroom (in.) Weight (lbs. Max Jaw Open (in.) Fork Pocket Ht Fork Pocket W Hook Depth (in.) In Stock Price
5-1 1/2-4 1.5 4.69 7 1 2.5 4.5 1 ❌ $
5-1 1/2-5 1.5 4.69 8 1 2.5 4.5 1 ❌ $
5-1 1/2-6 1.5 4.69 9 1 2.5 4.5 1 ❌ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
