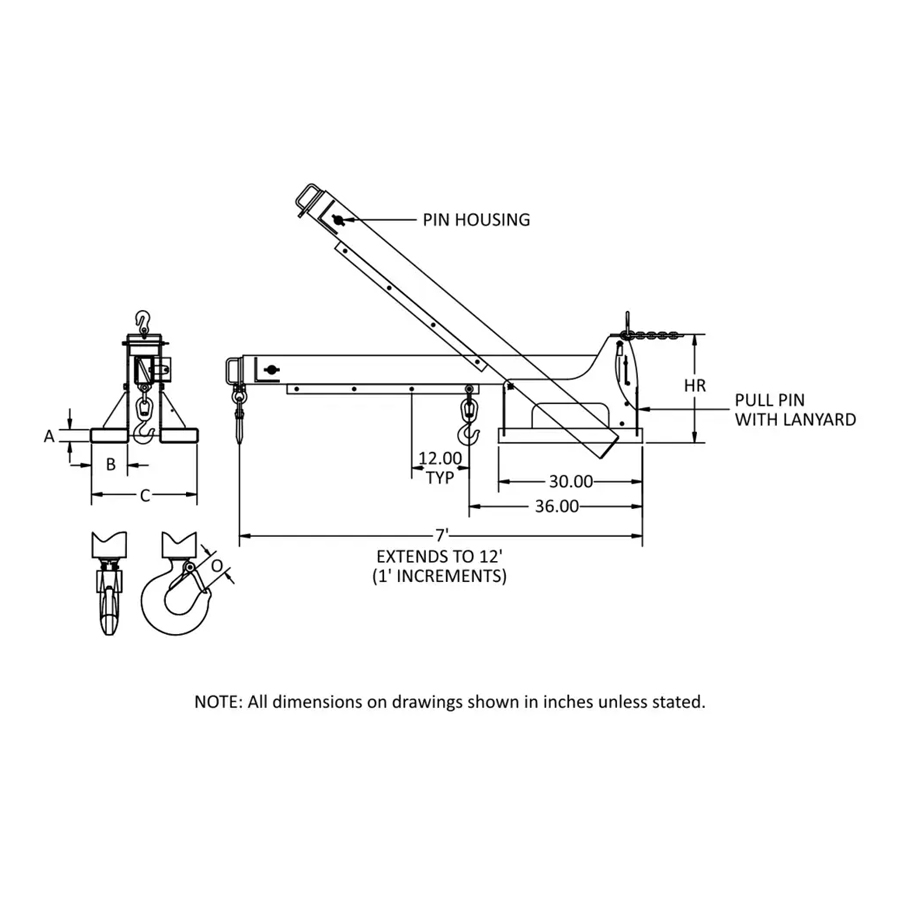

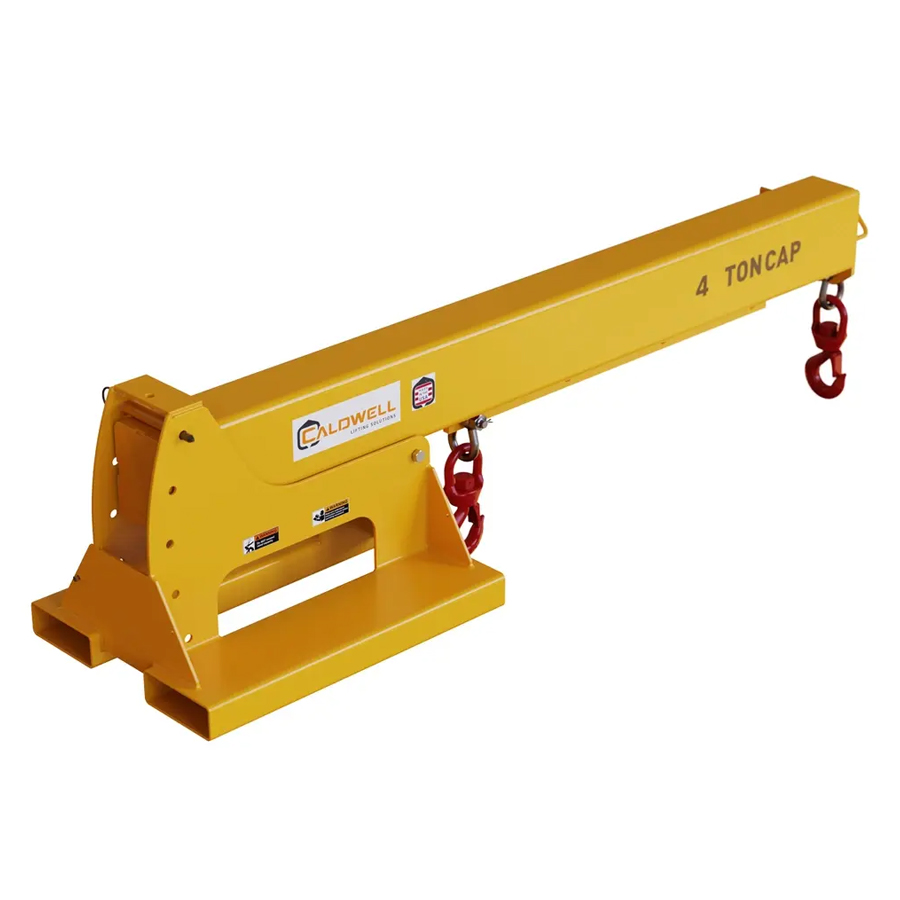

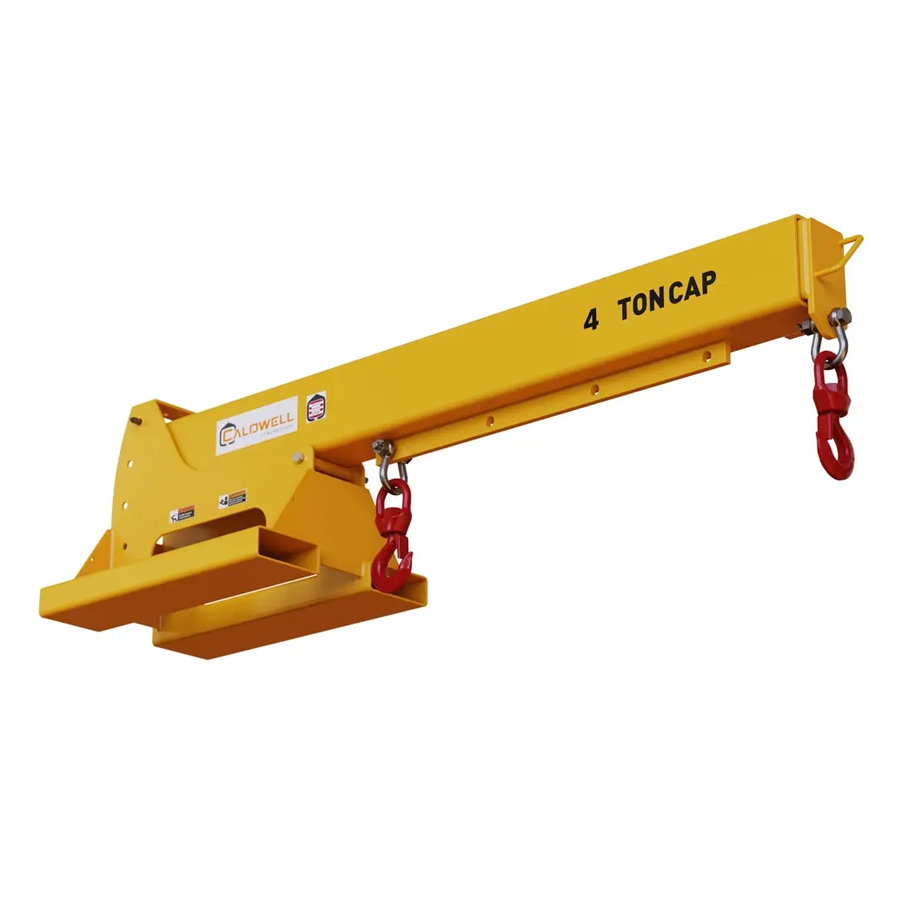

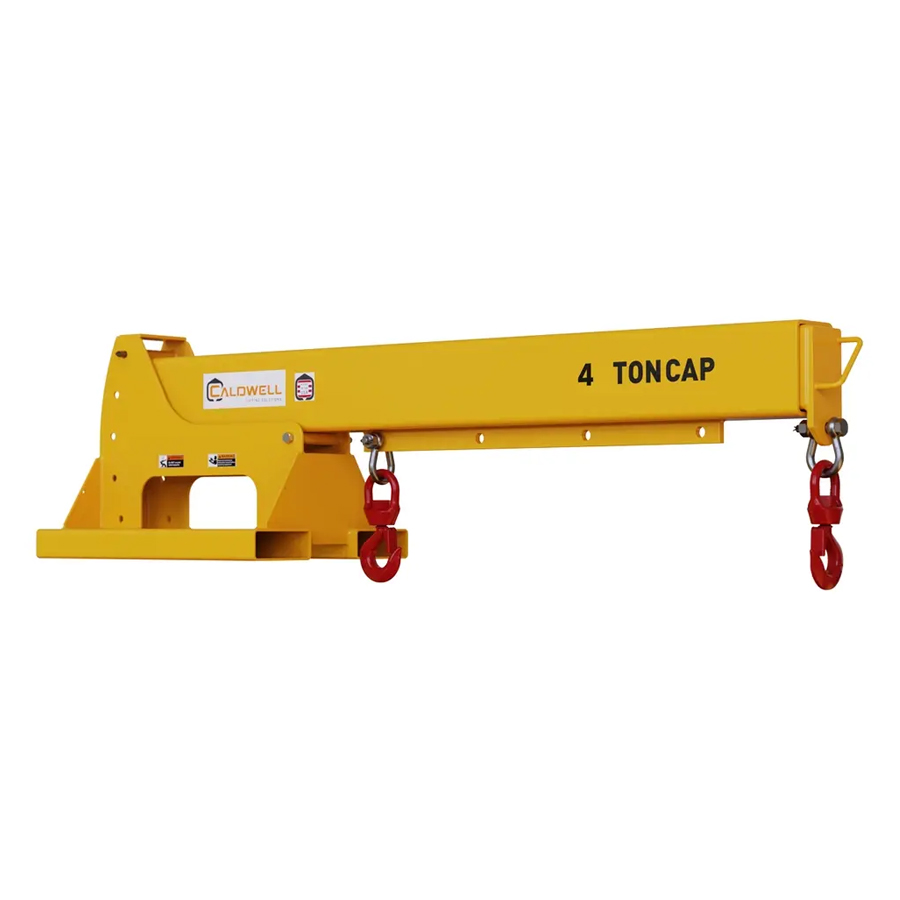

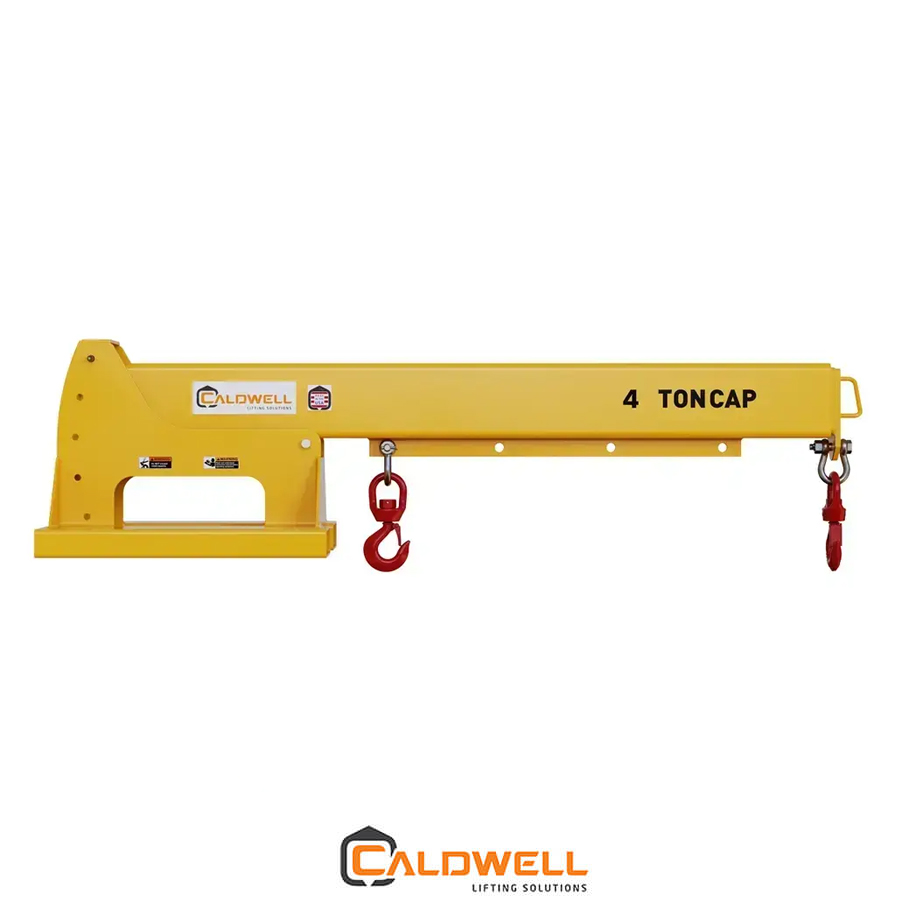

The Pivot Boom Model PB has a telescoping boom with a maximum horizontal reach of 12 feet. The boom also vertically pivots to a height of 6’4″. Choose from 3000-, 4000-, 6000-, or 8000-lb capabilities. The versatile unit adjusts vertically in five increments up to 40 degrees.
Features:
- Alternate hook positions
- Telescoping boom
- Restraining chain with grab hook
- Handle at end for easy extension
- Fixed or swivel hooks available
- Boom locking t-pin
- Customize fork pockets to match your truck set-up
- Capacity of lift truck and attachment combination may be less than capacity shown on attachment; consult lift truck manufacturer for guidance
⚠ Warnings:
Capacity of lift truck and attachment combination may be less than capacity shown on attachment. Consult lift truck manufacturer.
