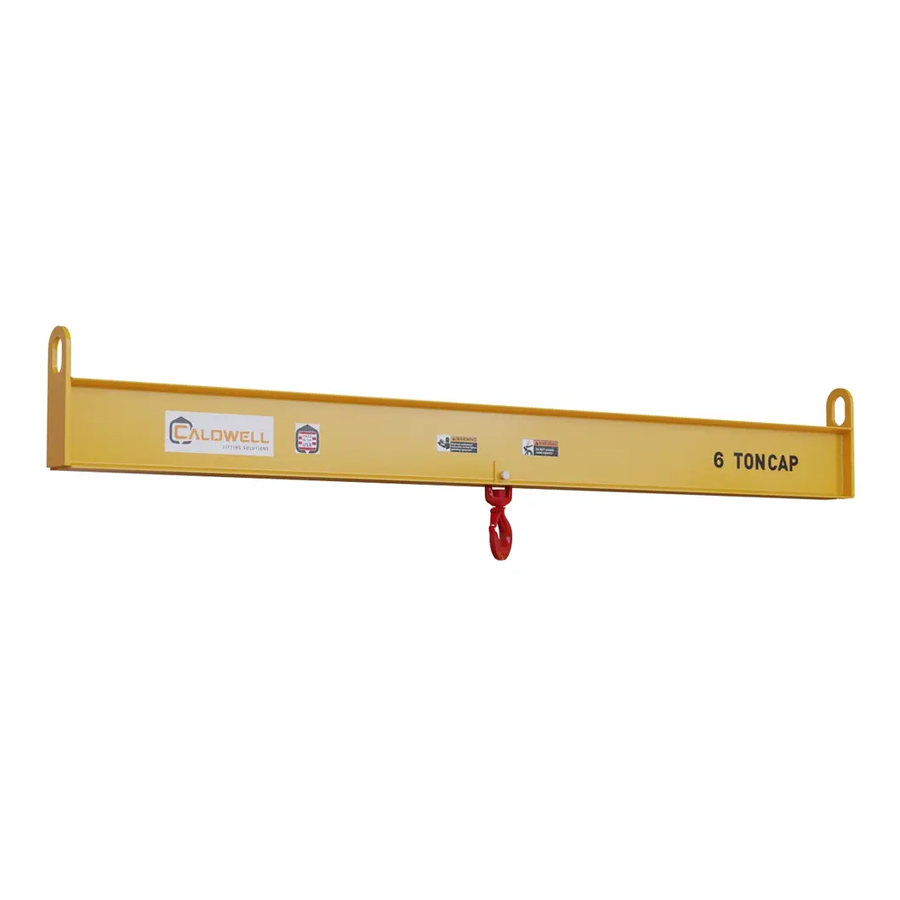

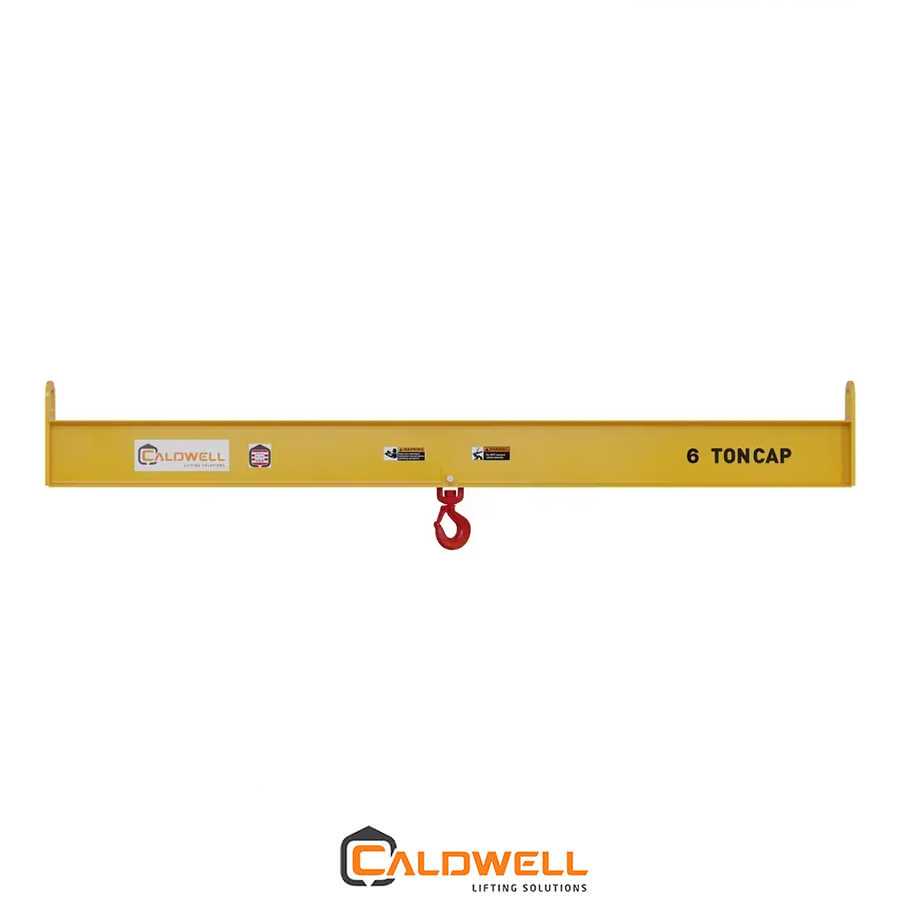

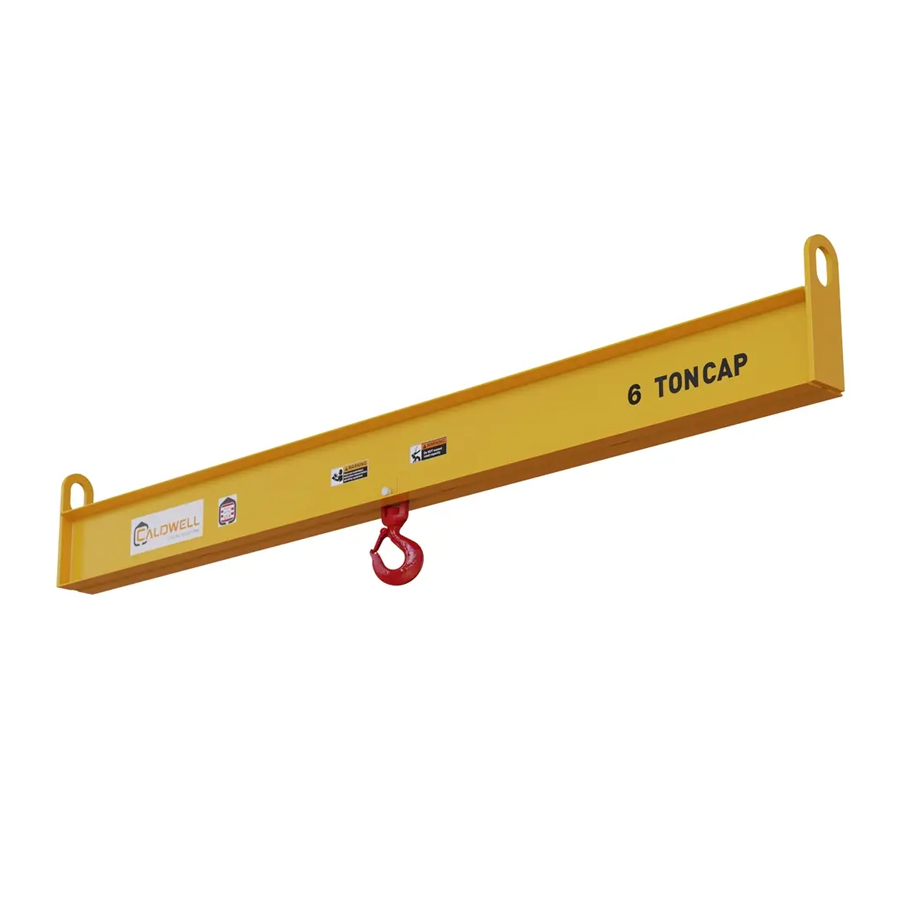

Caldwell Twin Hoist Lifting Beam Model 25

When you hook this Model 25 Twin Hoist Lifting Beam up to a hoist at each end, you have created a custom lifting device of sorts. By using the hoists in tandem, you increase load stability, which improves load safety.

Product Features:

Use two or more hoists to increase lifting stability
Swivel hook with hook latch
Several options available for added versatility
Complies with ASME standards

Product Options:

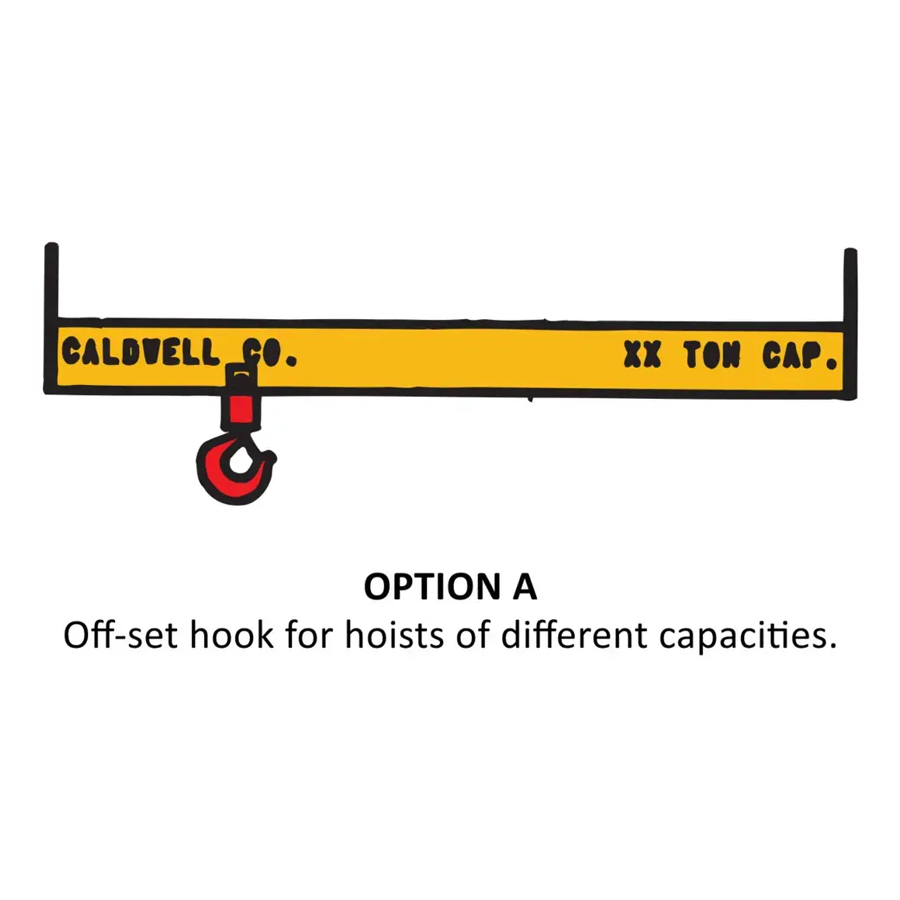

OPTION A — Off-set hook for hoists of different capacities

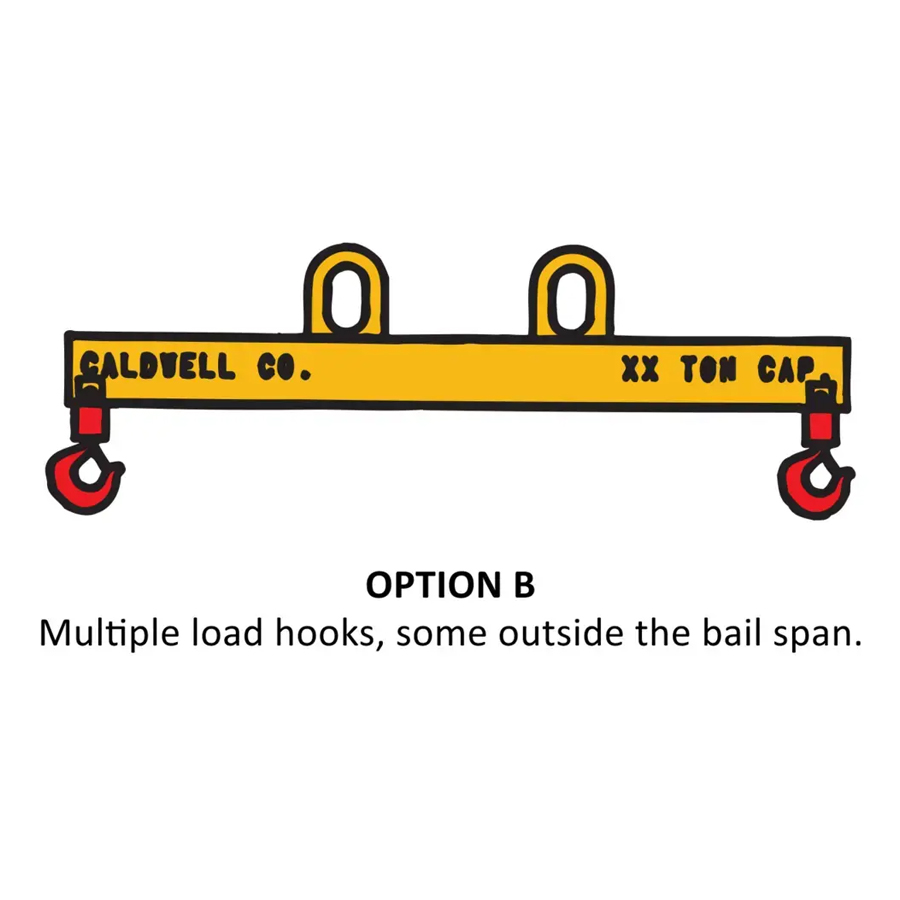

OPTION B — Multiple load hooks, some outside the bail span

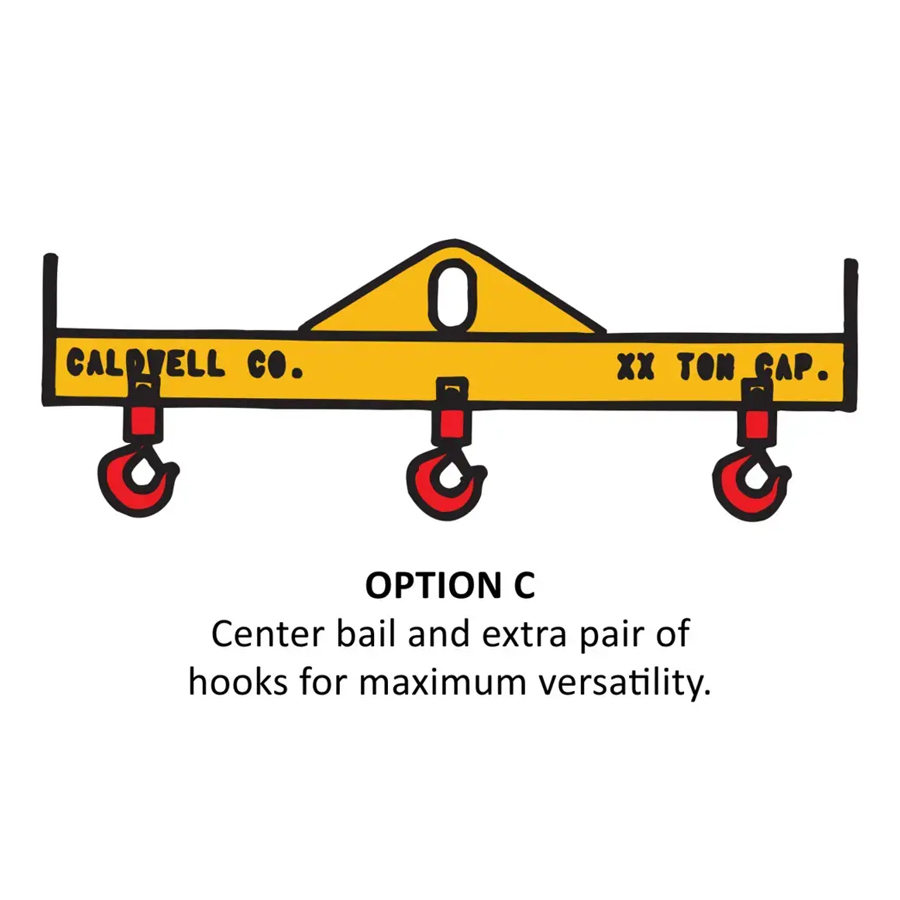

OPTION C — Center bail and extra pair of hooks for maximum versatility

EMAIL PAGE

VIEW IN CATALOG

WARNINGS & CAUTIONS

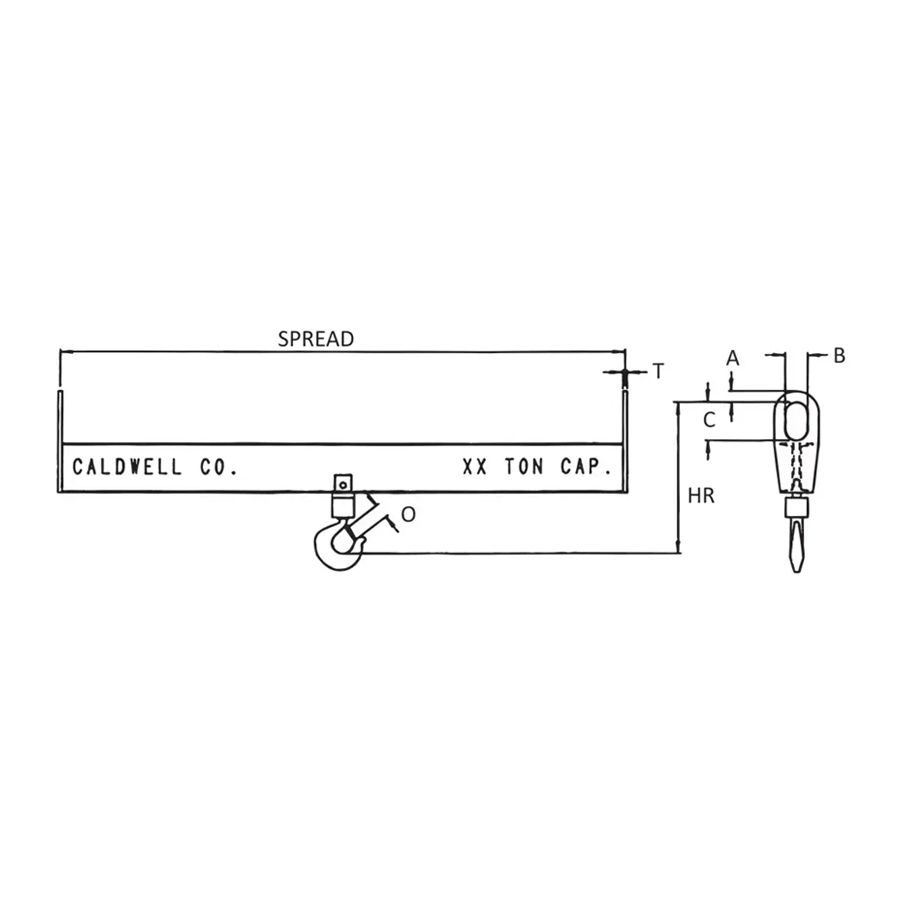

Model Number	Capacity (tons)	Bail Depth (in.)	Bail Open W (in.)	Bail Open Ht (in.)	Bail Spread (ft.)	Bail Thick (in.)	Headroom (in.)	Hook Open w/ Latch (in.)	Weight (lbs.)	In Stock	Price
25-2-6	2	1.5	3	5	6	0.625	16.75	1.125	125	❌	$
25-2-8	2	1.5	3	5	8	0.625	16.75	1.125	160	❌	$
25-2-10	2	1.5	3	5	10	0.625	17.75	1.125	240	❌	$
25-2-12	2	1.5	3	5	12	0.625	17.75	1.125	280	❌	$
25-2-14	2	1.5	3	5	14	0.625	18.75	1.125	360	❌	$
25-2-16	2	1.5	3	5	16	0.625	18.75	1.125	400	❌	$
25-2-18	2	1.5	3	5	18	0.625	18.75	1.125	530	❌	$
25-2-20	2	1.5	3	5	20	0.625	18.75	1.125	660	❌	$
25-2-24	2	1.5	3	5	24	0.625	19.75	1.125	790	❌	$
25-4-6	4	1.5	3	5	6	0.625	20	1.5	160	❌	$
25-4-8	4	1.5	3	5	8	0.625	21	1.5	240	❌	$
25-4-10	4	1.5	3	5	10	0.625	22	1.5	310	❌	$
25-4-12	4	1.5	3	5	12	0.625	23	1.5	410	❌	$
25-4-14	4	1.5	3	5	14	0.625	23	1.5	500	❌	$
25-4-16	4	1.5	3	5	16	0.625	25	1.5	725	❌	$
25-4-18	4	1.5	3	5	18	0.625	25	1.5	805	❌	$
25-4-20	4	1.5	3	5	20	0.625	25	1.5	890	❌	$
25-4-24	4	1.5	3	5	24	0.62	26	1.5	1695	❌	$
25-6-6	6	1.5	3	5	6	0.75	27.5	2.0625	220	❌	$
25-6-8	6	1.5	3	5	8	0.75	28.5	2.0625	300	❌	$
25-6-10	6	1.5	3	5	10	0.75	28.5	2.0625	380	❌	$
25-6-12	6	1.5	3	5	12	0.75	30.5	2.0625	550	❌	$
25-6-14	6	1.5	3	5	14	0.75	30.5	2.0625	640	❌	$
25-6-16	6	1.5	3	5	16	0.75	30.5	2.0625	780	❌	$
25-6-18	6	1.5	3	5	18	0.75	30.5	2.0625	1310	❌	$
25-6-20	6	1.5	3	5	20	0.75	30.5	2.0625	1450	❌	$
25-6-24	6	1.5	3	5	24	0.75	31.5	2.0625	1735	❌	$
25-10-6	10	2	4	7	6	1	29	2.25	340	❌	$
25-10-8	10	2	4	7	8	1	29	2.25	420	❌	$
25-10-10	10	2	4	7	10	1	32	2.25	800	❌	$
25-10-12	10	2	4	7	12	1	32	2.25	920	❌	$
25-10-14	10	2	4	7	14	1	32	2.25	1100	❌	$
25-10-16	10	2	4	7	16	1	32	2.25	1220	❌	$
25-10-18	10	2	4	7	18	1	32	2.25	1705	❌	$
25-10-20	10	2	4	7	20	1	32	2.25	1840	❌	$
25-10-24	10	2	4	7	24	1	33	2.25	2230	❌	$
25-15-8	15	2	4	7	8	1.25	38.25	2.25	740	❌	$
25-15-10	15	2	4	7	10	1.25	38.25	2.25	865	❌	$
25-15-12	15	2	4	7	12	1.25	38.25	2.25	1050	❌	$
25-15-14	15	2	4	7	14	1.25	41.25	2.25	1930	❌	$
25-15-16	15	2	4	7	16	1.25	41.5	2.25	2160	❌	$
25-15-18	15	2	4	7	18	1.25	41.5	2.25	2290	❌	$
25-15-20	15	2	4	7	20	1.25	41.5	2.25	2500	❌	$
25-15-24	15	0	0	0	0	0	0	0	0	❌	$
25-20-8	20	2	4	7	8	1.25	35.5	3	830	❌	$
25-20-10	20	2	4	7	10	1.25	38.5	3	1130	❌	$
25-20-12	20	2	4	7	12	1.25	38.5	3	1266	❌	$
25-20-14	20	2	4	7	14	1.25	38.5	3	1926	❌	$
25-20-16	20	2	4	7	16	1.25	38.5	3	2196	❌	$
25-20-18	20	2	4	7	18	1.25	38.5	3	2430	❌	$
25-20-20	20	0	0	0	0	0	0	0	0	❌	$
25-30-8	30	2.5	5	9	8	1.5	54	3.75	1120	❌	$
25-30-10	30	2.5	5	9	10	1.5	54	3.75	1325	❌	$
25-30-12	30	2.5	5	9	12	1.5	54	3.75	1610	❌	$
25-40-10	40	2.5	5	9	10	1.5	58.5	4.25	1470	❌	$
25-40-12	40	2.5	5	9	12	1.5	58.5	4.25	1700	❌	$
25-40-8	40	2.5	5	9	8	1.5	58.5	4.25	1165	❌	$
