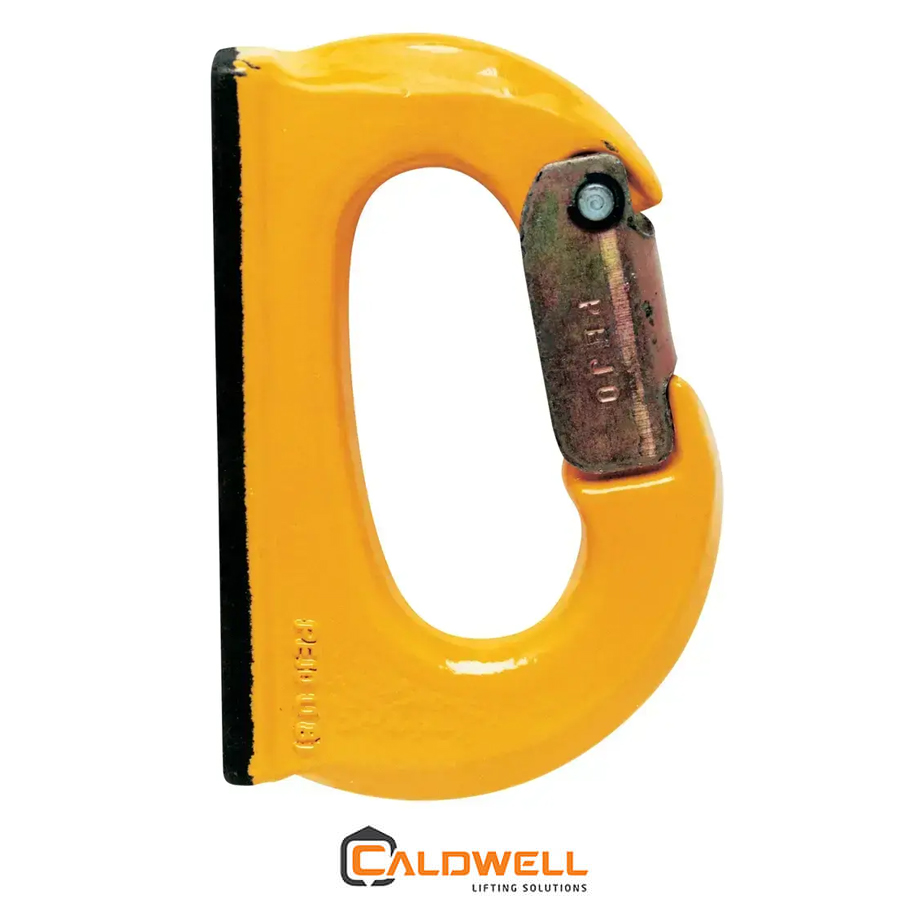

Caldwell Weld On Bucket Hook Model WBH

Caldwell Weld On Bucket Hook Model WBH

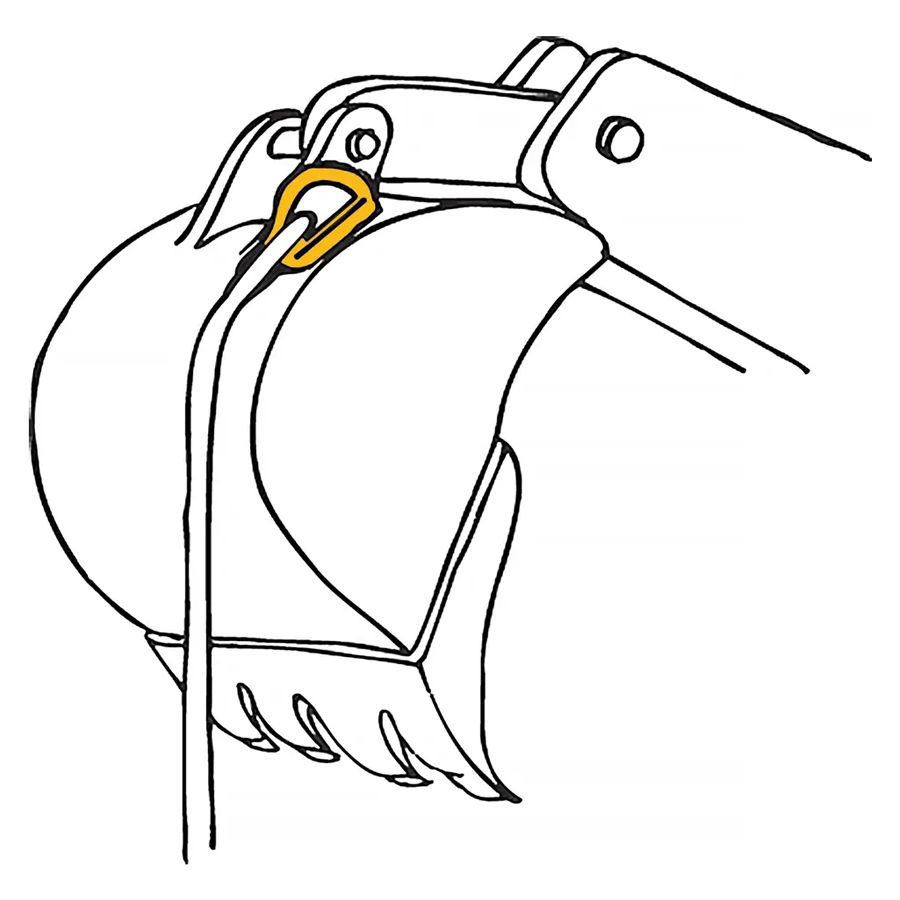

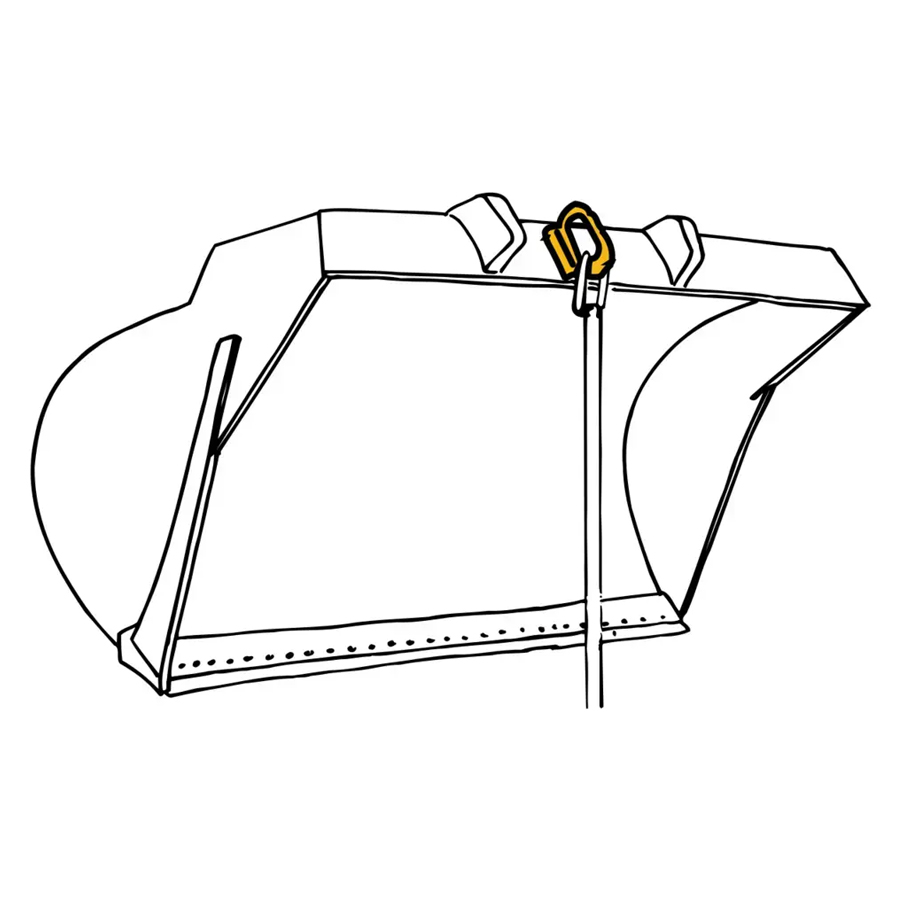

Turn your excavating equipment into a reliable lifter with this weld-on hook. Carefully follow welding instructions for best results.

Product Features:

  • Latch prevents accidental unhooking of load
  • Latch is resistant to dirt, concrete, and ice
  • Stainless steel latch spring
  • Hook can be welded on without preheating
  • *NOTE: Not rated for below the hook lifting

Welding Instructions

  • Before welding, surface must be thoroughly cleaned and prepared
  • Electrode is AWS/ASTM E7018-1, ISO E5158120 20H
  • The base plate must be welded evenly all around (no gaps)
  • Base plate is mild steel
  • Welding is to be done by a qualified welder
  • Instructions given by electrode manufact5urer must be followed

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

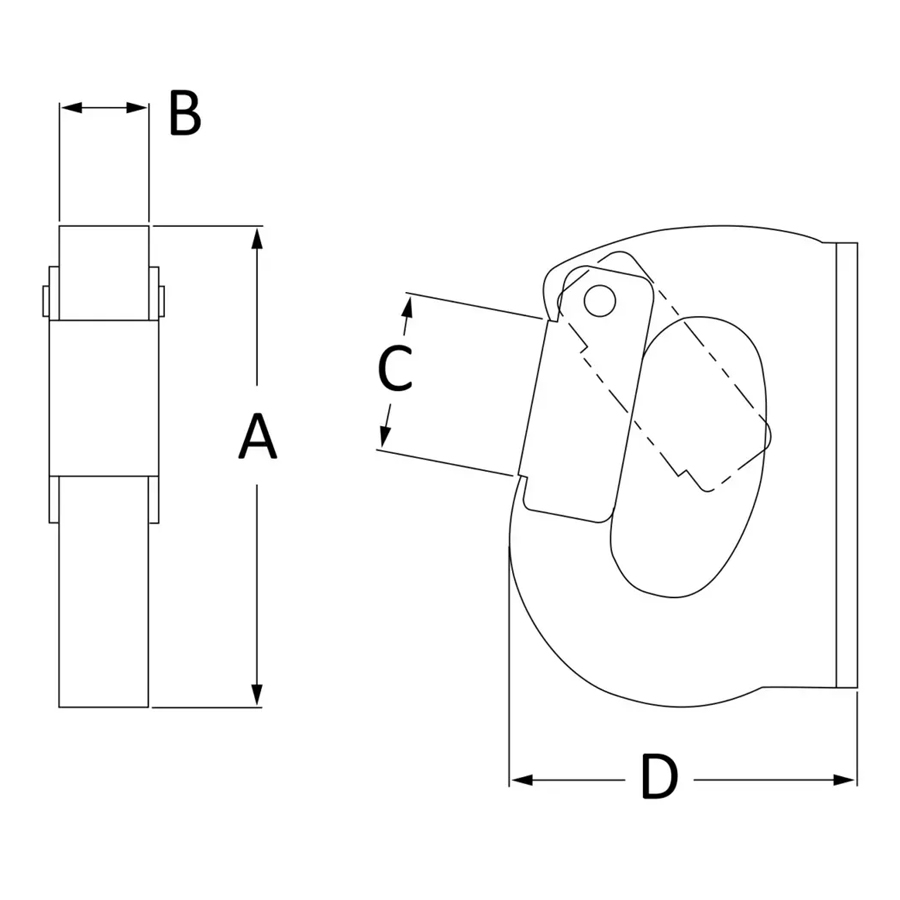

Model Number Capacity pounds (lbs.) Ht (in.) Weight (lbs.) W (in.) Thrust Plus Pull (lbs.) Max Hook Open (in.) In Stock Price
BH-U1 2200 4.13 2 3 1 0.88 ❌ $
BH-U2 4400 4.88 3 3.38 1.25 1.13 ✔ $
BH-U3 6600 0 5 0 1.38 1.25 ✔ $
BH-U4 8800 6 5 4.25 1.38 1.25 ✔ $
BH-U6 13200 0 9 0 1.63 1.75 ✔ $
BH-U8 17600 8.5 12 5.5 2 1.75 ✔ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
