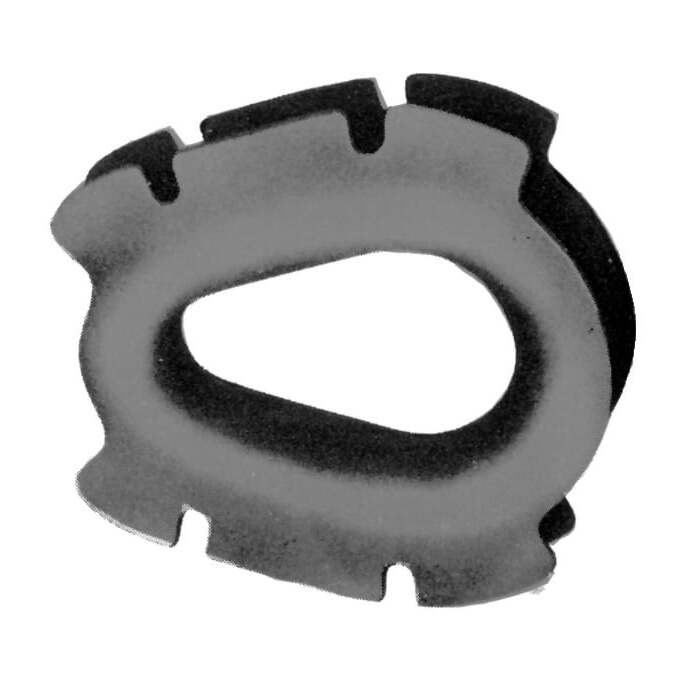

The No. 83 Casing Thimble has been designed for the oil industry. The Choker Thimbles, No. 82, No. 84, No. 85, No. 86 and No. 87 are designed especially for braided choker slings. The ears can be peened over to retain wire rope.
The No. 83 Casing Thimble has been designed for the oil industry. The Choker Thimbles, No. 82, No. 84, No. 85, No. 86 and No. 87 are designed especially for braided choker slings. The ears can be peened over to retain wire rope.
| Dimensions & Data | |||||||||||||
| CERTEX Cat. Ref. No. | NEWCO No. | Sling Size | Fits Choker Hook | A | B | C | D | E | F | G | H | Wt. Lbs. | |
| 6Pt | 8Pt | ||||||||||||
| CX05-0375 | 82 | 1/8 | 1/8 | #2 | 1/2 | 7/8 | 1 1/4 | 2 1/8 | 3 1/4 | 1/4 | 3/8 | 5/16 | .7 |
| CX05-0376 | *83 | 1/4 | 3/16 | #3 | 5/8 | 1 | 1 1/2 | 2 1/2 | 3 7/8 | 1/4 | 1/2 | 3/8 | 1.1 |
| CX05-0377 | 84 | 5/16 | 1/4 | #4 | 13/16 | 1 5/16 | 1 3/4 | 2 7/8 | 4 7/16 | 5/16 | 5/8 | 7/16 | 1.8 |
| CX05-0378 | 85 | 3/8 | 5/16 | #5 | 15/16 | 1 7/16 | 2 | 3 1/4 | 5 | 5/16 | 3/4 | 1/2 | 2.2 |
| CX05-0379 | 86 | 7/16 | 3/8 | #6 | 1 1/8 | 1 11/16 | 2 1/4 | 3 5/8 | 5 3/4 | 3/8 | 7/8 | 9/16 | 3.3 |
| CX05-0380 | 87 | 1/2 | 7/16 | #7 | 1 3/8 | 1 15/16 | 2 3/4 | 4 1/16 | 6 3/8 | 3/8 | 1 | 11/16 | 4.7 |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
