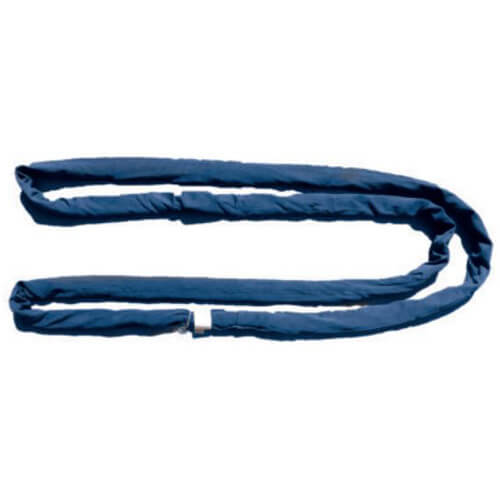

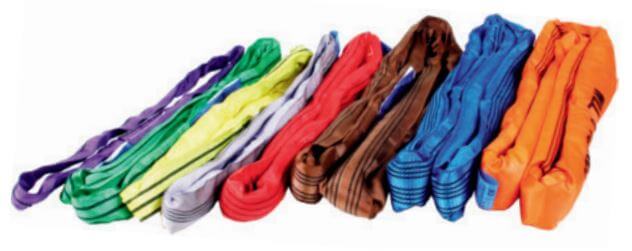

Certex High Performance Roundslings
| CERTEX Cat. Ref. No. | Type/Size | Rated Load (Lbs.) at Design Factor (DF) 5:1 | ||||
|---|---|---|---|---|---|---|
| Vertical | Choker | Basket Hitches | ||||
| CX08-0210 | RS10HP | 10,000 | 8,000 | 20,000 | 17,320 | 14,140 |
| CX08-0212 | RS15HP | 15,000 | 12,000 | 30,000 | 25,980 | 21,210 |
| CX08-0214 | RS20HP | 20,000 | 16,000 | 40,000 | 34,640 | 28,280 |
| CX08-0216 | RS25HP | 25,000 | 20,000 | 50,000 | 43,300 | 35,350 |
| CX08-0218 | RS30HP | 30,000 | 24,000 | 60,000 | 51,960 | 42,420 |
| CX08-0220 | RS40HP | 40,000 | 32,000 | 80,000 | 69,280 | 56,560 |
| CX08-0222 | RS50HP | 50,000 | 40,000 | 100,000 | 86,600 | 70,700 |
| CX08-0224 | RS60HP | 60,000 | 48,000 | 120,000 | 103,920 | 84,840 |
| CX08-0226 | RS70HP | 70,000 | 56,000 | 140,000 | 121,240 | 98,980 |
| CX08-0228 | RS85HP | 85,000 | 68,000 | 170,000 | 147,220 | 120,190 |
| CX08-0230 | RS100HP | 100,000 | 80,000 | 200,000 | 173,200 | 141,400 |
| CX08-0232 | RS125HP | 125,000 | 100,000 | 250,000 | 216,500 | 176,750 |
| CX08-0234 | RS150HP | 150,000 | 120,000 | 300,000 | 259,800 | 212,100 |
| CX08-0236 | RS175HP | 175,000 | 140,000 | 350,000 | 303,100 | 247,450 |
| CX08-0238 | RS200HP | 200,000 | 160,000 | 400,000 | 346,400 | 282,800 |
* HIGHER CAPACITY SLINGS AVAILABLE ON REQUEST. PLEASE REFER TO INSPECTION,
OPERATING PRACTICES, REMOVAL FROM SERVICE, AND REPAIR CRITERIA.
• HIGHEST STRENGTH TO WEIGHT RATIO
• LOW ELONGATED/EXTREME FLEXIBILITY
• ENDLESS STYLE MEAN WEAR POINTS CHANGE WITH EACH NEW LIFT
• HEAVY BULK 2 PLY OUTER COVER WITH SUPERIOR ABRASION RESISTANCE
• MADE IN USA
• REPAIRABLE COVER
• 1% STRETCH AT RATE CAPACITY
• PROOF TESTED TO 2 TIMES RATED CAPACITY
• MAXIMUM WORKING TEMPERATURE 158 DEGREES FAHRENHEIT (70º C) PER CORDAGE INSTITUTE STANDARD CI-
• HIGH SALTWATER TOLERANCE
• GOOD UV RESISTANCE
• EXCELLENT FATIGUE RESISTANCE
• USES FILTEC EHP CORE YARNS FEATURING HONEYWELL SPECTRA FIBER AND ARAMIDS
• BOAT HANDLING
• CONSTRUCTION
• OILFIELD
• DRILLING EQUIPMENT
• HEATING UNITS
• INDUSTRIAL PLANTS
• OFFSHORE MARINE
• PIPES
• TRANSFORMERS
• AEROSPACE
WARNING: Sling can fail if damaged, misused, or overloaded. Inspect before use. Damaged sling shall no be used. Use only if trained. Do not exceed rated capacity. Protect sling being cut by loads edges, corners, protrusions, and abrasive surfaces. Avoid exposure to acid alkali, and temperature over 158 degrees Fahrenheit. DEATH or INJURY can occur from improper use of maintenance.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
