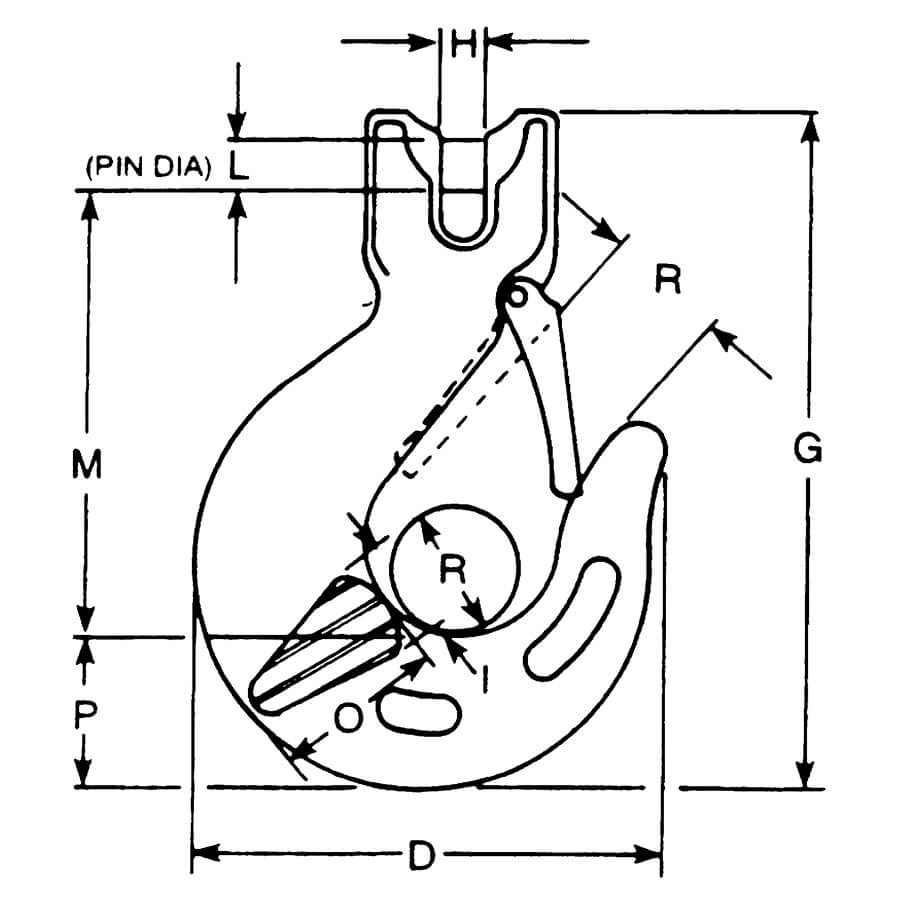

| Chain Size | Working Load Limit (lbs.)* | Dimensions (inches) | Weight Each (lbs.) | |||||||||
| (in.) | (mm) | D | G | H | I | L | M | O | P | R | ||
| 9/32 | 7 | 4,300 | 3.500 | 5.156 | 0.328 | 0.734 | 0.357 | 3.437 | 1.203 | 1.051 | 1.062 | 0.80 |
| 3/8 | 10 | 8,800 | 4.343 | 6.672 | 0.453 | 0.953 | 0.507 | 4.468 | 1.453 | 1.281 | 1.312 | 2.03 |
| 1/2 | 13 | 15,000 | 5.500 | 8.000 | 0.593 | 1.172 | 0.625 | 5.265 | 1.938 | 1.656 | 1.562 | 4.50 |
| 5/8 | 16 | 22,600 | 6.281 | 9.687 | 0.750 | 1.438 | 0.750 | 6.078 | 2.375 | 2.188 | 1.750 | 6.50 |
| 3/4 | 20 | 35,300 | 7.827 | 11.688 | 0.875 | 1.688 | 0.906 | 7.344 | 2.828 | 2.563 | 2.187 | 11.80 |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
