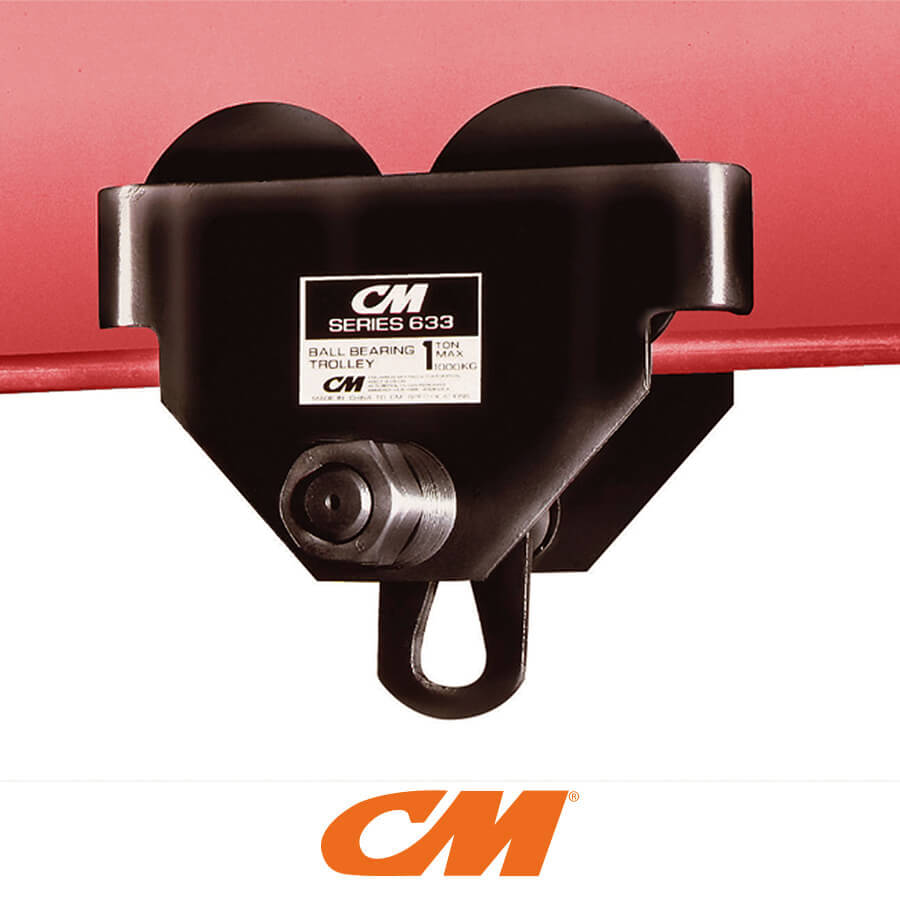

CM Series 633 Ball Bearing Trolley

CM Series 633 Ball Bearing Trolley

Versatile, all-purpose trolley can be used with any hook suspended hoist. Hardened universal tread flanged track wheels are ball bearing equipped for easy rolling on American standard shapes, wide flange shapes, or patented rail. Rugged steel side plates are formed with trolley guards for added security and act as bumpers. Adapts to a wide range of beam adjustments. Trolley includes a standard hook plate.


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

CERTEX Cat. Ref. No. Columbus McKinnon Code Maximum Capacity (Tons) Adj. for American Standard Shapes Thread Diameter of Wheels (Inches) Net Weight (Pounds)
Depth (Inches) Flange Width (Inches)
CX11-0605 3302 1/2 3 – 15 2 1/2 – 5 5/8 2 9/32 17
CX11-0606 3304 1 5 – 24 3 – 8 3 15/32 35
CX11-0607 3306 2 6 – 24 3 5/8 – 8 3 15/16 53
CX11-0608 3307 3 8 – 24 4 – 8 5 1/8 101
CX11-0609 3309 5 10 – 24 4 5/8 – 8 6 1/8 145

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
