UNC THREADS
Also Available in Metric

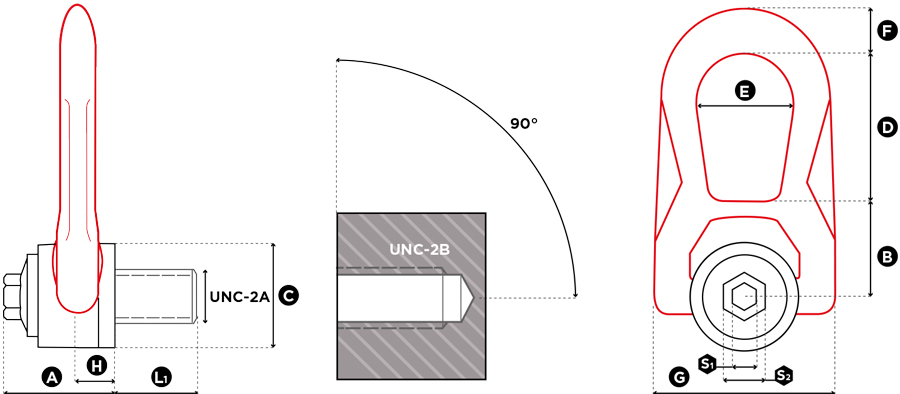

| Model Number | Diameter | SF 5:1 WLL (lbs) | SF 4:1 WLL (lbs) | Standard L1 (mm) | Torque (ft-lb) | Dimensions (mm) | Weight | ||||||||||
| S1 | S2 | A | B | C | D | E | F | G | H | (kg) | (lbs) | ||||||
| DSR U 025 UP | UNC 1/4’’-20 | 330 | 450 | 13 | 3 | 8 | 16 | 32 | 30 | 30 | 38 | 27 | 14 | 53 | 95 | 0,3 | 0.66 |
| DSR U 516 UP | UNC 5/16’’-18 | 1,000 | 1,200 | 15 | 5 | 8 | 16 | 32 | 30 | 30 | 38 | 27 | 14 | 53 | 95 | 0,3 | 0.66 |
| DSR U 038 UP | UNC 3/8″-16 | 1,300 | 1,600 | 17 | 8 | 8 | 16 | 32 | 30 | 30 | 38 | 27 | 14 | 53 | 95 | 0,3 | 0.66 |
| DSR U 050 UP | UNC 1/2″-13 | 2,400 | 2,800 | 21 | 12 | 8 | 16 | 32 | 30 | 30 | 38 | 27 | 14 | 53 | 95 | 0,3 | 0.66 |
| DSR U 058 UP | UNC 5/8″-11 | 3,900 | 4,900 | 27 | 40 | 8 | 20 | 45 | 40 | 45 | 53 | 38 | 17 | 76 | 13 | 0,9 | 1.98 |
| DSR U 075 UP | UNC 3/4″-10 | 5,250 | 5,250 | 30 | 80 | 8 | 20 | 45 | 40 | 45 | 53 | 38 | 17 | 76 | 13 | 0,9 | 1.98 |
| DSR U 078 UP | UNC 7/8″-9 | 7,900 | 9,800 | 33 | 90 | 14 | 24 | 62 | 55 | 60 | 83 | 55 | 25 | 115 | 19 | 2,5 | 5.51 |
| DSR U 100 UP | UNC 1″-8 | 11,200 | 12,500 | 36 | 125 | 14 | 24 | 62 | 55 | 60 | 83 | 55 | 25 | 115 | 19 | 2,6 | 5.73 |
| DSR U 118 UP | UNC 1″ 1/8-7 | 11,500 | 13,000 | 42 | 160 | 14 | 24 | 62 | 55 | 60 | 83 | 55 | 25 | 115 | 19 | 2,6 | 5.73 |
| DSR U 125 UP | UNC 1″ 1/4-7 | 13,500 | 13,500 | 45 | 200 | 14 | 24 | 62 | 55 | 60 | 83 | 55 | 25 | 115 | 19 | 2,7 | 5.95 |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
