METRIC THREADS
Also Available in UNC

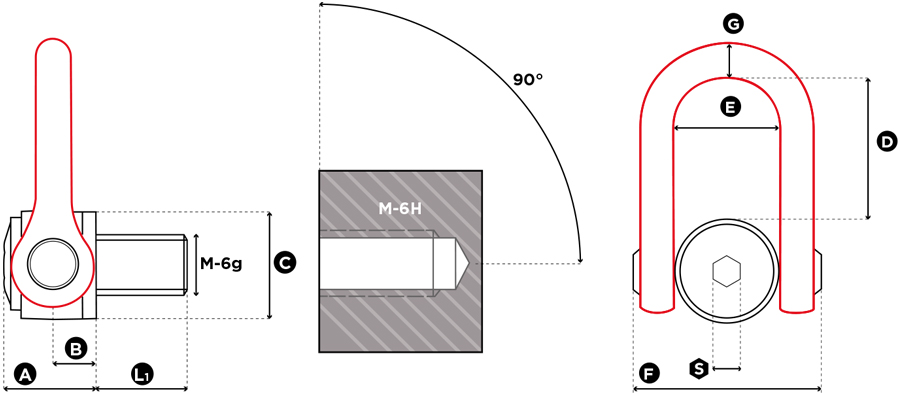

| Model Number | Diameter | SF 5:1 WLL (t) | SF 4:1 WLL (t) | Standard L1 (mm) | Torque (NM) | Dimensions (mm) | Weight | ||||||||
| S | A | B | C | D | E | F | G | (kg) | (lbs) | ||||||
| DSS M 24 UP | M 24 (x3) | 4,50 | 5,50 | 36 | 160 | 19 | 61 | 31 | 70 | 98 | 73 | 149 | 33 | 5,4 | 11.90 |
| DSS M 30 UP | M 30 (x3,5) | 7,70 | 8,50 | 45 | 250 | 19 | 61 | 31 | 70 | 98 | 73 | 149 | 33 | 5,5 | 12.13 |
| DSS M 36 UP | M 36 (x4) | 11,00 | 12,00 | 54 | 320 | 19 | 61 | 31 | 70 | 98 | 73 | 149 | 33 | 5,5 | 12.13 |
| DSS M 42 UP | M 42 (x4,5) | 13,00 | 15,00 | 63 | 400 | 19 | 61 | 31 | 70 | 98 | 73 | 149 | 33 | 5,8 | 12.79 |
| DSS M 48 UP | M 48 (x5) | 17,00 | 20,00 | 68 | 600 | 19 | 79 | 38 | 90 | 123 | 91 | 182 | 45 | 11,0 | 24.25 |
| DSS M 56 UP | M 56 (x5,5) | 22,00 | 25,00 | 78 | 600 | 19 | 79 | 38 | 90 | 123 | 91 | 182 | 45 | 11,3 | 24.91 |
| DSS M 64 UP | M 64 (x6) | 25,00 | 32,10 | 90 | 600 | 19 | 79 | 38 | 95 | 123 | 91 | 182 | 45 | 12,2 | 26.90 |
| DSS M 72 UP | M 72 (x6) | 22,00 | 25,00 | 90 | 600 | 19 | 79 | 38 | 95 | 123 | 91 | 182 | 45 | 14,0 | 30.86 |
| DSS M 80 UP | M 80 (x6) | 25,00 | 32,10 | 90 | 600 | 19 | 79 | 38 | 100 | 123 | 91 | 182 | 45 | 15,0 | 33.07 |
| DSS M 90 UP | M 90 (x6) | 25,00 | 32,10 | 90 | 600 | 19 | 79 | 38 | 100 | 123 | 91 | 182 | 45 | 15,5 | 34.17 |
| DSS M 100 UP | M 100(x6) | 25,00 | 32,10 | 90 | 600 | 19 | 79 | 38 | 110 | 123 | 91 | 182 | 45 | 16,5 | 36.38 |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
