UNC THREADS
Also Available in Metric

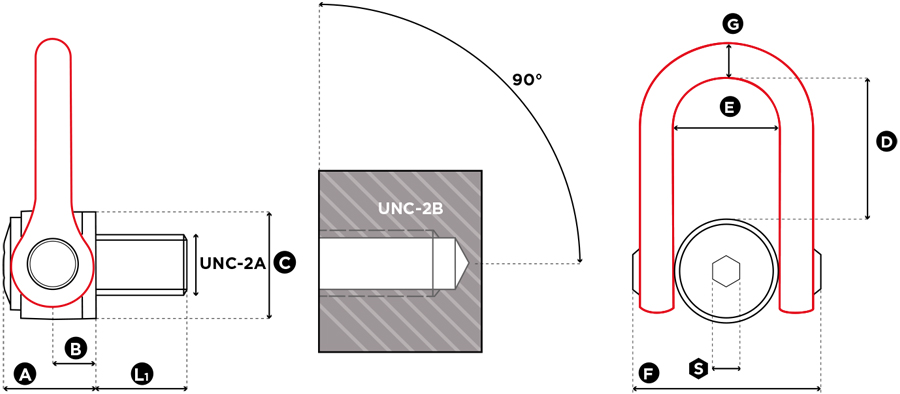

| Model Number | Diameter | SF 5:1 WLL (lbs) | SF 4:1 WLL (lbs) | Standard L1 (mm) | Torque (ft-lb) | Dimensions (mm) | Weight | ||||||||
| S | A | B | C | D | E | F | G | (kg) | (lbs) | ||||||
| MEGA.DSS U 275 UP | UNC 2″ 3/4-4 | 66,000 | 77,000 | 105 | 520 | 36 | 127 | 64 | 140 | 186 | 143 | 278 | 69 | 42,5 | 93.70 |
| MEGA.DSS U 300 UP | UNC 3″ -4 | 77,000 | 88,000 | 115 | 520 | 36 | 127 | 64 | 140 | 186 | 143 | 278 | 69 | 43 | 94.80 |
| MEGA.DSS U 325 UP | UNC 3″ 1/4-4 | 88,000 | 110,000 | 125 | 590 | 36 | 127 | 64 | 140 | 186 | 143 | 278 | 69 | 44,5 | 98.11 |
| MEGA.DSS U 350 UP | UNC 3″ 1/2-4 | 88,000 | 110,000 | 135 | 665 | 36 | 127 | 64 | 140 | 186 | 143 | 278 | 69 | 46 | 101.41 |
| MEGA.DSS U 375 UP | UNC 3″ 3/4-4 | 110,000 | 132,000 | 145 | 740 | 36 | 127 | 64 | 140 | 186 | 143 | 278 | 69 | 47 | 103.62 |
| MEGA.DSS U 400 UP | UNC 4″ -4 | 132,000 | 154,000 | 150 | 740 | 36 | 127 | 64 | 140 | 186 | 143 | 278 | 69 | 49 | 108.03 |
