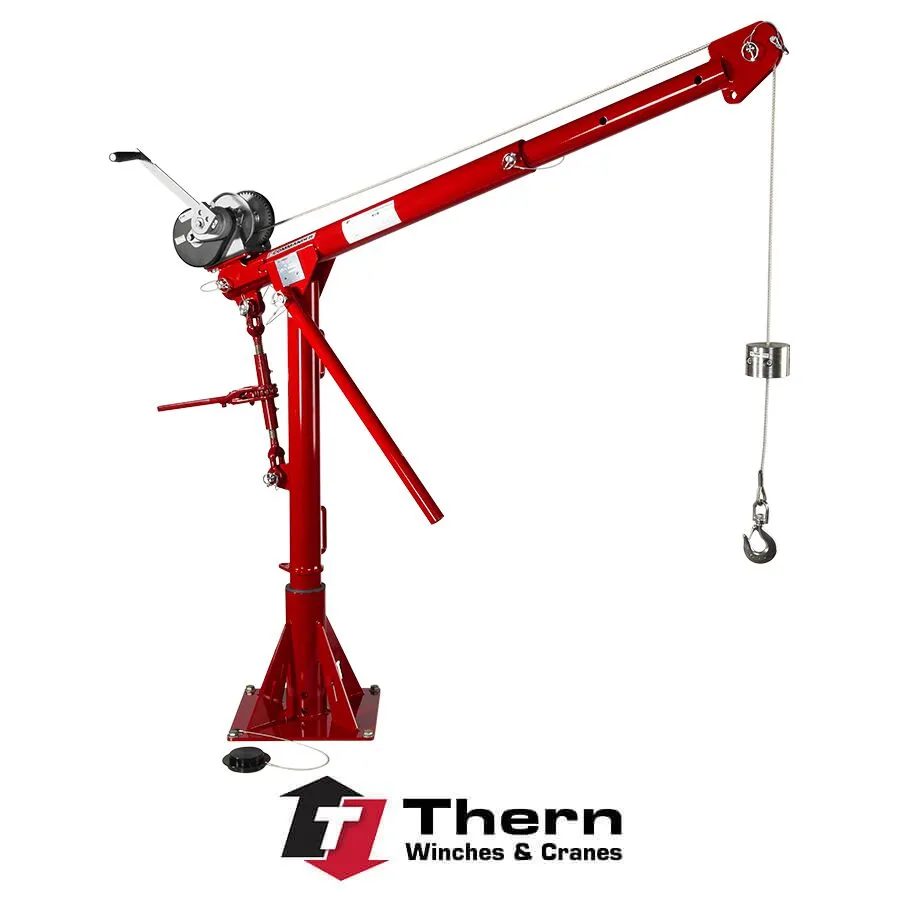

Commander 1000 — Model 5PT10 crane with 4WM2-K red, worm gear hand winch and 5BP10 pedestal base.
Our workhorse crane for mid-range loads, easy to carry when disassembled, and includes an adjustable boom to reach a wide range of height and reach combinations.

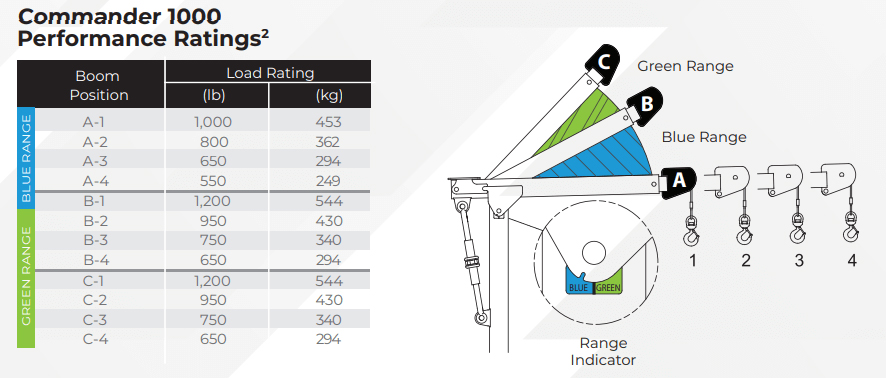

Quick Facts
Series Models
Commander 1000

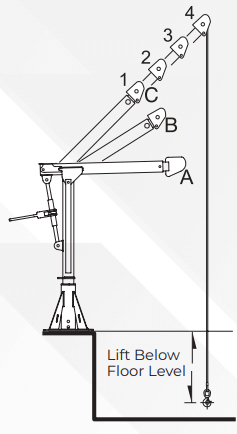

Lift Below Floor2 Level
| Lift Below Floor2 |
Wire Rope Diameter |
Wire Rope Length |
Winch Configurations Maximum Winch Rating |
||||||||||||||
| Minimum (C4) | Maximum (C1) | M1 | M2 | M3 | E2 | E4 | |||||||||||
| (ft) | (m) | (ft) | (m) | (in) | (mm) | (ft) | (m) | (lbs) | (kg) | (lbs) | (kg) | (lbs) | (kg) | (lbs) | (kg) | (lbs) | (kg) |
| 2 | 0.6 | 7 | 2.1 | 3/16″ | 5 | 20 | 6.0 | 1,200 | 544 | — | — | 1,200 | 544 | — | — | 1,200 | 544 |
| 10 | 3.0 | 15 | 4.5 | 3/16″ | 5 | 28 | 8.5 | 1,200 | 544 | — | — | 1,200 | 544 | — | — | 1,200 | 544 |
| 18 | 5.4 | 23 | 7.0 | 3/16″ | 5 | 36 | 10.9 | 1,200 | 544 | — | — | 1,200 | 544 | — | — | 1,200 | 544 |
| 27 | 8.2 | 32 | 9.7 | 3/16″ | 5 | 45 | 13.7 | 1,200 | 544 | — | — | 1,200 | 544 | — | — | 1,200 | 544 |
| 42 | 12.8 | 47 | 14.3 | 3/16″ | 5 | 60 | 18.2 | 1,200 | 544 | — | — | 1,200 | 544 | — | — | 1,200 | 544 |
| 57 | 17.3 | 62 | 18.8 | 3/16″ | 5 | 75 | 22.8 | 1,200 | 544 | — | — | 1,200 | 544 | — | — | 1,200 | 544 |
| 72 | 21.9 | 77 | 23.4 | 3/16″ | 5 | 90 | 27.4 | 1,200 | 544 | — | — | 1,200 | 544 | — | — | 1,200 | 544 |
| 102 | 31.0 | 107 | 32.6 | 3/16″ | 5 | 120 | 36.5 | — | — | — | — | — | — | — | — | 1,200 | 544 |
| 2 | 0.6 | 7 | 2.1 | 1/4″ | 6 | 20 | 6.0 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 |
| 10 | 3.0 | 15 | 4.5 | 1/4″ | 6 | 28 | 8.5 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 |
| 18 | 5.4 | 23 | 7.0 | 1/4″ | 6 | 36 | 10.9 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 |
| 27 | 8.2 | 32 | 9.7 | 1/4″ | 6 | 45 | 13.7 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 |
| 42 | 12.8 | 47 | 14.3 | 1/4″ | 6 | 60 | 18.2 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 |
| 57 | 17.3 | 62 | 18.8 | 1/4″ | 6 | 75 | 22.8 | — | — | 1,200 | 544 | — | — | 1,200 | 544 | 1,200 | 544 |
| 72 | 21.9 | 77 | 23.4 | 1/4″ | 6 | 90 | 27.4 | — | — | — | — | — | — | — | — | 1,200 | 544 |
| 102 | 31.0 | 107 | 32.6 | 1/4″ | 6 | 120 | 36.5 | — | — | — | — | — | — | — | — | — | — |
| 2 | 0.6 | 7 | 2.1 | 5/16″ | 8 | 20 | 6.0 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 |
| 10 | 3.0 | 15 | 4.5 | 5/16″ | 8 | 28 | 8.5 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 |
| 18 | 5.4 | 23 | 7.0 | 5/16″ | 8 | 36 | 10.9 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 |
| 27 | 8.2 | 32 | 9.7 | 5/16″ | 8 | 45 | 13.7 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 | 1,200 | 544 |
| 42 | 12.8 | 47 | 14.3 | 5/16″ | 8 | 60 | 18.2 | — | — | — | — | — | — | — | — | 1,200 | 544 |
| 57 | 17.3 | 62 | 18.8 | 5/16″ | 8 | 75 | 22.8 | — | — | — | — | — | — | — | — | — | — |
| 72 | 21.9 | 77 | 23.4 | 5/16″ | 8 | 90 | 27.4 | — | — | — | — | — | — | — | — | — | — |
| 102 | 31.0 | 107 | 32.6 | 5/16″ | 8 | 120 | 36.5 | — | — | — | — | — | — | — | — | — | — |
1Lift below floor level varies depending on boom position and base configuration. For longer lifts, please contact factory.
2Performance characteristics are for standard products referred to in this manual. Non-standard products may vary from the original design. Contact Thern, Inc. for this information.
3Wire rope assemblies include a hook and a swaged-ball fitting to work with quick-disconnect anchor on winches and 316SS wire rope is also available. Please contact the factory.

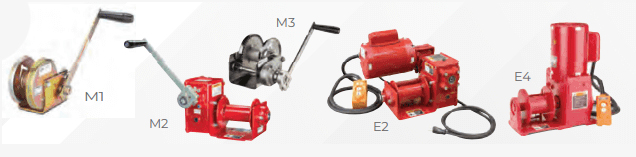

Winch Configurations
Welded Steel Construction
Crane boom, mast and base fabricated from heavy duty welded constructed structural steel pipe and tubing that limits deflection and meets ASTM standards.
Adjustable Boom
Boom extends to four positions with quick-release pin and adjusts angle with ratchet.
Manual or Power Operation
Thern davit cranes can be configured with a manual winch for short, infrequent lifts or a power winch for longer lifts or heavier loads. Choose from Thern’s spur or worm gear hand winches or power winches with 115/1/60V as well as pneumatic, hydraulic or DC Volt power operation
Corrosion Resistant Finish
Electrostatic powder coated crane and stainless steel fasteners combine to resist corrosion in harsh environments. Other options available include: galvanized, stainless steel and epoxy finishes
Easy Assembly/Disassembly
Quick-release clevis style stainless steel pins allow for easy assembly and quick disassembly for transport or storage. No tools required.
Quick Disconnect Anchor
For quickly attaching or removing wire rope equipped with a swaged ball fitting. Allows the operator to leave the wire rope attached to the load at all times and simply remove the rope from the winch and attach to the optional wire rope keeper or cable reel.
Sheave Clevis Pin
The sheave clevis pin is D-Shaped to prevent the clevis pin from rotating when under light loads
Quick-Mount Winch Bracket
A variety of Thern winches can be attached to the bracket. After a winch is attached, the bracket is easily mounted (without tools) to the crane via quick-connect pins
Mast Cap
A cap on top of the mast helps keep weather and debris out of the mast.
Rotation Handle
The new rotation handle position does not interfere with the operation of the boom angle adjustment screw jack.
360º Rotation
Nylatron bearing allows smooth and easy 360° crane rotation under load.
Variety of Bases (sold separately)
Pedestal, flush and wall mount bases allow for a variety of mounting solutions and are easily installed to a variety of solid surfaces with anchor bolts or other fastening methods. Bases sold separately. Base cap included with lanyard keeps water and debris out of base when crane is removed.
Two-Year Warranty
Industry-leading two-year limited warranty on all our products. Learn more or register your products here.
