Commander 5PT20

Commander 5PT20

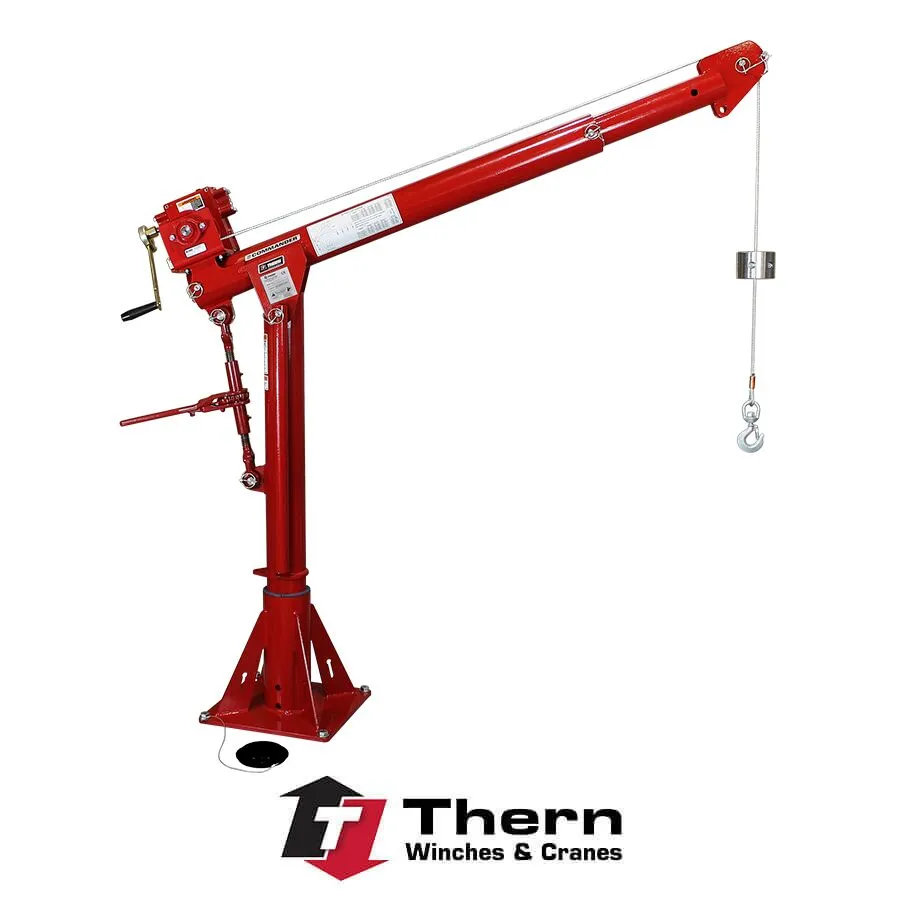

Commander 1000 — Model 5PT20 crane with 4WP2-K electric winch with 6′ pendant control and 5BP20 pedestal base.

Our largest fully portable crane, capable of handling larger loads with an adjustable boom for a full range of height and reach options, with only a 6″ concrete floor required.

Quick Facts

  • Load ratings up to 2,000 lbs (907 kg)
  • Rugged and affordable
  • Manual or power operation
  • Rotates 360º
  • Portable
  • No-tools assembly/disassembly
  • 5 Corrosion-resistant finishes
  • Variety of bases
  • 2-Year Standard Warranty

Series Models

  • SPT5
  • 5PT10
  • 5PT20

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

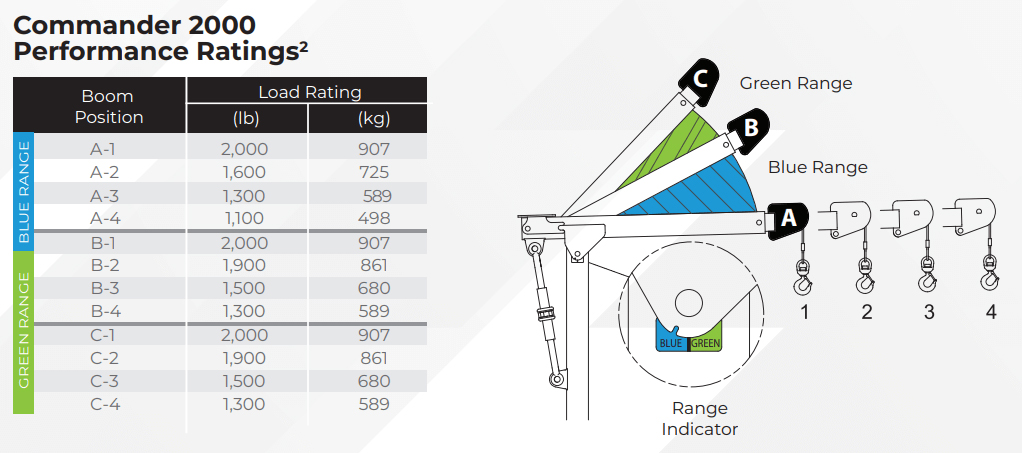

Commander 2000

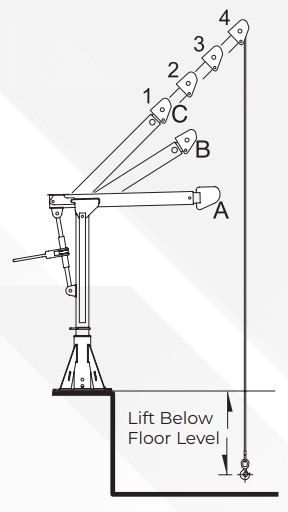

Lift Below Floor2 Level

Lift Below
Floor2		 Wire Rope
Diameter		 Wire Rope
Length		 Winch Configurations
Maximum Winch Rating
Minimum (C4) Maximum (C1) M1 M2 M3 E2 E4
(ft) (m) (ft) (m) (in) (mm) (ft) (m) (lbs) (kg) (lbs) (kg) (lbs) (kg) (lbs) (kg) (lbs) (kg)
0 0.0 5 1.5 1/4″ 6 20 6.0 2,000 907 2,000 907 2,000 907 2,000 907 2,000 907
8 2.4 13 3.9 1/4″ 6 28 8.5 1,800 816 1,700 771 1,800 816 1,700 771 1,800 816
16 4.8 21 6.4 1/4″ 6 36 10.9 1,800 816 1,700 771 1,800 816 1,700 771 1,600 725
25 7.6 30 9.1 1/4″ 6 45 13.7 1,600 725 1,500 680 1,600 725 1,500 680 1,600 725
40 12.1 45 13.7 1/4″ 6 60 18.2 1,400 635 1,300 589 1,400 635 1,300 589 1,400 635
55 16.7 60 18.2 1/4″ 6 75 22.8 — — 1,300 589 — — 1,300 589 1,300 589
70 21.3 75 22.8 1/4″ 6 90 27.4 — — — — — — — — 1,300 589
100 30.4 105 32.0 1/4″ 6 120 36.5 — — — — — — — — — —
0 0.0 5 1.5 5/16″ 8 20 6.0 1,900 861 1,900 861 1,900 861 1,900 861 1,900 861
8 2.4 13 3.9 5/16″ 8 28 8.5 1,600 725 1,600 725 1,600 725 1,600 725 1,700 771
16 4.8 21 6.4 5/16″ 8 36 10.9 1,400 635 1,400 635 1,400 635 1,400 635 1,500 680
25 7.6 30 9.1 5/16″ 8 45 13.7 1,300 589 1,400 635 1,300 635 1,400 635 1,500 680
40 12.1 45 13.7 5/16″ 8 60 18.2 — — — — — — — — 1,300 589
55 16.7 60 18.2 5/16″ 8 75 22.8 — — — — — — — — — —
70 21.3 75 22.8 5/16″ 8 90 27.4 — — — — — — — — — —
100 30.4 105 32.0 5/16″ 8 120 36.5 — — — — — — — — — —

1Lift below floor level varies depending on boom position and base configuration. For longer lifts, please contact factory.
2Performance characteristics are for standard products referred to in this manual. Non-standard products may vary from the original design. Contact Thern, Inc. for this information.
3Wire rope assemblies include a hook and a swaged-ball fitting to work with quick-disconnect anchor on winches, and 316SS wire rope is also available. Please contact the factory.

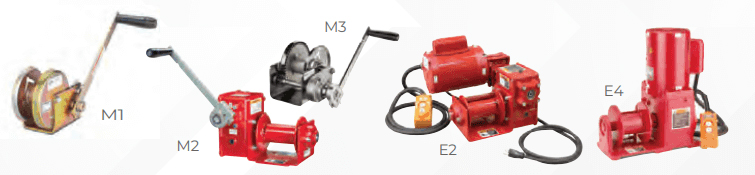

Winch Configurations

Welded Steel Construction
Crane boom, mast and base fabricated from heavy duty welded constructed structural steel pipe and tubing that limits deflection and meets ASTM standards.

Adjustable Boom
Boom extends to four positions with quick-release pin and adjusts angle with ratchet.

Manual or Power Operation
Thern davit cranes can be configured with a manual winch for short, infrequent lifts or a power winch for longer lifts or heavier loads. Choose from Thern’s spur or worm gear hand winches or power winches with 115/1/60V as well as pneumatic, hydraulic or DC Volt power operation.

Corrosion Resistant Finish
Electrostatic powder coated crane and stainless steel fasteners combine to resist corrosion in harsh environments. Other options available include: galvanized, stainless steel and epoxy finishes.

Easy Assembly/Disassembly
Quick-release clevis style stainless steel pins allow for easy assembly and quick disassembly for transport or storage. No tools required.

Quick Disconnect Anchor
For quickly attaching or removing wire rope equipped with a swaged ball fitting. Allows the operator to leave the wire rope attached to the load at all times and simply remove the rope from the winch and attach to the optional wire rope keeper or cable reel.

Sheave Clevis Pin
The sheave clevis pin is D-Shaped to prevent the clevis pin from rotating when under light loads

Quick-Mount Winch Bracket
A variety of Thern winches can be attached to the bracket. After a winch is attached, the bracket is easily mounted (without tools) to the crane via quick-connect pins

Mast Cap
A cap on top of the mast helps keep weather and debris out of the mast.

Rotation Handle
The new rotation handle position does not interfere with the operation of the boom angle adjustment screw jack.

360º Rotation
Nylatron bearing allows smooth and easy 360° crane rotation under load.

Variety of Bases (sold separately)
Pedestal, flush and wall mount bases allow for a variety of mounting solutions and are easily installed to a variety of solid surfaces with anchor bolts or other fastening methods. Bases sold separately. Base cap included with lanyard keeps water and debris out of base when crane is removed.

Two-Year Warranty
Industry-leading two-year limited warranty on all our products. Learn more or register your products here.
