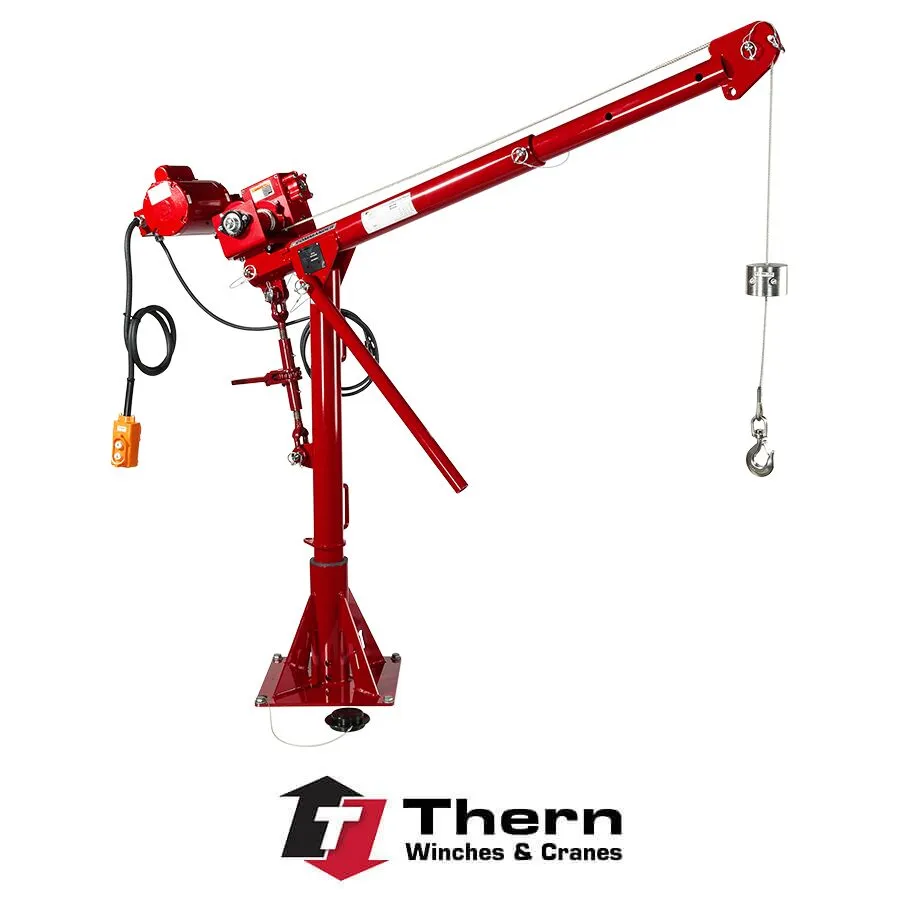

Commander 500 — Model 5PT5 crane
Match your crane to the size of your load! The world’s most popular line of portable davit cranes now offers all of the features you’ve come to appreciate in an even lighter model, perfect for smaller loads.
Quick Facts
Series Models
| Series | Imperial/Metric | |
| Description | Up to Capacity | |
| 5PT5G-M1 | Galvanized crane with M4022PB spur gear hand winch | 650lbs/ 294lkg |
| 5PT5-M2 | Powder-coat crane with 4WM2 worm gear hand winch | 650lbs/ 294klg |
| 5PT5G-M2 | Galvanized crane with 4WM2 worm gear hand winch | 650lbs/ 294kg |
| 5PT5S-M3 | Stainless-steel crane with M4042PBSS spur gear hand winch | 650lbs/ 294lkg |
| 5PT5-E2 | Powder-coat crane with 4WP2 electric winch | 650lbs/ 294kg |
| 5PT5S-E2X | Stainless-steel crane with gray epoxy 4WP2EGRA electric winch | 650lbs/ 294kg |
| Model | Description | Approx. Ship Wt. | |
| (lb) | (kg) | ||
| Popular Configurations | |||
| 5PT5-M1 | up to 650 lb capacity with M4022PB spur gear hand winch-powder-coat crane | 102 | 46 |
| 5PT5G-M1 | up to 650 lb capacity with M4022PB spur gear hand winch-galvanized crane | 102 | 46 |
| 5PT5-M2 | up to 650 lb capacity with 4WM2 worm gear hand winch-powder-coat crane | 123 | 56 |
| 5PT5G-M2 | up to 650 lb capacity with 4WM2 worm gear hand winch-galvanized crane | 123 | 56 |
| 5PT5S-M3 | up to 650 lb capacity with M4042PBSS spur gear hand winch-stainless-steel crane | 110 | 50 |
| 5PT5-E2 | up to 650 lb capacity with 4WP2 electric winch-powder-coat crane | 158 | 72 |
| Crane Only | |||
| 5PT5 | up to 650 lb capacity-base model-powder-coat finish | 86 | 39 |
| 5PT5G | up to 650 lb capacity-base model-galvanized finish | 86 | 39 |
| 5PT5S | up to 650 lb capacity-base model-304 stainless-steel finish | 86 | 39 |
| 5PT5S316 | up to 650 lb capacity-base model-316 stainless-steel finish | 86 | 39 |
| 5PT5X | up to 650 lb capacity-base model-epoxy-gray finish | 86 | 39 |
| Winch Only | |||
| M1 | M4022PB-spur gear hand winch only-black defender coating | 16 | 7 |
| M2 | 4WM2-worm gear hand winch only-powder coat | 37 | 17 |
| M2X | 4WM2EGRA-worm gear hand winch only-epoxy gray | 37 | 17 |
| M3 | M4042PBSS spur gear hand winch only-stainless steel | 24 | 11 |
| E2 | 4WP2 electric winch 115/1/60 VAC with 6 ft pendant control-enamel | 72 | 33 |
| E2X | 4WP2EGRA electric winch 115/1/60 VAC with 6 ft pendant control-epoxy gray | 72 | 33 |
| E4 | 4777 electric winch 115/1/60 VAC with 6 ft pendant control-enamel | 96 | 44 |
| E4X | 4777EGRA electric winch-115/1/60 VAC with 6 ft pendant control-epoxy gray | 96 | 44 |
| E4DC | 4777DC electric winch-12 volt DC with 10 ft pendant control-enamel | 114 | 52 |
| E4DCX | 4777DCEGRA electric winch-12 volt DC with 10 ft pendant control-epoxy gray | 114 | 52 |
Welded Steel Construction
Crane boom, mast and base fabricated from heavy duty welded constructed structural steel pipe and tubing that limits deflection and meets ASTM standards.
Adjustable Boom
Boom extends to four positions with quick-release pin and adjusts angle with ratchet.
Manual or Power Operation
Thern davit cranes can be configured with a manual winch for short, infrequent lifts or a power winch for longer lifts or heavier loads. Choose from Thern’s spur or worm gear hand winches or power winches with 115/1/60V as well as pneumatic, hydraulic or DC Volt power operation.
Corrosion Resistant Finish
Electrostatic powder coated crane and stainless steel fasteners combine to resist corrosion in harsh environments. Other options available include: galvanized, stainless steel and epoxy finishes.
Easy Assembly/Disassembly
Quick-release clevis style stainless steel pins allow for easy assembly and quick disassembly for transport or storage. No tools required.
Quick Disconnect Anchor
For quickly attaching or removing wire rope equipped with a swaged ball fitting. Allows the operator to leave the wire rope attached to the load at all times and simply remove the rope from the winch and attach to the optional wire rope keeper or cable reel.
Sheave Clevis Pin
The sheave clevis pin is D-Shaped to prevent the clevis pin from rotating when under light loads.
Quick-Mount Winch Bracket
A variety of Thern winches can be attached to the bracket. After a winch is attached, the bracket is easily mounted (without tools) to the crane via quick-connect pins
Mast Cap
A cap on top of the mast helps keep weather and debris out of the mast
Rotation Handle
The new rotation handle position does not interfere with the operation of the boom angle adjustment screw jack.
360º Rotation
Nylatron bearing allows smooth and easy 360° crane rotation under load.
Variety of Bases (sold separately)
Pedestal, flush and wall mount bases allow for a variety of mounting solutions and are easily installed to a variety of solid surfaces with anchor bolts or other fastening methods. Bases sold separately. Base cap included with lanyard keeps water and debris out of base when crane is removed.
Two-Year Warranty
Industry-leading two-year limited warranty on all our products. Learn more or register your products here.

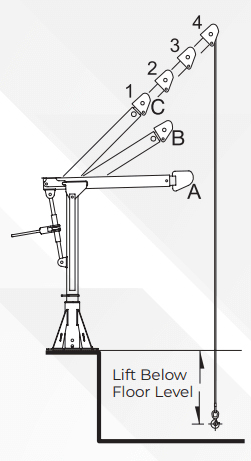

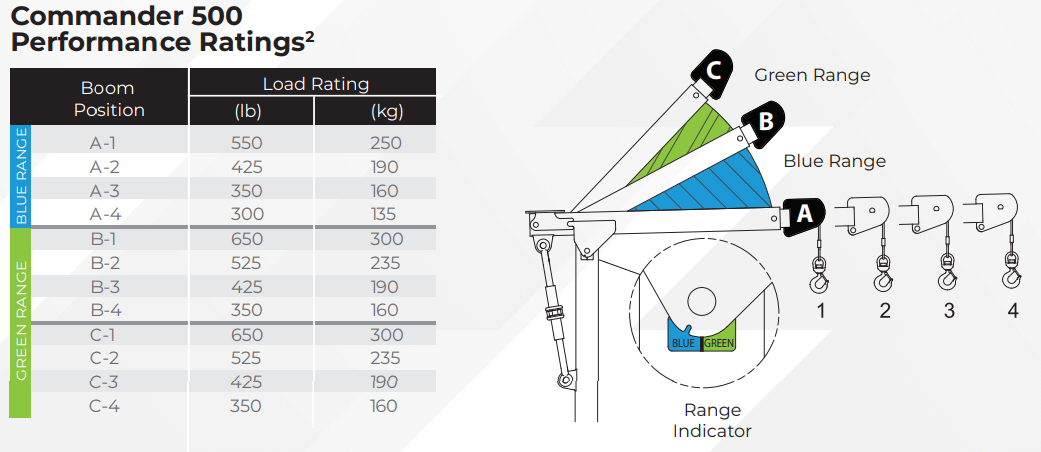

| Lift Below Floor2 |
Wire Rope Diameter |
Wire Rope Length |
Winch Configurations Maximum Winch Rating |
||||||||||||||
| Minimum (C4) | Maximum (C1) | M1 | M2 | M3 | E2 | E4 | |||||||||||
| (ft) | (m) | (ft) | (m) | (in) | (mm) | (ft) | (m) | (lbs) | (kg) | (lbs) | (kg) | (lbs) | (kg) | (lbs) | (kg) | (lbs) | (kg) |
| 2 | 0.6 | 7 | 2.1 | 3/16″ | 5 | 20 | 6.0 | 650 | 294 | — | — | 650 | 294 | — | — | 650 | 294 |
| 10 | 3.0 | 15 | 4.5 | 3/16″ | 5 | 28 | 8.5 | 650 | 294 | — | — | 650 | 294 | — | — | 650 | 294 |
| 18 | 5.4 | 23 | 7.0 | 3/16″ | 5 | 36 | 10.9 | 650 | 294 | — | — | 650 | 294 | — | — | 650 | 294 |
| 27 | 8.2 | 32 | 9.7 | 3/16″ | 5 | 45 | 13.7 | 650 | 294 | — | — | 650 | 294 | — | — | 650 | 294 |
| 42 | 12.8 | 47 | 14.3 | 3/16″ | 5 | 60 | 18.2 | — | — | — | — | 650 | 294 | — | — | 650 | 294 |
| 57 | 17.3 | 62 | 18.8 | 3/16″ | 5 | 75 | 22.8 | — | — | — | — | 650 | 294 | — | — | 650 | 294 |
| 72 | 21.9 | 77 | 23.4 | 3/16″ | 5 | 90 | 27.4 | — | — | — | — | 640 | 290 | — | — | 650 | 294 |
| 102 | 31.0 | 107 | 32.6 | 3/16″ | 5 | 120 | 36.5 | — | — | — | — | — | — | — | — | 650 | 294 |
| 2 | 0.6 | 7 | 2.1 | 1/4″ | 6 | 20 | 6.0 | — | — | 650 | 294 | 650 | 294 | 650 | 294 | 650 | 294 |
| 2 | 3.0 | 15 | 4.5 | 1/4″ | 6 | 28 | 8.5 | — | — | 650 | 294 | 650 | 294 | 650 | 294 | 650 | 294 |
| 18 | 5.4 | 23 | 7.0 | 1/4″ | 6 | 36 | 10.9 | — | — | 650 | 294 | 650 | 294 | 650 | 294 | 650 | 294 |
| 27 | 8.2 | 32 | 9.7 | 1/4″ | 6 | 45 | 13.7 | — | — | 650 | 294 | 650 | 294 | 650 | 294 | 650 | 294 |
| 42 | 12.8 | 47 | 14.3 | 1/4″ | 6 | 60 | 18.2 | — | — | 650 | 294 | 600 | 2972 | 650 | 294 | 650 | 294 |
| 57 | 17.3 | 62 | 18.8 | 1/4″ | 6 | 75 | 22.8 | — | — | 650 | 294 | — | — | 650 | 294 | 650 | 294 |
| 72 | 21.9 | 77 | 23.4 | 1/4″ | 6 | 90 | 27.4 | — | — | — | — | — | — | — | — | 650 | 294 |
| 102 | 31.0 | 107 | 32.6 | 1/4″ | 6 | 120 | 36.5 | — | — | — | — | — | — | — | — | — | — |

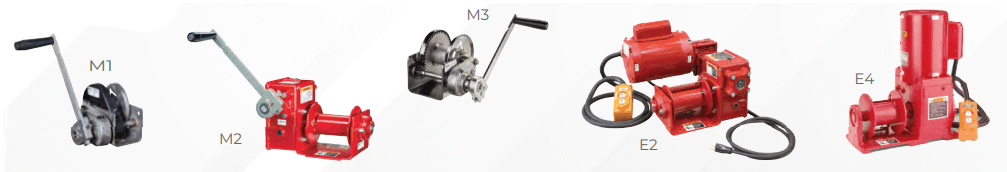

Winch Configurations
