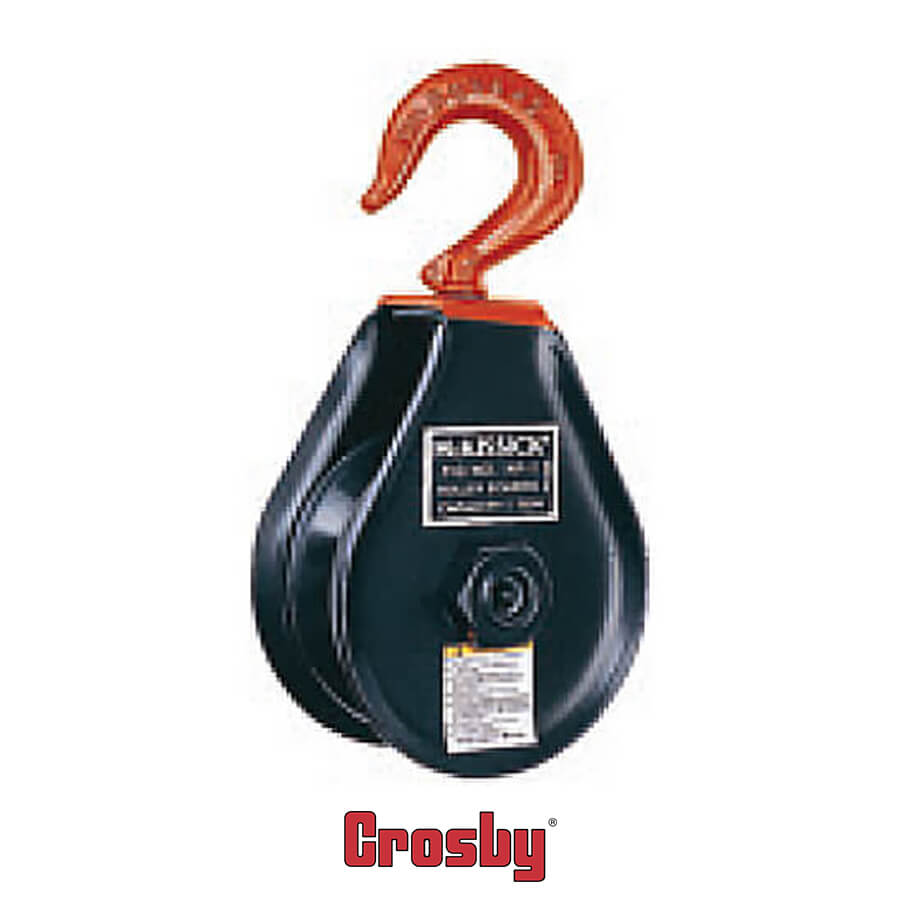

Crosby® 161 HF-1 Hay Fork Pulleys with Swivel Hook

Crosby® 161 HF-1 Hay Fork Pulleys with Swivel Hook

161 HF-1 With Swivel Hook

      • One piece pressed steel shells.
      • Edges well rounded to prevent chaffing of rope.
      • Forged steel eyes and hooks.
      • Can be furnished with SS-4055 hook latch.
      • Furnished with roller bearings.
      • Pressure lube fittings
      • Available Painted or Zinc Plated.

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Sheave Diameter & Block No. Painted Zinc Plated Working Load Limit* (tons) Standard Rope Size (in.) End Fitting Weight Each (in.)
CERTEX Cat. Ref. No. Crosby Stock No. CERTEX Cat. Ref. No. Crosby Stock No
4 1/2″ HF-1 CX13-0291 170022 CX13-0300 170594 1 1 1/4 MR Swivel Hook 6
4 1/2” HF-2 CX13-0292 170086 CX13-0301 170629 1 1 1/4 MR Swivel Eye 6
4 1/2″ HF-3 CX13-0293 170148 CX13-0302 170656 1 1/2 WL Swivel Hook 6
4 1/2″ HF-4 CX13-0294 170200 CX13-0303 170683 1 1/2 WL Swivel Eye 6
8″ HF-5 CX13-0295 170264 CX13-0304 170718 2 1/2 WL Swivel Eye 11
6″ HF-11 CX13-0296 170380 CX13-0305 170745 2 1 1/2 MR Swivel Hook 11
6″ HF-12 CX13-0297 170442 CX13-0306 170763 2 1 1/2 MR Swivel Eye 11
6″ HF-13 CX13-0298 170503 CX13-0307 170781 2 5/B WL Swivel Hook 11
6″ HF-14 CX13-0299 170567 CX13-0308 170807 2 5/B WL Swivel Eye 11

* Ultimate Load is 4 times the Working Load Limit.
Rope Code: MR – Manila Rope, WL – Wire Line

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
