Crosby® 443 Lay Down Blocks

Crosby® 443 Lay Down Blocks

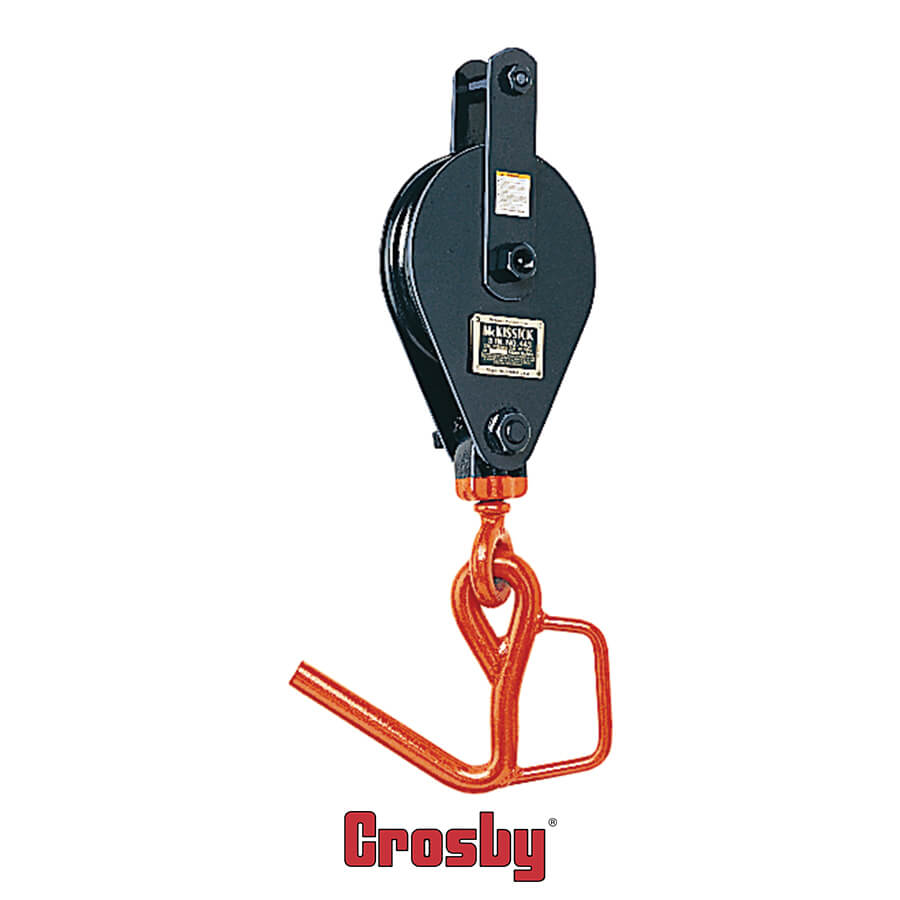

443 Lay Down Block

      • Used to lay down drill pipe.
      • All steel construction, steel sheaves mounted on antifriction bearings, grooved for maximum of 3/4” wire line.
      • Hook made to fit into end of drill pipe, handy dead end becket for returning block — hooks have handle for disengagement.
Sheave Diameter & Block No. CERTEX Cat. Ref. No Crosby Stock No. Working Load Limit* (tons) Wire Rope Size (in.) Weight Each (lbs.) Type Block
4 1/2” 443 CX13-0313 171414 1/4 1/2 12 Regular
6” 443 CX13-0314 171432 1/4 3/4 17 Regular



* Ultimate Load is 4 times the Working Load Limit.



WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
